Order Blocks Volume indicator

Order Blocks Volume indicator

Introduction

Order Blocks are critical concepts in technical analysis that help traders identify key areas where major market players have conducted significant buying or selling activities. These order blocks represent price levels at which there has been significant consolidation by institutional operators before a substantial price change. Identifying these can be crucial for determining efficient entry and exit points.

Theory of Order Blocks

An Order Block is essentially an accumulation of buy or sell orders that occur within a compact price range and can signal future price direction. These blocks are primarily categorized into two types:

  • Bullish Order Block: Forms after a downward movement, indicating an area where prices may be undervalued and where buyers might start to dominate.
  • Bearish Order Block: Develops after an upward movement and suggests an area where prices might be overvalued, attracting sellers.

The formation of these blocks indicates a pause before the market makes a significant move, making them strategic points for trading operations. There are several methodologies to calculate Order Blocks:

  • Volume-based pivots: Identify blocks where there is a significant increase in volume, suggesting an accumulation of orders.
  • Price-based pivots: Use price extremes to identify zones where the price has reacted strongly, suggesting a possible order accumulation.
  • Combination of volume and price: Analyzes both changes in volume and price for a more robust signal.

In the provided code, a volume-based pivot approach is used, where a peak in volume coinciding with a price direction change indicates the formation of an Order Block.

Indicator Configuration

The Order Block Detector indicator uses several settings to identify and visualize these important market levels:

  • length: Defines the number of bars to consider to identify a volume peak or trough, essential for determining an “Order Block”.
  • bullextlast and bearextlast: Set the number of bullish or bearish blocks to display, respectively.
  • mitigation: Decides whether the block is evaluated by the closing price or by the wick’s extreme, affecting the accuracy of the detected block.

Code of the Indicator

The code for ProRealTime facilitates the automatic implementation of the Order Block Detector. The script is designed to analyze market data and highlight areas where Order Blocks may be forming. It uses a combination of volume and price comparisons to detect these critical levels.

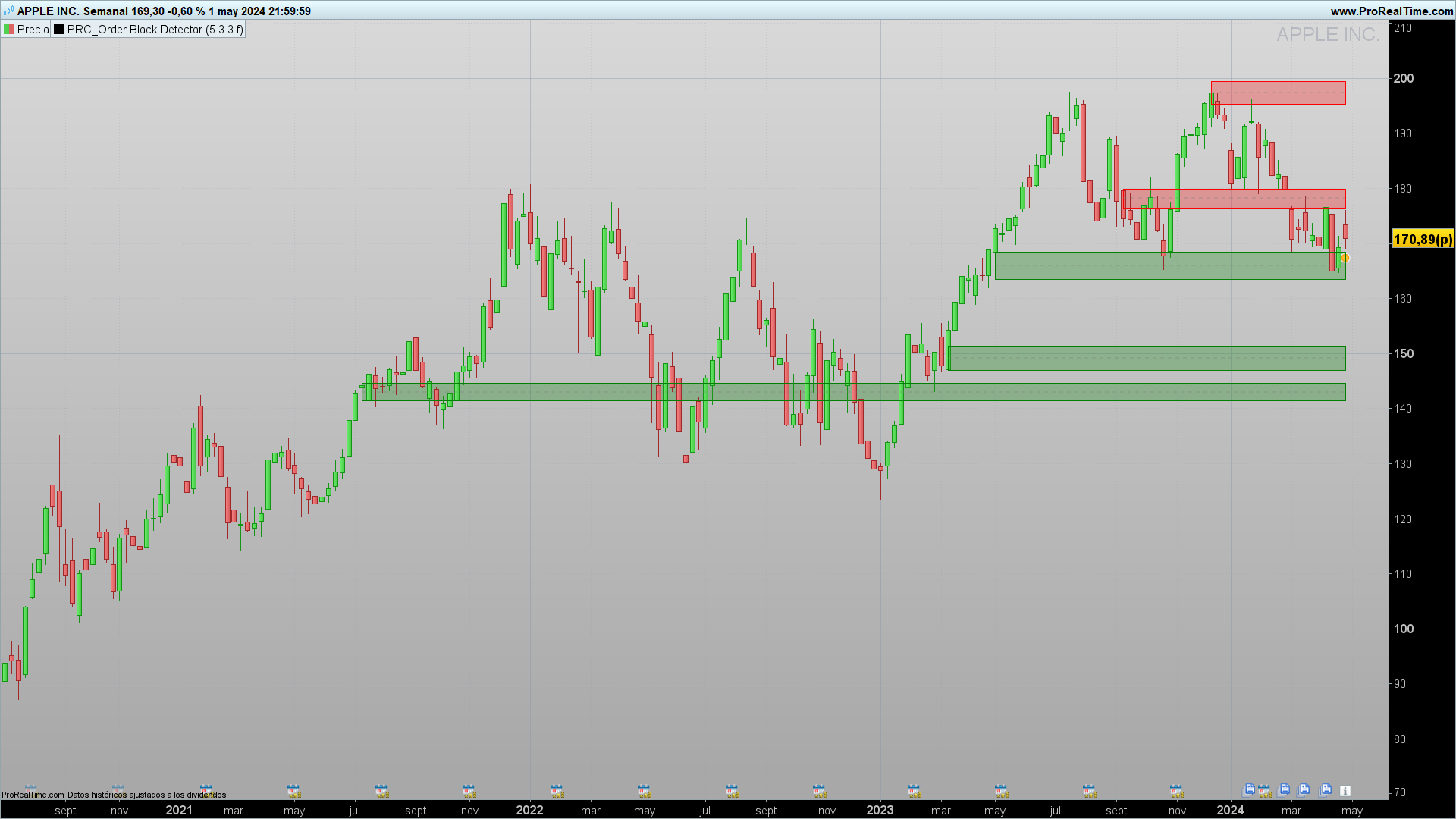

Interpretation of Results

Interpreting detected Order Blocks is straightforward: a bullish block suggests a potential support area and an entry point for long positions, while a bearish block indicates resistance and an entry point for short positions. The trader should observe these blocks in conjunction with other technical analysis signals to validate and strengthen trading decisions.

Conclusions

Order Blocks are powerful tools for any technical trading arsenal. Their correct identification and analysis can provide traders with a significant advantage, offering entry and exit points based on the historical activity of the market’s most influential operators. With practice and integration of this indicator, traders can significantly improve their accuracy and operational efficiency.

Share this

Risk disclosure:

No information on this site is investment advice or a solicitation to buy or sell any financial instrument. Past performance is not indicative of future results. Trading may expose you to risk of loss greater than your deposits and is only suitable for experienced investors who have sufficient financial means to bear such risk.

ProRealTime ITF files and other attachments : How to import ITF files into ProRealTime platform?

PRC is also on YouTube, subscribe to our channel for exclusive content and tutorials

  1. Ciccarelli Franco • 327 days ago #

    Scusa, mi sembra molto simile al precedente indicatore postato da te “Demand/Supply Zone” , oppure sono diversi e io non capisco la differenza.
    Grazie

    • Iván • 327 days ago #

      Una differenza importante è che questo indicatore calcola i blocchi in base ai punti di rotazione del volume.

  2. Ciccarelli Franco • 327 days ago #

    E quindi dovrebbe essere più preciso nell’indicare le zone?

    • Iván • 324 days ago #

      No, semplicemente diverso

  3. soulintact • 326 days ago #

    Estimado Iván, gracias por publicar estos indicadores, ¡gran trabajo! Dos indicadores que realmente echo de menos de TradingView son: Chandelier Exit de Alex Orekhov y Nadaraya-Watson Envelope de LuxAlgo. Incluyo los códigos por si te gustaría programarlos en PRT, ¡gracias!

    //………………………………………………………………………………………………………………..//

    //@version=5
    // Copyright (c) 2019-present, Alex Orekhov (everget)
    // Chandelier Exit script may be freely distributed under the terms of the GPL-3.0 license.
    indicator(‘Chandelier Exit’, shorttitle=’CE’, overlay=true)

    var string calcGroup = ‘Calculation’
    length = input.int(title=’ATR Period’, defval=22, group=calcGroup)
    mult = input.float(title=’ATR Multiplier’, step=0.1, defval=3.0, group=calcGroup)
    useClose = input.bool(title=’Use Close Price for Extremums’, defval=true, group=calcGroup)

    var string visualGroup = ‘Visuals’
    showLabels = input.bool(title=’Show Buy/Sell Labels’, defval=true, group=visualGroup)
    highlightState = input.bool(title=’Highlight State’, defval=true, group=visualGroup)

    var string alertGroup = ‘Alerts’
    awaitBarConfirmation = input.bool(title=”Await Bar Confirmation”, defval=true, group=alertGroup)

    atr = mult * ta.atr(length)

    longStop = (useClose ? ta.highest(close, length) : ta.highest(length)) – atr
    longStopPrev = nz(longStop[1], longStop)
    longStop := close[1] > longStopPrev ? math.max(longStop, longStopPrev) : longStop

    shortStop = (useClose ? ta.lowest(close, length) : ta.lowest(length)) + atr
    shortStopPrev = nz(shortStop[1], shortStop)
    shortStop := close[1] shortStopPrev ? 1 : close math.exp(-(math.pow(x, 2)/(h * h * 2)))

    //—————————————————————————–}
    //Append lines
    //—————————————————————————–{
    n = bar_index

    var ln = array.new_line(0)

    if barstate.isfirst and repaint
    for i = 0 to 499
    array.push(ln,line.new(na,na,na,na))

    //—————————————————————————–}
    //End point method
    //—————————————————————————–{
    var coefs = array.new_float(0)
    var den = 0.

    if barstate.isfirst and not repaint
    for i = 0 to 499
    w = gauss(i, h)
    coefs.push(w)

    den := coefs.sum()

    out = 0.
    if not repaint
    for i = 0 to 499
    out += src[i] * coefs.get(i)
    out /= den
    mae = ta.sma(math.abs(src – out), 499) * mult

    upper = out + mae
    lower = out – mae

    //—————————————————————————–}
    //Compute and display NWE
    //—————————————————————————–{
    float y2 = na
    float y1 = na

    nwe = array.new(0)
    if barstate.islast and repaint
    sae = 0.
    //Compute and set NWE point
    for i = 0 to math.min(499,n – 1)
    sum = 0.
    sumw = 0.
    //Compute weighted mean
    for j = 0 to math.min(499,n – 1)
    w = gauss(i – j, h)
    sum += src[j] * w
    sumw += w

    y2 := sum / sumw
    sae += math.abs(src[i] – y2)
    nwe.push(y2)

    sae := sae / math.min(499,n – 1) * mult
    for i = 0 to math.min(499,n – 1)
    if i%2
    line.new(n-i+1, y1 + sae, n-i, nwe.get(i) + sae, color = upCss)
    line.new(n-i+1, y1 – sae, n-i, nwe.get(i) – sae, color = dnCss)

    if src[i] > nwe.get(i) + sae and src[i+1] < nwe.get(i) + sae
    label.new(n-i, src[i], '▼', color = color(na), style = label.style_label_down, textcolor = dnCss, textalign = text.align_center)
    if src[i] nwe.get(i) – sae
    label.new(n-i, src[i], ‘▲’, color = color(na), style = label.style_label_up, textcolor = upCss, textalign = text.align_center)

    y1 := nwe.get(i)

    //—————————————————————————–}
    //Dashboard
    //—————————————————————————–{
    var tb = table.new(position.top_right, 1, 1
    , bgcolor = #1e222d
    , border_color = #373a46
    , border_width = 1
    , frame_color = #373a46
    , frame_width = 1)

    if repaint
    tb.cell(0, 0, ‘Repainting Mode Enabled’, text_color = color.white, text_size = size.small)

    //—————————————————————————–}
    //Plot
    //—————————————————————————–}
    plot(repaint ? na : out + mae, ‘Upper’, upCss)
    plot(repaint ? na : out – mae, ‘Lower’, dnCss)

    //Crossing Arrows
    plotshape(ta.crossunder(close, out – mae) ? low : na, “Crossunder”, shape.labelup, location.absolute, color(na), 0 , text = ‘▲’, textcolor = upCss, size = size.tiny)
    plotshape(ta.crossover(close, out + mae) ? high : na, “Crossover”, shape.labeldown, location.absolute, color(na), 0 , text = ‘▼’, textcolor = dnCss, size = size.tiny)

    //—————————————————————————–}

    • Iván • 324 days ago #

      Hola
      Claro, no hay problema pero necesito que lo hagas a través de aquí: https://www.prorealcode.com/free-code-conversion/
      Si puedes compartir una imagen del indicador sería de gran ayuda

  4. Quino • 325 days ago #

    Félicitation Yvan.
    Cet indicateur est le plus intéressant et le plus pertinent que j’ai vu depuis longtemps. Il apporte une information précieuse sur la probabilité de réussite au moment de placer un trade short ou long. Il a une capabilité de prédiction sur l’évolution d’un cours bien meilleure que bien d’autres indicateur.

  5. roccafragius • 319 days ago #

    Felicitaciones Ivan, este indicador me parece muy útil y mucho más rápido que las zonas de oferta y demanda publicadas en el pasado en PRT. Estoy intentando usarlo para crear una estrategia automática de entrada y salida, pero no puedo entender en la barra actual si estoy cerca de un bloque rojo (posible cierre corto o largo) o cerca de una banda verde (posible cierre largo o corto). ¿Podrías crear una estrategia de entrada sobre esta base, para que luego cada uno pueda añadir otros filtros de entrada según su propia filosofía? ¡¡¡Gracias de antemano!!! Franco

  6. roccafragius • 317 days ago #

    Congratulations Ivan, this indicator seems to me to be very useful and much quicker than the offer and demand areas published in the past on PRT. I’m trying to use it to create an automatic entry and exit strategy, but I can’t read it in the actual bar if I’m looking for a red block (possible short or wide lock) or looking for a green band (possible wide or short lock). Could we create an entry strategy on this basis, so that at some point one can add other entry filters according to one’s philosophy? ¡¡¡Thanks in advance!!! Franco

  7. giumagi • 317 days ago #

    Hi Ivan …GREAT! thank you

  8. Regisnew • 313 days ago #

    Hello Ivan, thank you for your good work, is it possible to create a sceener to find actions with close inside the green or red bock?

    • Iván • 313 days ago #

      Hi! Yes it’s possible. I will add this to my list of tasks to do 🙂

  9. Regisnew • 312 days ago #

    finaly the screener could be something like this for green blocks but it probably could be better
    //////
    length = 5 //Volume Pivot Length
    bullextlast = 3 //Bullish OB

    mitigation = 0 //0=Wick 1=Close
    //———————————————————————-//
    //—–Global elements————————————————–//

    upper = highest[length](high)
    lower = lowest[length](low)

    if mitigation then
    targetbull = lowest[length](close)

    else
    targetbull = lower

    endif

    if high[length] > upper then
    os = 0
    elsif low[length] < lower then
    os = 1
    else
    os = os[1]
    endif
    //———————————————————————-//
    //—–Pivot Points – Volume——————————————–//
    if volume < volume[length] and highest[length](volume)highest[length](volume)[length+1] then
    $phvol[t+1]=volume[length]
    $phvolx[t+1]=barindex[length]
    t=t+1
    endif
    phv = $phvol[t]
    //———————————————————————-//
    //—–Get bullish/bearish order blocks coordinates———————//
    //—–Bullish OB
    if isset($phvol[t]) and phvphv[1] and os=1 then
    $bulltop[m+1] = (high[length]+low[length])/2
    $bullbtm[m+1] = low[length]
    $bullavg[m+1] = ((high[length]+low[length])/2+low[length])/2
    $bullleft[m+1] = barindex-length
    $bullob[m+1] = low[length]
    m=m+1
    endif
    //—–Remove mitigated order blocks————————————//
    if islastbarupdate then
    //—–Set only last x Bullish OB not mitigated
    t=0
    inside = 0
    zone = 0
    for i=m downto 0 do
    if targetbull > $bullbtm[i] then
    $bullishTOP[T+1] = $bulltop[i]
    $bullishBOT[T+1] = $bullbtm[i]
    $bullishAVG[T+1] = $bullavg[i]
    $bullishLEFT[T+1] = $bullleft[i]
    t=t+1
    Zone = 1
    if close > min($bullishTOP [t],$bullishBOT[T]) and close = bullextlast then
    break
    endif
    endif
    next
    endif
    //———————————————————————-//
    screener [Zone = 1 and inside = 1]

  10. efahmy • 204 days ago #

    the support and resistance colors become darker and darker with the time, could you please change that and make it fixed and even better if it is light colors

    • Iván • 204 days ago #

      Hi. You can change colors in lines 75,76,91,92

  11. Ciccarelli Franco • 73 days ago #

    Ciao Ivan, ti faccio ancora una domanda e precisamente “Quanti blocchi visualizzare per avere una corretta indicazione”
    Grazie

    • Iván • 72 days ago #

      Buongiorno.
      In genere lavoro con la configurazione predefinita, 3 supporti e 3 resistenze, anche se è vero che a volte ne servono di più.

  12. Dron • 63 days ago #

    Gracias por su valiosa aportacion

  13. marcov66 • 10 days ago #

    Holá Ivan! Complimenti per l´indicatore! Secondo te con la nuova V12 avendo ora a disposizione Volume profile, POC, VA e Cumulative Volume Delta, si potrebbe creare un indicatore tipo “Order Flow”? Grazie

    • Iván • 9 days ago #

      Grazie! In realtà, anche se gli indicatori di cui parli sono presenti nella nuova versione, non possiamo utilizzarli nel codice.
      Se volessimo farlo, dovremmo programmarlo noi stessi.

  14. marcov66 • 9 days ago #

    Infatti, il Volume profile, il POC, le VA il CVD sono finalmente disponibili su PRT V12. Secondo te, sarebbe possibile programmare (anche pagando :)) un indicatore tipo Order Flow? Grazie M
