15 Min High -Low Range on 1 Min chart

• 09/04/2019 at 10:29 AM #106452
  TraderS

  Hi,

  I am not a programmer and looking for help to create an indicator to plot 15 minutes high-low range on a 1-minute chart.

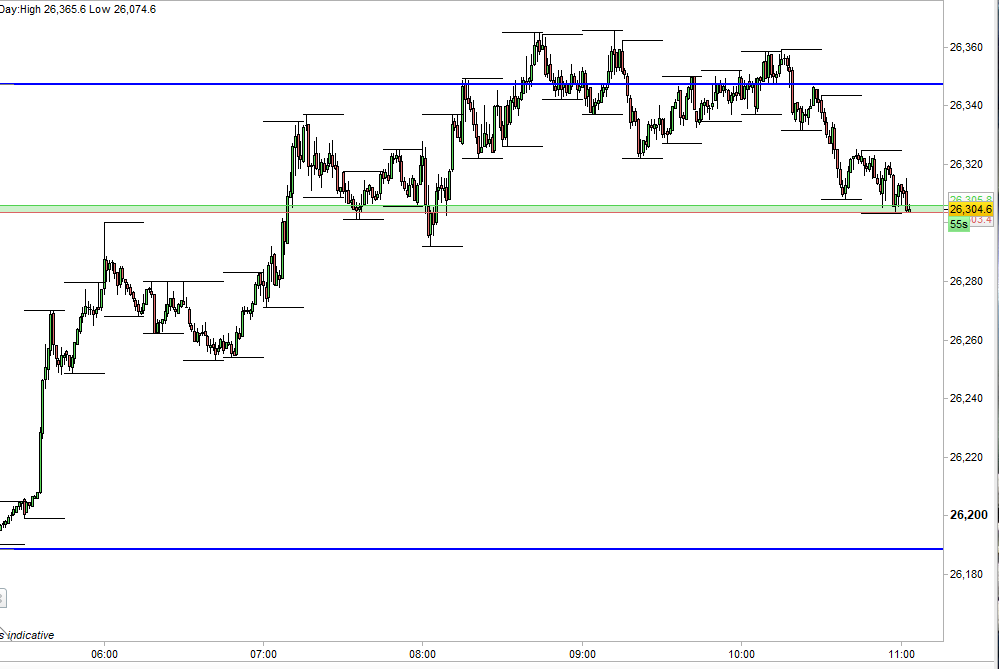

  Please see the example in the attached image, I draw the line manually on a chart.

  Any help would be much appreciated.



  TraderS

  Participant

  Topics: 1

  Replies: 1

  Been thanked: 0 times
  09/04/2019 at 10:45 AM #106457
  robertogozzi

  There you go:

  15-minute Range on 1-minute charts

  DEFPARAM CalculateOnLastBars=1000 IF OpenMinute MOD 15 = 0 THEN HH = high LL = low ENDIF HH = max(HH,high) LL = min(LL,low) RETURN HH AS "High",LL AS "Low"

  1 2 3 4 5 6 7 8

  DEFPARAM CalculateOnLastBars=1000 IF OpenMinute MOD 15 = 0 THEN    HH = high    LL = low ENDIF HH = max(HH,high) LL = min(LL,low) RETURN HH AS "High",LL AS "Low"



  1 user thanked author for this post.

  ZeroCafeine



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17086

  Been thanked: 4005 times
  09/04/2019 at 10:46 AM #106459
  Vonasi

  This might also be of interest:

  https://www.prorealcode.com/prorealtime-indicators/higher-time-frame-candlestick-on-a-lower-time-frame-chart/



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  09/04/2019 at 10:59 AM #106465
  Vonasi

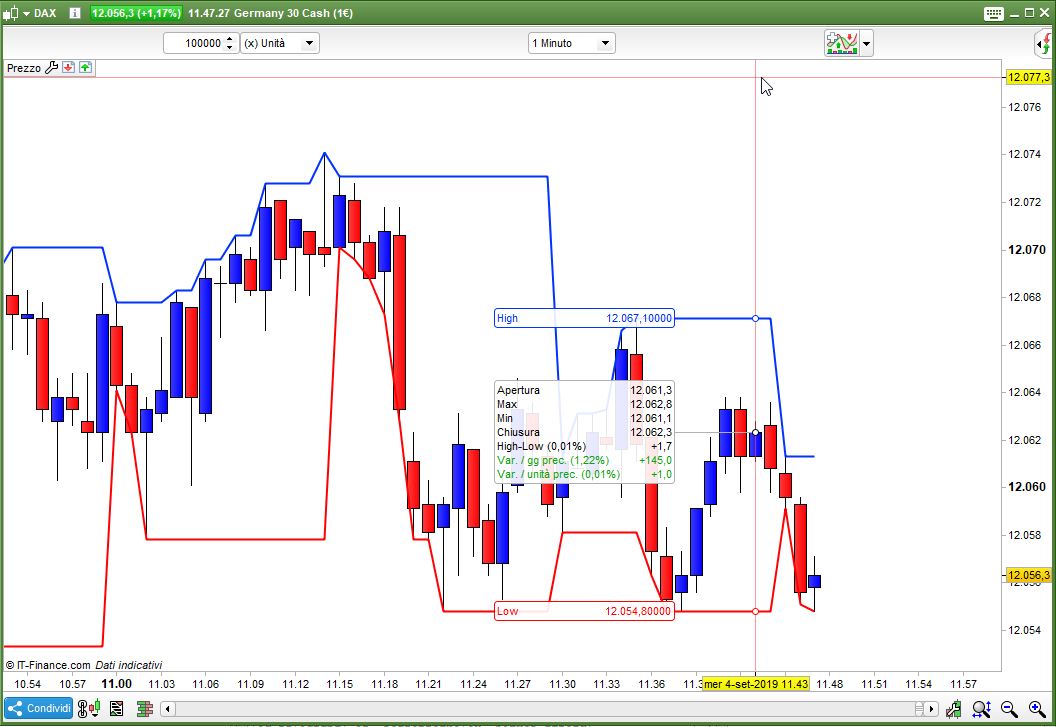

  This adaptation of Roberto’s code is a little closer to what you drew.

  DEFPARAM CalculateOnLastBars=1000 IF OpenMinute MOD 15 = 0 THEN DRAWSEGMENT(start,hh,barindex,hh) DRAWSEGMENT(start,ll,barindex,ll) start = barindex HH = high LL = low ENDIF HH = max(HH,high) LL = min(LL,low) RETURN

  1 2 3 4 5 6 7 8 9 10 11

  DEFPARAM CalculateOnLastBars=1000 IF OpenMinute MOD 15 = 0 THEN DRAWSEGMENT(start,hh,barindex,hh) DRAWSEGMENT(start,ll,barindex,ll) start = barindex HH = high LL = low ENDIF HH = max(HH,high) LL = min(LL,low) RETURN





  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  09/04/2019 at 11:56 AM #106472
  TraderS

  Thank you so much Vonasi.



  TraderS

  Participant

  Topics: 1

  Replies: 1

  Been thanked: 0 times
  09/04/2019 at 1:13 PM #106481
  GraHal

  Link added to here

  Snippet Link Library





  GraHal

  Participant

  Topics: 211

  Replies: 8754

  Been thanked: 2172 times
