ABCD pattern using arrays – help needed please

• 04/05/2022 at 1:04 PM #191229
  JMat45

  Hi there,

  I’ve been trying to find an open source ABCD pattern indicator on here for some time. I know Roberto has done an excellent job with the following indicator:

  https://www.prorealcode.com/prorealtime-indicators/abcd-pattern-indicator

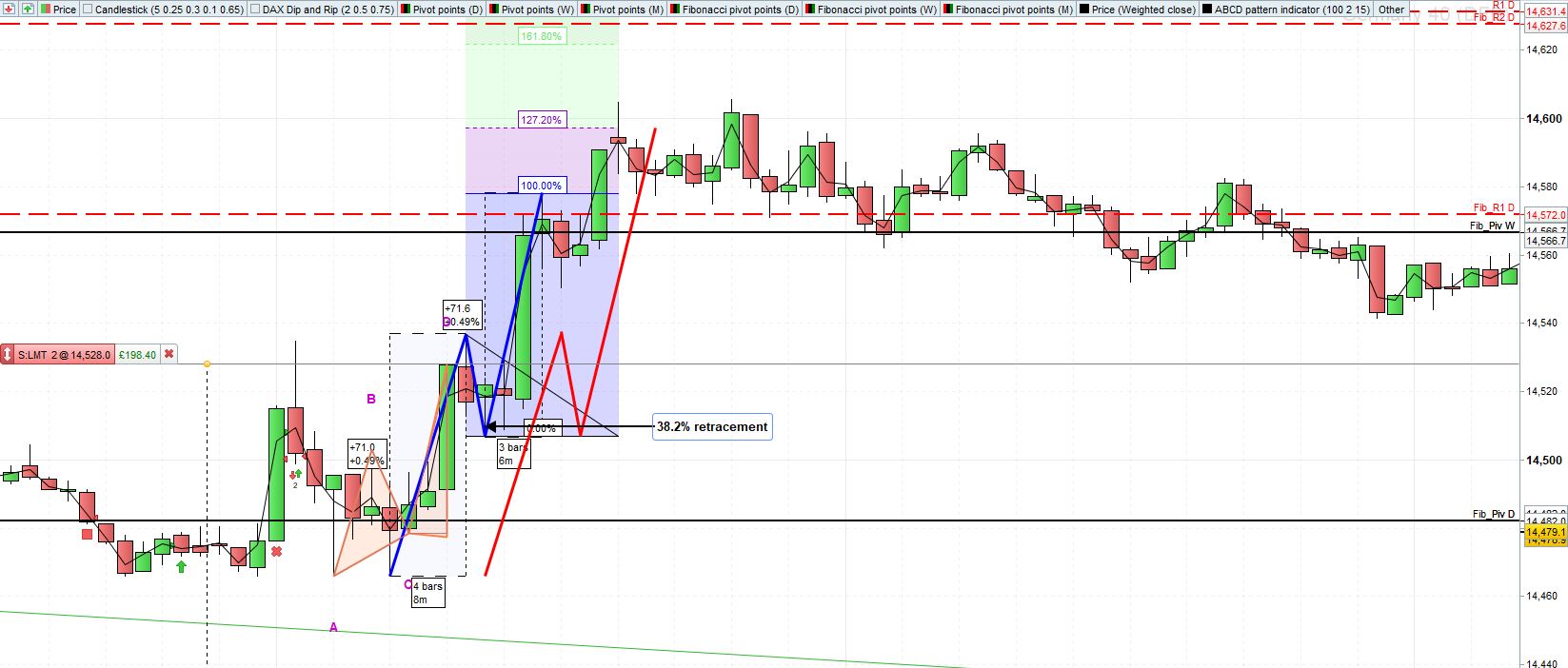

  but I thought there must be a neater way of doing it utilising the new array functionality. Plus if you look at the first 35 mins price action today on the DAX after the market open at 8.00am (BST), whatever you set the parameter LMinBars to, it doesn’t seem to capture the ‘major’ 100% ABCD between 0812 and 0828 (in blue). It is valid as the retracement is just over 38.2% as per the text on the chart. I know Roberto’s indicator isn’t designed to capture ABCD extensions, but it would be great if an ABCD indicator could also capture the 127.2% extension in red. The attached picture shows those ABCDs marked on the chart plus Roberto’s outstanding indicator with LMinBars set to 2. I have coloured it orange to make it more visible.



  So I had a go myself, using Nicolas’s array-based double top/bottom code as a template (https://www.prorealcode.com/topic/array-variables-availability-in-prorealtime/page/2/#post-120721), but struggled – kept getting infinite loop errors.

  This is my attempt for what it’s worth:

  // https://www.prorealcode.com/TOPic/array-variables-availability-in-prorealtime/ // (please do not remove the link above for future reference) // Example #6: flat base triangle or double TOP/bottom defparam drawonlastbaronly=true // --- settings fractalP = 10 // fractal period barlimit = 100 // maximum no. of bars between points B and D of ABCD pattern // --- end of settings //fractals cp = fractalP if high[cp] >= highest[(cp)*2+1](high) then //new fractal high found $TOPy[lastset($TOPy)+1] = high[cp] //store fractal value $TOPx[lastset($TOPx)+1] = barindex[cp] //store fractal barindex endif // if low[cp] <= lowest[(cp)*2+1](low) then //new fractal low found // $BOTy[lastset($BOTy)+1] = low[cp] //store fractal value // $BOTx[lastset($BOTx)+1] = barindex[cp] //stire fractal barindex // endif if(islastbarupdate and isset($TOPy[0])) then // and isset($boty[0]) //check points in a range of X percent for i = 0 to lastset($TOPy) do //loop through the tops for y = 0 to lastset($TOPy) do //check first top with other tops change = abs(($TOPy[y]-$TOPy[i])/$TOPy[i]) //percent delta between the 2 tops bardiff = abs($TOPx[i]-$TOPx[y]) //how many bars between the 2 points? if change >= percent/100 and bardiff >= fractalP and bardiff < barlimit and $TOPx[i] <> $TOPx[y] then PointDLevel = max($TOPy[i],$TOPy[y]) PointDIndex = max($TOPx[i],$TOPx[y]) PointBLevel = min($TOPy[i],$TOPy[y]) PointBIndex = min($TOPx[i],$TOPx[y]) PointCLevel = lowest[bardiff](low)[barindex-PointDIndex] PointCIndex = 0 for a = 0 to bardiff do if low[a+(barindex-PointDIndex)] = PointCLevel then PointCIndex = PointDIndex-a break endif next bardiffPointCtoD = PointDIndex-PointCIndex PointALevel = 0 PointAIndex = 0 for b = -barsmarginerror to barsmarginerror do if low[(barindex-PointBIndex)+bardiffPointCtoD+b] = lowest[bardiffPointCtoD+b+cp](low)[barindex-PointBIndex] then PointALevel = low[(barindex-PointBIndex)+bardiffPointCtoD+b] PointAIndex = PointBIndex-bardiffPointCtoD-b break endif next if (PointBLevel-PointCLevel) >= (Fibthreshold1*(PointBLevel-PointALevel)) and (PointBLevel-PointCLevel) >= (Fibthreshold2*(PointBLevel-PointALevel)) then ABCD = 1 DRAWSEGMENT(PointCIndex,PointCLevel,PointDIndex,PointDLevel)coloured(255,10,10) style(line) DRAWSEGMENT(PointBIndex,PointBLevel,PointCIndex,PointCLevel)coloured(255,10,10) style(line) DRAWSEGMENT(PointAIndex,PointALevel,PointBIndex,PointBLevel)coloured(255,10,10) style(line) else ABCD = 0 endif endif next next endif return ABCD COLOURED(0, 255, 0) STYLE(histogram) as "Bearish ABCD"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68

  // https://www.prorealcode.com/TOPic/array-variables-availability-in-prorealtime/ // (please do not remove the link above for future reference) // Example #6: flat base triangle or double TOP/bottom defparam drawonlastbaronly=true // --- settings fractalP = 10 // fractal period barlimit = 100 // maximum no. of bars between points B and D of ABCD pattern // --- end of settings //fractals cp = fractalP if high[cp] >= highest[(cp)*2+1](high) then //new fractal high found $TOPy[lastset($TOPy)+1] = high[cp] //store fractal value $TOPx[lastset($TOPx)+1] = barindex[cp] //store fractal barindex endif // if low[cp] <= lowest[(cp)*2+1](low)  then //new fractal low found // $BOTy[lastset($BOTy)+1] = low[cp] //store fractal value // $BOTx[lastset($BOTx)+1] = barindex[cp] //stire fractal barindex // endif if(islastbarupdate and isset($TOPy[0])) then                                      // and isset($boty[0]) //check points in a range of X percent for i = 0 to lastset($TOPy) do //loop through the tops for y = 0 to lastset($TOPy) do //check first top with other tops change = abs(($TOPy[y]-$TOPy[i])/$TOPy[i]) //percent delta between the 2 tops bardiff = abs($TOPx[i]-$TOPx[y]) //how many bars between the 2 points? if change >= percent/100 and bardiff >= fractalP and bardiff < barlimit and $TOPx[i] <> $TOPx[y] then PointDLevel = max($TOPy[i],$TOPy[y]) PointDIndex = max($TOPx[i],$TOPx[y]) PointBLevel = min($TOPy[i],$TOPy[y]) PointBIndex = min($TOPx[i],$TOPx[y])   PointCLevel = lowest[bardiff](low)[barindex-PointDIndex] PointCIndex = 0 for a = 0 to bardiff do if low[a+(barindex-PointDIndex)] = PointCLevel then PointCIndex = PointDIndex-a break endif next bardiffPointCtoD = PointDIndex-PointCIndex   PointALevel = 0 PointAIndex = 0 for b = -barsmarginerror to barsmarginerror do if low[(barindex-PointBIndex)+bardiffPointCtoD+b] = lowest[bardiffPointCtoD+b+cp](low)[barindex-PointBIndex] then PointALevel = low[(barindex-PointBIndex)+bardiffPointCtoD+b] PointAIndex = PointBIndex-bardiffPointCtoD-b break endif next   if (PointBLevel-PointCLevel) >= (Fibthreshold1*(PointBLevel-PointALevel)) and (PointBLevel-PointCLevel) >= (Fibthreshold2*(PointBLevel-PointALevel)) then ABCD = 1 DRAWSEGMENT(PointCIndex,PointCLevel,PointDIndex,PointDLevel)coloured(255,10,10) style(line) DRAWSEGMENT(PointBIndex,PointBLevel,PointCIndex,PointCLevel)coloured(255,10,10) style(line) DRAWSEGMENT(PointAIndex,PointALevel,PointBIndex,PointBLevel)coloured(255,10,10) style(line) else ABCD = 0 endif endif next next endif return ABCD COLOURED(0, 255, 0) STYLE(histogram) as "Bearish ABCD"

  The only version that gets close to resembling what I’m looking for is this:

  // https://www.prorealcode.com/TOPic/array-variables-availability-in-prorealtime/ // (please do not remove the link above for future reference) // Example #6: flat base triangle or double TOP/bottom defparam calculateonlastbars=500 // defparam drawonlastbaronly=false // --- settings fractalP = 10 // fractal period barlimit = 100 // maximum no. of bars between points B and D of ABCD pattern // --- end of settings //fractals cp = fractalP if high[cp] >= highest[(cp)*2+1](high) then //new fractal high found $TOPy[lastset($TOPy)+1] = high[cp] //store fractal value $TOPx[lastset($TOPx)+1] = barindex[cp] //store fractal barindex endif // if low[cp] <= lowest[(cp)*2+1](low) then //new fractal low found // $BOTy[lastset($BOTy)+1] = low[cp] //store fractal value // $BOTx[lastset($BOTx)+1] = barindex[cp] //stire fractal barindex // endif if(islastbarupdate and isset($TOPy[0])) then // and isset($boty[0]) //check points in a range of X percent for i = 0 to lastset($TOPy) do //loop through the TOPs for y = 0 to lastset($TOPy) do //check first TOP with other TOPs change = abs(($TOPy[y]-$TOPy[i])/$TOPy[i]) //percent range between the 2 TOPs bardiff = abs($TOPx[i]-$TOPx[y]) //how many bars between the 2 points? if change >= percent/100 and bardiff >= fractalP and bardiff < barlimit and $TOPx[i] <> $TOPx[y] then PointDLevel = max($TOPy[i],$TOPy[y]) PointDIndex = max($TOPx[i],$TOPx[y]) PointBLevel = min($TOPy[i],$TOPy[y]) PointBIndex = min($TOPx[i],$TOPx[y]) PointCLevel = lowest[bardiff](low)[barindex-PointDIndex] PointCIndex = 0 for a = 0 to bardiff do if low[a+(barindex-PointDIndex)] = PointCLevel then PointCIndex = PointDIndex-a break endif next bardiffPointCtoD = PointDIndex-PointCIndex // PointALevel = 0 // PointAIndex = 0 // for b = -barsmarginerror to barsmarginerror do // if low[(barindex-PointBIndex)+bardiffPointCtoD+b] = lowest[bardiffPointCtoD+b+cp](low)[barindex-PointBIndex] then // PointALevel = low[(barindex-PointBIndex)+bardiffPointCtoD+b] // PointAIndex = PointBIndex-bardiffPointCtoD-b // break // endif // next // if (PointBLevel-PointCLevel) >= (Fibthreshold1*(PointBLevel-PointALevel)) and (PointBLevel-PointCLevel) >= (Fibthreshold2*(PointBLevel-PointALevel)) then // ABCD = 1 // DRAWSEGMENT($TOPx[i],$TOPy[i],$TOPx[y],$TOPy[y])coloured(255,10,10) style(line,3) DRAWSEGMENT(PointCIndex,PointCLevel,PointDIndex,PointDLevel)coloured(255,10,10) style(line,3) DRAWSEGMENT(PointBIndex,PointBLevel,PointCIndex,PointCLevel)coloured(10,10,255) style(line,3) // DRAWSEGMENT(PointAIndex,PointALevel,PointBIndex,PointBLevel)coloured(0,255,0) style(line,3) // else // ABCD = 0 // endif endif next next endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71

  // https://www.prorealcode.com/TOPic/array-variables-availability-in-prorealtime/ // (please do not remove the link above for future reference) // Example #6: flat base triangle or double TOP/bottom   defparam calculateonlastbars=500 // defparam drawonlastbaronly=false // --- settings fractalP = 10 // fractal period barlimit = 100 // maximum no. of bars between points B and D of ABCD pattern // --- end of settings //fractals cp = fractalP if high[cp] >= highest[(cp)*2+1](high) then //new fractal high found $TOPy[lastset($TOPy)+1] = high[cp] //store fractal value $TOPx[lastset($TOPx)+1] = barindex[cp] //store fractal barindex endif // if low[cp] <= lowest[(cp)*2+1](low)  then //new fractal low found // $BOTy[lastset($BOTy)+1] = low[cp] //store fractal value // $BOTx[lastset($BOTx)+1] = barindex[cp] //stire fractal barindex // endif if(islastbarupdate and isset($TOPy[0])) then                     // and isset($boty[0]) //check points in a range of X percent for i = 0 to lastset($TOPy) do //loop through the TOPs for y = 0 to lastset($TOPy) do //check first TOP with other TOPs change = abs(($TOPy[y]-$TOPy[i])/$TOPy[i]) //percent range between the 2 TOPs bardiff = abs($TOPx[i]-$TOPx[y]) //how many bars between the 2 points? if change >= percent/100 and bardiff >= fractalP and bardiff < barlimit and $TOPx[i] <> $TOPx[y] then PointDLevel = max($TOPy[i],$TOPy[y]) PointDIndex = max($TOPx[i],$TOPx[y]) PointBLevel = min($TOPy[i],$TOPy[y]) PointBIndex = min($TOPx[i],$TOPx[y])   PointCLevel = lowest[bardiff](low)[barindex-PointDIndex] PointCIndex = 0 for a = 0 to bardiff do if low[a+(barindex-PointDIndex)] = PointCLevel then PointCIndex = PointDIndex-a break endif next bardiffPointCtoD = PointDIndex-PointCIndex   // PointALevel = 0 // PointAIndex = 0 // for b = -barsmarginerror to barsmarginerror do // if low[(barindex-PointBIndex)+bardiffPointCtoD+b] = lowest[bardiffPointCtoD+b+cp](low)[barindex-PointBIndex] then // PointALevel = low[(barindex-PointBIndex)+bardiffPointCtoD+b] // PointAIndex = PointBIndex-bardiffPointCtoD-b // break // endif // next   // if (PointBLevel-PointCLevel) >= (Fibthreshold1*(PointBLevel-PointALevel)) and (PointBLevel-PointCLevel) >= (Fibthreshold2*(PointBLevel-PointALevel)) then // ABCD = 1 // DRAWSEGMENT($TOPx[i],$TOPy[i],$TOPx[y],$TOPy[y])coloured(255,10,10) style(line,3) DRAWSEGMENT(PointCIndex,PointCLevel,PointDIndex,PointDLevel)coloured(255,10,10) style(line,3) DRAWSEGMENT(PointBIndex,PointBLevel,PointCIndex,PointCLevel)coloured(10,10,255) style(line,3) // DRAWSEGMENT(PointAIndex,PointALevel,PointBIndex,PointBLevel)coloured(0,255,0) style(line,3) // else // ABCD = 0 // endif endif next next endif return

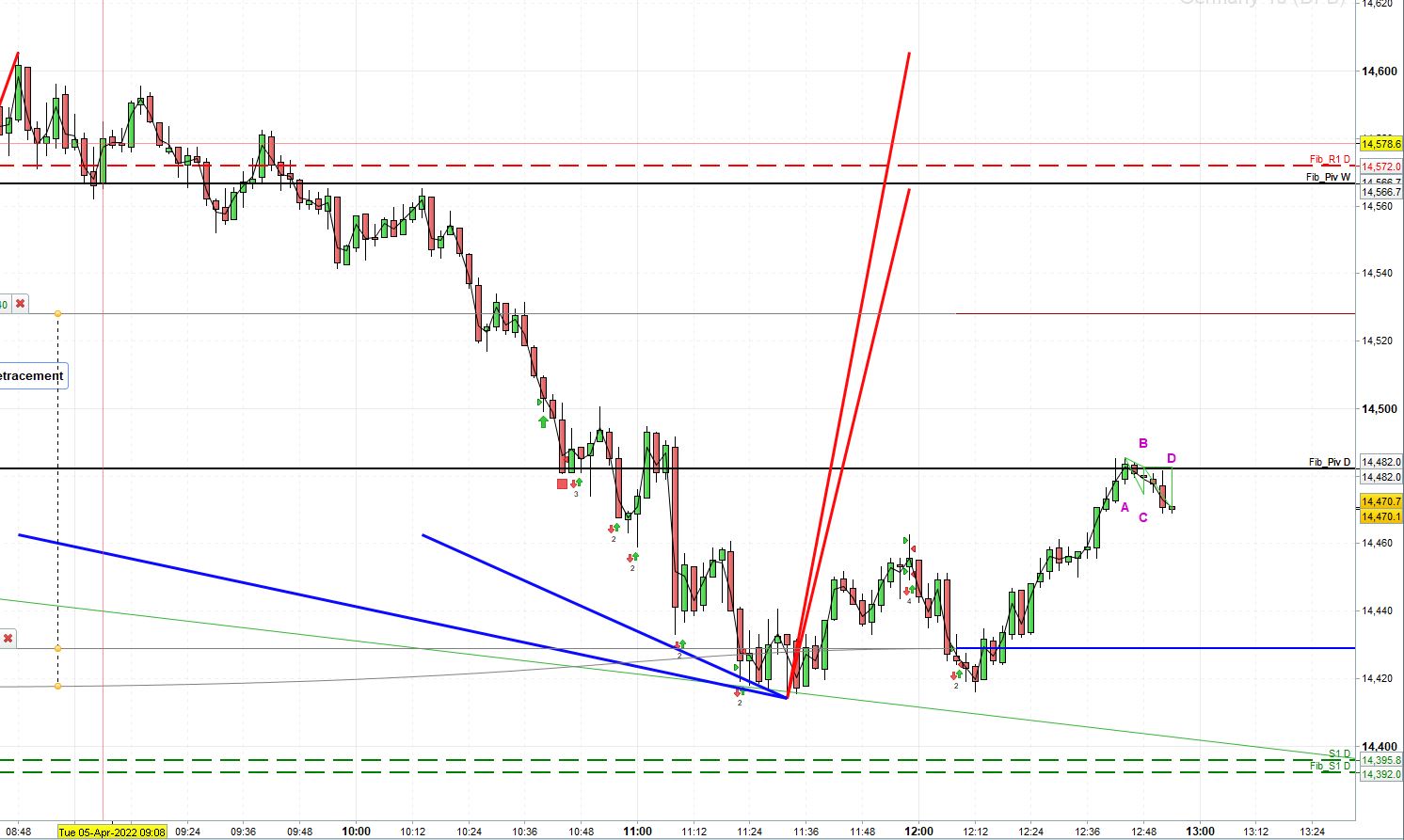

  but then take a look at this….



  Oops…

  I suspect one has to use zig zags as opposed to pivots in arrays – at least that’s what harmonic indicators on other platforms seem to use. Anyway, I’m at the limit of my coding ability here, but I’ve tried not to cause annoyance by simply coming on here and asking straight up if someone can just do it for me…

  I know there is a harmonic collection available on the Marketplace courtesy of Ale, but I’m not ready to spend EUR200+ without a trial first. Plus I’m only really looking for ABCDs – I can dispense with the other patterns for now. Surely ABCDs can be made available open source…?

  Thanks in advance for your help,

  JM









  JMat45

  Participant

  Topics: 6

  Replies: 23

  Been thanked: 2 times
  04/06/2022 at 1:59 AM #191294
  robertogozzi

  Arrays make it easier to store multiple  patterns to be plotted, but they do not provide any help in coding the pattern.

  When I wrote it, it took me so long that I swore to myself that I wouldn’t approach harmonic patterns any more!



  1 user thanked author for this post.

  JMat45



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17150

  Been thanked: 4039 times
  04/06/2022 at 9:07 AM #191309
  JMat45

  OK thanks, Roberto. I wonder how Alessandro from Automatic Trading has done it…

  https://market.prorealcode.com/product/eurhythmic-patterns-v11/



  JMat45

  Participant

  Topics: 6

  Replies: 23

  Been thanked: 2 times
  04/06/2022 at 9:31 AM #191314
  robertogozzi

  Apart from fancier graphics, anyone who wants to code harmonic patterns has to detect all involved points doing all required calculations, then plot it when the pattern is complete.
  Instructions are the same for everybody, what’s different is the use anyone can do of them, but here’s not much to be done differently.
  Coding harmonic patterns is not an easy task.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17150

  Been thanked: 4039 times
• Author
