Aplicación con Fibonacci

• 05/10/2024 at 12:16 PM #232524
  Maricarmen

  Buenos Días:

  Sería posible convertir este indicador en screener.

  Quisiera hacer unas pruebas a nivel Fibonacci con los resultados que arojase el screener

  //—Initialisation Zeiierman

  once idx0 = 0
  once idx1 = 0
  once idx2 = 0
  once pos = 0

  ATR = AverageTrueRange[prd](typicalprice)

  IF barindex >= 2*prd+1 then

  If high[prd] >= highest[2*prd+1](high) and pos<=0 then

  If idx1 <> 0 then
  idx2 = idx1
  Endif

  If idx0 <> 0 then
  idx1 = idx0
  Endif

  idx0 = barindex[prd]
  pos=1

  If idx2<>0 then

  If showPvts then
  If High[barindex-idx0]>=High[barindex-idx2] then
  DRAWTEXT(“HH”,idx0,High[barindex-idx0]+ATR/2,Dialog,Bold,20) coloured(200,0,0,255)
  else
  DRAWTEXT(“LH”,idx0,High[barindex-idx0]+ATR/2,Dialog,Bold,20) coloured(200,0,0,255)
  Endif
  Endif

  Endif
  Endif

  If Low[prd] <= Lowest[2*prd+1](low) and pos>=0 then

  If idx1 <> 0 then
  idx2 = idx1
  Endif

  If idx0 <> 0 then
  idx1 = idx0
  Endif

  idx0 = barindex[prd]
  pos=-1

  If idx2<>0 then

  If showPvts then
  If Low[barindex-idx0]>=Low[barindex-idx2] then
  DRAWTEXT(“HL”,idx0,Low[barindex-idx0]-ATR/2,Dialog,Bold,20) coloured(0,200,0,255)
  else
  DRAWTEXT(“LL”,idx0,Low[barindex-idx0]-ATR/2,Dialog,Bold,20) coloured(0,200,0,255)
  Endif
  Endif

  Endif
  Endif

  If idx2<>0 then
  If pos=1 and High[barindex-idx0]>Low[barindex-idx1] and High[barindex-idx0]<High[barindex-idx2] and (Close<Low[barindex-idx1] and open>Low[barindex-idx1]) then

  If showPattern then
  DRAWTEXT(“1”,idx2,High[idx2]+ATR[Barindex-Idx2]/2,Dialog,Bold,20) coloured(“BLUE”,255)
  DRAWTEXT(“2”,idx1,Low[barindex-idx1]-ATR[Barindex-Idx1]/2,Dialog,Bold,20) coloured(“BLUE”,255)
  DRAWTEXT(“3”,idx0,High[barindex-idx0]+ATR[Barindex-Idx0]/2,Dialog,Bold,20) coloured(“BLUE”,255)
  DRAWSEGMENT(idx2,High[barindex-idx2],idx1,Low[barindex-idx1]) STYLE(Line,3) coloured(“BLUE”,255)
  DRAWSEGMENT(idx1,Low[barindex-idx1],idx0,High[barindex-idx0]) STYLE(Line,3) coloured(“BLUE”,255)
  Endif

  If showBreak then
  DRAWSEGMENT(idx1,Low[barindex-idx1],barindex+1,Low[barindex-idx1]) STYLE(DOTTEDLINE2,2) coloured(“BLUE”,255)
  DRAWARROWDOWN(barindex,High+ATR/2) coloured(“RED”,255)
  Endif

  Endif

  If pos=-1 and Low[barindex-idx0]<High[barindex-idx1] and Low[barindex-idx0]>Low[barindex-idx2] and (Close>High[barindex-idx1] and open<High[barindex-idx1]) then

  If showPattern then
  DRAWTEXT(“1”,idx2,Low[barindex-idx2]-ATR[Barindex-Idx2]/2,Dialog,Bold,20) coloured(“BLUE”,255)
  DRAWTEXT(“2”,idx1,High[barindex-idx1]+ATR[Barindex-Idx1]/2,Dialog,Bold,20) coloured(“BLUE”,255)
  DRAWTEXT(“3”,idx0,Low[barindex-idx0]-ATR[Barindex-Idx0]/2,Dialog,Bold,20) coloured(“BLUE”,255)
  DRAWSEGMENT(idx2,Low[barindex-idx2],idx1,High[barindex-idx1]) STYLE(Line,3) coloured(“BLUE”,255)
  DRAWSEGMENT(idx1,High[barindex-idx1],idx0,Low[barindex-idx0]) STYLE(Line,3) coloured(“BLUE”,255)
  Endif

  If showBreak then
  DRAWSEGMENT(idx1,High[barindex-idx1],barindex+1,High[barindex-idx1]) STYLE(DOTTEDLINE2,2) coloured(“BLUE”,255)
  DRAWARROWUP(barindex,Low-ATR/2) coloured(“GREEN”,255)
  Endif

  Endif
  Endif
  Endif

  Return

  Gracias,



  Maricarmen

  Participant

  Topics: 7

  Replies: 17

  Been thanked: 1 time
  05/10/2024 at 3:29 PM #232535
  robertogozzi

  Esto devolverá instrumentos con una flecha trazada en el gráfico (roja o verde):

  //—Initialisation Zeiierman once prd = 50 once idx0 = 0 once idx1 = 0 once idx2 = 0 once pos = 0 Cond = 0 IF barindex >= 2*prd+1 then If high[prd] >= highest[2*prd+1](high) and pos<=0 then If idx1 <> 0 then idx2 = idx1 Endif If idx0 <> 0 then idx1 = idx0 Endif idx0 = barindex[prd] pos=1 Endif If Low[prd] <= Lowest[2*prd+1](low) and pos>=0 then If idx1 <> 0 then idx2 = idx1 Endif If idx0 <> 0 then idx1 = idx0 Endif idx0 = barindex[prd] pos=-1 Endif If idx2<>0 then If pos=1 and High[barindex-idx0]>Low[barindex-idx1] and High[barindex-idx0]<High[barindex-idx2] and (Close<Low[barindex-idx1] and open>Low[barindex-idx1]) then Cond = 2 Endif If pos=-1 and Low[barindex-idx0]<High[barindex-idx1] and Low[barindex-idx0]>Low[barindex-idx2] and (Close>High[barindex-idx1] and open<High[barindex-idx1]) then Cond = 1 Endif Endif Endif IF (high = low) THEN Cond = 0 ENDIF Screener[Cond](Cond AS "1=Up,2=Down")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41

  //—Initialisation Zeiierman once prd  = 50 once idx0 = 0 once idx1 = 0 once idx2 = 0 once pos = 0 Cond     = 0 IF barindex >= 2*prd+1 then If high[prd] >= highest[2*prd+1](high) and pos<=0 then If idx1 <> 0 then idx2 = idx1 Endif If idx0 <> 0 then idx1 = idx0 Endif idx0 = barindex[prd] pos=1 Endif If Low[prd] <= Lowest[2*prd+1](low) and pos>=0 then If idx1 <> 0 then idx2 = idx1 Endif If idx0 <> 0 then idx1 = idx0 Endif idx0 = barindex[prd] pos=-1 Endif If idx2<>0 then If pos=1 and High[barindex-idx0]>Low[barindex-idx1] and High[barindex-idx0]<High[barindex-idx2] and (Close<Low[barindex-idx1] and open>Low[barindex-idx1]) then Cond = 2 Endif If pos=-1 and Low[barindex-idx0]<High[barindex-idx1] and Low[barindex-idx0]>Low[barindex-idx2] and (Close>High[barindex-idx1] and open<High[barindex-idx1]) then Cond = 1 Endif Endif Endif IF (high = low) THEN Cond = 0 ENDIF Screener[Cond](Cond AS "1=Up,2=Down")





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17006

  Been thanked: 3958 times
  05/11/2024 at 5:38 PM #232554
  Maricarmen

  Gracias Roberto, me contesta algo a lo que quería pero no me siento satisfecho con los resultados obtenidos.

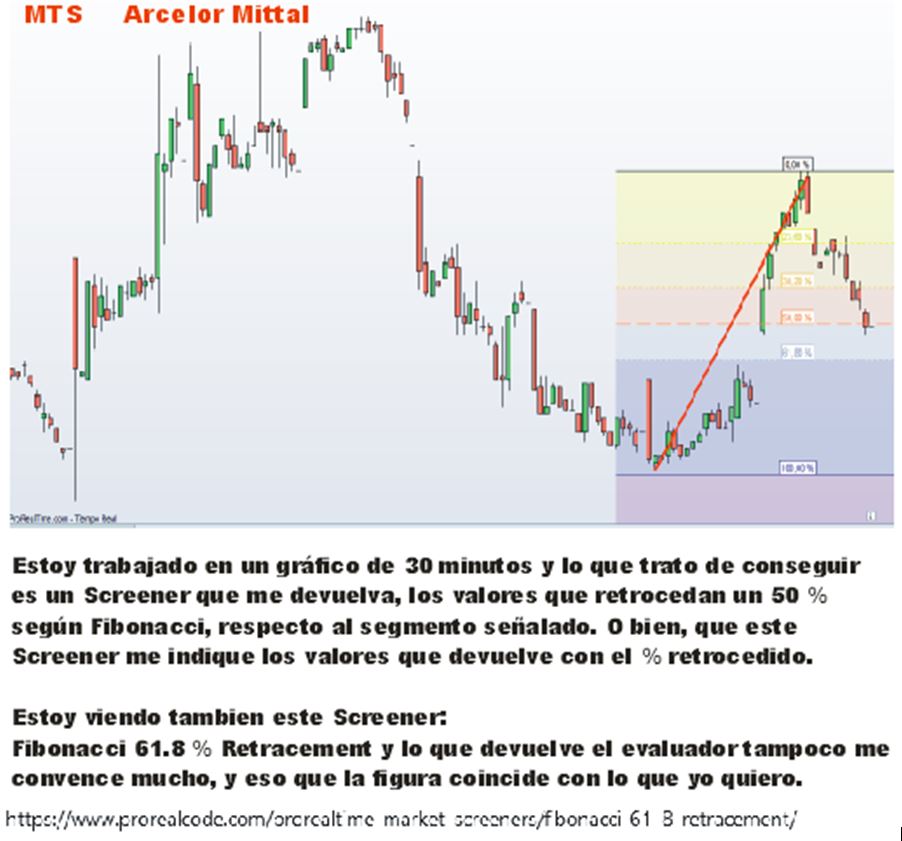

  Sería posible hacer algo con el gráfico que te adjunto con sus explicaciones .

  Un saludo,





  Maricarmen

  Participant

  Topics: 7

  Replies: 17

  Been thanked: 1 time
  05/12/2024 at 9:37 AM #232568
  robertogozzi

  Adjunte imágenes únicamente en su formato natural (JPG, PNG, etc…).
  Gracias 🙂

  Lo comprobaré lo antes posible.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17006

  Been thanked: 3958 times
  05/12/2024 at 6:26 PM #232588
  Maricarmen

  En lo sucesivo aportaré las imágenes como me indica (tendré que ver como se hace, anteriormente).

  Estuve viendo si cogía algunas ideas al respecto y por cierto veo algún gráfico que creo se adapta a lo que pretendo conseguir en:   http://www.tradingview.com/script/JU3WaXGC-Order-Blocks-W-Realtime-Fibs-QuantVue/

  Gracias,







  Maricarmen

  Participant

  Topics: 7

  Replies: 17

  Been thanked: 1 time
  08/17/2024 at 10:17 AM #236448
  robertogozzi

  ¡Pido disculpas por la demora!

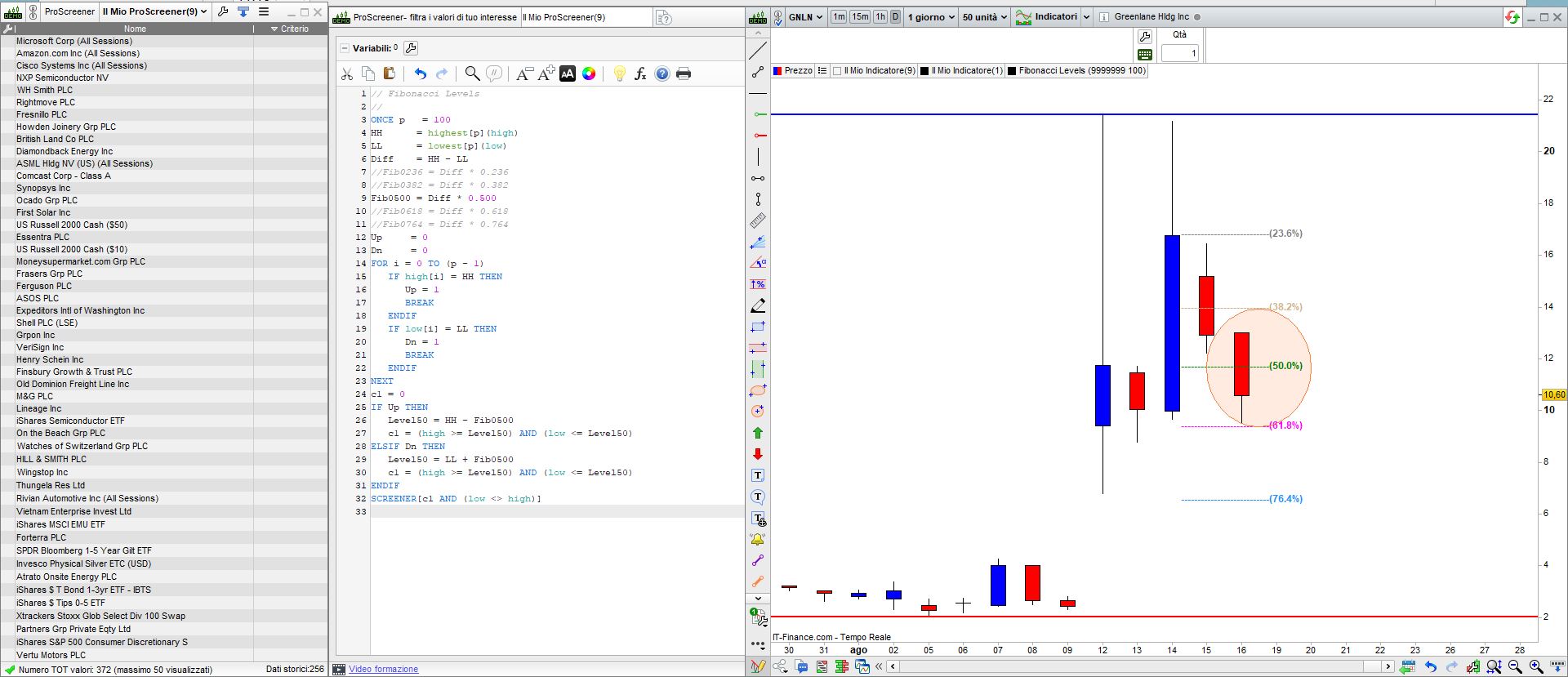

  Este es un indicador específico para los retrocesos de Fibonacci:

  // Fibonacci Lebels // DEFPARAM CalculateOnLastBars = 3000 DEFPARAM DrawOnLastBarOnly = True // ONCE p = 100 HH = highest[p](high) LL = lowest[p](low) Diff = HH - LL Fib0236 = Diff * 0.236 Fib0382 = Diff * 0.382 Fib0500 = Diff * 0.500 Fib0618 = Diff * 0.618 Fib0764 = Diff * 0.764 Up = 0 Dn = 0 FOR i = 0 TO (p - 1) IF high[i] = HH THEN Up = 1 BREAK ENDIF IF low[i] = LL THEN Dn = 1 BREAK ENDIF NEXT DRAWHLINE(HH) style(Line,2) coloured("Blue") DRAWHLINE(LL) style(Line,2) coloured("Red") LastBar = BarIndex IF Up THEN DRAWTEXT("---------------------------(23.6%)",LastBar,HH - Fib0236,SansSerif,Bold,12) coloured("Grey") DRAWTEXT("---------------------------(38.2%)",LastBar,HH - Fib0382,SansSerif,Bold,12) coloured("Tan") DRAWTEXT("---------------------------(50.0%)",LastBar,HH - Fib0500,SansSerif,Bold,12) coloured("Green") DRAWTEXT("---------------------------(61.8%)",LastBar,HH - Fib0618,SansSerif,Bold,12) coloured("Fuchsia") DRAWTEXT("---------------------------(76.4%)",LastBar,HH - Fib0764,SansSerif,Bold,12) coloured("DodgerBlue") ELSIF Dn THEN DRAWTEXT("---------------------------(23.6%)",LastBar,LL + Fib0236,SansSerif,Bold,12) coloured("Grey") DRAWTEXT("---------------------------(38.2%)",LastBar,LL + Fib0382,SansSerif,Bold,12) coloured("Tan") DRAWTEXT("---------------------------(50.0%)",LastBar,LL + Fib0500,SansSerif,Bold,12) coloured("Green") DRAWTEXT("---------------------------(61.8%)",LastBar,LL + Fib0618,SansSerif,Bold,12) coloured("Fuchsia") DRAWTEXT("---------------------------(76.4%)",LastBar,LL + Fib0764,SansSerif,Bold,12) coloured("DodgerBlue") ENDIF RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43

  // Fibonacci Lebels // DEFPARAM CalculateOnLastBars = 3000 DEFPARAM DrawOnLastBarOnly   = True // ONCE p   = 100 HH      = highest[p](high) LL      = lowest[p](low) Diff    = HH - LL Fib0236 = Diff * 0.236 Fib0382 = Diff * 0.382 Fib0500 = Diff * 0.500 Fib0618 = Diff * 0.618 Fib0764 = Diff * 0.764 Up     = 0 Dn     = 0 FOR i = 0 TO (p - 1)    IF high[i] = HH THEN       Up = 1       BREAK    ENDIF    IF low[i] = LL THEN       Dn = 1       BREAK    ENDIF NEXT DRAWHLINE(HH) style(Line,2) coloured("Blue") DRAWHLINE(LL) style(Line,2) coloured("Red") LastBar = BarIndex IF Up THEN    DRAWTEXT("---------------------------(23.6%)",LastBar,HH - Fib0236,SansSerif,Bold,12) coloured("Grey")    DRAWTEXT("---------------------------(38.2%)",LastBar,HH - Fib0382,SansSerif,Bold,12) coloured("Tan")    DRAWTEXT("---------------------------(50.0%)",LastBar,HH - Fib0500,SansSerif,Bold,12) coloured("Green")    DRAWTEXT("---------------------------(61.8%)",LastBar,HH - Fib0618,SansSerif,Bold,12) coloured("Fuchsia")    DRAWTEXT("---------------------------(76.4%)",LastBar,HH - Fib0764,SansSerif,Bold,12) coloured("DodgerBlue") ELSIF Dn THEN    DRAWTEXT("---------------------------(23.6%)",LastBar,LL + Fib0236,SansSerif,Bold,12) coloured("Grey")    DRAWTEXT("---------------------------(38.2%)",LastBar,LL + Fib0382,SansSerif,Bold,12) coloured("Tan")    DRAWTEXT("---------------------------(50.0%)",LastBar,LL + Fib0500,SansSerif,Bold,12) coloured("Green")    DRAWTEXT("---------------------------(61.8%)",LastBar,LL + Fib0618,SansSerif,Bold,12) coloured("Fuchsia")    DRAWTEXT("---------------------------(76.4%)",LastBar,LL + Fib0764,SansSerif,Bold,12) coloured("DodgerBlue") ENDIF RETURN

  y este es el screener (filtro) que devuelve las acciones que tienen un precio que cruza el nivel del 50%:

  // Fibonacci Levels // ONCE p = 100 HH = highest[p](high) LL = lowest[p](low) Diff = HH - LL //Fib0236 = Diff * 0.236 //Fib0382 = Diff * 0.382 Fib0500 = Diff * 0.500 //Fib0618 = Diff * 0.618 //Fib0764 = Diff * 0.764 Up = 0 Dn = 0 FOR i = 0 TO (p - 1) IF high[i] = HH THEN Up = 1 BREAK ENDIF IF low[i] = LL THEN Dn = 1 BREAK ENDIF NEXT c1 = 0 IF Up THEN Level50 = HH - Fib0500 c1 = (high >= Level50) AND (low <= Level50) ELSIF Dn THEN Level50 = LL + Fib0500 c1 = (high >= Level50) AND (low <= Level50) ENDIF SCREENER[c1 AND (low <> high)]

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

  // Fibonacci Levels // ONCE p   = 100 HH      = highest[p](high) LL      = lowest[p](low) Diff    = HH - LL //Fib0236 = Diff * 0.236 //Fib0382 = Diff * 0.382 Fib0500 = Diff * 0.500 //Fib0618 = Diff * 0.618 //Fib0764 = Diff * 0.764 Up     = 0 Dn     = 0 FOR i = 0 TO (p - 1)    IF high[i] = HH THEN       Up = 1       BREAK    ENDIF    IF low[i] = LL THEN       Dn = 1       BREAK    ENDIF NEXT c1 = 0 IF Up THEN    Level50 = HH - Fib0500    c1 = (high >= Level50) AND (low <= Level50) ELSIF Dn THEN    Level50 = LL + Fib0500    c1 = (high >= Level50) AND (low <= Level50) ENDIF SCREENER[c1 AND (low <> high)]







  robertogozzi

  Moderator

  Topics: 69

  Replies: 17006

  Been thanked: 3958 times
