Averaging based on condition

• 08/04/2022 at 11:10 AM #198485
  gfx

  Hi all,

  I hope you are doing fine.  I am stuck with a single problem so I’d rather ask help than building another 1000 lines indicator 🙂

  The idea is to create a moving average of n candles  ( n is user defined) but only of up candles.

  I was thinking of a while loop with a counter, but I can’t even get a first function to work.

  I get infinite loop warning when running this …

  runback = 0 WHILE i <= triggerBars IF Close[runback] > Open[runback] THEN i = i + 1 ENDIF runback = runback + 1 WEND

  1 2 3 4 5 6 7 8 9 10

  runback = 0   WHILE i <= triggerBars   IF Close[runback] > Open[runback] THEN i = i + 1 ENDIF   runback = runback + 1 WEND

  Thks in advance for your hints.

  gfx





  gfx

  Participant

  Topics: 25

  Replies: 65

  Been thanked: 5 times
  08/04/2022 at 12:04 PM #198486
  PeterSt

  What I did for you is testing with

  • More and less bars (possibility of reading beyond the first bar in the chart)
  • More than one instrument (Fx vs Index)
  • Setting up the loop completely different (so PRT could not pre-process it and have false alarms on e.g. i not increasing for a while)
  • Finding the threshold

  Regarding the latter, it is always around (triggerbars) 2300 – 2500 that it fails. Under 2300 thus works (for what I tested with).

  You could make a Technical Report (via the Help menu – check the checkbox to allow PRT to open and read the code – just this code but with triggerbars initiated at 3000 or so) and tell them that you found a bug.
  It could be better to find a workaround because the solution may stay out many months (if ever).



  1 user thanked author for this post.

  gfx



  PeterSt

  Participant

  Topics: 73

  Replies: 2506

  Been thanked: 809 times
  08/04/2022 at 12:47 PM #198488
  gfx

  Thks. I added

  defparam CALCULATEONLASTBARS = 20

  1	defparam CALCULATEONLASTBARS = 20

  and indeed it works. Though…

  I tried this …

  defparam CALCULATEONLASTBARS = 5 // Initialise Trend FOR x = 1 to 20 IF Close[x]> Open[x] THEN DRAWARROW(barindex, high) ENDIF NEXT return

  1 2 3 4 5 6 7 8 9 10

  defparam CALCULATEONLASTBARS = 5   // Initialise Trend FOR x = 1 to 20 IF Close[x]> Open[x] THEN DRAWARROW(barindex, high) ENDIF NEXT   return

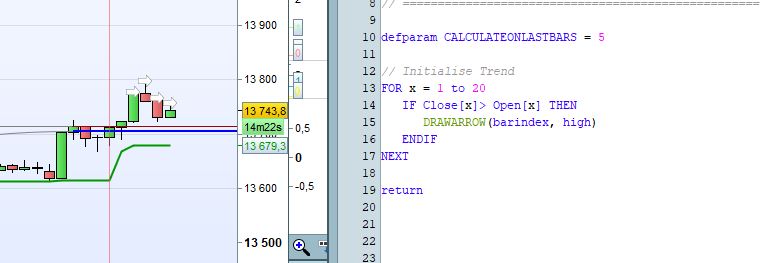

  and see attached picture.

  First it only executes on 4 last bars … not 5.

  Wired enough… if condition is not exectued as expected











  gfx

  Participant

  Topics: 25

  Replies: 65

  Been thanked: 5 times
  08/04/2022 at 12:47 PM #198490
  gfx

  this drives me nuts !!



  gfx

  Participant

  Topics: 25

  Replies: 65

  Been thanked: 5 times
  08/04/2022 at 8:02 PM #198504
  JS

  Hi @gfx,

  Try this…

  xAverage

  N = 5 If Close > Open then xAverage = Average[N](Close) DrawArrow(BarIndex,High) EndIf Return xAverage as "xAverage"

  1 2 3 4 5 6 7 8

  N = 5   If Close > Open then xAverage = Average[N](Close) DrawArrow(BarIndex,High) EndIf   Return xAverage as "xAverage"



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 782 times
  08/05/2022 at 1:56 AM #198527
  druby

  hi…

  From your original post, I think the reason you may be getting the infinite loop is this:

  To exit the loop ‘i’ has to equate up to ‘triggerBars’+1.

  Now let’s say halve the candles in your chart are bull candles, ‘i’ can only increment up to halve of what ever you set ‘triggerBars’ to, since it only increments on a bull candle via the if condition. Along with this may be some error checking of historical bars loaded and also it has to end the loop before moving on to next bar. Don’t really fully understand whats going on, but that’s my thinking

  If you replace ‘i’ with runback in the ‘while’ condition, ‘runback’ always ends up ‘1’ bigger at the end of each loop iteration. This then terminates the loop at the end of the iteration when ‘triggerBars’ value is hit.

  Any way, I was looking at huge problem and your ‘up candle moving average’ kind of brushed against a concept I come up with and was thinking of using to solve it.

  While testing the concept I knocked up this code, which I think does something very close to what you were trying to do.

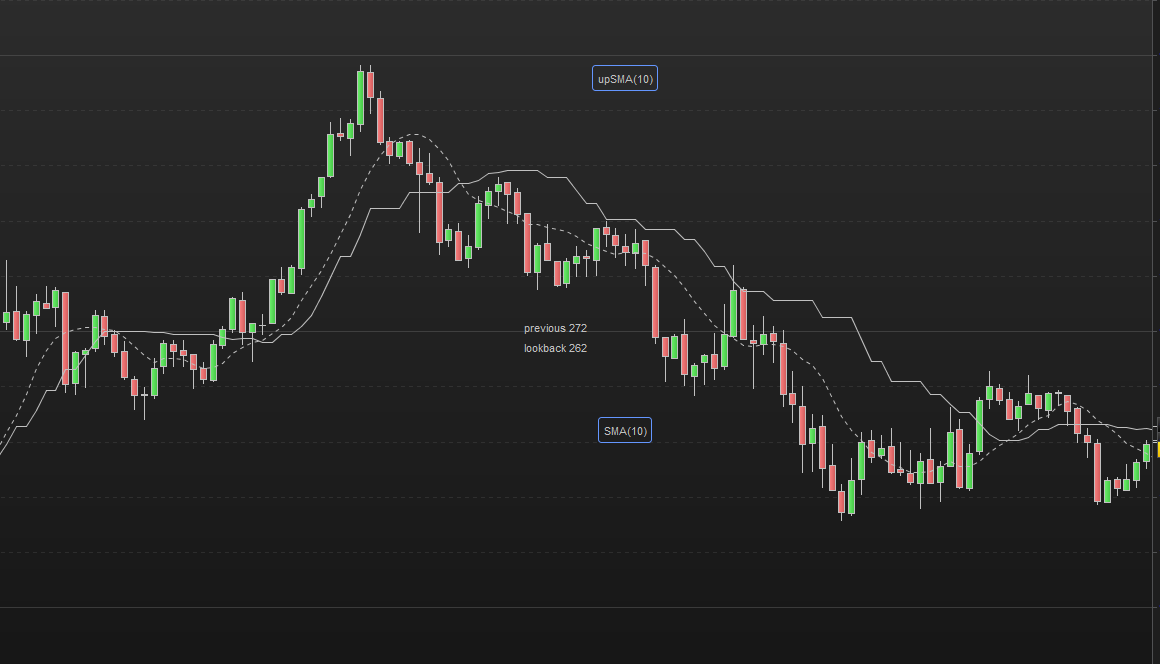

  It identify up candle’s and uses them to display a SMA via a lookback value. Two things to note, your up candle may be different from my define, and the SMA doesn’t use the current candle, not tested.

  Hold on to nuts, get your head around this!



  defparam drawOnLastBarOnly = true // comment out to see arrows over up candles once cnt = -1 // up candle barindex count lookback = 10 //---------------------- indentify up candles - see below candle = 0 if open < close or (open[1] < close[1] and close[1] < close) then // define up candle candle = 1 endif //---------------------- on up candles if candle then // if a up candle cnt=cnt+1 // increment the count on a new up candle upBarindex = cnt // store the count accClose = accClose + close // keep an accumulated total of the up candle close's for sma calculation drawArrowDown(barindex,high+10) else upBarindex = -1 // if not up candle fill value with -1 for an identifier endif //---------------------- indentify last closed up candle for i = 1 to barindex[1] // loop back to find previous upBarindex if upBarindex[i] > -1 then // stop on first non -1 x= upBarindex[i] drawtext("previous #x#",0,0)anchor(middle) previous = i // previous lookback distance break // terminate loop when found endif next //---------------------- indentify lookback up candle for i = 1 to barindex[1] // loop back to find lookback upBarindex if upBarindex[i] = upBarindex[previous]-(lookback) then // stop y = upBarindex[i] drawtext("lookback #y#",0,-20)anchor(middle) back = i // lookback distance break // terminate loop when found endif next //---------------------- calculate sma using accumulated total data upSMA = (accClose[previous] - accClose[back])/lookback //---------------------- compare sma sma= average[lookback](close) return UpSma as"upSma", sma as"sma"style(dottedline,1)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54

  defparam drawOnLastBarOnly = true  // comment out to see arrows over up candles   once cnt = -1 // up candle  barindex count lookback = 10   //---------------------- indentify up candles - see below   candle = 0 if open < close or (open[1] < close[1] and close[1] < close) then // define up candle candle = 1 endif   //---------------------- on up candles   if candle then  // if a up candle cnt=cnt+1    // increment the count on a new up candle upBarindex = cnt // store the count accClose = accClose + close // keep an accumulated total of the up candle close's for sma calculation drawArrowDown(barindex,high+10) else upBarindex = -1 // if not up candle fill value with -1 for an identifier endif   //---------------------- indentify last closed up candle   for i = 1 to barindex[1] // loop back to find previous upBarindex if upBarindex[i] > -1 then // stop on first non -1 x= upBarindex[i] drawtext("previous #x#",0,0)anchor(middle) previous = i // previous lookback distance break // terminate loop when found endif next   //---------------------- indentify lookback up candle   for i = 1 to barindex[1] // loop back to find lookback upBarindex if upBarindex[i] = upBarindex[previous]-(lookback) then // stop y = upBarindex[i] drawtext("lookback #y#",0,-20)anchor(middle) back = i // lookback distance break // terminate loop when found endif next   //---------------------- calculate sma using accumulated total data   upSMA = (accClose[previous] - accClose[back])/lookback   //---------------------- compare sma   sma= average[lookback](close) return UpSma as"upSma", sma as"sma"style(dottedline,1)

  1 user thanked author for this post.

  gfx



  druby

  Participant

  Topics: 1

  Replies: 355

  Been thanked: 271 times
  08/05/2022 at 4:42 AM #198532
  PeterSt

  This one works. 🙂

  DefParam CalculateOnLastBars = 10 // This is unimportant as long as it is there and "few" for speed. Minimum is 2. ExamineAmount = 100000 TriggerBars = 6000 // The amount of up-bars we want to find. i = 0 // Number of UpBars we counted (keep i the same as in gfx' example). for LoopCounter = 1 to ExamineAmount if Close[LoopCounter] > Open[LoopCounter] then // Change to < for the Down-bars. i = i + 1 if i > TriggerBars then break // So we exit here ot ar the end of the loop (ExamineAmount). endif endif next Return i

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

  DefParam CalculateOnLastBars = 10   // This is unimportant as long as it is there and "few" for speed. Minimum is 2.   ExamineAmount = 100000 TriggerBars = 6000   // The amount of up-bars we want to find. i = 0   // Number of UpBars we counted (keep i the same as in gfx' example).   for LoopCounter = 1 to ExamineAmount     if Close[LoopCounter] > Open[LoopCounter] then   // Change to < for the Down-bars.     i = i + 1     if i > TriggerBars then       break   // So we exit here ot ar the end of the loop (ExamineAmount).     endif   endif    next   Return i

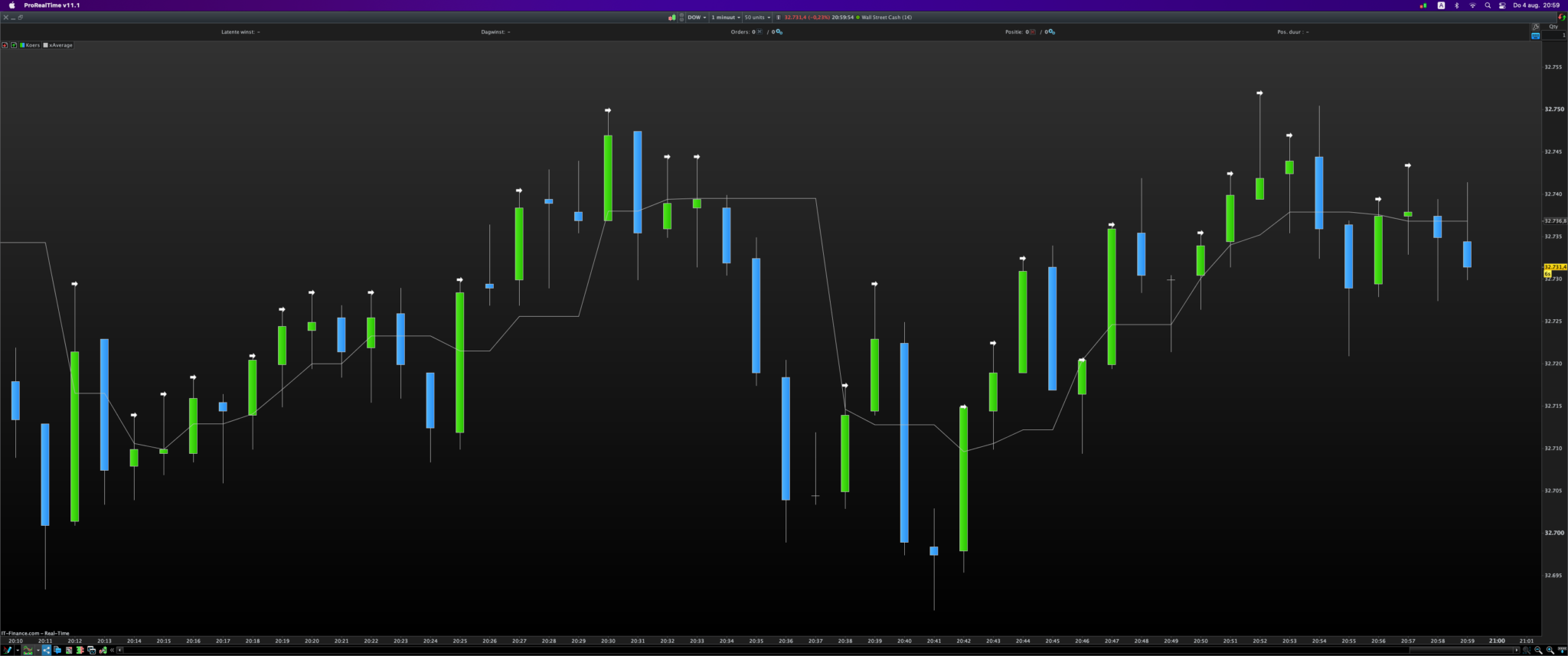

  2nd attachment shows the down-bars.
  Both are equal-ish, which I suppose it possible tonight. The chart comprises of 10K bars but it runs for a while so more bars populated.

  It will do the calculation at each new bar, so maybe it is not smart to let this run forever.



  gfx wrote:

  First it only executes on 4 last bars … not 5.

  Yes, something seems wrong there because DrawOnLastBars can not be 1 (error message) and with 2 it draws 1.



  1 user thanked author for this post.

  gfx



  PeterSt

  Participant

  Topics: 73

  Replies: 2506

  Been thanked: 809 times
  08/05/2022 at 10:21 AM #198544
  gfx

  looks good 🙂





  gfx

  Participant

  Topics: 25

  Replies: 65

  Been thanked: 5 times
  08/05/2022 at 10:24 AM #198549
  gfx

  I ended up with this approach…



  defparam CALCULATEONLASTBARS = 30 i = 0 IF Close[0]> Open[0] THEN FOR x = 0 to 20 IF Close[x] > Open[x] and i < 3 Then ... i = i + 1 ENDIF NEXT

  1 2 3 4 5 6 7 8 9

  defparam CALCULATEONLASTBARS = 30 i = 0 IF Close[0]> Open[0] THEN FOR x = 0 to 20 IF Close[x] > Open[x] and i < 3 Then ... i = i + 1 ENDIF NEXT





  gfx

  Participant

  Topics: 25

  Replies: 65

  Been thanked: 5 times
