Background colour horizontal

• 10/06/2022 at 9:15 AM #201977
  amitoverseas40

  Hi there,



  Any way to change the background colour to display horizontal instead of vertical?



  Thanks



  amitoverseas40

  Participant

  Topics: 12

  Replies: 55

  Been thanked: 4 times
  10/06/2022 at 10:11 AM #201994
  robertogozzi

  No, as the background colour is set for each bar, so it’s plotted only vertically, as bars have just a fixed horizontal span (the TF).





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17148

  Been thanked: 4037 times
  10/11/2022 at 12:59 PM #202313
  ZeroCafeine

  amitoverseas40 wrote:

  Hi there,

  Any way to change the background colour to display horizontal instead of vertical?

  Thanks

  maybe this answer of Nicola for my background problem can help you or give some idea, you have to use the rectangle

  1 user thanked author for this post.

  robertogozzi



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  10/11/2022 at 3:29 PM #202319
  robertogozzi

  @ZeroCafeine

  that’s a very interesting solution, 1 single (or more, to have separate price level highlighted horizontally) rectangle from BarIndex 0 to the current one.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17148

  Been thanked: 4037 times
  10/12/2022 at 7:30 AM #202337
  Nicolas

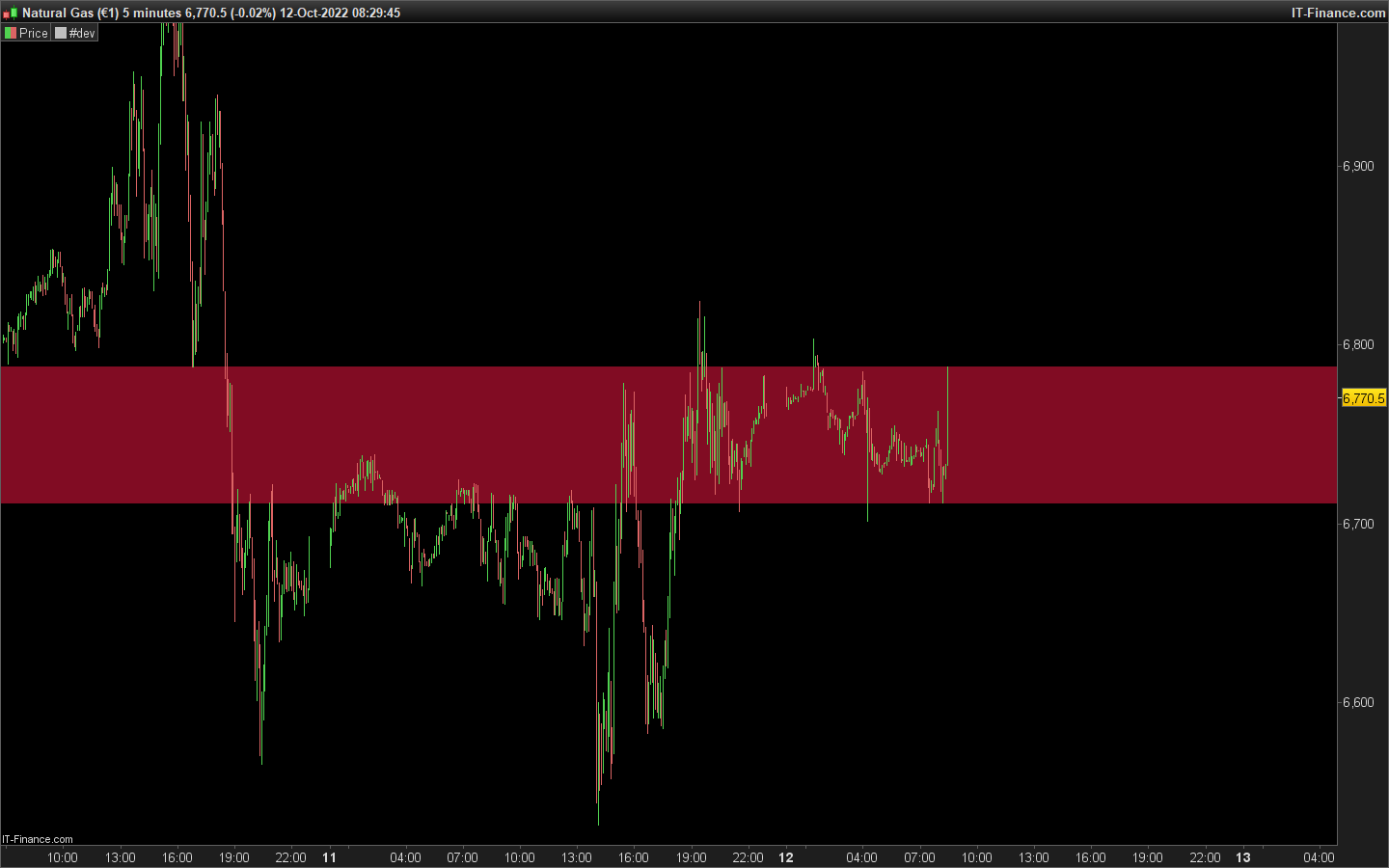

  If you want to set the background horizontally and extend it to the infinite on the right, you use a DATETOBARINDEX with a date in the future: (example to draw the rectangle until the 1st January 2100).

  defparam drawonlastbaronly=true drawrectangle(0,highest[10](high),datetobarindex(21000101),lowest[10](low)) coloured("crimson",150) bordercolor("crimson",0) return

  1 2 3 4 5

  defparam drawonlastbaronly=true   drawrectangle(0,highest[10](high),datetobarindex(21000101),lowest[10](low)) coloured("crimson",150) bordercolor("crimson",0)   return



  1 user thanked author for this post.

  robertogozzi



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
