Bollinger band different phase 1234

• 09/05/2022 at 3:55 PM #200187
  ZeroCafeine

  hi everyone,

  Do you know if there is a code here on the platform to detect the phases of the bollinger bands?

  If it does not exist I would like to code it

  Best Reguards,
  ZeroCafeine



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/05/2022 at 4:20 PM #200192
  Nicolas

  I know this one available in the scripts library: https://www.prorealcode.com/prorealtime-indicators/multicolour-bollinger-bands-market-phases/

  1 user thanked author for this post.

  ZeroCafeine



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  09/05/2022 at 4:31 PM #200193
  ZeroCafeine

  tks you Nicola, I saw it but I’m not sure it’s the same with different phase, tomorrow I will take my time to understand the code on the link you gave me and answer again, and tks again for quick answer



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/05/2022 at 5:27 PM #200201
  JC_Bywan

  Phase 1 is one of those things which is easy with the eyes, but which needs coding criteria that may conclude differently for some cases… One way to not overcomplicate phase 1 coding is to consider bollinger bandwidth (variable bbw in code below) below a certain limit, chosen by user (variable bbwlimit in code below). Phases 2, 3, 4 are easy as soon as boll bandwidth is above your limit.

  bbw=BollingerBandWidth[20](close) bsup=BollingerUp[20](close) binf=BollingerDown[20](close) bbwlimit=0.003 if bbw<=bbwlimit then phase=1 elsif bsup>bsup[1] and binf<binf[1] then phase=2 elsif (bsup>bsup[1] and binf>binf[1]) or (bsup<bsup[1] and binf<binf[1]) then phase=3 elsif bsup<bsup[1] and binf>binf[1] then phase=4 else phase=phase[1] endif return phase

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

  bbw=BollingerBandWidth[20](close) bsup=BollingerUp[20](close) binf=BollingerDown[20](close)   bbwlimit=0.003   if bbw<=bbwlimit then phase=1 elsif bsup>bsup[1] and binf<binf[1] then phase=2 elsif (bsup>bsup[1] and binf>binf[1]) or (bsup<bsup[1] and binf<binf[1]) then phase=3 elsif bsup<bsup[1] and binf>binf[1] then phase=4 else phase=phase[1] endif   return phase

  1 user thanked author for this post.

  ZeroCafeine



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2651

  Been thanked: 916 times
  09/05/2022 at 7:29 PM #200209
  ZeroCafeine

  I will to try to understand you code tomorrow, but can you tell me from where or why 0.003 ?



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/06/2022 at 8:21 AM #200219
  Nicolas

  Just read the explanation from JC in the last post, it is well explained IMO.

  There is no “universal” setting accross time units and instruments to detect phase 1, so we need a trigger, that’s the reason 🙂

  1 user thanked author for this post.

  ZeroCafeine



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  09/06/2022 at 8:31 AM #200220
  ZeroCafeine

  Tks you Nico ☺️

  I totally agree with you, and I know it’s not easy, but I study a lot for it, I will try to make something correct, about the ph1 I know it’s not easy to detect but using the volatility cycle and some other idea it will be possible to make something, for detecting the ph1 I will use the ph3 and 4 and volatility for maybe try to detect the ph1, I will come back on this thread when I will in my office this afternoon



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/08/2022 at 10:21 AM #200349
  ZeroCafeine

  Nicolas wrote:

  I know this one available in the scripts library: https://www.prorealcode.com/prorealtime-indicators/multicolour-bollinger-bands-market-phases/

  tks you Nicola, I saw the code and try to understand it, it’s just based on moving average to detect the phase and I think it’s not like that, but it’s a good idea and it will help me to restart to program, tks again

  JC_Bywan wrote:

  Phase 1 is one of those things which is easy with the eyes, but which needs coding criteria that may conclude differently for some cases… One way to not overcomplicate phase 1 coding is to consider bollinger bandwidth (variable bbw in code below) below a certain limit, chosen by user (variable bbwlimit in code below). Phases 2, 3, 4 are easy as soon as boll bandwidth is above your limit.

  bbw=BollingerBandWidth[20](close)<br /> bsup=BollingerUp[20](close)<br /> binf=BollingerDown[20](close)</p> <p>bbwlimit=0.003</p> <p>if bbw<=bbwlimit then<br /> phase=1<br /> elsif bsup>bsup[1] and binf<binf[1] then<br /> phase=2<br /> elsif (bsup>bsup[1] and binf>binf[1]) or (bsup<bsup[1] and binf<binf[1]) then<br /> phase=3<br /> elsif bsup<bsup[1] and binf>binf[1] then<br /> phase=4<br /> else<br /> phase=phase[1]<br /> endif</p> <p>return phase

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

  bbw=BollingerBandWidth[20](close) bsup=BollingerUp[20](close) binf=BollingerDown[20](close) bbwlimit=0.003 if bbw<=bbwlimit then phase=1 elsif bsup>bsup[1] and binf<binf[1] then phase=2 elsif (bsup>bsup[1] and binf>binf[1]) or (bsup<bsup[1] and binf<binf[1]) then phase=3 elsif bsup<bsup[1] and binf>binf[1] then phase=4 else phase=phase[1] endif return phase

  tks again, I understand why 0.003

  some can tell me how to do for my condition C1 and C2 is tru on a minimum of N bar ? I no want to use somethink like C1 = BBup > BBup[1] AND BBup[1] > BBup[2] AND …etc

  // (｡♥‿♥｡) Block Start BBup = BollingerUp[nBB](close) BBDown = BollingerDown[nBB](close) max1 = BollingerUp[nBB] min1 = BollingerDown[nBB] // Block End (｡♥‿♥｡) // (｡♥‿♥｡) Block Start // Conditions : C1/C2 C1 = BBup > BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3] C2 = BBDown < BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3] Signal = 0 // Block End (｡♥‿♥｡) AllCondition = C1 AND C2 IF AllCondition Then Signal = 1 DRAWCANDLE(max1, min1, max1, min1) Coloured (0, 255, 0, 42) ELSE Signal = 0 ENDIF Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

  // (｡♥‿♥｡) Block Start BBup   = BollingerUp[nBB](close) BBDown = BollingerDown[nBB](close) max1 = BollingerUp[nBB] min1 = BollingerDown[nBB] // Block End (｡♥‿♥｡)   // (｡♥‿♥｡) Block Start // Conditions : C1/C2 C1 = BBup > BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3] C2 = BBDown < BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3] Signal = 0 // Block End (｡♥‿♥｡)   AllCondition = C1 AND C2   IF AllCondition Then Signal = 1 DRAWCANDLE(max1, min1, max1, min1) Coloured (0, 255, 0, 42) ELSE Signal = 0 ENDIF   Return



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/08/2022 at 11:51 AM #200357
  ZeroCafeine

  I will try with some For boucle and come back when I have somethink



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/08/2022 at 12:27 PM #200366
  JS

  Hoi @ZeroCafeine

  Alternatively, you could use the conditions for Phase 2 (expansion / increase in volatility):

  Fase 2 => BBup > BBup[n] and BBDown < BBDown[n]

  In collaboration with the slope of the average for determining the direction of the price .

  1 user thanked author for this post.

  ZeroCafeine



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 782 times
  09/09/2022 at 10:29 AM #200407
  ZeroCafeine

  JS wrote:

  Hoi @ZeroCafeine

  Alternatively, you could use the conditions for Phase 2 (expansion / increase in volatility):

  Fase 2 => BBup > BBup[n] and BBDown < BBDown[n]

  In collaboration with the slope of the average for determining the direction of the price .

  tks for your help, it’s a nice idea to use the slope of the average but for me I use it now just in the ph3, it’s can help, in ph2 is more complicated,

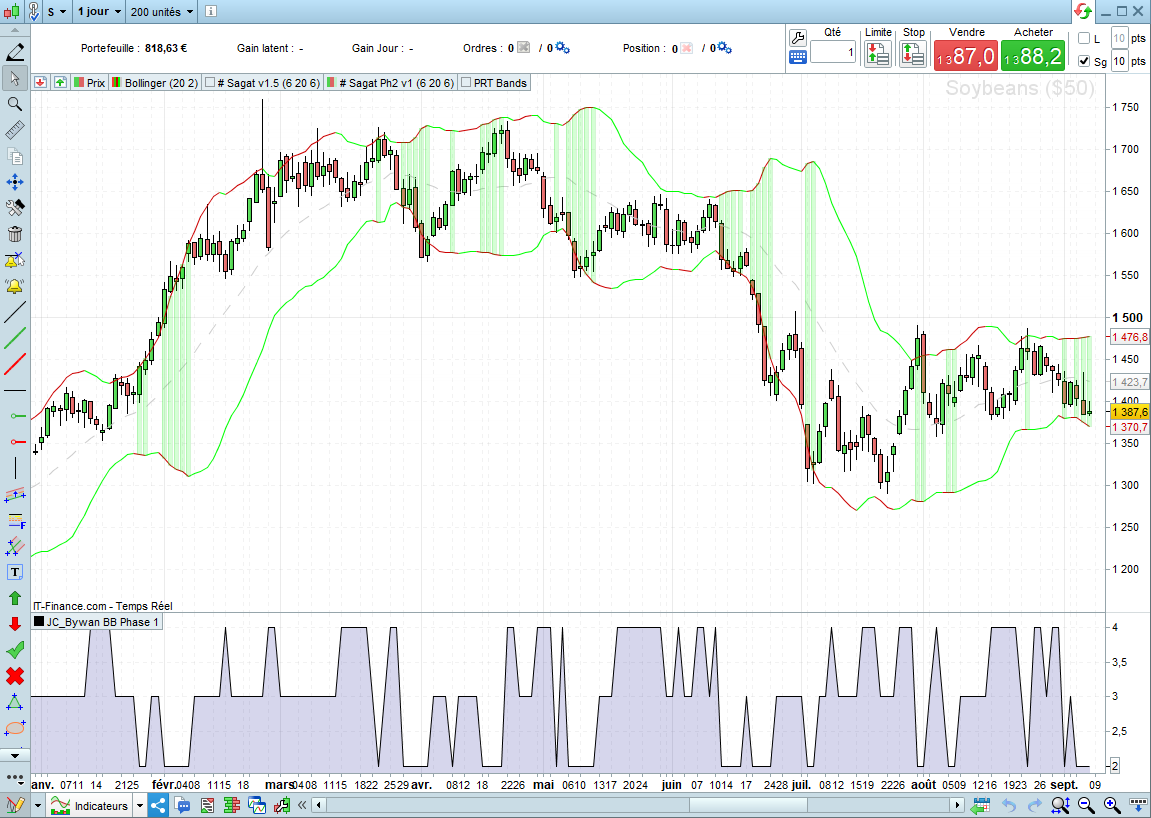

  Now I got this result but it’s just based on the direrction of the BB, I have to work more for solve some small probleme before to go to more complicated



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/09/2022 at 10:53 AM #200414
  JS

  Hi @ZeroCafeine

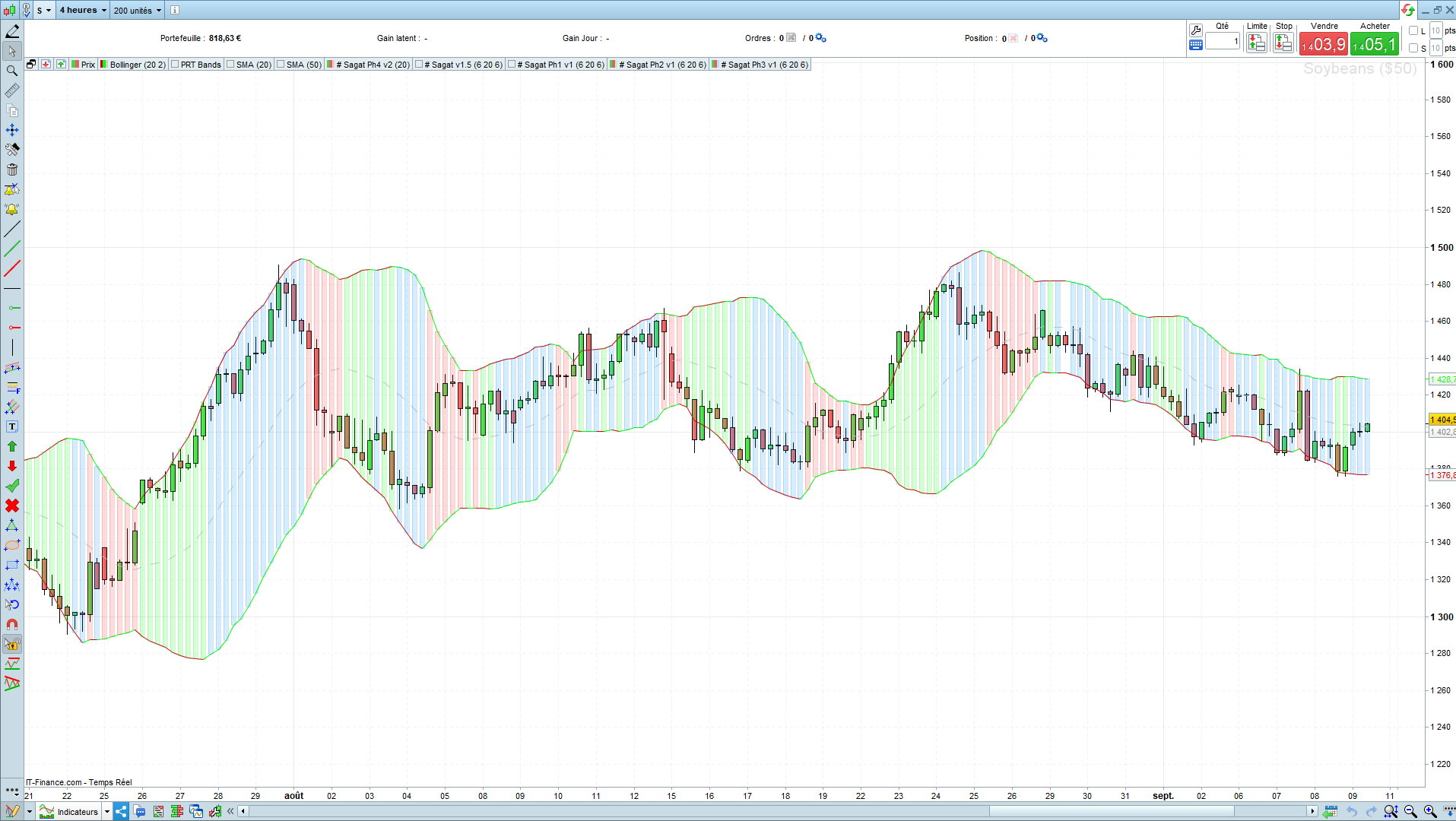

  Looks very good, you can now clearly see the different phase…

  You can still try what I suggested:

  Instead of, for example:

  BBup > BBup[1] and BBDown < BBDown[1]

  BBup > BBup[n] and BBDown < BBDown[n]

  Where you give n a certain value, for example 20

  As a result, the phases will jump less quickly, and the graph will become “calmer”



  1 user thanked author for this post.

  ZeroCafeine



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 782 times
  09/09/2022 at 11:02 AM #200417
  ZeroCafeine

  hi every one,

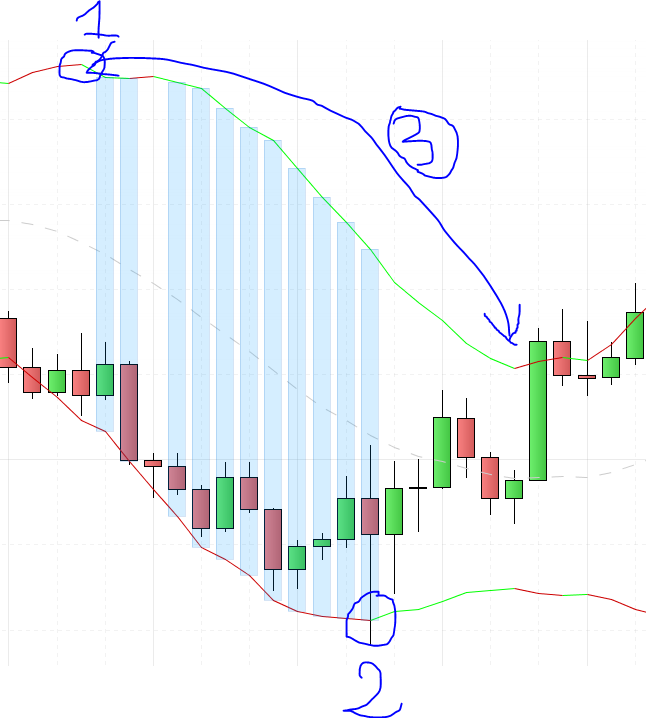

  I need you help pls on the ph3, you can see my picture, the ph3 start in 1 and finish in 2, so condition is :
  -1) First condition the upper band turns over (only the first time), we don’t need to check what happens afterwards on the upper band as long as the lower band is descending (in the whole part 3)
  -2) Second condition, the lower band turns over, in our exemple in point 2 ( and we need only the first turn over)

  tks in advance for any help or idea or link
  that is my code for ph3

  //(｡♥‿♥｡)================================================(｡♥‿♥｡) // Setup: SAGAT Ph3 // Code: # Sagat Ph3 v // Version 1 // Index: // TF: // Spread: // Date: 08/09/2022 // Notes: Detection de Phase 3 Bollinger // // Attribus: // - BBup / BBDown // - // - // Conditions: // - C1/C2/C3 -> Ph3 Haussiere // - C4/C5/C6 -> Ph3 Baissiere //(｡♥‿♥｡)================================================(｡♥‿♥｡) // (｡♥‿♥｡) Block Start // Block End (｡♥‿♥｡) // (｡♥‿♥｡) Block Start BBup = BollingerUp[nBB](close) BBDown = BollingerDown[nBB](close) BBSMA = Average[nBB] max1 = BollingerUp[nBB] min1 = BollingerDown[nBB] // Block End (｡♥‿♥｡) // (｡♥‿♥｡) Block Start // Conditions : C1/C2 C1 = BBup > BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3] C2 = BBDown > BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3] C3 = BBSMA > BBSMA[1] C4 = BBup < BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3] C5 = BBDown < BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3] C6 = BBSMA < BBSMA[1] Signal = 0 // Block End (｡♥‿♥｡) AllConditions = C1 AND C2 AND C3 OR C4 AND C5 AND C6 IF AllConditions Then Signal = 1 DRAWCANDLE(max1, min1, max1, min1) Coloured (0, 153, 255, 42) ELSE Signal = 0 ENDIF Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

  //(｡♥‿♥｡)================================================(｡♥‿♥｡) //   Setup:   SAGAT Ph3 //   Code:    # Sagat Ph3 v //   Version  1 //   Index: //   TF: //   Spread: //   Date:    08/09/2022 //   Notes:   Detection de Phase 3 Bollinger // //   Attribus: //          - BBup / BBDown //          - //          - //  Conditions: //          - C1/C2/C3 -> Ph3 Haussiere //          - C4/C5/C6 -> Ph3 Baissiere //(｡♥‿♥｡)================================================(｡♥‿♥｡)   // (｡♥‿♥｡) Block Start // Block End (｡♥‿♥｡)   // (｡♥‿♥｡) Block Start BBup   = BollingerUp[nBB](close) BBDown = BollingerDown[nBB](close) BBSMA = Average[nBB]   max1 = BollingerUp[nBB] min1 = BollingerDown[nBB] // Block End (｡♥‿♥｡)   // (｡♥‿♥｡) Block Start // Conditions : C1/C2 C1 = BBup > BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3] C2 = BBDown > BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3] C3 = BBSMA > BBSMA[1]   C4 = BBup < BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3] C5 = BBDown < BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3] C6 = BBSMA < BBSMA[1]     Signal = 0 // Block End (｡♥‿♥｡)   AllConditions = C1 AND C2 AND C3 OR C4 AND C5 AND C6     IF AllConditions Then Signal = 1 DRAWCANDLE(max1, min1, max1, min1) Coloured (0, 153, 255, 42) ELSE Signal = 0 ENDIF   Return

  Best Reguards



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/09/2022 at 11:19 AM #200420
  ZeroCafeine

  @JS
  tks for your answer, I saw it only now, maybe my second question can answer you, the problem with a code like BBup > BBup[n] and BBDown < BBDown[n] it’s not good for me, because I have to control each BB and not just the BB[0] with the BB[n], I have to know what happen with the BB1, BB2, …., BB[n]



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  09/09/2022 at 11:26 AM #200421
  ZeroCafeine

  ZeroCafeine wrote:

  hi every one,

  I need you help pls on the ph3, you can see my picture, the ph3 start in 1 and finish in 2, so condition is :

  -1) First condition the upper band turns over (only the first time), we don’t need to check what happens afterwards on the upper band as long as the lower band is descending (in the whole part 3)

  -2) Second condition, the lower band turns over, in our exemple in point 2 ( and we need only the first turn over)

  tks in advance for any help or idea or link

  that is my code for ph3

  //(｡♥‿♥｡)================================================(｡♥‿♥｡)<br /> // Setup: SAGAT Ph3<br /> // Code: # Sagat Ph3 v<br /> // Version 1<br /> // Index:<br /> // TF:<br /> // Spread:<br /> // Date: 08/09/2022<br /> // Notes: Detection de Phase 3 Bollinger<br /> //<br /> // Attribus:<br /> // – BBup / BBDown<br /> // –<br /> // –<br /> // Conditions:<br /> // – C1/C2/C3 -> Ph3 Haussiere<br /> // – C4/C5/C6 -> Ph3 Baissiere<br /> //(｡♥‿♥｡)================================================(｡♥‿♥｡)</p> <p>// (｡♥‿♥｡) Block Start<br /> // Block End (｡♥‿♥｡)</p> <p>// (｡♥‿♥｡) Block Start<br /> BBup = BollingerUp[nBB](close)<br /> BBDown = BollingerDown[nBB](close)<br /> BBSMA = Average[nBB]</p> <p>max1 = BollingerUp[nBB]<br /> min1 = BollingerDown[nBB]<br /> // Block End (｡♥‿♥｡)</p> <p>// (｡♥‿♥｡) Block Start<br /> // Conditions : C1/C2<br /> C1 = BBup > BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3]<br /> C2 = BBDown > BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3]<br /> C3 = BBSMA > BBSMA[1]</p> <p>C4 = BBup < BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3]<br /> C5 = BBDown < BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3]<br /> C6 = BBSMA < BBSMA[1]</p> <p>Signal = 0<br /> // Block End (｡♥‿♥｡)</p> <p>AllConditions = C1 AND C2 AND C3 OR C4 AND C5 AND C6</p> <p>IF AllConditions Then<br /> Signal = 1<br /> DRAWCANDLE(max1, min1, max1, min1) Coloured (0, 153, 255, 42)<br /> ELSE<br /> Signal = 0<br /> ENDIF</p> <p>Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

  //(｡♥‿♥｡)================================================(｡♥‿♥｡) // Setup: SAGAT Ph3 // Code: # Sagat Ph3 v // Version 1 // Index: // TF: // Spread: // Date: 08/09/2022 // Notes: Detection de Phase 3 Bollinger // // Attribus: // – BBup / BBDown // – // – // Conditions: // – C1/C2/C3 -> Ph3 Haussiere // – C4/C5/C6 -> Ph3 Baissiere //(｡♥‿♥｡)================================================(｡♥‿♥｡) // (｡♥‿♥｡) Block Start // Block End (｡♥‿♥｡) // (｡♥‿♥｡) Block Start BBup = BollingerUp[nBB](close) BBDown = BollingerDown[nBB](close) BBSMA = Average[nBB] max1 = BollingerUp[nBB] min1 = BollingerDown[nBB] // Block End (｡♥‿♥｡) // (｡♥‿♥｡) Block Start // Conditions : C1/C2 C1 = BBup > BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3] C2 = BBDown > BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3] C3 = BBSMA > BBSMA[1] C4 = BBup < BBup[1] //AND BBup[1] > BBup[2] AND BBup[2] > BBup[3] C5 = BBDown < BBDown[1] //AND BBDown[1] < BBDown[2] AND BBDown[2] < BBDown[3] C6 = BBSMA < BBSMA[1] Signal = 0 // Block End (｡♥‿♥｡) AllConditions = C1 AND C2 AND C3 OR C4 AND C5 AND C6 IF AllConditions Then Signal = 1 DRAWCANDLE(max1, min1, max1, min1) Coloured (0, 153, 255, 42) ELSE Signal = 0 ENDIF Return

  Best Reguards

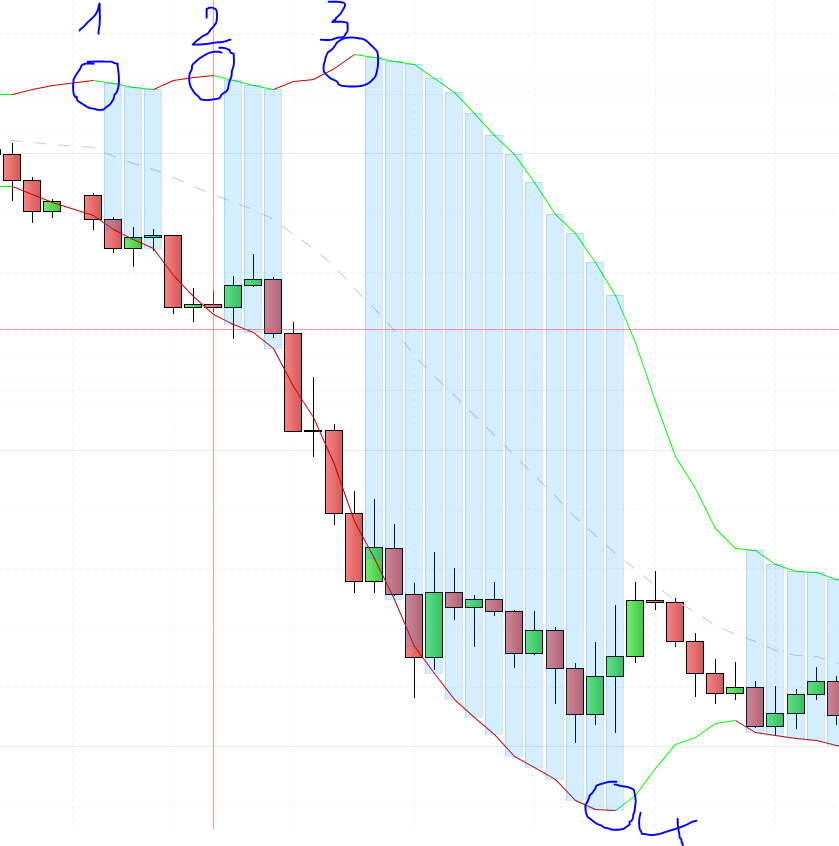

  and other photo maybe can help, I want to detect only the 1 and 4, the point 2 and 3 it’s not important



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
