Bot with RSI divergence

• 11/08/2020 at 4:46 PM #149843
  Oliviertrader2020

  Hello,

  I’m trying to create an algorithm based on the divergences.
  I tried to call divergence indicators (RSI or MACD) found on the site but it doesn’t work, I think the error comes from my code.

  For example I tried to call the indicator “DivergenceRSIWithLookback”, and to indicate as conditions to buy if the indicator is > to 0 and the close is > to the highest of the previous candle, or to short if the indicator is < to 0 and the close is < to the lowest of the previous candle, But this does not give any trade. I removed the conditions close >high [1] and close

  I removed the variables from the indicator to integrate them directly into the code but it still didn’t work. It still doesn’t work.

  Can someone help me solve this problem? 🙂

  DEFPARAM Cumulateorders = False DEFPARAM FLATAFTER = 214400 DEFPARAM FLATBEFORE = 000100 // Conditions pour ouvrir une position acheteuse indicator1 = Call "DivergenceRSIWithLookback" c1 = (indicator1 > 0) //c2 = close> high[1] IF c1 AND Not OnMarket THEN BUY 1 CONTRACTS AT MARKET ENDIF // Conditions pour ouvrir une position vendeuse indicator2 = Call "DivergenceRSIWithLookback" c3 = (indicator1 < 0) //c4 = close < low[1] IF c3 AND Not OnMarket THEN SELLSHORT 1 CONTRACTS AT MARKET ENDIF SET STOP$LOSS 500 SET TARGET$PROFIT 500

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

  DEFPARAM Cumulateorders = False DEFPARAM FLATAFTER = 214400 DEFPARAM FLATBEFORE = 000100   // Conditions pour ouvrir une position acheteuse indicator1 = Call "DivergenceRSIWithLookback" c1 = (indicator1 > 0) //c2 = close> high[1]   IF c1  AND Not OnMarket THEN BUY 1 CONTRACTS AT MARKET ENDIF   // Conditions pour ouvrir une position vendeuse indicator2 = Call "DivergenceRSIWithLookback" c3 = (indicator1 < 0) //c4 = close < low[1]   IF c3 AND Not OnMarket THEN SELLSHORT 1 CONTRACTS AT MARKET ENDIF     SET STOP$LOSS 500 SET TARGET$PROFIT 500



  Oliviertrader2020

  Participant

  Topics: 22

  Replies: 49

  Been thanked: 4 times
  11/08/2020 at 4:53 PM #149846
  Oliviertrader2020

  PS : Sorry for the readability. I did use the add code function in the initial message, then when I modified it when I noticed the bug but the code continued to be displayed with the text. 🙂



  Oliviertrader2020

  Participant

  Topics: 22

  Replies: 49

  Been thanked: 4 times
  11/09/2020 at 4:23 PM #149919
  Nicolas

  Are you sure the indicator is sending signals? Did you try to GRAPH indicator1, for example?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20866

  Been thanked: 4782 times
  11/10/2020 at 6:31 PM #150052
  Oliviertrader2020

  Hello @Nicolas,

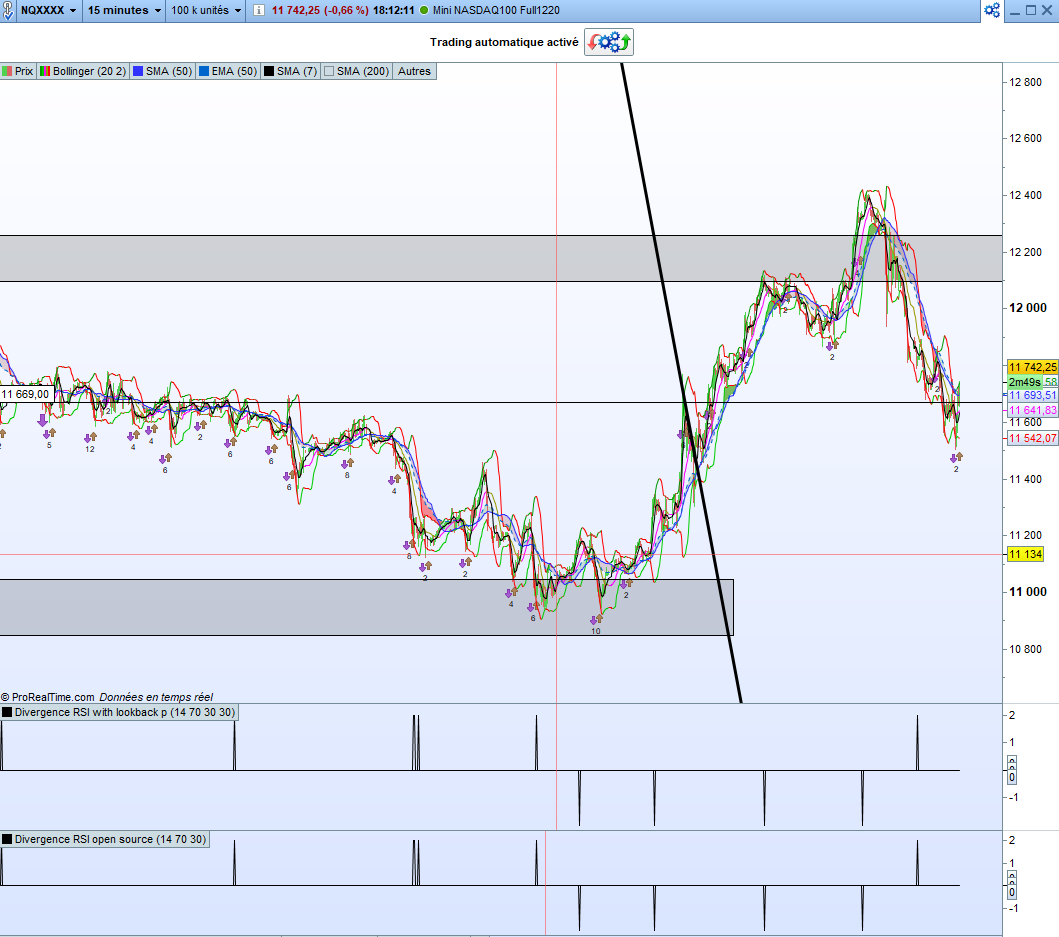

  Yes the indicator returns signals as you can see in the screenshot.
  I also tried with the indicator “DivergenceRSIopensource” and the result is the same.

  I also tried with the other indicators you shared on this page: https://www.prorealcode.com/topic/rsi-divergence/#post-23530 but there are still no trades triggered, whatever the asset or time unit.

  Can you help me to program a divergence algorithm? 🙂



  Oliviertrader2020

  Participant

  Topics: 22

  Replies: 49

  Been thanked: 4 times
  11/12/2020 at 8:49 AM #150217
  Nicolas

  You are not GRAPH the indicator in the strategy, I only see the indicators values from ProBuilder on your charts. Please provide the ITF file of your strategy so I can use the same exact indicator as you.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20866

  Been thanked: 4782 times
  11/17/2020 at 12:52 AM #150728
  Oliviertrader2020

  Hello Nicolas,

  Here are the 2 indicators and the strategy in itf.

  Thank you for your help.



  Oliviertrader2020

  Participant

  Topics: 22

  Replies: 49

  Been thanked: 4 times
  11/19/2020 at 3:02 PM #150974
  Oliviertrader2020

  Hello @Nicolas,

  Indicators and strategy in itf can be found in the previous message.
  Thank you for your help.



  Oliviertrader2020

  Participant

  Topics: 22

  Replies: 49

  Been thanked: 4 times
  11/22/2020 at 11:32 AM #151196
  Nicolas

  You have wrongly called an indicator that don’t exist? The signals were not present? In any case, test your variables with GRAPH, it is the first step to debug a code that is malfunctioning.

  PFA the itf file in order to get the complete code working (with indicator embedded).



  1 user thanked author for this post.

  Oliviertrader2020



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20866

  Been thanked: 4782 times
  11/22/2020 at 12:06 PM #151201
  GraHal

  Below is one error.

  Maybe Nicolas fixed this in the .itf above … I’ll try Nicolas file.

  // Conditions pour ouvrir une position vendeuse indicator2 = Call "DivergenceRSIWithLookback" c3 = (indicator1 < 0)

  1 2 3

  // Conditions pour ouvrir une position vendeuse indicator2 = Call "DivergenceRSIWithLookback" c3 = (indicator1 < 0)

  needs to be

  // Conditions pour ouvrir une position vendeuse indicator2 = Call "DivergenceRSIWithLookback" c3 = (indicator2 < 0) //Indicator2 not indicator 1

  1 2 3

  // Conditions pour ouvrir une position vendeuse indicator2 = Call "DivergenceRSIWithLookback" c3 = (indicator2 < 0) //Indicator2 not indicator 1





  GraHal

  Participant

  Topics: 219

  Replies: 8980

  Been thanked: 2277 times
  11/22/2020 at 12:10 PM #151202
  GraHal

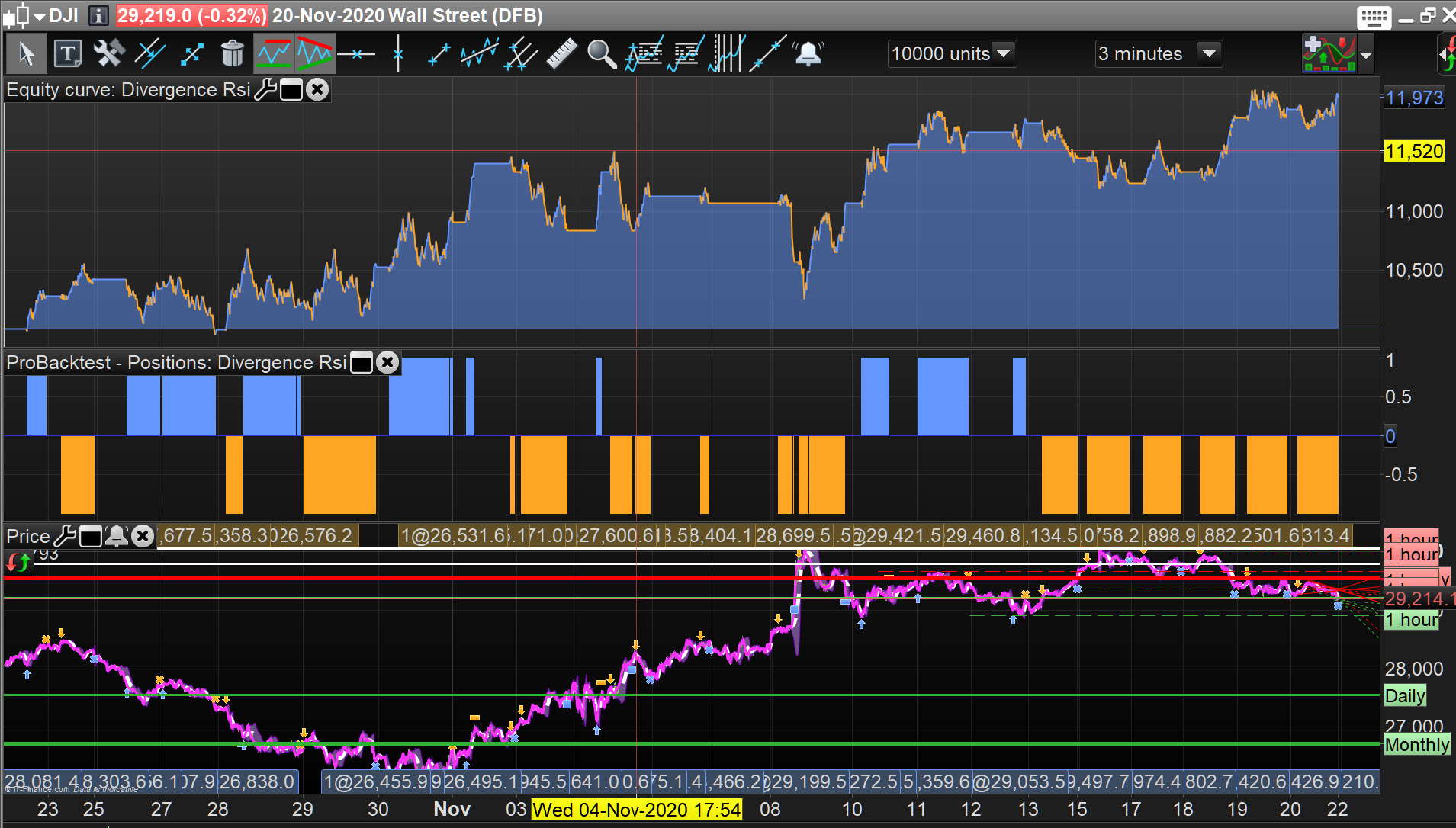

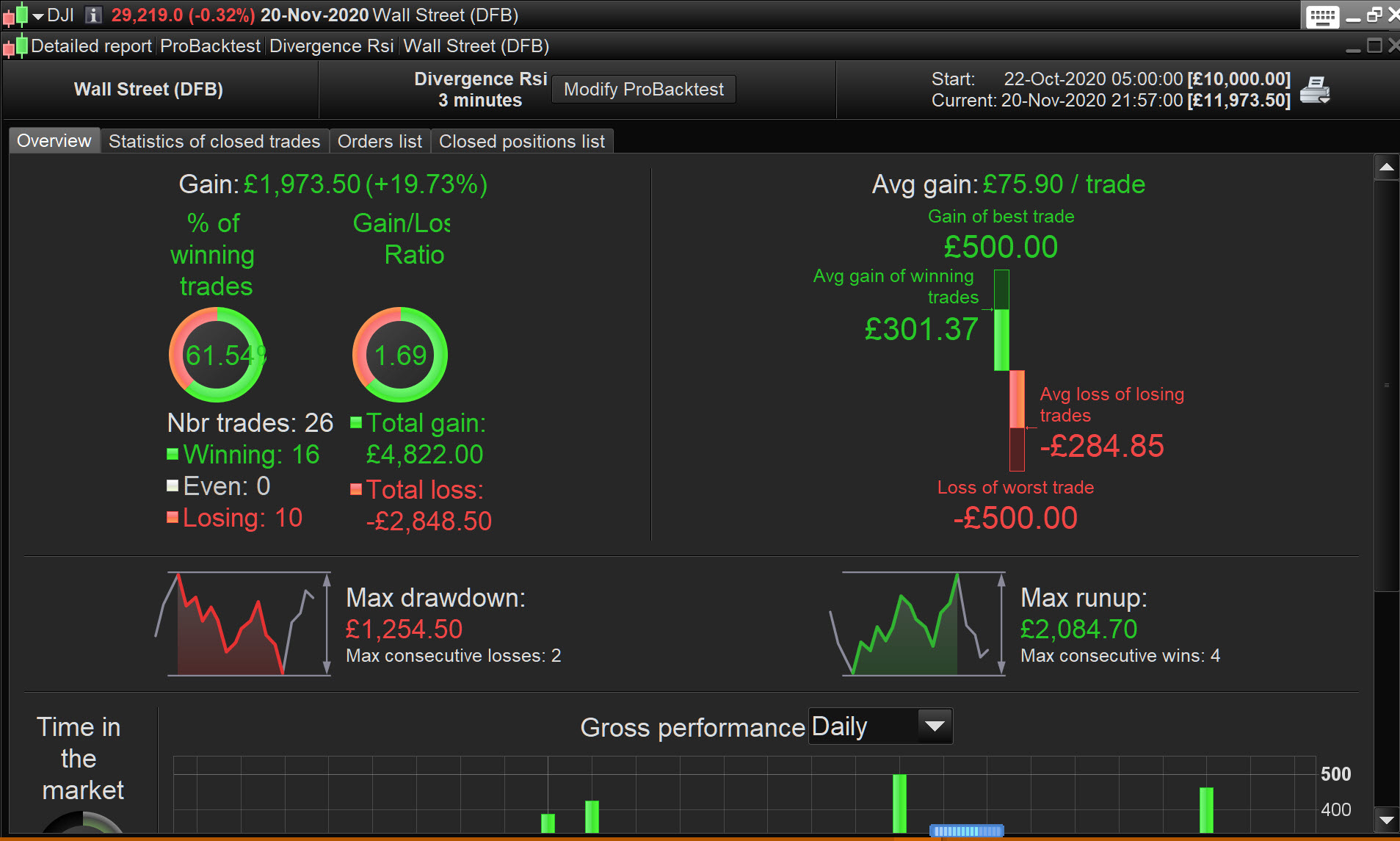

  Nicolas code works fine … see attached

  1 user thanked author for this post.

  Oliviertrader2020



  GraHal

  Participant

  Topics: 219

  Replies: 8980

  Been thanked: 2277 times
  11/22/2020 at 8:17 PM #151240
  Zigo

  Evening,

  I am working on a set up for this topic. What I have already is coupling of the signals on a target-price (TP).

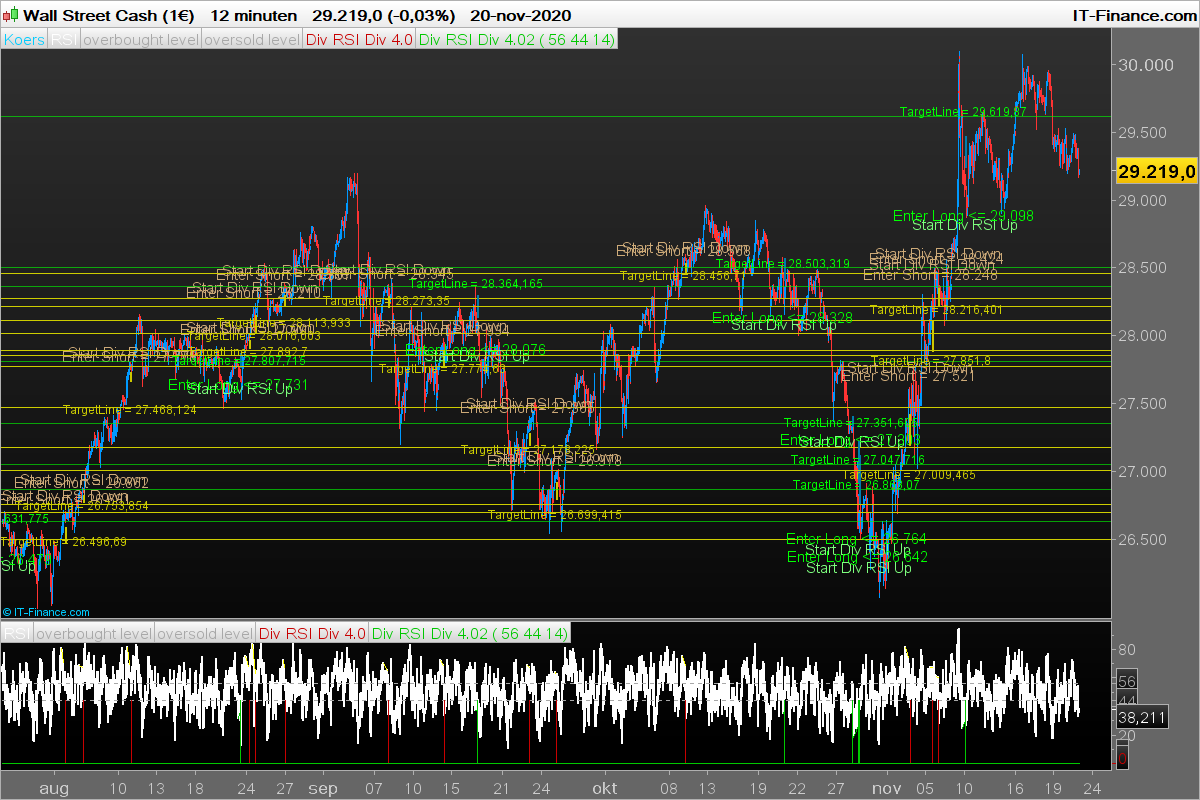

  In the attachment is every line a TP after a signal. Green lines for long trading, yellow lines for short trading.



  Zigo

  Participant

  Topics: 25

  Replies: 351

  Been thanked: 65 times
  11/22/2020 at 8:43 PM #151242
  Zigo

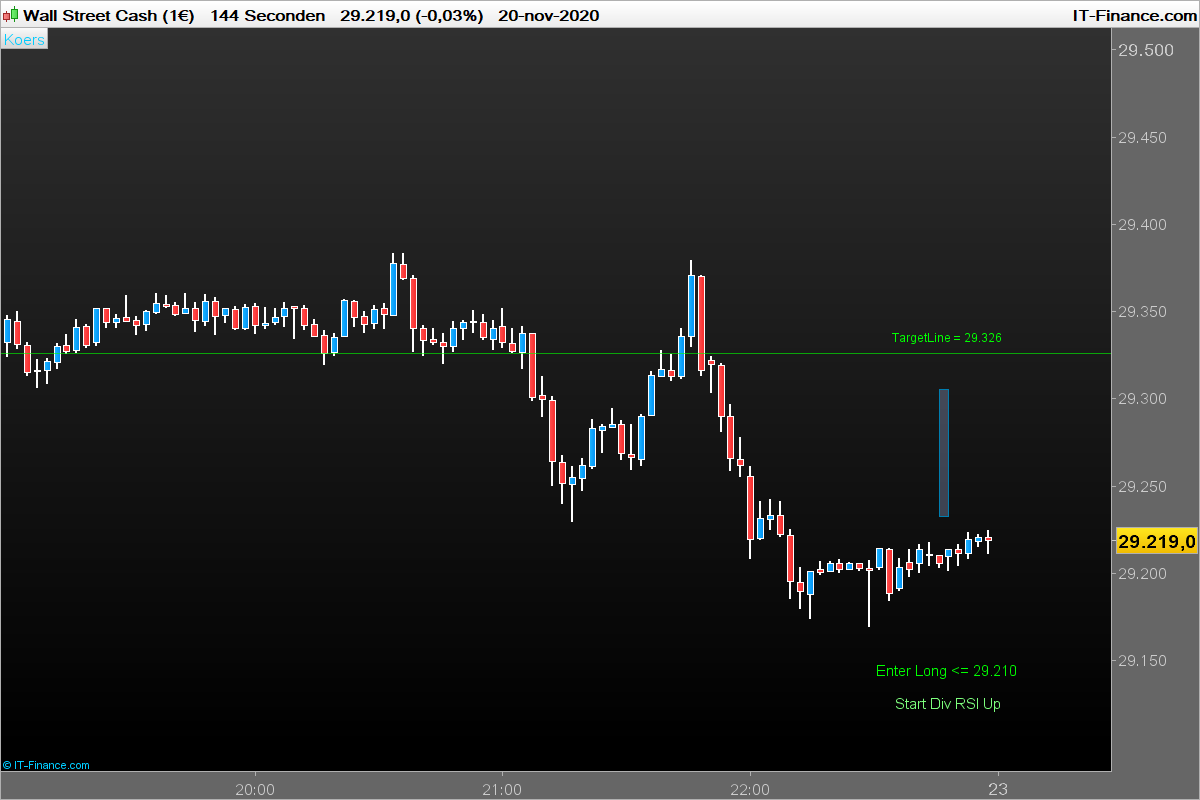

  Last signal on 144 sec frame



  Zigo

  Participant

  Topics: 25

  Replies: 351

  Been thanked: 65 times
  11/22/2020 at 8:45 PM #151244
  GraHal

  I know my eyes aren’t great, but I feel like I’ve had 10 pints when looking at the attachment 2 posts above  … it’s all fuzzy with text superimposed on top of other text … is it just me!? 🙂



  GraHal

  Participant

  Topics: 219

  Replies: 8980

  Been thanked: 2277 times
  11/22/2020 at 9:51 PM #151245
  Vonasi

  GraHal wrote:

  is it just me!? 🙂

  It looks perfectly focused if you view it through the bottom of your second bottle of wine. Don’t ask me how I know.

  1 user thanked author for this post.

  GraHal



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  11/23/2020 at 12:03 AM #151251
  Zigo

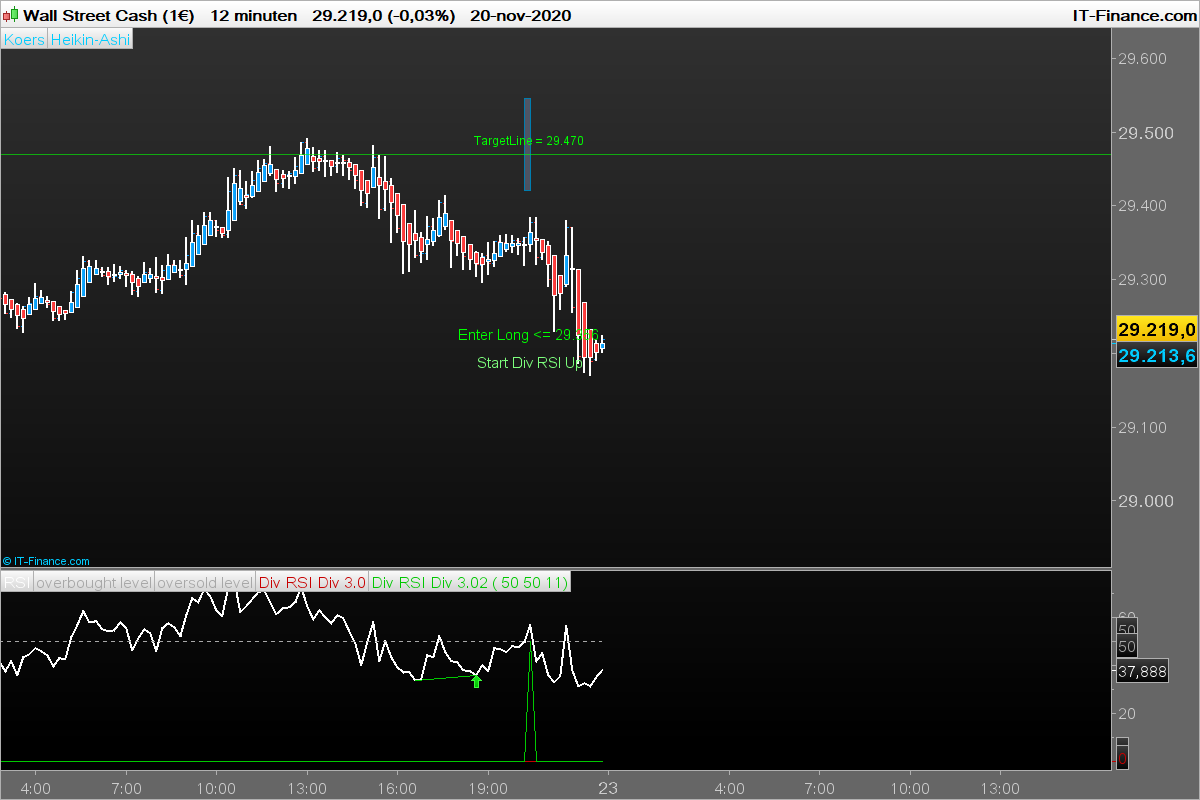

  Maybe this looks better, if you have to much C2H5OH in your head.

  Its the same instrument only 100 times lesser candles. To morrow it clearing out.

  1 user thanked author for this post.

  GraHal



  Zigo

  Participant

  Topics: 25

  Replies: 351

  Been thanked: 65 times
