Can anyone code John Ehler's FRAMA ?

This topic has 13 replies, 4 voices, and was last updated 7 years ago by Bard.

Viewing 14 posts - 1 through 14 (of 14 total)

11/24/2016 at 2:11 PM #17097

Bard

I was looking into Ehlers Cycle theories and came across a Moving Averages Study that shows Ehler’s Fractal Adaptive Moving Average (FRAMA) is far superior to the EMA and SMA (although I don’t know how it would stand up to Kaufman’s Adaptive Moving Average) :

http://etfhq.com/blog/2010/10/09/frama-is-it-effective/#Best

Does anyone know how to code it from this Metatrader code? :

https://www.mql5.com/en/code/72

Cheers
Brad

Bard

Participant

Topics: 138

Replies: 814

Been thanked: 99 times

11/24/2016 at 2:40 PM #17102

Nicolas

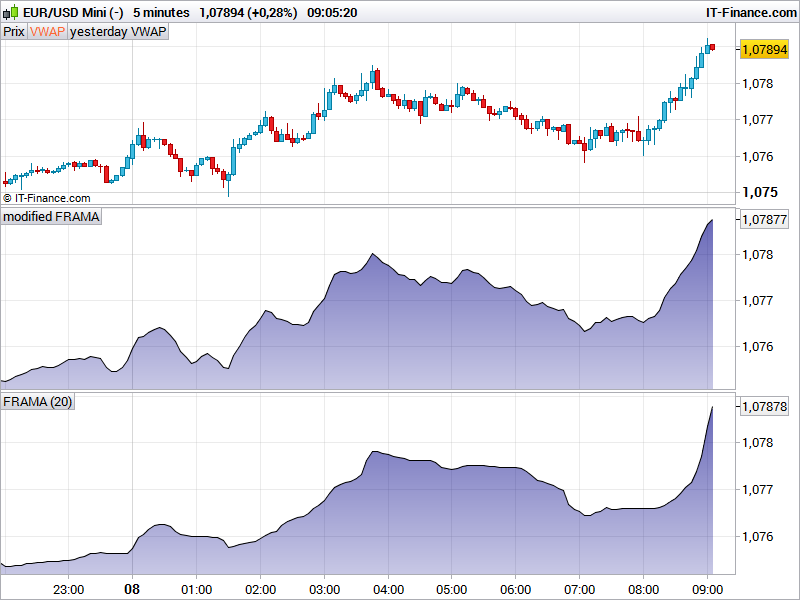

Found this old code on a German forum for FRAMA moving average , modified some variables names for recent PRT version :

// FRAMA

p = 20

pri=Customclose
len=p


N3=(Highest[len](High)-Lowest[len](Low))/len

mH=High
L=Low

For count=0 To len/2-1
If High[count] > mH Then
mH=High[count]
Endif

If Low[count] < L Then
L=Low[count]
Endif
Next

N1=(mH-L)/(len/2)

HH=High[len/2]
LL=Low[len/2]

For count=len/2 To len-1
If High[count] > HH Then
HH=High[count]
Endif

If Low[count] < LL Then
LL=Low[count]
Endif
Next

N2=(HH-LL)/(len/2)

If N1 > 0 And N2 > 0 And N3 > 0 Then
Dimen=(Log(N1+N2)-Log(N3))/Log(2)
Endif

alpha=Exp(-4.6*(Dimen-1))

If alpha < 0.01 Then
alpha=0.01
Endif

If alpha > 1 Then
alpha=1
Endif

Filt=alpha*pri+(1-alpha)*Filt[1]

If Barindex < len+1 Then
Filt=pri
Endif

Return Filt as "FRAMA"

// FRAMA

p = 20

pri=Customclose

len=p

N3=(Highest[len](High)-Lowest[len](Low))/len

mH=High

L=Low

For count=0 To len/2-1

If High[count] > mH Then

mH=High[count]

Endif

If Low[count] < L Then

L=Low[count]

Endif

N1=(mH-L)/(len/2)

HH=High[len/2]

LL=Low[len/2]

For count=len/2 To len-1

If High[count] > HH Then

HH=High[count]

Endif

If Low[count] < LL Then

LL=Low[count]

Endif

N2=(HH-LL)/(len/2)

If N1 > 0 And N2 > 0 And N3 > 0 Then

Dimen=(Log(N1+N2)-Log(N3))/Log(2)

Endif

alpha=Exp(-4.6*(Dimen-1))

If alpha < 0.01 Then

alpha=0.01

Endif

If alpha > 1 Then

alpha=1

Endif

Filt=alpha*pri+(1-alpha)*Filt[1]

If Barindex < len+1 Then

Filt=pri

Endif

Return Filt as "FRAMA"

I’ll post it too into the Library with credits for the author of course.

1 user thanked author for this post.

Bard

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

11/24/2016 at 3:04 PM #17108

Nicolas

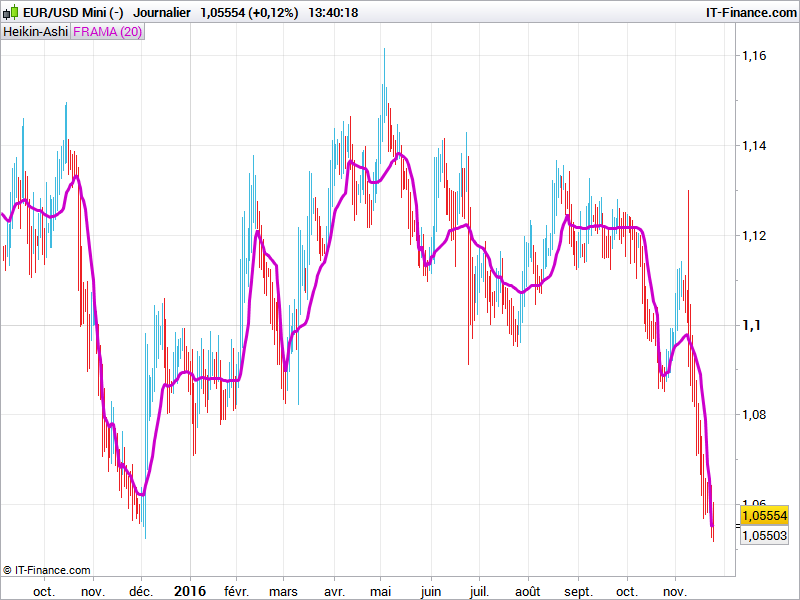

Added to the Library for future reference: FRAMA indicator download

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

11/24/2016 at 4:23 PM #17116

Bard

Thanks Nicolas, much appreciated.

Do you know if FRAMA is meant to have a fast (FC) and slow (SC) moving average setting like the Kaufman Adaptive Mov Ave?
On the link above (efthq blog) is mentions in it’s conclusion:

“The FRAMA is astoundingly effective as both a fast and a slow moving average and will outperform any SMA or EMA. We selected a modified FRAMA with a “FC” of 4, a “SC” of 300 and a “FRAMA” period of 126 as being the most effective fast FRAMA although the settings for a standard FRAMA will also produce excellent results. For a slower or longer term average the best results are likely to come from a “FC” of 40, a “SC” of 250 and a “FRAMA” period of 252.”

Cheers

Brad

Bard

Participant

Topics: 138

Replies: 814

Been thanked: 99 times

12/05/2016 at 7:36 PM #17842

Bard

Hi Nicolas,

The code above does appear to be come from a paper written by Ehler’s: http://www.mesasoftware.com/papers/FRAMA.pdf
But I think there is a newer version. I found this code below for Ehler’s FRAMA which has the fast and slow moving averages setting.

#'FRactal Adaptive Moving Average
#'@param HLC an HLC price series
#'@param n a lookback period
#'@param FC a fast constant--aka lowest n for an EMA
#'@param SC a slow constant--aka lowest n for an EMA
#'@param triggerLag a number of days by which to lag the original computation
#'@return an xts containing the FRAMA and the trigger
#'@references
#'\cr\url{http://www.mesasoftware.com/Papers/FRAMA.pdf}
#'\cr\url{http://etfhq.com/blog/2010/09/30/fractal-adaptive-moving-average-frama/}
#'@export
"FRAMA" <- function(HLC, n=20, FC=1, SC=200, triggerLag=1, ...) {
  price <- ehlersPriceMethod(HLC, ...)
  if (n%%2==1) n=n-1 #n must be even
  N3 <- (runMax(Hi(HLC), n)-runMin(Lo(HLC), n))/n
  N1 <- (runMax(Hi(HLC), n/2)-runMin(Lo(HLC), n/2))/(n/2)
  lagSeries <- lag(HLC, n/2)
  N2 <- (runMax(Hi(lagSeries), n/2)-runMin(Lo(lagSeries), n/2))/(n/2)
  dimen <- (log(N1+N2)-log(N3))/log(2)
  w <- log(2/(SC+1))
  oldAlpha <- exp(w*(dimen-1))
  oldN <- (2-oldAlpha)/oldAlpha
  newN <- ((SC-FC)*(oldN-1)/(SC-1))+FC
  alpha <- 2/(newN+1)
  alpha[which(alpha > 1)] <- 1
  alpha[which(alpha < w)] <- w
  alphaComplement <- 1-alpha
  initializationIndex <- index(alpha[is.na(alpha)])
  alpha[is.na(alpha)] <- 1; alphaComplement[is.na(alphaComplement)] <- 0
  FRAMA <- rep(0, length(price))
  FRAMA[1] <- price[1]
  FRAMA <- computeFRAMA(alpha, alphaComplement, FRAMA, price)
  FRAMA <- xts(FRAMA, order.by=index(price))
  FRAMA[initializationIndex] <- alpha[initializationIndex] <- NA
  trigger <- lag(FRAMA, triggerLag)
  out <- cbind(FRAMA=FRAMA, trigger=trigger)
  return(out)
}

#'FRactal Adaptive Moving Average

#'@param HLC an HLC price series

#'@param n a lookback period

#'@param FC a fast constant--aka lowest n for an EMA

#'@param SC a slow constant--aka lowest n for an EMA

#'@param triggerLag a number of days by which to lag the original computation

#'@return an xts containing the FRAMA and the trigger

#'@references

#'\cr\url{http://www.mesasoftware.com/Papers/FRAMA.pdf}

#'\cr\url{http://etfhq.com/blog/2010/09/30/fractal-adaptive-moving-average-frama/}

#'@export

"FRAMA" <- function(HLC, n=20, FC=1, SC=200, triggerLag=1, ...) {

price <- ehlersPriceMethod(HLC, ...)

if (n%%2==1) n=n-1 #n must be even

N3 <- (runMax(Hi(HLC), n)-runMin(Lo(HLC), n))/n

N1 <- (runMax(Hi(HLC), n/2)-runMin(Lo(HLC), n/2))/(n/2)

lagSeries <- lag(HLC, n/2)

N2 <- (runMax(Hi(lagSeries), n/2)-runMin(Lo(lagSeries), n/2))/(n/2)

dimen <- (log(N1+N2)-log(N3))/log(2)

w <- log(2/(SC+1))

oldAlpha <- exp(w*(dimen-1))

oldN <- (2-oldAlpha)/oldAlpha

newN <- ((SC-FC)*(oldN-1)/(SC-1))+FC

alpha <- 2/(newN+1)

alpha[which(alpha > 1)] <- 1

alpha[which(alpha < w)] <- w

alphaComplement <- 1-alpha

initializationIndex <- index(alpha[is.na(alpha)])

alpha[is.na(alpha)] <- 1; alphaComplement[is.na(alphaComplement)] <- 0

FRAMA <- rep(0, length(price))

FRAMA[1] <- price[1]

FRAMA <- computeFRAMA(alpha, alphaComplement, FRAMA, price)

FRAMA <- xts(FRAMA, order.by=index(price))

FRAMA[initializationIndex] <- alpha[initializationIndex] <- NA

trigger <- lag(FRAMA, triggerLag)

out <- cbind(FRAMA=FRAMA, trigger=trigger)

return(out)

}

There is also metatrader code using log values of the EMA: https://www.mql5.com/en/code/72

FRAMA(i) = A(i) * Price(i) + (1 - A(i)) * FRAMA(i-1)
where:

FRAMA(i) - current value of FRAMA;
Price(i) - current price;
FRAMA(i-1) - previous value of FRAMA;
A(i) - current factor of exponential smoothing.
Exponential smoothing factor is calculated according to the below formula:

A(i) = EXP(-4.6 * (D(i) - 1))
where:

D(i) - current fractal dimension;
EXP() - mathematical function of exponent.
Fractal dimension of a straight line is equal to one. It is seen from the formula that if D = 1, then A = EXP(-4.6 *(1-1)) = EXP(0) = 1. Thus if price changes in straight lines, exponential smoothing is not used, because in such a case the formula looks like this:

FRAMA(i) = 1 * Price(i) + (1 - i) * FRAMA(i-1) = Price(i)
I.e. the indicator exactly follows the price.

The fractal dimension of a plane is equal to two. From the formula we get that if D = 2, then the smoothing factor A = EXP(-4.6*(2-1)) = EXP(-4.6) = 0.01. Such a small value of the exponential smoothing factor is obtained at moments when price makes a strong saw-toothed movement. Such a strong slow-down corresponds to approximately 200-period simple moving average.

Formula of fractal dimension:

D = (LOG(N1 + N2) - LOG(N3))/LOG(2)
It is calculated based on the additional formula:

N(Length,i) = (HighestPrice(i) - LowestPrice(i))/Length
where:

HighestPrice(i) - current maximal value for Length periods;
LowestPrice(i) - current minimal value for Length periods;
Values N1, N2 and N3 are respectively equal to:

N1(i) = N(Length,i)
N2(i) = N(Length,i + Length)
N3(i) = N(2 * Length,i)

FRAMA(i) = A(i) * Price(i) + (1 - A(i)) * FRAMA(i-1)

where:

FRAMA(i) - current value of FRAMA;

Price(i) - current price;

FRAMA(i-1) - previous value of FRAMA;

A(i) - current factor of exponential smoothing.

Exponential smoothing factor is calculated according to the below formula:

A(i) = EXP(-4.6 * (D(i) - 1))

where:

D(i) - current fractal dimension;

EXP() - mathematical function of exponent.

Fractal dimension of a straight line is equal to one. It is seen from the formula that if D = 1, then A = EXP(-4.6 *(1-1)) = EXP(0) = 1. Thus if price changes in straight lines, exponential smoothing is not used, because in such a case the formula looks like this:

FRAMA(i) = 1 * Price(i) + (1 - i) * FRAMA(i-1) = Price(i)

I.e. the indicator exactly follows the price.

The fractal dimension of a plane is equal to two. From the formula we get that if D = 2, then the smoothing factor A = EXP(-4.6*(2-1)) = EXP(-4.6) = 0.01. Such a small value of the exponential smoothing factor is obtained at moments when price makes a strong saw-toothed movement. Such a strong slow-down corresponds to approximately 200-period simple moving average.

Formula of fractal dimension:

D = (LOG(N1 + N2) - LOG(N3))/LOG(2)

It is calculated based on the additional formula:

N(Length,i) = (HighestPrice(i) - LowestPrice(i))/Length

where:

HighestPrice(i) - current maximal value for Length periods;

LowestPrice(i) - current minimal value for Length periods;

Values N1, N2 and N3 are respectively equal to:

N1(i) = N(Length,i)

N2(i) = N(Length,i + Length)

N3(i) = N(2 * Length,i)

Is is possible to code these into PRT code (or incorporate this with your code) to compare the effectiveness of the FC and SC with the Log version?

Thanks,

Cheers
Brad

Bard

Participant

Topics: 138

Replies: 814

Been thanked: 99 times

12/06/2016 at 5:31 PM #17883

Nicolas

If you can find comprehensive formula from any other trading software (not from “R” like your first one), I could code the modified FRAMA for PRT of course.

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

12/06/2016 at 10:18 PM #17907

Bard

Not from “R”?

Bard

Participant

Topics: 138

Replies: 814

Been thanked: 99 times

12/07/2016 at 11:59 AM #17922

Bard

Hi Nicholas,

You mean Copyrighted “C”?

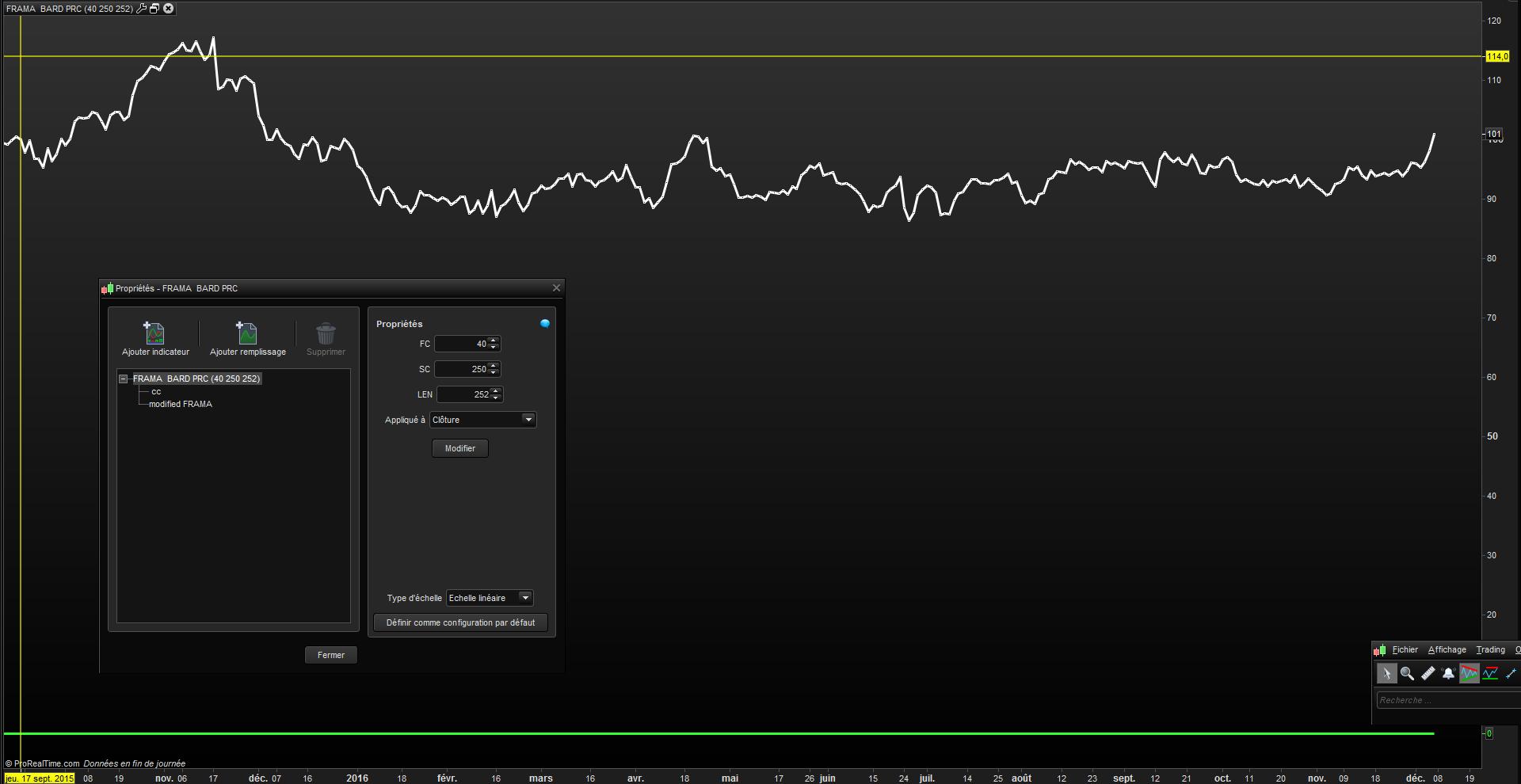

This code has the fast and Slow Mov Averages and is logarithmic. Could you delete the other two codes above? Thanks (-:

study("Fractal Adaptive Moving Average",shorttitle="FRAMA",overlay=true)

price = close
len = input(defval=252,minval=1)
FC = input(defval=40,minval=1)
SC = input(defval=252,minval=1)

w = log(2/(SC+1))
len1 = len/2
H1 = highest(high,len1)
L1 = lowest(low,len1)
N1 = (H1 - L1)/len1

H2 = for i = len1+1 to len
    high>high[i]?high:high[i]

L2 = for i = len1+1 to len
    low>low[i]?low:low[i]

N2 = (H2 - L2)/len1

H3 = highest(high,len)
L3 = lowest(low,len)
N3 = (H1 - L1)/len

dimen = (log(H1+H2) - log(H3))/log(2)
oldalpha = exp(w*(dimen-1))
oldN = (2-oldalpha)/oldalpha
newN = ((SC-FC)*(oldN-1)/(SC-1))+FC
alpha = 2/(newN+1)
out = nz(out[1])*(1-alpha) + price*alpha

plot(out,title="FRAMA")

study("Fractal Adaptive Moving Average",shorttitle="FRAMA",overlay=true)

price = close

len = input(defval=252,minval=1)

FC = input(defval=40,minval=1)

SC = input(defval=252,minval=1)

w = log(2/(SC+1))

len1 = len/2

H1 = highest(high,len1)

L1 = lowest(low,len1)

N1 = (H1 - L1)/len1

H2 = for i = len1+1 to len

high>high[i]?high:high[i]

L2 = for i = len1+1 to len

low>low[i]?low:low[i]

N2 = (H2 - L2)/len1

H3 = highest(high,len)

L3 = lowest(low,len)

N3 = (H1 - L1)/len

dimen = (log(H1+H2) - log(H3))/log(2)

oldalpha = exp(w*(dimen-1))

oldN = (2-oldalpha)/oldalpha

newN = ((SC-FC)*(oldN-1)/(SC-1))+FC

alpha = 2/(newN+1)

out = nz(out[1])*(1-alpha) + price*alpha

plot(out,title="FRAMA")

Bard

Participant

Topics: 138

Replies: 814

Been thanked: 99 times

12/07/2016 at 3:26 PM #17936

Nicolas

Nope I meant “R”, the statistical analysis software: https://www.r-project.org/

This last new code is much more readable, I believe it can be converted to probuilder. Let me have a look.

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

12/08/2016 at 10:05 AM #17985

Nicolas

Your last code proposal have some variables that aren’t used in the final calculation of the FRAMA. This prorealtime code is the result of the conversion, it returns a curve, I let you verify its information on your charts 🙂

price = close
len = 126 //FRAMA period
FC = 4 //fast constant--aka lowest n for an EMA
SC = 300 //slow constant--aka lowest n for an EMA

if barindex>len+fc+sc then
w = log(2/(SC+1))
len1 = len/2
H1 = highest[len1](high)
//L1 = lowest[len1](low)
//N1 = (H1 - L1)/len1

for i = len1+1 to len do
if high>high[i] then
H2 = high[i]
endif
next

//for i = len1+1 to len do
//if low>low[i] then
//L2  = low[i]
//endif
//next

//N2 = (H2 - L2)/len1

H3 = highest[len](high)
//L3 = lowest[len](low)
//N3 = (H1 - L1)/len

dimen = (log(H1+H2) - log(H3))/log(2)
oldalpha = exp(w*(dimen-1))
oldN = (2-oldalpha)/oldalpha
newN = ((SC-FC)*(oldN-1)/(SC-1))+FC
alpha = 2/(newN+1)
out = (out[1])*(1-alpha) + price*alpha
endif

RETURN out as "modified FRAMA"

price = close

len = 126 //FRAMA period

FC = 4 //fast constant--aka lowest n for an EMA

SC = 300 //slow constant--aka lowest n for an EMA

if barindex>len+fc+sc then

w = log(2/(SC+1))

len1 = len/2

H1 = highest[len1](high)

//L1 = lowest[len1](low)

//N1 = (H1 - L1)/len1

for i = len1+1 to len do

if high>high[i] then

H2 = high[i]

endif

//for i = len1+1 to len do

//if low>low[i] then

//L2 = low[i]

//endif

//next

//N2 = (H2 - L2)/len1

H3 = highest[len](high)

//L3 = lowest[len](low)

//N3 = (H1 - L1)/len

dimen = (log(H1+H2) - log(H3))/log(2)

oldalpha = exp(w*(dimen-1))

oldN = (2-oldalpha)/oldalpha

newN = ((SC-FC)*(oldN-1)/(SC-1))+FC

alpha = 2/(newN+1)

out = (out[1])*(1-alpha) + price*alpha

endif

RETURN out as "modified FRAMA"

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

12/08/2016 at 12:40 PM #18057

supertiti

Avec FC = 40 SC = 250 LEN = 252 j’ai cela comme retour ?! la moyenne est “flat”

supertiti

Participant

Topics: 123

Replies: 738

Been thanked: 76 times

05/13/2017 at 11:27 PM #35462

laurenzo

Dans le code on a du

HH=High[len/2]
LL=Low[len/2]

For count=len/2 To len-1
If High[count] > HH Then
HH=High[count]
Endif

HH=High[len/2]

LL=Low[len/2]

For count=len/2 To len-1

If High[count] > HH Then

HH=High[count]

Endif

Tout va bien quand len est pair.

Si len est impaire, ça va planter on va essayer d’accéder à Low[décimal].

Du coup il faut faire un ROUND je suppose avant 🙂

genre High[ROUND(count)]

C’est pas super beau mais bon 🙂

laurenzo

Participant

Topics: 15

Replies: 64

Been thanked: 16 times

05/13/2017 at 11:51 PM #35463

laurenzo

Voilà mon code avec les rounds et le FIX sur le LOG

// FRAMA - Fractal Adaptive Moving Average by John Ehlers

// --- parameters
Series = CustomClose
// Period = 20
// ---

Period = MAX(Period, 1)

N3 = (highest[Period](High) - lowest[Period](Low)) / Period
mH = High
L = Low

FOR count = 0 TO (Period / 2) - 1 DO
    count = ROUND(count)
    IF High[count] > mH THEN
        mH = High[count]
    ENDIF
    IF Low[count] < L THEN
        L = Low[count]
    ENDIF
NEXT

N1 = (mH - L) / (Period / 2)
HH = High[ROUND(Period / 2)]
LL = Low[ROUND(Period / 2)]

FOR count = Period / 2 TO Period - 1 DO
    count = ROUND(count)
    IF High[count] > HH THEN
        HH = High[count]
    ENDIF
    IF Low[count] < LL THEN
        LL = Low[count]
    ENDIF
NEXT

N2 = (HH - LL) / (Period / 2)

IF N1 > 0 AND N2 > 0 AND N3 > 0 THEN
    // FIX LOG
    Dimen = ((LOG(N1 + N2) / LOG(10)) - (LOG(N3) / LOG(10))) / (LOG(2) / LOG(10))
ENDIF

alpha = EXP(-4.6 * (Dimen - 1))
IF alpha < 0.01 THEN
    alpha = 0.01
ELSIF alpha > 1 THEN
    alpha = 1
ENDIF

IF BarIndex < Period THEN
    FRAMA = Series
ELSE
    FRAMA = alpha * Series + (1 - alpha) * FRAMA[1]
ENDIF

RETURN FRAMA

// FRAMA - Fractal Adaptive Moving Average by John Ehlers

// --- parameters

Series = CustomClose

// Period = 20

// ---

Period = MAX(Period, 1)

N3 = (highest[Period](High) - lowest[Period](Low)) / Period

mH = High

L = Low

FOR count = 0 TO (Period / 2) - 1 DO

count = ROUND(count)

IF High[count] > mH THEN

mH = High[count]

ENDIF

IF Low[count] < L THEN

L = Low[count]

ENDIF

N1 = (mH - L) / (Period / 2)

HH = High[ROUND(Period / 2)]

LL = Low[ROUND(Period / 2)]

FOR count = Period / 2 TO Period - 1 DO

count = ROUND(count)

IF High[count] > HH THEN

HH = High[count]

ENDIF

IF Low[count] < LL THEN

LL = Low[count]

ENDIF

N2 = (HH - LL) / (Period / 2)

IF N1 > 0 AND N2 > 0 AND N3 > 0 THEN

// FIX LOG

Dimen = ((LOG(N1 + N2) / LOG(10)) - (LOG(N3) / LOG(10))) / (LOG(2) / LOG(10))

ENDIF

alpha = EXP(-4.6 * (Dimen - 1))

IF alpha < 0.01 THEN

alpha = 0.01

ELSIF alpha > 1 THEN

alpha = 1

ENDIF

IF BarIndex < Period THEN

FRAMA = Series

ELSE

FRAMA = alpha * Series + (1 - alpha) * FRAMA[1]

ENDIF

RETURN FRAMA

1 user thanked author for this post.

Nicolas

laurenzo

Participant

Topics: 15

Replies: 64

Been thanked: 16 times

05/14/2017 at 5:09 PM #35493

Bard

Appreciated, thanks @laurenzo.

Bard

Participant

Topics: 138

Replies: 814

Been thanked: 99 times

Author

Posts

Viewing 14 posts - 1 through 14 (of 14 total)

Find exclusive trading pro-tools on
