Code conversion needed: LEDGE ATR indicator

Zac · Tue, 10 Jan 2017 14:49:27 +0000

Hi, I have the following Pine Script that I would like converted into PRT code: study(title = “LEDGE ATR”, overlay = true) length = input(20, minval=1) offset = input(-1) htr = security(tickerid, “D”, low+sma(tr[1], length)) ltr = security(tickerid, “D”, high-sma(tr[1], length)) plot(series=htr, color=red, linewidth=2, style=circles, trackprice=true, offset=offset) plot(series=ltr, color=green, linewidth=2, style=circles, trackprice=true, offset=offset) Anyone able to help? Anyone able to point me to a conversion service? The conversion quote from PRT seems excessive so I am wondering if there are any freelance alternatives. The attached image shows the MT4 indicator in action. The indicator uses a 20 period ATR value calculated from the close of yesterday’s D1 candle. It takes this ATR value and displays the upper and lower range for today on intraday timeframes. Thanks, Zac

This topic has 35 replies, 3 voices, and was last updated 6 years ago by crolakstrading.

Viewing 15 posts - 16 through 30 (of 36 total)

← 1 2 3 →

02/22/2018 at 6:50 PM #63574

crolakstrading

Hi Nicolas..

This is great. thanks very much!

the enter lines were going 2o pips above from ATR so i changed it and made it in.. and change the colours.. please see pic

+ Red line is 20 pips below from ATR to short entry

+ Green line is 20 pips above from ATR to go long

is there a way to move those RED and GREEN lines easily like adding variables.. lets i want go 30 pips instead of 20 pip? is there away to move them both 30 pips each way without going in and edit it!!.. is this possible??

thanks

crolakstrading

Participant

Topics: 12

Replies: 112

Been thanked: 4 times

02/23/2018 at 9:49 AM #63624

Nicolas

Of course that’s possible. Just replace the points distance number in the code with a new variable and add it into the external variable tool. Easy.

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

02/26/2018 at 2:04 PM #63964

crolakstrading

Hi Nicolas.. i have tried hard to add these point distance… please can you check what im doing wrong.. it doesn’t do anything???

defparam drawonlastbaronly=true
// --- parameters
ATRperiod = 14
// ---

dTR = 0
for i = 0 to ATRperiod
dTR=dTR+max(abs(Dhigh(i)-Dlow(i)),max(abs(Dhigh(i)-Dclose(i+1)),abs(Dlow(i)-Dclose(i+1))))
next

avg = dTR/ATRperiod
converted = round(avg/pointsize*10)/10

htr = Dlow(0)+avg[1]
ltr = Dhigh(0)-avg[1]

if intradaybarindex=0 then
begin=barindex
endif

// --- parameters
//EP = 20
// ---
drawsegment(begin,htr,barindex,htr) coloured(200,100,0)
drawsegment(begin,htr-20*pointsize,barindex,htr-20*pointsize) coloured(255,0,0) //EP
drawtext("#htr# - (D1atr: #converted#)",barindex,htr+10*pointsize,Dialog,Bold,10) coloured(200,100,0)
drawsegment(begin,ltr,barindex,ltr) coloured(200,100,0)
drawsegment(begin,ltr+20*pointsize,barindex,ltr+20*pointsize) coloured(0,255,0)//EP
drawtext("#ltr# - (D1atr: #converted#)",barindex,ltr-10*pointsize,Dialog,Bold,10) coloured(200,100,0)
drawsegment(begin,Dopen(0),barindex,Dopen(0)) coloured(255,250,250)

return

defparam drawonlastbaronly=true

// --- parameters

ATRperiod = 14

// ---

dTR = 0

for i = 0 to ATRperiod

dTR=dTR+max(abs(Dhigh(i)-Dlow(i)),max(abs(Dhigh(i)-Dclose(i+1)),abs(Dlow(i)-Dclose(i+1))))

avg = dTR/ATRperiod

converted = round(avg/pointsize*10)/10

htr = Dlow(0)+avg[1]

ltr = Dhigh(0)-avg[1]

if intradaybarindex=0 then

begin=barindex

endif

// --- parameters

//EP = 20

// ---

drawsegment(begin,htr,barindex,htr) coloured(200,100,0)

drawsegment(begin,htr-20*pointsize,barindex,htr-20*pointsize) coloured(255,0,0) //EP

drawtext("#htr# - (D1atr: #converted#)",barindex,htr+10*pointsize,Dialog,Bold,10) coloured(200,100,0)

drawsegment(begin,ltr,barindex,ltr) coloured(200,100,0)

drawsegment(begin,ltr+20*pointsize,barindex,ltr+20*pointsize) coloured(0,255,0)//EP

drawtext("#ltr# - (D1atr: #converted#)",barindex,ltr-10*pointsize,Dialog,Bold,10) coloured(200,100,0)

drawsegment(begin,Dopen(0),barindex,Dopen(0)) coloured(255,250,250)

return

crolakstrading

Participant

Topics: 12

Replies: 112

Been thanked: 4 times

02/27/2018 at 9:28 PM #64079

crolakstrading

Hi Nicolas.. a little help on this to make it work… really appreciated!!

crolakstrading

Participant

Topics: 12

Replies: 112

Been thanked: 4 times

03/02/2018 at 9:39 PM #64241

crolakstrading

Hi Nicolas..

is there a way keep the daily ATR price the same from market open price without changing???? what mean is the opening price at midnight, the ATR at that time, then the high/low price that remains static throughout the day. one we get the daily ATR price when market opens 0000.. that ART price remins the same place without changing??

please advice?

Many thanks

crolakstrading

Participant

Topics: 12

Replies: 112

Been thanked: 4 times

03/05/2018 at 2:08 PM #64442

Nicolas

Just make only one time the dTR calculation at first bar of the day:

if intradaybarindex=0 then
 for i = 0 to ATRperiod
  dTR=dTR+max(abs(Dhigh(i)-Dlow(i)),max(abs(Dhigh(i)-Dclose(i+1)),abs(Dlow(i)-Dclose(i+1))))
 next
endif

if intradaybarindex=0 then

for i = 0 to ATRperiod

dTR=dTR+max(abs(Dhigh(i)-Dlow(i)),max(abs(Dhigh(i)-Dclose(i+1)),abs(Dlow(i)-Dclose(i+1))))

endif

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

03/05/2018 at 7:25 PM #64486

crolakstrading

Hi nicolas,

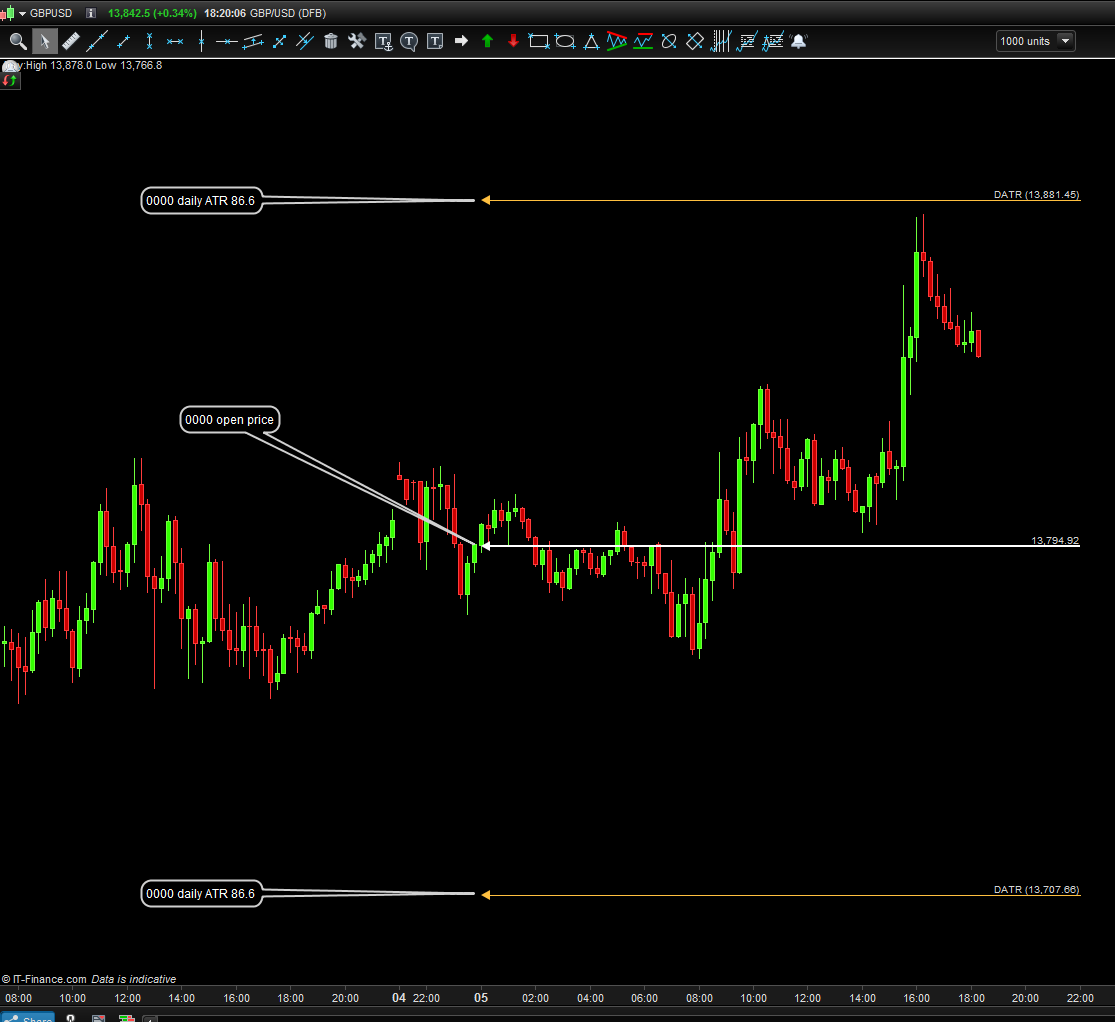

Please can you check below.. it doesn’t seem to work properly.. also attached a pic below what i meant!! sorry to bother you again still learning.. I really appreciate your help!!!

defparam drawonlastbaronly=true

// --- parameters
ATRperiod = 14
// ---

dTR = 0
if intradaybarindex=0 then
for i = 0 to ATRperiod
dTR=dTR+max(abs(Dhigh(i)-Dlow(i)),max(abs(Dhigh(i)-Dclose(i+1)),abs(Dlow(i)-Dclose(i+1))))
next
endif

avg = dTR/ATRperiod
converted = round(avg/pointsize*10)/10

htr = Dlow(0)+avg[1]
ltr = Dhigh(0)-avg[1]

if intradaybarindex=0 then
begin=barindex
endif

drawsegment(begin,htr,barindex,htr) coloured(255,255,0)
drawsegment(begin,htr+20*pointsize,barindex,htr+20*pointsize) coloured(255,0,0)
drawtext("#htr# - (D1atr: #converted#)",barindex,htr+10*pointsize,Dialog,Bold,10) coloured(255,255,0)
drawsegment(begin,ltr,barindex,ltr) coloured(255,255,0)
drawsegment(begin,ltr-20*pointsize,barindex,ltr-20*pointsize) coloured(0,255,0)
drawtext("#ltr# - (D1atr: #converted#)",barindex,ltr-10*pointsize,Dialog,Bold,10) coloured(255,255,0)
drawsegment(begin,Dopen(0),barindex,Dopen(0)) coloured(255,250,250)

return

defparam drawonlastbaronly=true

// --- parameters

ATRperiod = 14

// ---

dTR = 0

if intradaybarindex=0 then

for i = 0 to ATRperiod

dTR=dTR+max(abs(Dhigh(i)-Dlow(i)),max(abs(Dhigh(i)-Dclose(i+1)),abs(Dlow(i)-Dclose(i+1))))

endif

avg = dTR/ATRperiod

converted = round(avg/pointsize*10)/10

htr = Dlow(0)+avg[1]

ltr = Dhigh(0)-avg[1]

if intradaybarindex=0 then

begin=barindex

endif

drawsegment(begin,htr,barindex,htr) coloured(255,255,0)

drawsegment(begin,htr+20*pointsize,barindex,htr+20*pointsize) coloured(255,0,0)

drawtext("#htr# - (D1atr: #converted#)",barindex,htr+10*pointsize,Dialog,Bold,10) coloured(255,255,0)

drawsegment(begin,ltr,barindex,ltr) coloured(255,255,0)

drawsegment(begin,ltr-20*pointsize,barindex,ltr-20*pointsize) coloured(0,255,0)

drawtext("#ltr# - (D1atr: #converted#)",barindex,ltr-10*pointsize,Dialog,Bold,10) coloured(255,255,0)

drawsegment(begin,Dopen(0),barindex,Dopen(0)) coloured(255,250,250)

return

crolakstrading

Participant

Topics: 12

Replies: 112

Been thanked: 4 times

03/06/2018 at 10:26 AM #64556

Nicolas

Try this one:

defparam drawonlastbaronly=true

// --- parameters
ATRperiod = 14
// ---

if intradaybarindex=0 then
begin=barindex
reset=0
dTR = 0
endif

if reset=0 then
for i = 1 to ATRperiod
dTR=dTR+max(abs(Dhigh(i)-Dlow(i)),max(abs(Dhigh(i)-Dclose(i+1)),abs(Dlow(i)-Dclose(i+1))))
next
reset=1
endif

avg = dTR/ATRperiod
converted = round(avg/pointsize*10)/10

htr = Dlow(0)+avg[1]
ltr = Dhigh(0)-avg[1]

drawsegment(begin,htr,barindex,htr) coloured(255,255,0)
drawsegment(begin,htr+20*pointsize,barindex,htr+20*pointsize) coloured(255,0,0)
drawtext("#htr# - (D1atr: #converted#)",barindex,htr+10*pointsize,Dialog,Bold,10) coloured(255,0,0)
drawsegment(begin,ltr,barindex,ltr) coloured(255,255,0)
drawsegment(begin,ltr-20*pointsize,barindex,ltr-20*pointsize) coloured(0,255,0)
drawtext("#ltr# - (D1atr: #converted#)",barindex,ltr-10*pointsize,Dialog,Bold,10) coloured(255,0,0)
drawsegment(begin,Dopen(0),barindex,Dopen(0)) coloured(255,250,250)

return

defparam drawonlastbaronly=true

// --- parameters

ATRperiod = 14

// ---

if intradaybarindex=0 then

begin=barindex

reset=0

dTR = 0

endif

if reset=0 then

for i = 1 to ATRperiod

dTR=dTR+max(abs(Dhigh(i)-Dlow(i)),max(abs(Dhigh(i)-Dclose(i+1)),abs(Dlow(i)-Dclose(i+1))))

reset=1

endif

avg = dTR/ATRperiod

converted = round(avg/pointsize*10)/10

htr = Dlow(0)+avg[1]

ltr = Dhigh(0)-avg[1]

drawsegment(begin,htr,barindex,htr) coloured(255,255,0)

drawsegment(begin,htr+20*pointsize,barindex,htr+20*pointsize) coloured(255,0,0)

drawtext("#htr# - (D1atr: #converted#)",barindex,htr+10*pointsize,Dialog,Bold,10) coloured(255,0,0)

drawsegment(begin,ltr,barindex,ltr) coloured(255,255,0)

drawsegment(begin,ltr-20*pointsize,barindex,ltr-20*pointsize) coloured(0,255,0)

drawtext("#ltr# - (D1atr: #converted#)",barindex,ltr-10*pointsize,Dialog,Bold,10) coloured(255,0,0)

drawsegment(begin,Dopen(0),barindex,Dopen(0)) coloured(255,250,250)

return

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

03/06/2018 at 8:19 PM #64617

crolakstrading

Hi Nicolas,

Just few issues with this… not sure why when the price move up or down lower or higher ATR moves towards open price and above. please see the picture..

* D atr says 94.2 but the line is not 94.2 away from Open price 0000??

crolakstrading

Participant

Topics: 12

Replies: 112

Been thanked: 4 times

03/07/2018 at 3:18 PM #64680

Nicolas

Change lines 23 and 24 to:

htr = Dopen(0)+avg[1]
ltr = Dopen(0)-avg[1]

1 2	htr = Dopen(0)+avg[1] ltr = Dopen(0)-avg[1]

1 user thanked author for this post.

crolakstrading

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

03/10/2018 at 11:13 PM #64978

crolakstrading

Hi Nicolas…

that works really well… thank you so much for this!

is there a way to add price number to 20 pip above line at the moment its only the line..

drawsegment(begin,htr+20*pointsize,barindex,htr+20*pointsize) coloured(255,0,0)

1	drawsegment(begin,htr+20pointsize,barindex,htr+20pointsize) coloured(255,0,0)

How to add the price (number) on to this like your atr line? “#ltr# – (D1atr: #converted#)”

crolakstrading

Participant

Topics: 12

Replies: 112

Been thanked: 4 times

03/11/2018 at 6:12 PM #65010

Nicolas

crolakstrading wrote:

How to add the price (number) on to this like your atr line? “#ltr# – (D1atr: #converted#)”

Well, you already have everything in hands, examples at lines 28 and 31 of this post: https://www.prorealcode.com/topic/code-conversion-neededi/page/2/#post-64556

1 user thanked author for this post.

crolakstrading

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

03/26/2018 at 11:15 PM #66491

crolakstrading

Thank you very much Nicolas,

I have been doing this strategy for past few weeks and given me 80% success on this. its really good!!

would it be a possible thing to make a screener.. lets say when its near ATR that we get a signal for that??

crolakstrading

Participant

Topics: 12

Replies: 112

Been thanked: 4 times

03/27/2018 at 8:02 AM #66506

Nicolas

Sure, but could you explain the strategy please? I’m sure it will be of interest of many ones here. Thank you.

1 user thanked author for this post.

crolakstrading

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

03/27/2018 at 3:58 PM #66571

crolakstrading

Of course. we want the market to stretch very quickly to daily ATR. once reach daily ATR you can enter aggressively at ATR or 20pips below or above! please see the picture to make it clear as this is today EURUSD. hope its clear?

crolakstrading

Participant

Topics: 12

Replies: 112

Been thanked: 4 times

Author
