Code pinescript vers ProBuilder

• 07/02/2024 at 2:04 PM #234701
  Emanuel_

  Bonjour à tous,

  j’ai codé un indicateur dans trading_view avec pinescript et j’aimerais l’adapté pour pouvoir l’utilisé dans ProRealTime mais je ne trouve pas de documentation complète et donc je suis un peux perdu avec le langage.

  Voici mon code :

  //@version=5 indicator("Parabolic SAR with High and Low Lines", overlay=true) // Calculate Parabolic SAR sar = ta.sar(0.02, 0.02, 0.2) // Signals signal_up = ta.crossover(close, sar) signal_down = ta.crossover(sar, close) // Variables to store the high and the low prices, and the start time of the lines var float highPrice = na var float lowPrice = na var int highBar = na var int lowBar = na var line highLine = na var line lowLine = na // Check for signal_up and signal_down if (signal_up)     highPrice := high     highBar := bar_index     // Remove the previous lines if they exist     if (na(highLine) == false)         line.delete(highLine)     highLine := na  // Reset the high line variable if (signal_down)     lowPrice := low     lowBar := bar_index     if (na(lowLine) == false)         line.delete(lowLine)     lowLine := na   // Reset the low line variable // Update the highest high and the lowest low between signal_up and signal_down if not na(highPrice)     highPrice := math.max(highPrice, high) if not na(lowPrice)     lowPrice := math.min(lowPrice, low) // Plot the horizontal lines from signal_up to signal_down if not na(highPrice) and not signal_down     // Remove the previous high line if it exists     if (na(highLine) == false)         line.delete(highLine)     highLine := line.new(highBar, highPrice, bar_index, highPrice, color=color.red, width=2) if not na(lowPrice) and not signal_up     // Remove the previous low line if it exists     if (na(lowLine) == false)         line.delete(lowLine)     lowLine := line.new(lowBar, lowPrice, bar_index, lowPrice, color=color.green, width=2) if signal_down     highPrice := na     highLine := na  // Reset the high line variable if signal_up     lowPrice := na     lowLine := na plot(sar, style = plot.style_circles, linewidth = 1, color = sar < close ? color.green : color.red)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101

  //@version=5   indicator("Parabolic SAR with High and Low Lines", overlay=true)   // Calculate Parabolic SAR   sar = ta.sar(0.02, 0.02, 0.2)   // Signals   signal_up = ta.crossover(close, sar)   signal_down = ta.crossover(sar, close)   // Variables to store the high and the low prices, and the start time of the lines   var float highPrice = na   var float lowPrice = na   var int highBar = na   var int lowBar = na   var line highLine = na   var line lowLine = na   // Check for signal_up and signal_down   if (signal_up)       highPrice := high       highBar := bar_index       // Remove the previous lines if they exist       if (na(highLine) == false)           line.delete(highLine)       highLine := na  // Reset the high line variable   if (signal_down)       lowPrice := low       lowBar := bar_index       if (na(lowLine) == false)           line.delete(lowLine)       lowLine := na   // Reset the low line variable   // Update the highest high and the lowest low between signal_up and signal_down   if not na(highPrice)       highPrice := math.max(highPrice, high)   if not na(lowPrice)       lowPrice := math.min(lowPrice, low)   // Plot the horizontal lines from signal_up to signal_down   if not na(highPrice) and not signal_down       // Remove the previous high line if it exists       if (na(highLine) == false)           line.delete(highLine)       highLine := line.new(highBar, highPrice, bar_index, highPrice, color=color.red, width=2)   if not na(lowPrice) and not signal_up       // Remove the previous low line if it exists       if (na(lowLine) == false)           line.delete(lowLine)       lowLine := line.new(lowBar, lowPrice, bar_index, lowPrice, color=color.green, width=2)   if signal_down       highPrice := na       highLine := na  // Reset the high line variable   if signal_up       lowPrice := na       lowLine := na   plot(sar, style = plot.style_circles, linewidth = 1, color = sar < close ? color.green : color.red)

  Si quelqu’un saurait comment je peux faire des arrays et ensuite tracer mes lignes je suis preneurs, merci d’avance.



  Emanuel_

  Participant

  Topics: 1

  Replies: 1

  Been thanked: 0 times
  07/02/2024 at 4:11 PM #234705
  Iván

  Holà. Vraiment pas de tableaux de fautes. De toutes les formes, il est programmé avec des tableaux pour que vous puissiez fonctionner.

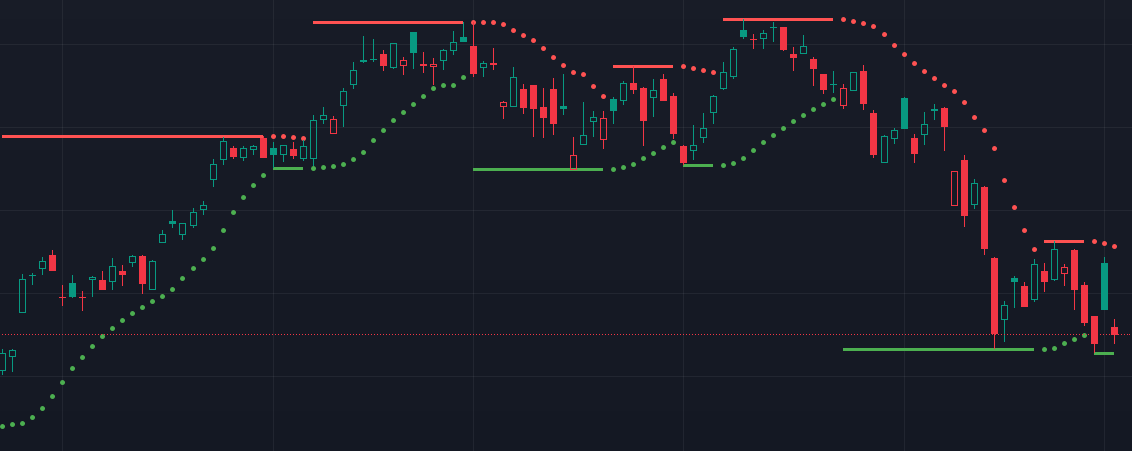

  //------------------------------------------------------------// Psar=SAR[0.02,0.02,0.2] //----Signals signalUP=close crosses over psar signalDN=close crosses under psar //----Store prices if signalUP then $price[t+1]=high $bar[t+1]=barindex $crossidx[t+1]=barindex $type[t+1]=1 t=t+1 elsif signalDN then $price[t+1]=low $bar[t+1]=barindex $crossidx[t+1]=barindex $type[t+1]=-1 t=t+1 endif //----Update prices between signals if not signalUP and $type[t]=1 and high>$price[t] then $price[t]=high $bar[t]=barindex endif if not signalDN and $type[t]=-1 and low<$price[t] then $price[t]=low $bar[t]=barindex endif //----Parabolic Sar colors if close < psar then r=255 g=0 else r=0 g=255 endif //----Draw Parabolic Sar points drawpoint(barindex,psar,2)coloured(r,g,0) //----Draw Horizontal lines if islastbarupdate then for i=t downto 1 do if $type[i]=1 then drawsegment($crossidx[i],$price[i],$crossidx[i+1],$price[i])coloured("red")style(line,2) elsif $type[i]=-1 then drawsegment($crossidx[i],$price[i],$crossidx[i+1],$price[i])coloured("green")style(line,2) endif next endif return //psar as "P.Sar" coloured(r,g,0)style(dottedline,2)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

  //------------------------------------------------------------// Psar=SAR[0.02,0.02,0.2]   //----Signals signalUP=close crosses over psar signalDN=close crosses under psar //----Store prices if signalUP then $price[t+1]=high $bar[t+1]=barindex $crossidx[t+1]=barindex $type[t+1]=1 t=t+1 elsif signalDN then $price[t+1]=low $bar[t+1]=barindex $crossidx[t+1]=barindex $type[t+1]=-1 t=t+1 endif //----Update prices between signals if not signalUP and $type[t]=1 and high>$price[t] then $price[t]=high $bar[t]=barindex endif   if not signalDN and $type[t]=-1 and low<$price[t] then $price[t]=low $bar[t]=barindex endif //----Parabolic  Sar colors if close < psar then r=255 g=0 else r=0 g=255 endif //----Draw Parabolic Sar points drawpoint(barindex,psar,2)coloured(r,g,0) //----Draw Horizontal lines if islastbarupdate then for i=t downto 1 do if $type[i]=1 then drawsegment($crossidx[i],$price[i],$crossidx[i+1],$price[i])coloured("red")style(line,2) elsif $type[i]=-1 then drawsegment($crossidx[i],$price[i],$crossidx[i+1],$price[i])coloured("green")style(line,2) endif next endif return //psar as "P.Sar" coloured(r,g,0)style(dottedline,2)



  Iván

  Moderator

  Topics: 0

  Replies: 1049

  Been thanked: 375 times
  07/02/2024 at 4:15 PM #234707
  Emanuel_

  Merci beaucoup ça marche, mais ou avez vous appris a faire ça, car j’ai lu la documentation proposé par ProRealCode et elle me semble plutôt limité.



  Emanuel_

  Participant

  Topics: 1

  Replies: 1

  Been thanked: 0 times
