Conversion code TSI depuis celui de TradingView

• 07/28/2022 at 8:18 AM #198010
  maxlys

  Bonjour,

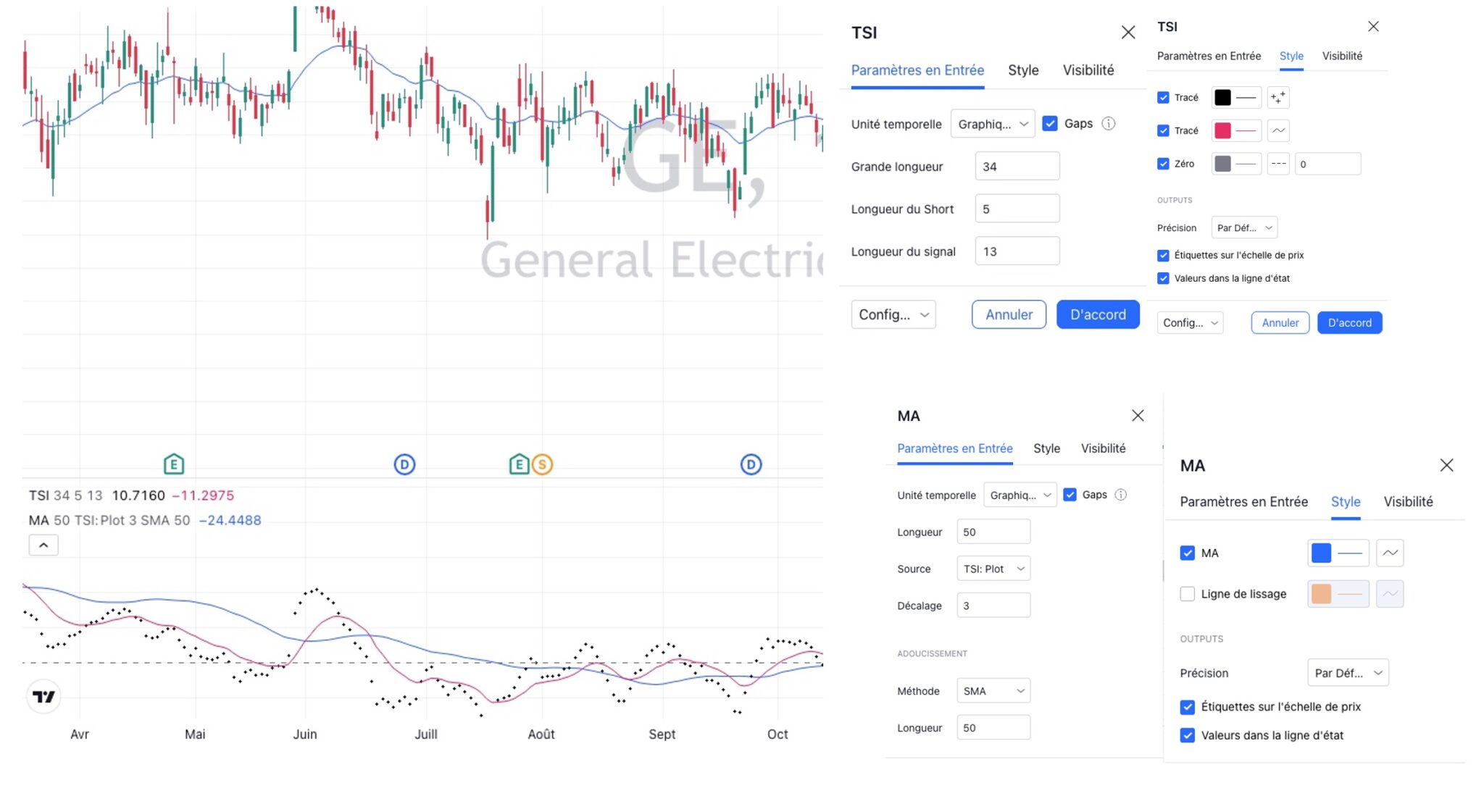

  Su TV, j’utilise un TSI avec parametres 34.5.13 (affichage en point pour ligne parametre 3 et le signal en rouge ligne pleine, voir photo jointe) dont voici le code :

  //@version=5 indicator("True Strength Indicator", shorttitle="TSI", format=format.price, precision=4, timeframe="", timeframe_gaps=true) long = input(title="Long Length", defval=25) short = input(title="Short Length", defval=13) signal = input(title="Signal Length", defval=13) price = close double_smooth(src, long, short) => fist_smooth = ta.ema(src, long) ta.ema(fist_smooth, short) pc = ta.change(price) double_smoothed_pc = double_smooth(pc, long, short) double_smoothed_abs_pc = double_smooth(math.abs(pc), long, short) tsi_value = 100 * (double_smoothed_pc / double_smoothed_abs_pc) plot(tsi_value, color=#2962FF) plot(ta.ema(tsi_value, signal), color=#E91E63) hline(0, title="Zero", color=#787B86)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

  //@version=5 indicator("True Strength Indicator", shorttitle="TSI", format=format.price, precision=4, timeframe="", timeframe_gaps=true) long = input(title="Long Length", defval=25) short = input(title="Short Length", defval=13) signal = input(title="Signal Length", defval=13) price = close double_smooth(src, long, short) => fist_smooth = ta.ema(src, long) ta.ema(fist_smooth, short) pc = ta.change(price) double_smoothed_pc = double_smooth(pc, long, short) double_smoothed_abs_pc = double_smooth(math.abs(pc), long, short) tsi_value = 100 * (double_smoothed_pc / double_smoothed_abs_pc) plot(tsi_value, color=#2962FF) plot(ta.ema(tsi_value, signal), color=#E91E63) hline(0, title="Zero", color=#787B86)



  Ensuite sur ce même indicateur j’applique une SMA50 basé sur le TSI 3 (en points)
  Code TV :

  //@version=5 indicator(title="Moving Average", shorttitle="MA", overlay=true, timeframe="", timeframe_gaps=true) len = input.int(9, minval=1, title="Length") src = input(close, title="Source") offset = input.int(title="Offset", defval=0, minval=-500, maxval=500) out = ta.sma(src, len) plot(out, color=color.blue, title="MA", offset=offset) ma(source, length, type) => switch type "SMA" => ta.sma(source, length) "EMA" => ta.ema(source, length) "SMMA (RMA)" => ta.rma(source, length) "WMA" => ta.wma(source, length) "VWMA" => ta.vwma(source, length) typeMA = input.string(title = "Method", defval = "SMA", options=["SMA", "EMA", "SMMA (RMA)", "WMA", "VWMA"], group="Smoothing") smoothingLength = input.int(title = "Length", defval = 5, minval = 1, maxval = 100, group="Smoothing") smoothingLine = ma(out, smoothingLength, typeMA) plot(smoothingLine, title="Smoothing Line", color=#f37f20, offset=offset, display=display.none)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

  //@version=5 indicator(title="Moving Average", shorttitle="MA", overlay=true, timeframe="", timeframe_gaps=true) len = input.int(9, minval=1, title="Length") src = input(close, title="Source") offset = input.int(title="Offset", defval=0, minval=-500, maxval=500) out = ta.sma(src, len) plot(out, color=color.blue, title="MA", offset=offset)   ma(source, length, type) => switch type "SMA" => ta.sma(source, length) "EMA" => ta.ema(source, length) "SMMA (RMA)" => ta.rma(source, length) "WMA" => ta.wma(source, length) "VWMA" => ta.vwma(source, length)   typeMA = input.string(title = "Method", defval = "SMA", options=["SMA", "EMA", "SMMA (RMA)", "WMA", "VWMA"], group="Smoothing") smoothingLength = input.int(title = "Length", defval = 5, minval = 1, maxval = 100, group="Smoothing")   smoothingLine = ma(out, smoothingLength, typeMA) plot(smoothingLine, title="Smoothing Line", color=#f37f20, offset=offset, display=display.none)



  Est-il possible d’obtenir une transcription de ces 2 codes en un seul pour PRT ?
  Le top serait d’avoir les parametres de chaque signal modifiable par le menu de l’indicateur directement au lieu d’aller dans le code a chaque fois.
  Avec le TSI proposé sur PRT en natif je n’obtiens pas les mêmes choses.

  En vous remerciant



  maxlys

  Participant

  Topics: 80

  Replies: 166

  Been thanked: 6 times
  07/28/2022 at 8:21 AM #198012
  Nicolas

  L’indicateur TSI se trouve ici: True Strength Index TSI

  On peut lui appliquer une moyenne mobile via la liste des indicateurs de la plateforme ensuite.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20866

  Been thanked: 4782 times
  07/28/2022 at 8:22 AM #198013
  Nicolas

  Autre version, sans doute plus proche car avec la ligne de signal: https://www.prorealcode.com/topic/tsi-osc-mt4-pour-prorealtime/



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20866

  Been thanked: 4782 times
  07/28/2022 at 8:46 AM #198017
  maxlys

  Merci Nicolas pour le retour d’infos, mais j’ai testé avec ces indicateurs mais je n’obtiens pas les mêmes choses.



  maxlys

  Participant

  Topics: 80

  Replies: 166

  Been thanked: 6 times
  07/29/2022 at 11:13 AM #198070
  Nicolas

  Ci-dessous le code de cette version du TSI convertit pour ProRealTime.

  //"True Strength Indicator" long = 25//Long Length short = 13 //Short Length signal = 13 //Signal Length iprice = close pc = Variation(iprice) doublesmoothedpc = average[short,1](average[long,1](pc)) doublesmoothedabspc = average[short,1](average[long,1](abs(pc))) tsivalue = 100 * (doublesmoothedpc / doublesmoothedabspc) return tsivalue coloured(41, 98, 255),average[signal,1](tsivalue) coloured(233, 30, 99),0 coloured(120, 123, 134)

  1 2 3 4 5 6 7 8 9 10 11 12 13

  //"True Strength Indicator" long = 25//Long Length short = 13 //Short Length signal = 13 //Signal Length iprice = close   pc = Variation(iprice) doublesmoothedpc = average[short,1](average[long,1](pc)) doublesmoothedabspc = average[short,1](average[long,1](abs(pc)))   tsivalue = 100 * (doublesmoothedpc / doublesmoothedabspc)   return tsivalue coloured(41, 98, 255),average[signal,1](tsivalue) coloured(233, 30, 99),0 coloured(120, 123, 134)

  Tu n’as plus qu’a appliquer la moyenne mobile de ton choix sur la valeur de l’indicateur.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20866

  Been thanked: 4782 times
  07/29/2022 at 5:21 PM #198085
  maxlys

  Merci Nicolas pour ton travail.

  C’est OK



  maxlys

  Participant

  Topics: 80

  Replies: 166

  Been thanked: 6 times
