Conversion of indicator ema-sma vol from TradingView

• 06/27/2021 at 11:06 AM #172552
  Edisone

  ema-sma vol from TradingView

  //@version=4 study(title="ema-sma", shorttitle="ema-sma + vol") src = close length = 9 //input(9, minval=1, title="short ema") lensma = 17 //input(17, title="long sma") vol = volume vm = 100 * ((sma(vol, length) - sma(vol, length)[4]) / sma(vol, length)[4]) vvm = 100 * sma((vm - vm[1]) / vm[1], 3) osc = sma(ema(src, length) - sma(src, lensma), 3) sig = (osc + 2 * osc[1] + 2 * osc[2] + osc[3]) / 6 cc = osc > 0 ? color.lime : osc < 0 ? color.red : na cut = abs(vvm / 8) > abs(sma(vvm, 5)) ? osc / 0.7 : na cv = cut > 0 ? color.aqua : color.orange si = plot(sig, color=cc, title="Sig") duml = plot(osc > sig ? osc : sig, style=plot.style_circles, linewidth=0, color=color.gray) os = plot(osc, color=cc, linewidth=2, title="ROC") fill(si, duml, color=color.green, transp=50) fill(os, duml, color=color.red, transp=50) hline(0, title="Zero Line", color=color.white, linewidth=2) colorebe = #0000ff hline(0, title="Zero Line", color=#0000ff, linewidth=2, linestyle=hline.style_solid) plot(cut, color=cv, style=plot.style_columns, linewidth=2, transp=60, title="Istogramma")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

  //@version=4 study(title="ema-sma", shorttitle="ema-sma + vol") src = close length = 9 //input(9, minval=1, title="short ema") lensma = 17 //input(17, title="long sma") vol = volume vm = 100 * ((sma(vol, length) - sma(vol, length)[4]) / sma(vol, length)[4]) vvm = 100 * sma((vm - vm[1]) / vm[1], 3) osc = sma(ema(src, length) - sma(src, lensma), 3) sig = (osc + 2 * osc[1] + 2 * osc[2] + osc[3]) / 6 cc = osc > 0 ? color.lime : osc < 0 ? color.red : na cut = abs(vvm / 8) > abs(sma(vvm, 5)) ? osc / 0.7 : na cv = cut > 0 ? color.aqua : color.orange si = plot(sig, color=cc, title="Sig") duml = plot(osc > sig ? osc : sig, style=plot.style_circles, linewidth=0, color=color.gray) os = plot(osc, color=cc, linewidth=2, title="ROC") fill(si, duml, color=color.green, transp=50) fill(os, duml, color=color.red, transp=50) hline(0, title="Zero Line", color=color.white, linewidth=2) colorebe = #0000ff hline(0, title="Zero Line", color=#0000ff, linewidth=2, linestyle=hline.style_solid) plot(cut, color=cv, style=plot.style_columns, linewidth=2, transp=60, title="Istogramma")

  Hello, as the title suggests, I need to convert the “ema-sma” indicator from the TradingView code if possible.

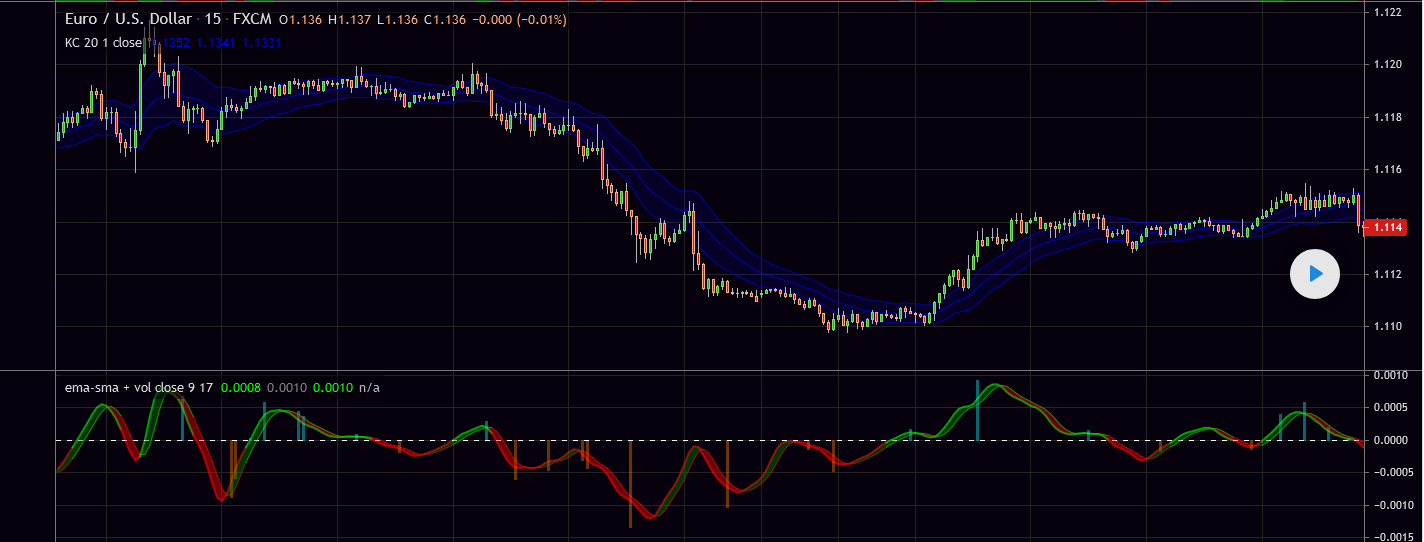

  Oscillator from the difference between Ema and Sma around line 0, fairly reactive if you use the crossing of the 2 lines, more conservative if you expect the lines to cross the zero line. Histogram / column for the large change in volume with the cut so that it only shows a large divergence with the mean. colors show trends.

  Thanks for your help.



  Edisone

  Participant

  Topics: 44

  Replies: 73

  Been thanked: 2 times
  06/28/2021 at 8:22 AM #172615
  Nicolas

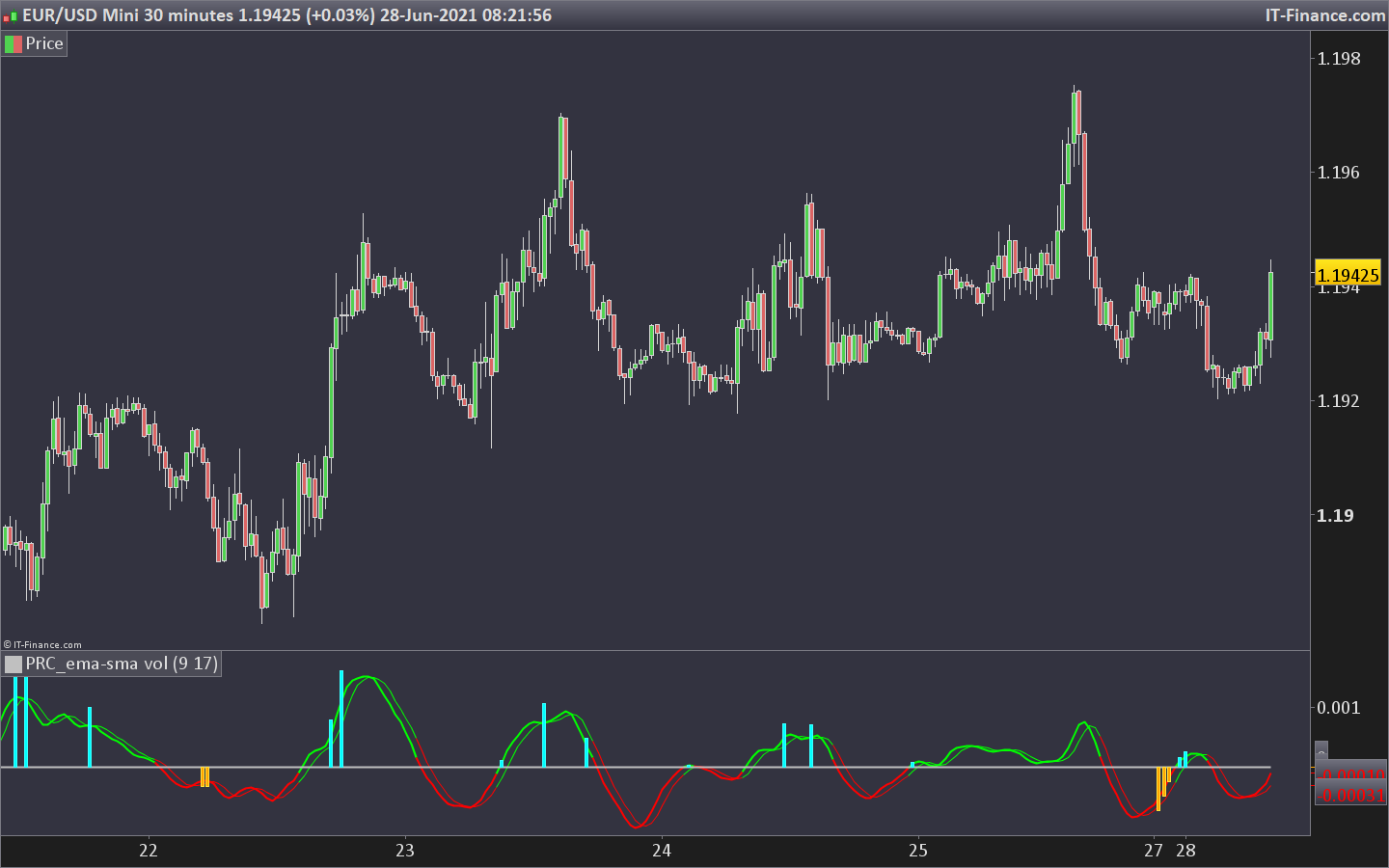

  I have converted the code, you can download it from there: ema-sma + Volume





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
