Conversion of TradingView strategy to PRT Indicator and screener

• 12/16/2022 at 1:33 AM #205852
  iamboston

  Hey there PRT team,

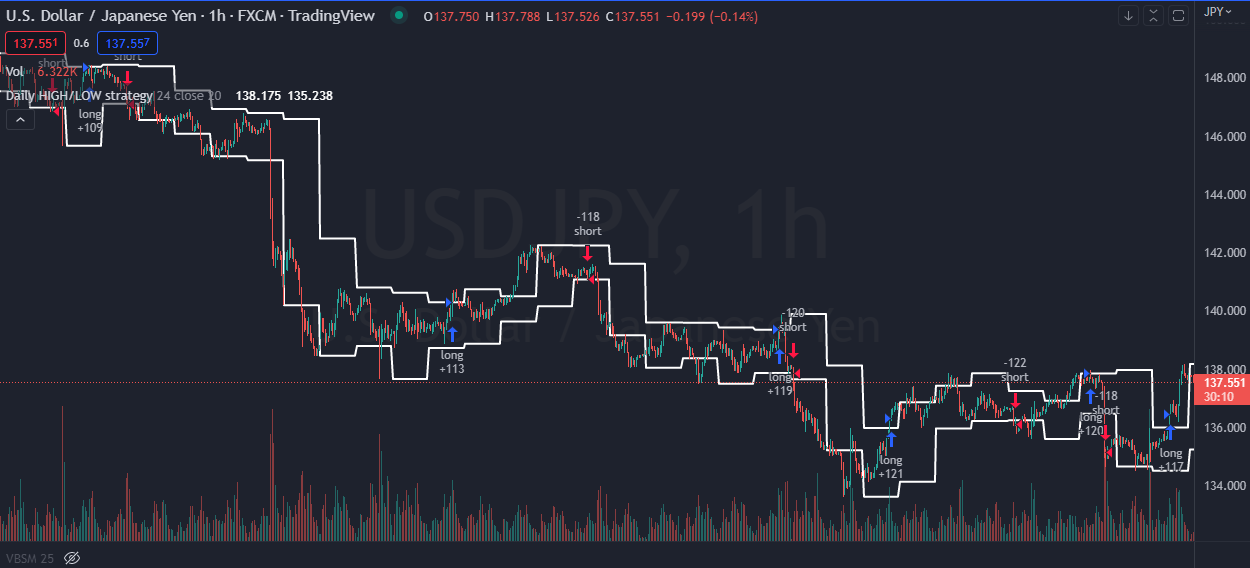

  I’m hoping for some assistance with converting the daily  High/Low strategy in Tradingview, to an indicator (with buy/sell signals) + screener for Pro Real Time. I’ve made a few attempts and failed miserably, so any assistance would be amazing!



  Daily High/Low Strategy

  // This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/ // © exlux99 //@version=5 strategy(title='Daily HIGH/LOW strategy', overlay=true, initial_capital=10000, calc_on_every_tick=true, default_qty_type=strategy.percent_of_equity, default_qty_value=100, commission_type=strategy.commission.percent, commission_value=0.1) ////////////////////////////GENERAL INPUTS////////////////////////////////////// len = input.int(24, minval=1, title='Length MA', group='Optimization paramters') src = input.source(close, title='Source MA', group='Optimization paramters') out = ta.ema(src, len) length = input.int(20, minval=1, title='CMF Length', group='Optimization paramters') ad = close == high and close == low or high == low ? 0 : (2 * close - low - high) / (high - low) * volume mf = math.sum(ad, length) / math.sum(volume, length) f_secureSecurity(_symbol, _res, _src) => request.security(_symbol, _res, _src[1], lookahead=barmerge.lookahead_on) pricehigh = f_secureSecurity(syminfo.tickerid, 'D', high) pricelow = f_secureSecurity(syminfo.tickerid, 'D', low) plot(pricehigh, title='Previous Daily High', style=plot.style_linebr, linewidth=2, color=color.new(color.white, 0)) plot(pricelow, title='Previous Daily Low', style=plot.style_linebr, linewidth=2, color=color.new(color.white, 0)) short = ta.crossunder(low, pricelow) and close < out and mf < 0 long = ta.crossover(high, pricehigh) and close > out and mf > 0 if short and barstate.isconfirmed strategy.entry('short', strategy.short, when=barstate.isconfirmed, stop=pricelow[1]) strategy.close('short', when=close > out) if long and barstate.isconfirmed strategy.entry('long', strategy.long, when=barstate.isconfirmed, stop=pricehigh[1]) strategy.close('long', when=close < out)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

  // This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/ // © exlux99   //@version=5   strategy(title='Daily HIGH/LOW strategy', overlay=true, initial_capital=10000, calc_on_every_tick=true, default_qty_type=strategy.percent_of_equity, default_qty_value=100, commission_type=strategy.commission.percent, commission_value=0.1)   ////////////////////////////GENERAL INPUTS////////////////////////////////////// len = input.int(24, minval=1, title='Length MA', group='Optimization paramters') src = input.source(close, title='Source MA', group='Optimization paramters') out = ta.ema(src, len)   length = input.int(20, minval=1, title='CMF Length', group='Optimization paramters') ad = close == high and close == low or high == low ? 0 : (2 * close - low - high) / (high - low) * volume mf = math.sum(ad, length) / math.sum(volume, length)   f_secureSecurity(_symbol, _res, _src) =>     request.security(_symbol, _res, _src[1], lookahead=barmerge.lookahead_on)   pricehigh = f_secureSecurity(syminfo.tickerid, 'D', high) pricelow = f_secureSecurity(syminfo.tickerid, 'D', low)   plot(pricehigh, title='Previous Daily High', style=plot.style_linebr, linewidth=2, color=color.new(color.white, 0)) plot(pricelow, title='Previous Daily Low', style=plot.style_linebr, linewidth=2, color=color.new(color.white, 0))   short = ta.crossunder(low, pricelow) and close < out and mf < 0 long = ta.crossover(high, pricehigh) and close > out and mf > 0     if short and barstate.isconfirmed     strategy.entry('short', strategy.short, when=barstate.isconfirmed, stop=pricelow[1])     strategy.close('short', when=close > out)   if long and barstate.isconfirmed     strategy.entry('long', strategy.long, when=barstate.isconfirmed, stop=pricehigh[1])     strategy.close('long', when=close < out)





  iamboston

  Participant

  Topics: 2

  Replies: 5

  Been thanked: 1 time
  12/16/2022 at 2:52 PM #205910
  JS

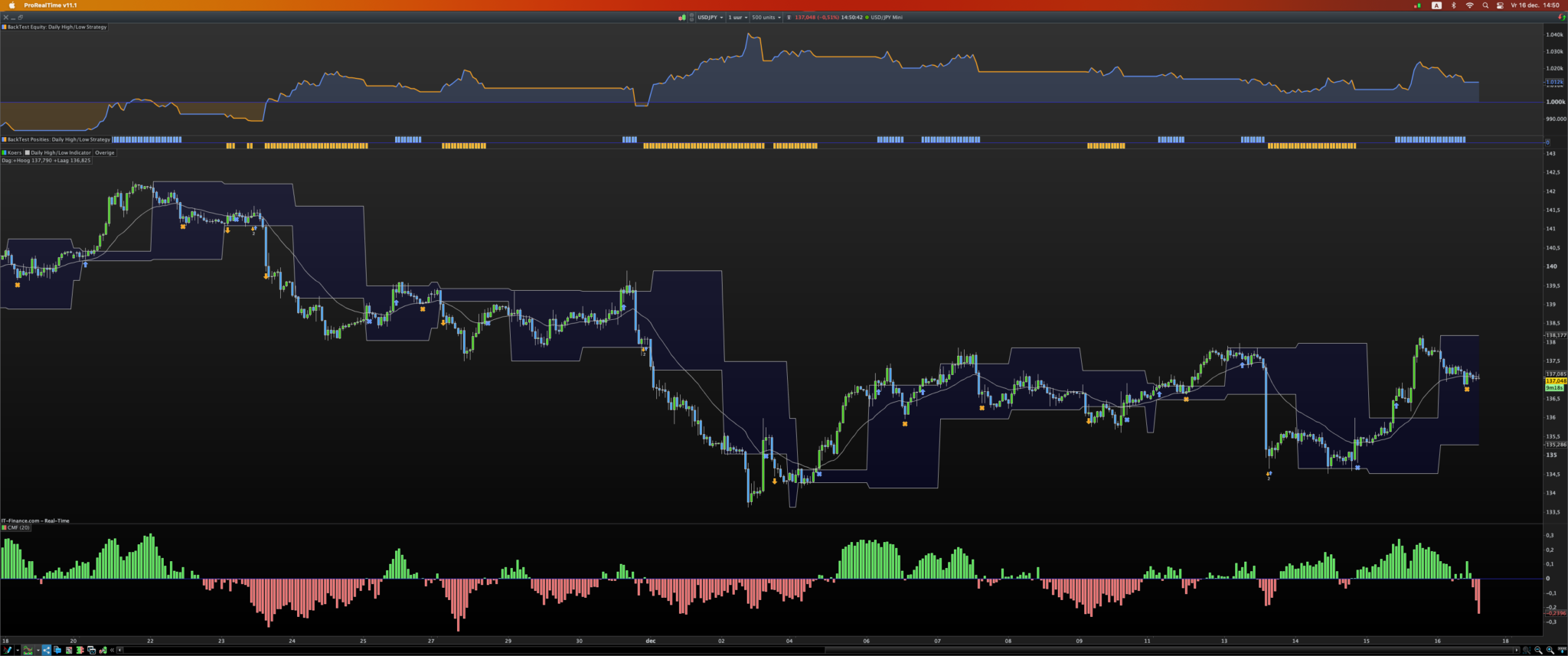

  Hi @iamboston

  The basis of the system is:

  High > DHigh(1)

  Low < DLow(1) Furthermore, it is examined whether: Close > EMA[24](Close) for LONG

  Close < EMA[24](Close) for SHORT An additional indicator is used to confirm: Chaikin Money Flow (CMF) CMF > 0 for LONG

  CMF < 0 for SHORT The exit of the trades is done with: Close Crosses Under EMA[24](Close) (Sell) Close Crosses About EMA[24](Close) (ExitShort)

  Daily High/Low Strategy

  DefParam CumulateOrders=False EMAPeriod=24 //Period of EMA S1=ExponentialAverage[EMAPeriod](Close) //EMA signal CMFPeriod=20 //Period of Chaikin Money Flow MFM = ((Close-Low)-(High-Close)) / (High-Low) //Money Flow Multiplier MFV = MFM * Volume //Money Flow Volume CMF = Summation[CMFPeriod](MFV) / Summation[CMFPeriod-1](Volume) //Chaikin Money Flow //LONG If High Crosses Over DHigh(1) and Close > S1 and CMF > 0 then Buy 1 contract at Market EndIf //Exit LONG If Close Crosses Under S1 then Sell at Market EndIf //SHORT If Low Crosses Under DLow(1) and Close < S1 and CMF < 0 then SellShort 1 contract at Market EndIf //Exit SHORT If Close Crosses Over S1 then ExitShort at Market EndIf

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

  DefParam CumulateOrders=False   EMAPeriod=24 //Period of EMA S1=ExponentialAverage[EMAPeriod](Close) //EMA signal   CMFPeriod=20 //Period of Chaikin Money Flow MFM = ((Close-Low)-(High-Close)) / (High-Low) //Money Flow Multiplier MFV = MFM * Volume //Money Flow Volume CMF = Summation[CMFPeriod](MFV) / Summation[CMFPeriod-1](Volume) //Chaikin Money Flow   //LONG If High Crosses Over DHigh(1) and Close > S1 and CMF > 0 then Buy 1 contract at Market EndIf //Exit LONG If Close Crosses Under S1 then Sell at Market EndIf   //SHORT If Low Crosses Under DLow(1) and Close < S1 and CMF < 0 then SellShort 1 contract at Market EndIf //Exit SHORT If Close Crosses Over S1 then ExitShort at Market EndIf

  2 users thanked author for this post.

  robertogozzi, iamboston



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 779 times
  12/17/2022 at 6:03 AM #205938
  iamboston

  Thank you kindly, JS for the explanation and coded translation. Much appreciated.

  1 user thanked author for this post.

  JS



  iamboston

  Participant

  Topics: 2

  Replies: 5

  Been thanked: 1 time
  12/18/2022 at 12:39 PM #205994
  phoentzs

  I’m surprised. For a breakout system it works quite well. At least long, also on Nasdaq or SP500. But then with EMA45. Short would also work, but then with a different exit strategy. The long candles, which should cause the exit in short mode, are usually simply too long in the time unit. Short would need another exit.



  phoentzs

  Participant

  Topics: 86

  Replies: 960

  Been thanked: 198 times
  12/18/2022 at 11:24 PM #206006
  iamboston

  Agreed, I use it manually with a discretionary exit.



  iamboston

  Participant

  Topics: 2

  Replies: 5

  Been thanked: 1 time
  12/18/2022 at 11:25 PM #206009
  iamboston

  Hi there JS,

  Hope you had a great weekend. Would it be possible to have the indicator that you created for the system, too? From there I’ll have a go at creating a screener, too.

  Hope all’s well and thank you again!



  iamboston

  Participant

  Topics: 2

  Replies: 5

  Been thanked: 1 time
  12/19/2022 at 12:40 AM #206014
  JS

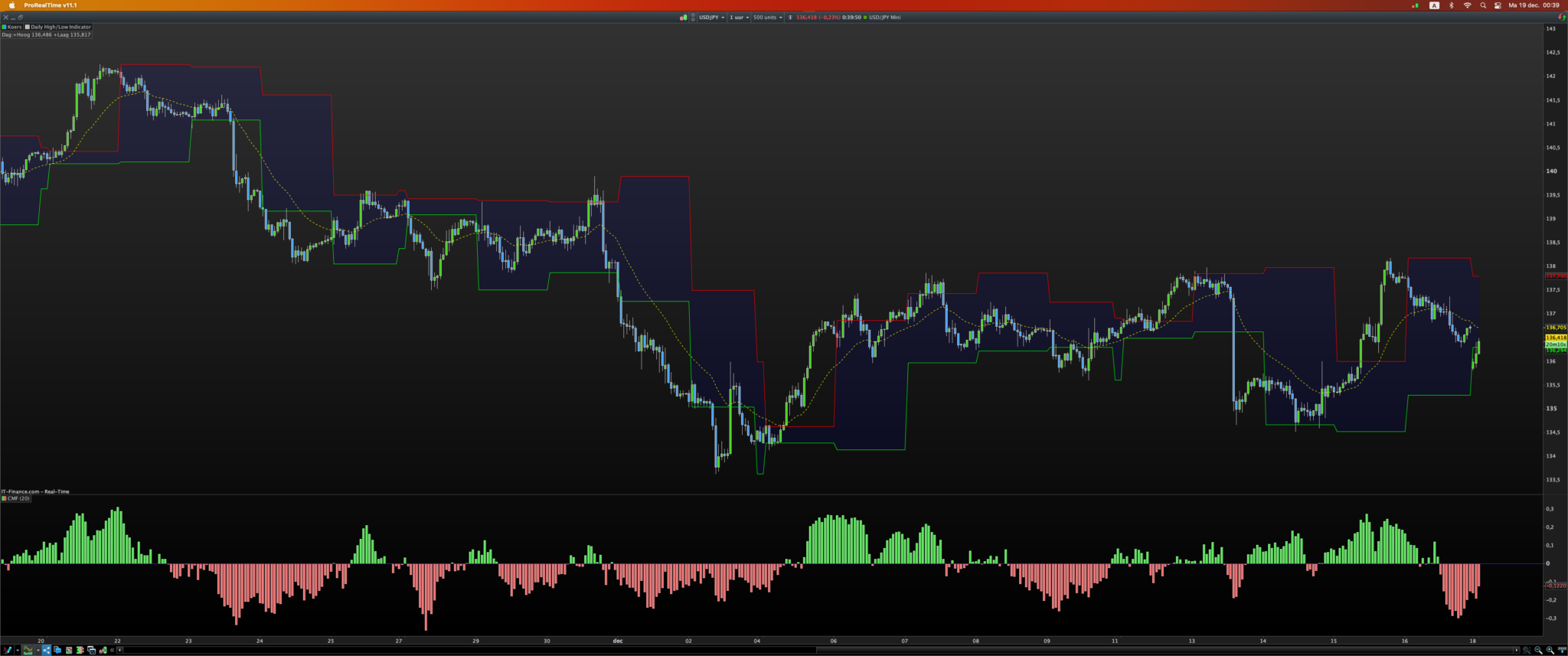

  Hi @iamboston

  It is a simple indicator, for the CMF you can use the standard indicator from PRT…



  Daily High/Low Indicator

  EMAPeriod=24 //Period of EMA S1=ExponentialAverage[EMAPeriod](Close) //EMA signal DH=DHigh(1)//Previous Daily High DL=DLow(1)//Previous Daily Low Return DH as "Daily High" Coloured(255,0,0), DL as "Daily Low" Coloured(0,255,0), S1 as "EMA24" Coloured(255,255,0) Style(DottedLine)

  1 2 3 4 5 6 7

  EMAPeriod=24 //Period of EMA S1=ExponentialAverage[EMAPeriod](Close) //EMA signal   DH=DHigh(1)//Previous Daily High DL=DLow(1)//Previous Daily Low   Return DH as "Daily High" Coloured(255,0,0), DL as "Daily Low" Coloured(0,255,0), S1 as "EMA24" Coloured(255,255,0) Style(DottedLine)

  1 user thanked author for this post.

  robertogozzi



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 779 times
  12/20/2022 at 11:20 PM #206110
  JS

  Hi @iamboston

  To complete the trio 😉 hereby the screener…

  Hope you have fun with it.

  Regards Jaap

  Daily High/Low Screener

  EMAPeriod=24 //Period of EMA S1=ExponentialAverage[EMAPeriod](Close) //EMA signal CMFPeriod=20 //Period of Chaikin Money Flow MFM=((Close-Low)-(High-Close)) / (High-Low) //Money Flow Multiplier MFV=MFM * Volume //Money Flow Volume CMF=Summation[CMFPeriod](MFV) / Summation[CMFPeriod](Volume) C1 = High Crosses Over DHigh(1) and Close > S1 and CMF > 0 C2 = Low Crosses Under DLow(1) and Close < S1 and CMF < 0 If C1 then Result=1 EndIf If C2 then Result=2 EndIf Screener[Result](Result as "1=LONG 2=SHORT")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

  EMAPeriod=24 //Period of EMA S1=ExponentialAverage[EMAPeriod](Close) //EMA signal   CMFPeriod=20 //Period of Chaikin Money Flow MFM=((Close-Low)-(High-Close)) / (High-Low) //Money Flow Multiplier MFV=MFM * Volume //Money Flow Volume CMF=Summation[CMFPeriod](MFV) / Summation[CMFPeriod](Volume)   C1 = High Crosses Over DHigh(1) and Close > S1 and CMF > 0 C2 = Low Crosses Under DLow(1) and Close < S1 and CMF < 0   If C1 then Result=1 EndIf   If C2 then Result=2 EndIf   Screener[Result](Result as "1=LONG 2=SHORT")

  1 user thanked author for this post.

  robertogozzi



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 779 times
  12/21/2022 at 12:17 AM #206111
  iamboston

  G’day Jaap,

  really appreciate you taking the time to help with this, thank you!

  Cheers,

  Bos



  iamboston

  Participant

  Topics: 2

  Replies: 5

  Been thanked: 1 time
• Author
  Posts
