Cross Over Indicator HELP please

• 12/29/2017 at 2:44 AM #56777
  crolakstrading

  Hi Nicolas and all,

  I have tried to create a simple EMA crossover indicator where it gives me an Arrow up or down once crossover happened. I really want to add somthing to this..

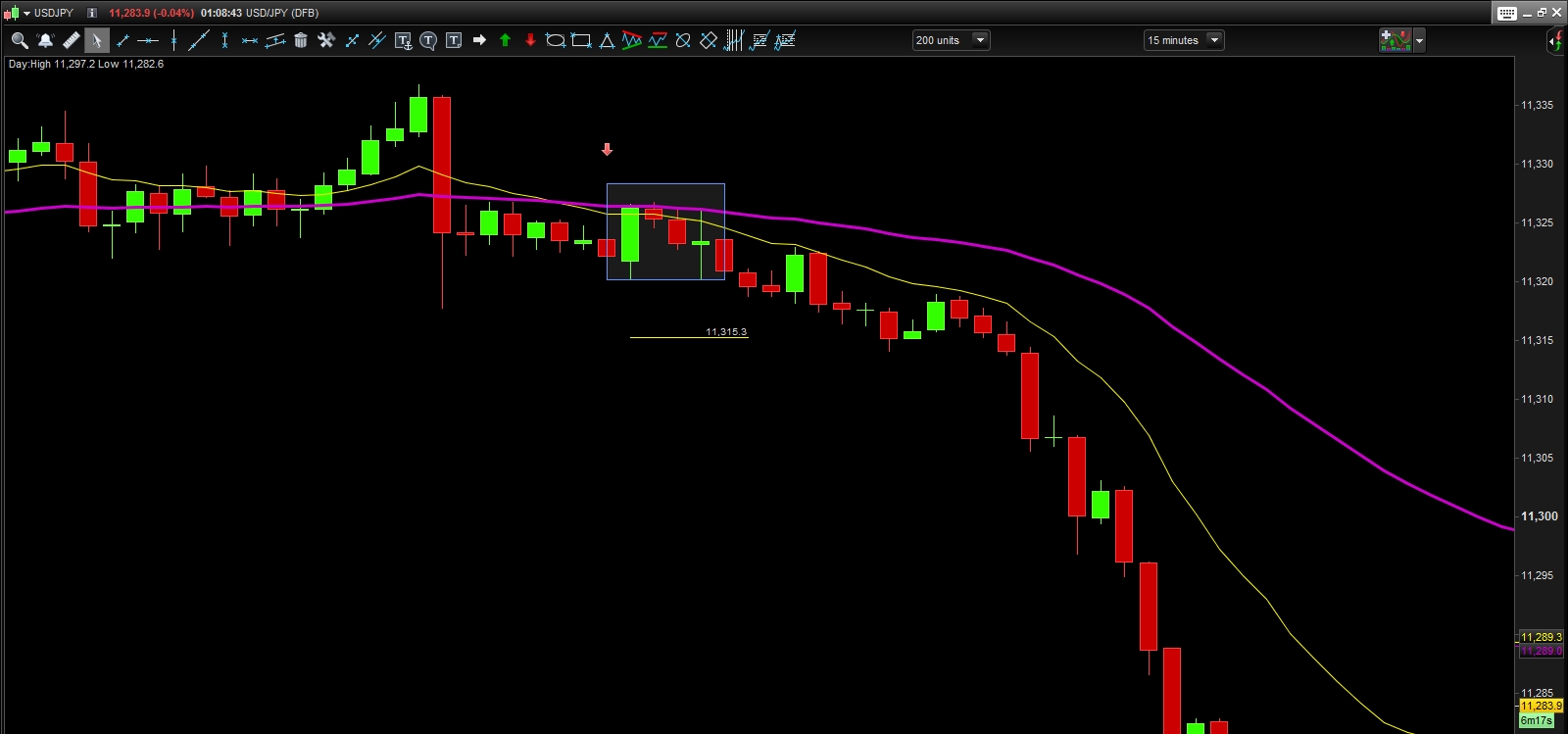

  all in 15 min chart.. lets say after the crossover i would wait until 5 bars on 15 min and enter 5 pips below the low or 5 pips above the high within that 5 candles sticks?  please see the attached pic!!

  I just need a small line (with the price if possible).. 5 pips below the lowest point 0f that 5 candles (once 9 cross under 40) on 15 min chart!!! see the pic attached!!

  please if you can kindly check this below and help me creating this.. i’d really appreciate it..

  fast = ExponentialAverage[9](close)
  slow = ExponentialAverage[40](close)

  //first arrow is blueish
  if fast crosses over slow then
  cross = slow[1]
  DRAWARROWUP(barindex,LOW-5*pointsize) COLOURED(0,255,10)
  endif

  //next arrows are purple and semi transparent
  if fast>slow AND slow<>cross then
  DRAWTEXT(“*”,barindex, slow) COLOURED(0,204,0)
  endif

  //first arrow is blueish
  if fast crosses under slow then
  cross = slow[1]
  DRAWARROWDOWN(barindex,HIGH+5*pointsize) COLOURED(255,0,10)
  endif

  //next arrows are purple and semi transparent
  if fast<slow AND slow<>cross then
  DRAWTEXT(“*”,barindex, slow) COLOURED(255,0,0)
  endif

  RETURN



  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  12/29/2017 at 9:48 AM #56783
  JC_Bywan

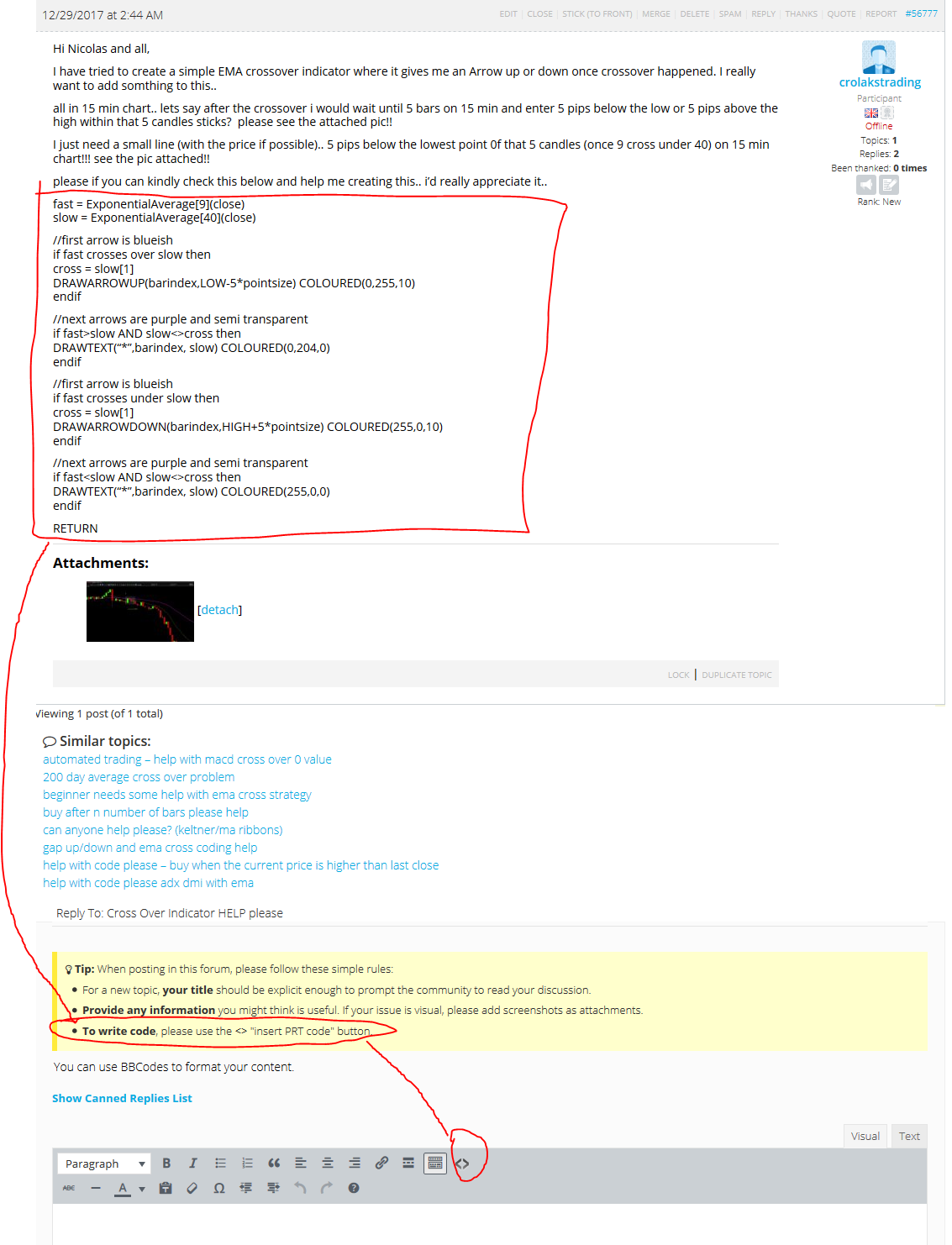

  >> For clarity of messages on ProRealCode’s forums, please use the “insert PRT code” button to separate the text of the code part! Thank you! <<





  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2651

  Been thanked: 915 times
  12/29/2017 at 11:03 AM #56787
  Alai-n

  😉

  fast = ExponentialAverage[9](close) slow = ExponentialAverage[40](close) //first arrow is blueish if fast crosses over slow then cross = slow[1] DRAWARROWUP(barindex,LOW-5*pointsize) COLOURED(0,255,10) endif //next arrows are purple and semi transparent if fast>slow AND slow<>cross then DRAWTEXT(“*”,barindex, slow) COLOURED(0,204,0) endif //first arrow is blueish if fast crosses under slow then cross = slow[1] DRAWARROWDOWN(barindex,HIGH+5*pointsize) COLOURED(255,0,10) endif //next arrows are purple and semi transparent if fast<slow AND slow<>cross then DRAWTEXT(“*”,barindex, slow) COLOURED(255,0,0) endif RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

  fast = ExponentialAverage[9](close) slow = ExponentialAverage[40](close)   //first arrow is blueish if fast crosses over slow then cross = slow[1] DRAWARROWUP(barindex,LOW-5*pointsize) COLOURED(0,255,10) endif   //next arrows are purple and semi transparent if fast>slow AND slow<>cross then DRAWTEXT(“*”,barindex, slow) COLOURED(0,204,0) endif   //first arrow is blueish if fast crosses under slow then cross = slow[1] DRAWARROWDOWN(barindex,HIGH+5*pointsize) COLOURED(255,0,10) endif   //next arrows are purple and semi transparent if fast<slow AND slow<>cross then DRAWTEXT(“*”,barindex, slow) COLOURED(255,0,0) endif   RETURN





  Alai-n

  Participant

  Topics: 44

  Replies: 223

  Been thanked: 29 times
  12/29/2017 at 5:19 PM #56826
  crolakstrading

  Sorry still new to this!

  is it possible to creatvthe the line to 5pips below the lowest of 5 candles??



  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  12/29/2017 at 6:13 PM #56829
  robertogozzi

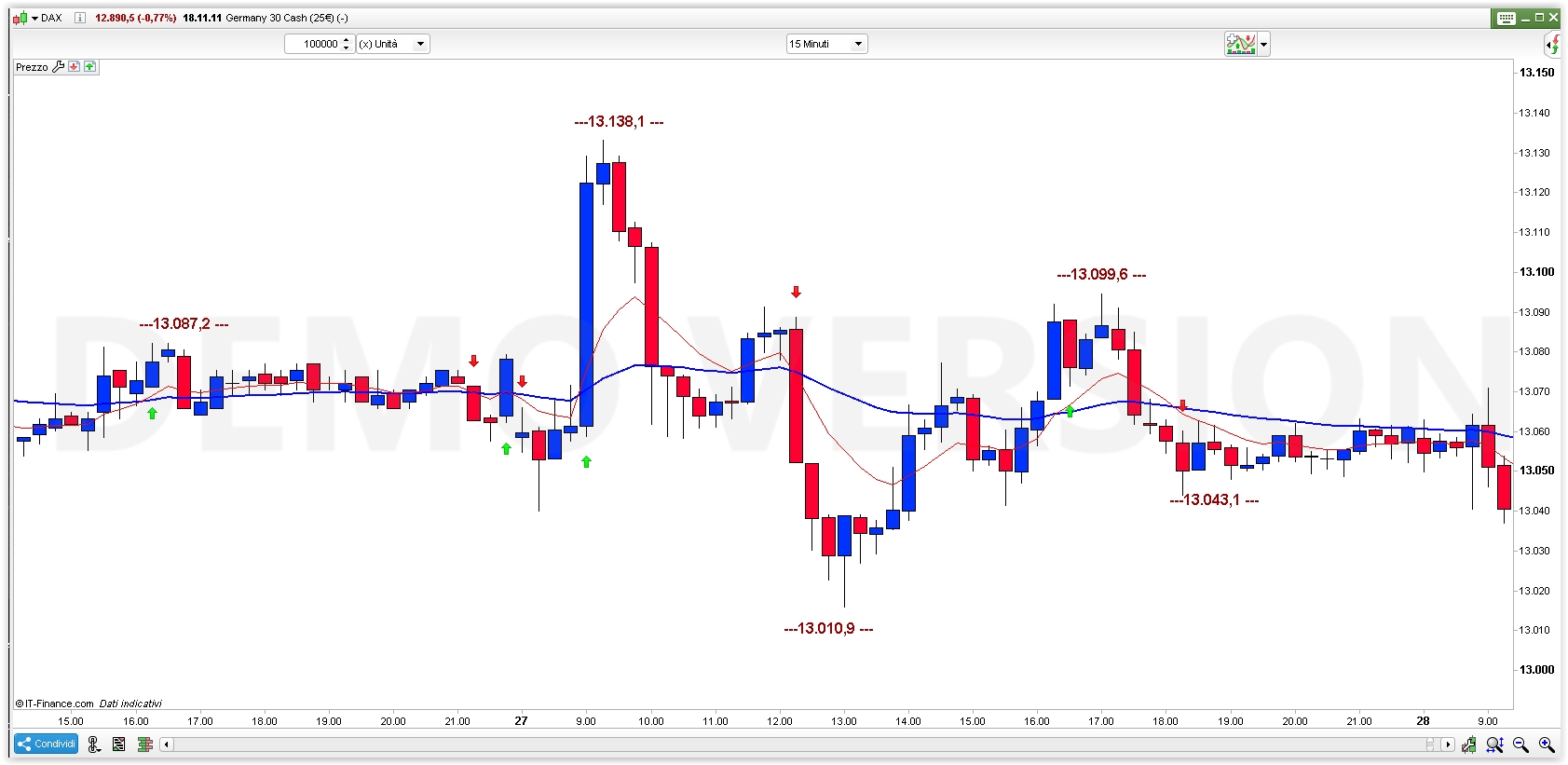

  I modified the above code so that it does not display dots and does not display lines if more than one arrow occurs before 5 candles have elapsed (no matter what direction they are):

  DEFPARAM CalculateOnLastBars = 1000 fast = ExponentialAverage[9](close) slow = ExponentialAverage[40](close) //first arrow is blueish CrossOver = fast crosses over slow IF CrossOver THEN CrossUnder = 0 //cross = slow[1] DRAWARROWUP(barindex,LOW-5*pointsize) COLOURED(0,255,10) endif IF CrossOver[5] THEN IF summation[4](CrossOver OR CrossUnder) = 0 THEN TopLine = highest[5](high) + (5 * pipsize) DRAWTEXT("---#TopLine#---",barindex-3,TopLine,SansSerif,Bold,16)coloured(153,0,0) ENDIF ENDIF //next arrows are purple and semi transparent //if fast>slow AND slow<>cross then //DRAWTEXT("*",barindex, slow) COLOURED(0,204,0) //endif //first arrow is blueish CrossUnder = fast crosses under slow if CrossUnder then CrossOver = 0 //cross = slow[1] DRAWARROWDOWN(barindex,HIGH+5*pointsize) COLOURED(255,0,10) endif IF CrossUnder[5] THEN IF summation[4](CrossOver OR CrossUnder) = 0 THEN BottomLine = lowest[5](low) - (5 * pipsize) DRAWTEXT("---#BottomLine#---",barindex-3,BottomLine,SansSerif,Bold,16)coloured(153,0,0) ENDIF ENDIF //next arrows are purple and semi transparent //if fast<slow AND slow<>cross then //DRAWTEXT("*",barindex, slow) COLOURED(255,0,0) //endif RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43

  DEFPARAM CalculateOnLastBars = 1000 fast = ExponentialAverage[9](close) slow = ExponentialAverage[40](close) //first arrow is blueish CrossOver = fast crosses over slow IF CrossOver THEN CrossUnder = 0 //cross = slow[1] DRAWARROWUP(barindex,LOW-5*pointsize) COLOURED(0,255,10) endif   IF CrossOver[5] THEN IF summation[4](CrossOver OR CrossUnder) = 0 THEN TopLine = highest[5](high) + (5 * pipsize) DRAWTEXT("---#TopLine#---",barindex-3,TopLine,SansSerif,Bold,16)coloured(153,0,0) ENDIF ENDIF //next arrows are purple and semi transparent //if fast>slow AND slow<>cross then //DRAWTEXT("*",barindex, slow) COLOURED(0,204,0) //endif //first arrow is blueish CrossUnder = fast crosses under slow if CrossUnder then CrossOver = 0 //cross = slow[1] DRAWARROWDOWN(barindex,HIGH+5*pointsize) COLOURED(255,0,10) endif IF CrossUnder[5] THEN IF summation[4](CrossOver OR CrossUnder) = 0 THEN BottomLine = lowest[5](low) - (5 * pipsize) DRAWTEXT("---#BottomLine#---",barindex-3,BottomLine,SansSerif,Bold,16)coloured(153,0,0) ENDIF ENDIF   //next arrows are purple and semi transparent //if fast<slow AND slow<>cross then //DRAWTEXT("*",barindex, slow) COLOURED(255,0,0) //endif RETURN

  Roberto

  1 user thanked author for this post.

  crolakstrading



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  12/30/2017 at 5:20 PM #56881
  Vonasi

  Nice work Robertogozzi but it gets a bit confusing to work out which is the top line and which is the bottom line when they are the same colour – better to make them green and red for easier identification I think.

  1 user thanked author for this post.

  crolakstrading



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  12/30/2017 at 5:56 PM #56885
  robertogozzi

  You can select any colour from this table, just change the RGB  values in the code

  https://www.prorealcode.com/documentation/coloured/

  1 user thanked author for this post.

  crolakstrading



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  12/30/2017 at 9:35 PM #56893
  crolakstrading

  Hi Roberto,

  Thanks very much for this.. I was trying to get this right for the past three weeks!! i thnk you made a better version too.. i think i can change the colours,  EMAs etc..!! thank you!!

  is there a place that I can learn about cording?



  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  12/31/2017 at 12:51 AM #56918
  robertogozzi

  You can browse documentation and topics for subjects of interest to you with lots of example code.

  Nicolas made a few videos but I think they are in French.

  You can alsotry to search YouTube or the web for video lessons.

  Luckily PRT uses a very simple Language, compared to common computer languages and you should find it not too difficult to find out how to use, and when, constructs like IF…ENDIF or FOR…NEXT.

  1 user thanked author for this post.

  crolakstrading



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  12/31/2017 at 12:53 AM #56920
  robertogozzi

  Another way to learn is just…. asking this forum, like you did!



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  12/31/2017 at 12:55 AM #56921
  crolakstrading

  I learnt a lot from this forum… Thanks again! 🙂





  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  01/03/2018 at 9:22 PM #57194
  crolakstrading

  Screener for this?? please check if this is correct? please!!

  indicator1 = ExponentialAverage[9](close) indicator2 = ExponentialAverage[40](close) c1 = summation [10] (indicator1 CROSSES OVER indicator2) SCREENER[c1] ((close/DClose(1)+0)*15 AS "EMA X") indicator1 = ExponentialAverage[9](close) indicator2 = ExponentialAverage[40](close) c1 = summation [10] (indicator1 CROSSES UNDER indicator2) SCREENER[c1] ((close/DClose(1)-2)*15 AS "EMA X")

  1 2 3 4 5 6 7 8 9 10 11 12 13

  indicator1 = ExponentialAverage[9](close) indicator2 = ExponentialAverage[40](close) c1 = summation [10] (indicator1 CROSSES OVER indicator2)     SCREENER[c1] ((close/DClose(1)+0)*15 AS "EMA X")   indicator1 = ExponentialAverage[9](close) indicator2 = ExponentialAverage[40](close) c1 = summation [10] (indicator1 CROSSES UNDER indicator2)     SCREENER[c1] ((close/DClose(1)-2)*15 AS "EMA X")

  Hi Roberto,

  I have managed to create a screener for this but not sure it’s 100% correct?  I wanted to get the signal when it’s crossover or under saying EMA X 15 or -15  as an up trend (15)or down trend (-15)..

  also just wanted to know is there a was when its cross over or under.. we get an arrow up or down on the screener?

  problem with my screener is… (lets say if it crossover? and then cross under with few candles.. it will still for and crossover)

  please if I can get your expertise would be great!

  Thanks

  RO











  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  01/04/2018 at 12:26 AM #57212
  robertogozzi

  1. a screener can only contain the keyword SCREENER once, so line 6 must be removed
  2. lines 8-9 are duplicates and can be removed
  3. line 10 sould use c2 instead of c1
  4. line 13 should read ‘SCREENER[c1 or c2] ( c1 or c2 AS “EMA X”)’
  5. lines 6 and 13 are not so clear, what do you mean by EMA X and what do you expect those expressions to return?
  6. what use is number 10 within brackets in lines 3 and 10?  It means that the last 10 candlesticks are scanned to verify a matching condition, but C1 and C2 could both be true… is that what you want?

  I need those details to show you something working, but I can anticipate something

  ONCE Bars = 5 indicator1 = ExponentialAverage[9](close) indicator2 = ExponentialAverage[40](close) c1 = summation[Bars](indicator1 CROSSES OVER indicator2) > 0 c2 = summation[Bars](indicator1 CROSSES UNDER indicator2) > 0 Result = 0 IF c1 AND c2 THEN Result = 2 ELSIF c1 THEN Result = 1 ELSIF c2 THEN Result = -1 ENDIF SCREENER[result] (result AS "EMA X")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14

  ONCE Bars = 5 indicator1 = ExponentialAverage[9](close) indicator2 = ExponentialAverage[40](close) c1 = summation[Bars](indicator1 CROSSES OVER indicator2)  > 0 c2 = summation[Bars](indicator1 CROSSES UNDER indicator2) > 0 Result = 0 IF c1 AND c2 THEN    Result = 2 ELSIF c1 THEN    Result = 1 ELSIF c2 THEN    Result = -1 ENDIF SCREENER[result] (result AS "EMA X")

  Also, screener cannot draw any graphics. It can only display numbers. In such a case we can tell OVER from UNDER by 1, -1 or 2 when c1 AND c2 are both true.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  01/08/2018 at 11:45 PM #57824
  crolakstrading

  Hi Roberto,

  sorry for the late and thank you for your support again!

  c1 = summation [10] is for past 10 candles sticks. I think the one you made is for past 5 candles? and when 5 candles gone the screener will disappear i guess?  i want it to be on the screen for 10 bars.. is the below one correct for that?

  let’s say it cross over to go up and it will show on the screener as 1 and then will stay for next 10 bars? if it crosses back under to go down again within that 10 bars will show as 2? and if after 10 bars if it crosses under to go down will show as -1?

  thanks for your patience.

  RO

  ONCE Bars = 10 indicator1 = ExponentialAverage[9](close) indicator2 = ExponentialAverage[40](close) c1 = summation[Bars](indicator1 CROSSES OVER indicator2) > 0 c2 = summation[Bars](indicator1 CROSSES UNDER indicator2) > 0 Result = 0 IF c1 AND c2 THEN Result = 2 ELSIF c1 THEN Result = 1 ELSIF c2 THEN Result = -1 ENDIF SCREENER[result] (result AS "EMA X")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14

  ONCE Bars = 10 indicator1 = ExponentialAverage[9](close) indicator2 = ExponentialAverage[40](close) c1 = summation[Bars](indicator1 CROSSES OVER indicator2)  > 0 c2 = summation[Bars](indicator1 CROSSES UNDER indicator2) > 0 Result = 0 IF c1 AND c2 THEN Result = 2 ELSIF c1 THEN Result = 1 ELSIF c2 THEN Result = -1 ENDIF SCREENER[result] (result AS "EMA X")









  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  01/09/2018 at 12:23 AM #57831
  robertogozzi

  Yes, when both crossings have occurred within the last “Bars” (5, 10 or whatever 0ther number you want) bars 2 will be returned; when only the crossing upwards occured it will return 1, -1 when it’s southbound and Zero when no crossing occurred at all.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
