Cross over ou under highest/lowest support et résistance indacteur

• 05/24/2024 at 9:39 AM #232986
  Tobas

  Bonjour,

  J’aimerais avoir une indication sur mon graphique lorsque le prix d’une bougie va traverser un support défini à l’avance dans un tableau.

  Voici le code que j’ai écris avec comme exemple: si le plus haut d’une bougie vient a croisé un support ou une résistance nous avons une indication sur le graphique.

  Indicateur support and resistance crossed

  /////////////////Resistance /////////////////////////// if close>=highest[length1](close) then t1 = 0 top1 = close else top1 = top1 t1 = t1+1 if t1>lenght2 and t1<lenght2+2 then $TOPy[lastset($TOPy)+1] = top1 endif ENDIF /////////////////Support /////////////////////////// if close<=lowest[length1](close) then b1 = 0 bot1 = close else bot1 = bot1 b1 = b1+1 if b1>lenght2 and b1<lenght2+2 then $boty[lastset($boty)+1] = bot1 endif endif ///////////////////////////////////Conditions baissière/////////////////////////////////// for s=0 to 15 do if highest[1](high) CROSSES OVER $BOTy[s] or highest[1](high)CROSSES UNDER $BOTy[s] or highest[1](high) CROSSES OVER $TOPy[s]or highest[1](high)CROSSES UNDER $TOPy[s] then if ViewArrow then DRAWARROWDOWN(barindex[p],(high[p]+(Margin*MultiplicateurFleche))) COLOURED(ColorR,ColorV,ColorB) endif ENDIF NEXT return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

  /////////////////Resistance /////////////////////////// if close>=highest[length1](close) then t1 = 0 top1 = close else top1 = top1 t1 = t1+1 if t1>lenght2 and t1<lenght2+2 then $TOPy[lastset($TOPy)+1] = top1 endif ENDIF /////////////////Support /////////////////////////// if close<=lowest[length1](close) then b1 = 0 bot1 = close else bot1 = bot1 b1 = b1+1 if b1>lenght2 and b1<lenght2+2 then $boty[lastset($boty)+1] = bot1 endif endif ///////////////////////////////////Conditions baissière/////////////////////////////////// for s=0 to 15 do if highest[1](high) CROSSES OVER $BOTy[s] or highest[1](high)CROSSES UNDER $BOTy[s] or highest[1](high) CROSSES OVER $TOPy[s]or highest[1](high)CROSSES UNDER $TOPy[s] then if ViewArrow then DRAWARROWDOWN(barindex[p],(high[p]+(Margin*MultiplicateurFleche))) COLOURED(ColorR,ColorV,ColorB) endif ENDIF NEXT return

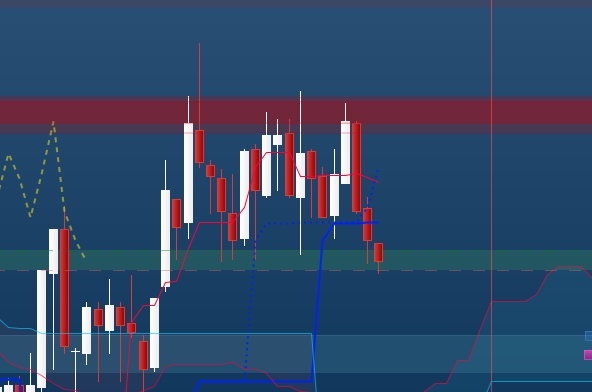

  J’ai mis ci joint un screen d’un exemple de situation dans laquelle j’aimerais avoir une indication (La ligne rouge est la matérialisation du premier indicateur de support et résistance).

  J’ai beau essayer tous les type de cross over ou under (sur le close, sur le high, sur le highest[1] (high)) rien n’y fait, je n’ai jamais de flèche qui apparait. Je suis dans une impasse.



  Merci de votre aide



  Tobas

  Participant

  Topics: 5

  Replies: 9

  Been thanked: 0 times
  05/24/2024 at 1:41 PM #233016
  Iván

  Hola, il a légèrement adapté votre code :

  defparam drawonlastbaronly = true length1=20 lenght2=40 /////////////////Resistance /////////////////////////// if close>=highest[length1](close) then t1 = 0 top1 = close else top1 = top1 t1 = t1+1 if t1>lenght2 and t1<lenght2+2 then $TOPy[t+1] = top1 $TOPx[t+1] = barindex t=t+1 endif ENDIF /////////////////Support /////////////////////////// if close<=lowest[length1](close) then b1 = 0 bot1 = close else bot1 = bot1 b1 = b1+1 if b1>lenght2 and b1<lenght2+2 then $boty[r+1] = bot1 $botx[r+1] = barindex r=r+1 endif endif ////////////Conditions baissière/////////////////////////////////// if islastbarupdate then for j=1 to barindex do for i=r downto max(0,r-15) do if barindex[j]>$botx[i] and low[j] < $BOTy[i] and low[j-1] > $BOTy[i] then DRAWARROWDOWN(barindex[j],$BOTy[i]) COLOURED("red") break ENDIF NEXT for s=t downto max(0,t-15) do if barindex[j]>$TOPx[s] and high[j] > $TOPy[s] and high[j-1] < $TOPy[s]then DRAWARROWup(barindex[j],$TOPy[s]) COLOURED("green") break endif next next endif return $boty[r] coloured("red"),$TOPy[t] coloured("blue")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

  defparam drawonlastbaronly = true   length1=20 lenght2=40 /////////////////Resistance /////////////////////////// if close>=highest[length1](close) then t1 = 0 top1 = close else top1 = top1 t1 = t1+1 if t1>lenght2 and t1<lenght2+2 then $TOPy[t+1] = top1 $TOPx[t+1] = barindex t=t+1 endif ENDIF /////////////////Support /////////////////////////// if close<=lowest[length1](close) then b1 = 0 bot1 = close else bot1 = bot1 b1 = b1+1 if b1>lenght2 and b1<lenght2+2 then $boty[r+1] = bot1 $botx[r+1] = barindex r=r+1 endif endif ////////////Conditions baissière/////////////////////////////////// if islastbarupdate then for j=1 to barindex do   for i=r downto max(0,r-15) do if barindex[j]>$botx[i] and low[j] < $BOTy[i] and low[j-1] > $BOTy[i] then DRAWARROWDOWN(barindex[j],$BOTy[i]) COLOURED("red") break ENDIF NEXT   for s=t downto max(0,t-15) do if barindex[j]>$TOPx[s] and high[j] > $TOPy[s] and high[j-1] < $TOPy[s]then DRAWARROWup(barindex[j],$TOPy[s]) COLOURED("green") break endif next   next endif   return $boty[r] coloured("red"),$TOPy[t] coloured("blue")

  1 user thanked author for this post.

  Tobas



  Iván

  Moderator

  Topics: 0

  Replies: 961

  Been thanked: 331 times
  05/25/2024 at 5:16 PM #233054
  Tobas

  Merci beaucoup Ivan, j’ai travaillé toute la journée pour implémenter cette condition dans mon algorithme.

  J’ai une dernière question. Est-il possible de supprimer une donnée d’un tableau après x période pour qu’elle ne soit prisent en compte dans les conditions.

  Voici comment j’ai modifier pour qu’il fonctionne dans mon algorithme.

  Alerte on supports and resistances

  //defparam drawonlastbaronly = true DEFPARAM CALCULATEONLASTBARS=1000 //////////////////////////////Average candle size////////////////////////////// x = 96 XGreen = 0 GreenSUM = 0 For i = 0 To x-1 Do GreenSUM = GreenSUM + Range[i] XGreen = XGreen + 1 A = GreenSUM / XGreen next /////////////////////////////////////////////// length1=70 lenght2=50 /////////////////Resistance /////////////////////////// if close>=highest[length1](close) then t1 = 0 top1 = close else top1 = top1 t1 = t1+1 if t1>lenght2 and t1<lenght2+2 then $TOPy[t+1] = top1 $TOPx[t+1] = barindex $TopA[t+1]= A t=t+1 endif ENDIF /////////////////Support /////////////////////////// if close<=lowest[length1](close) then b1 = 0 bot1 = close else bot1 = bot1 b1 = b1+1 if b1>lenght2 and b1<lenght2+2 then $boty[r+1] = bot1 $botx[r+1] = barindex $BotA[r+1]= A r=r+1 endif endif p=1 //////////////////Condition with supports/////////////////////////////////// for i=r downto max(0,r-30) do if (low[p] < $BOTy[i] and high[p] > $BOTy[i]) or (low[p] < ($boty[i]+($BotA[i]*0.1)) and high[p] > ($BOTy[i]-($BotA[i]*0.2))) then DRAWARROWDOWN(barindex[1],$BOTy[i]) COLOURED("red") break endif NEXT //////////////////Condition with resistances/////////////////////////////////// for s=t downto max(0,t-15) do if (high[1] > $TOPy[s] and low[1] < $TOPy[s]) or (high[1] > ($TOPy[s]-($TopA[s]*0.05)) and low[1] < ($TOPy[s]+$TOPA[s]*0.2)) then DRAWARROWup(barindex[1],$TOPy[s]) COLOURED("green") break endif next return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

  //defparam drawonlastbaronly = true DEFPARAM CALCULATEONLASTBARS=1000 //////////////////////////////Average candle size////////////////////////////// x = 96 XGreen = 0 GreenSUM = 0 For i = 0 To x-1 Do GreenSUM = GreenSUM + Range[i] XGreen = XGreen + 1 A = GreenSUM / XGreen next /////////////////////////////////////////////// length1=70 lenght2=50 /////////////////Resistance /////////////////////////// if close>=highest[length1](close) then t1 = 0 top1 = close else top1 = top1 t1 = t1+1 if t1>lenght2 and t1<lenght2+2 then $TOPy[t+1] = top1 $TOPx[t+1] = barindex $TopA[t+1]= A t=t+1 endif ENDIF /////////////////Support /////////////////////////// if close<=lowest[length1](close) then b1 = 0 bot1 = close else bot1 = bot1 b1 = b1+1 if b1>lenght2 and b1<lenght2+2 then $boty[r+1] = bot1 $botx[r+1] = barindex $BotA[r+1]= A r=r+1 endif endif p=1 //////////////////Condition with supports/////////////////////////////////// for i=r downto max(0,r-30) do if  (low[p] < $BOTy[i] and high[p] > $BOTy[i]) or (low[p] < ($boty[i]+($BotA[i]*0.1)) and high[p] > ($BOTy[i]-($BotA[i]*0.2))) then DRAWARROWDOWN(barindex[1],$BOTy[i]) COLOURED("red") break endif NEXT //////////////////Condition with resistances/////////////////////////////////// for s=t downto max(0,t-15) do if (high[1] > $TOPy[s] and low[1] < $TOPy[s]) or (high[1] > ($TOPy[s]-($TopA[s]*0.05)) and low[1] < ($TOPy[s]+$TOPA[s]*0.2)) then DRAWARROWup(barindex[1],$TOPy[s]) COLOURED("green") break endif next return

  Merci



  Tobas

  Participant

  Topics: 5

  Replies: 9

  Been thanked: 0 times
  05/28/2024 at 7:42 AM #233120
  Iván

  Bonjour, Pour réinitialiser les données d'un tableau, vous pouvez utiliser unset . D'un autre côté, pour réinitialiser une valeur particulière, vous pouvez l'écraser.

  1 user thanked author for this post.

  Tobas



  Iván

  Moderator

  Topics: 0

  Replies: 961

  Been thanked: 331 times
