Definitively, I don’t understand how work proscreener motor…
Forums › ProRealTime English forum › ProScreener support › Definitively, I don’t understand how work proscreener motor…
- This topic has 8 replies, 2 voices, and was last updated 4 years ago by Nicolas.
-
-
01/12/2020 at 10:15 PM #116558
Good afternoon,
Please, let me introduce my self, I am new in this world, and I am learning as much I can…
But, I don’t understand how works proscreener search engine.
Perhaps is because I came from another kind of programming,
I was trying to study another screeners before to create my own screeners.
I am using free proreal time V11 with values at end of day( soon I will update to realtime…)
My doubts:Doubt 1:

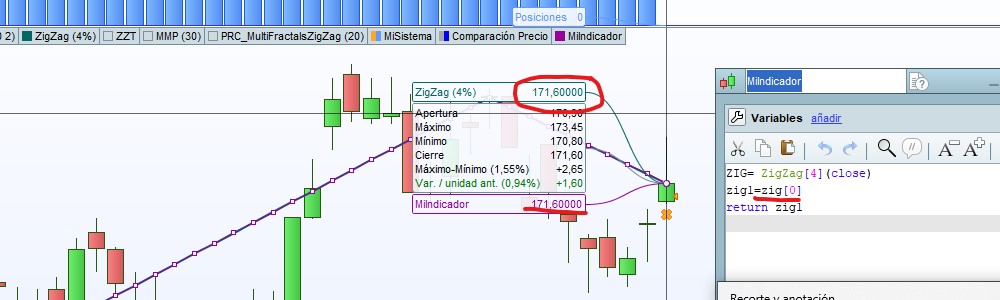

For example, I use one indicator that shows last zigzag value, I see that returned value matches with chart (image001.jpg)

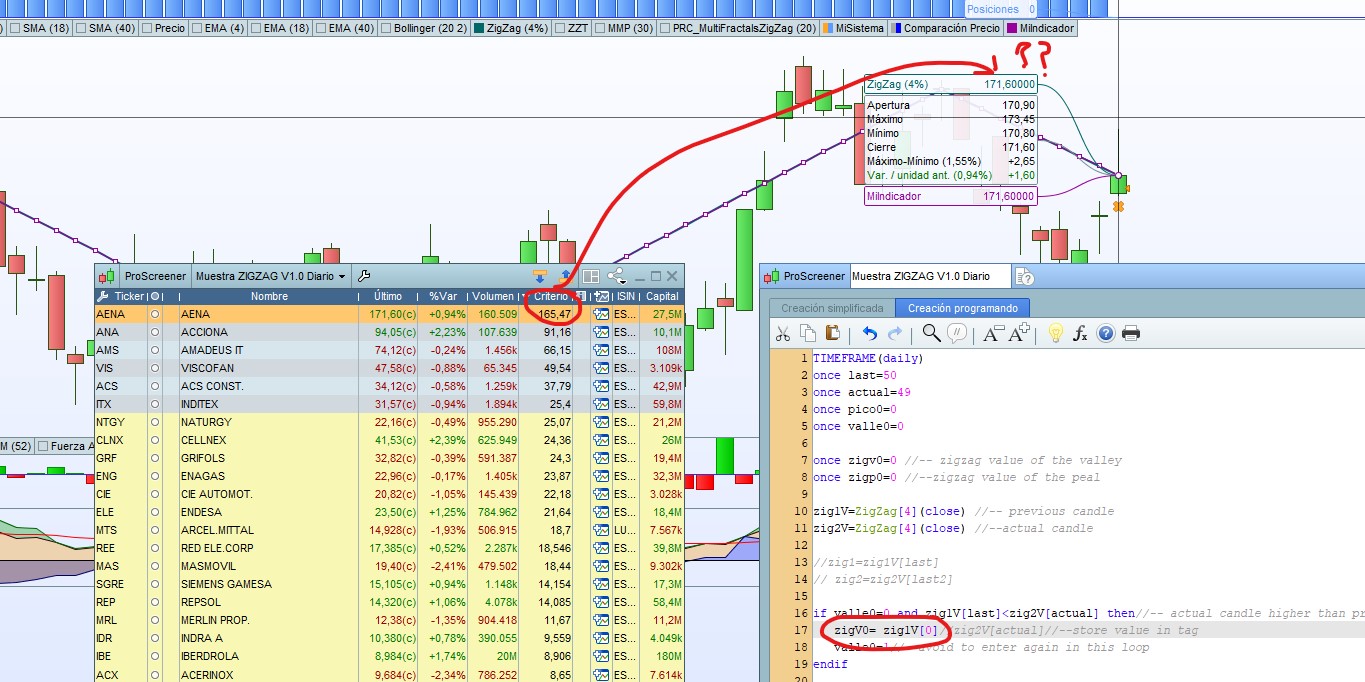

last zigzag value123ZIG= ZigZag[4](close)zig1=zig[0]return zig1But, same instruction in proscreener has different return(image002.jpg), why??
zigzag screener1234if valle0=0 and zig1V[last]<zig2V[actual] then//-- actual candle higher than previous, increasing rampzigV0= zig1V[0]//zig2V[actual]//--store value in tagvalle0=1//--avoid to enter again in this loopendifThis hasn’t a lot of sense, I know,.. i just to understand the program..

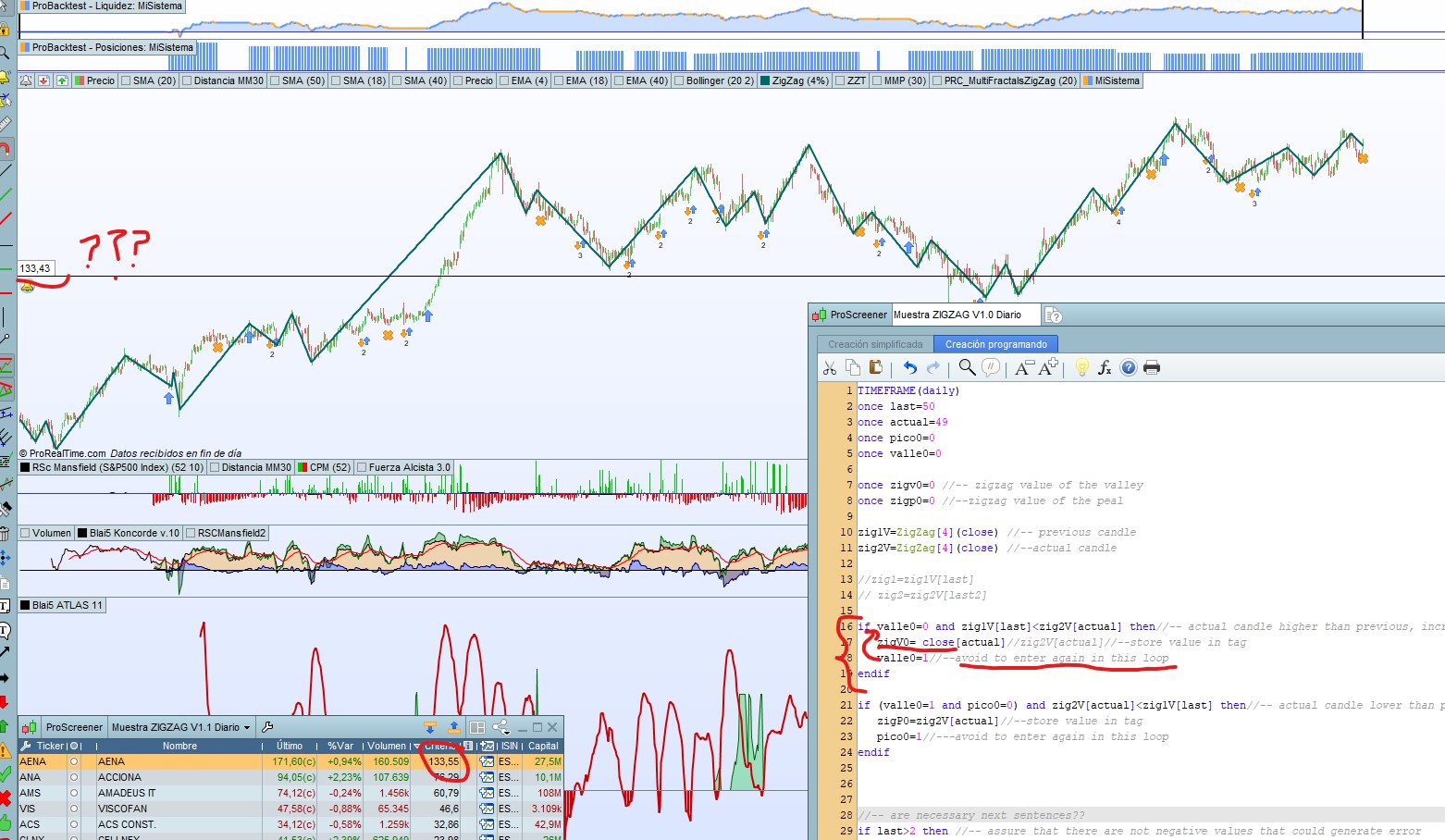

In fact , the returned value is not matching with any peak or valley (image003.jpg); i added a line for better visualization.
doubt 2:
Why I see in some screeners at the tag declaration the use of “once” instruction?? Does it means that the code is not executed only one time?
What the the rules for code execution?

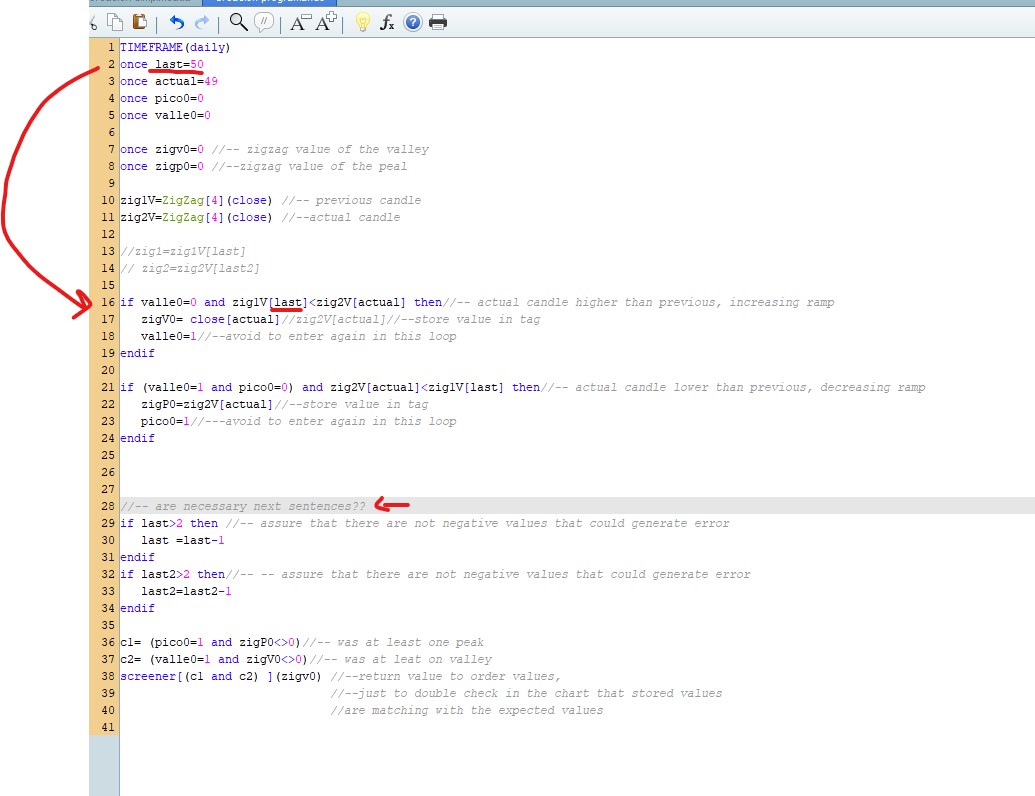

Normally, in another worlds, to execute several times, it is used loops, FOR; WHILE….All of this become because I have created a screener(image004.jpg), but it hasn’t the expected behaviour:
What I want to do with this code:
-Call zigzag function and detect changing trend(peak/valley), but only a number of periods before (with tag); not from very begining.
-Store values of peaks and valleys in different tags…
-Show results with recent peaks and valleyspeak valley detection12345678910111213141516171819202122232425262728293031323334353637383940TIMEFRAME(daily)once last=50once actual=49once pico0=0once valle0=0once zigv0=0 //-- zigzag value of the valleyonce zigp0=0 //--zigzag value of the pealzig1V=ZigZag[4](close) //-- previous candlezig2V=ZigZag[4](close) //--actual candle//zig1=zig1V[last]// zig2=zig2V[last2]if valle0=0 and zig1V[last]<zig2V[actual] then//-- actual candle higher than previous, increasing rampzigV0= close[actual]//zig2V[actual]//--store close value of the change in tagvalle0=1//--avoid to enter again in this loopendifif (valle0=1 and pico0=0) and zig2V[actual]<zig1V[last] then//-- actual candle lower than previous, decreasing rampzigP0=zig2V[actual]//--store close value of the change in tagpico0=1//---avoid to enter again in this loopendif//-- are necessary next sentences??if last>2 then //-- assure that there are not negative values that could generate errorlast =last-1endifif last2>2 then//-- -- assure that there are not negative values that could generate errorlast2=last2-1endifc1= (pico0=1 and zigP0<>0)//-- was at least one peakc2= (valle0=1 and zigV0<>0)//-- was at leat on valleyscreener[(c1 and c2) ](zigv0) //--return value to order values,//--just to double check in the chart that stored values//are matching with the expected values-tags LAST and ACTUAL are discounted automatically? do I need to decrease manually?
If I not decrease them, comparision will be done with same values?I don’t know If I was really clear with my doubts…. (I tried believe me.. 🙂 )
Thanks in advance for help…
01/13/2020 at 11:41 AM #116618I might not understand the whole problem, but I think it comes from your own coding experience with other programming language.
ProBuilder coding language has no array for personal variable (not yet but will come soon), and I think that you want your code to use it. A number in brackets [10] is just an offset of bars quantity on the chart, not the 10th value in an variable array.
“once” instruction is used to give a variable a value only one time at the first read of the code.
Have in mind, that ProScreener has a data history available of “only” 254 periods, so some discrepancies might occur between a chart and what ProScreener can read. ZigZag of 4 percent from peak to valley start at first bar available in history, and if the history is different, therefore the result can be different.
01/13/2020 at 8:43 PM #116695Hello
First, to say thanks for fast reply and demonstrate interest… 🙂
ProBuilder coding language has no array for personal variable (not yet but will come soon), and I think that you want your code to use it. A number in brackets [10] is just an offset of bars quantity on the chart, not the 10th value in an variable array.
Yes, I see, but for me what is strange is from where is starting this offset… Does it means that the offset is for each candle? So, code is going trough every candle?… from the first one?
In case of yes, How to delimit it?
What I want with my code is to have stored in tags:
Valley0-> value of first zigzag change(from decrease to increase), no far than xxx candles
Peak0->value of first zigzag change(from increase to decrease), no far than xxx candlesValley1-> value of second zigzag change(from decrease to increase), no far than xxx candles
Peak1->value of second zigzag change(from increase to decrease), no far than xxx candlesValley2-> value of third zigzag change(from decrease to increase), no far than xxx candles
Peak2->value of third zigzag change(from increase to decrease), no far than xxx candlesBut, I am not receiving expected returns…
Thanks again for you sharing of knowledge 🙂
01/14/2020 at 10:18 AM #116742Without arrays, you have 2 solutions:
- you know that you only want to store the last 3 zigzag points, so in this case, use 3 variables with 3 different names and change their values each time a new zigzag appear
- store all Valley in a variable “Valley” and make a loop through data to fetch all previous values of that variable and do what you want from there..
Look at how I proceed in this indicator code example: https://www.prorealcode.com/prorealtime-indicators/zigzag-supdem-supply-and-demand-zones/
I made loop through the lookback periods to compare variables “t” (valley) and “p” (peak) between them.
Variables arrays will make our life easier! They will come very soon I hope!! 🙂
01/19/2020 at 7:52 PM #117243Hello,
finally, I created that works… I still have doubts about how are manage some data types.but….. hahahahIs not perfect, and surely….could be improved.. but as I am beginner; I am more or less happy… 🙂
I accept advices..
Wolfe wave V0.1123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100101102103104105106107108109110111112//-----------------------------Configure screenerTIMEFRAME(daily)//--analysis for value conditions// Maximum % allowed between peaks 1-3 and also for valley 2-4// Example: point 3 must not differ from point 1 more than this valuemaxVgap=2//-- Analysis for timing conditions//-- in %, maximum diference between ramps//--Distance between points 1-3 and 2-4 must not exceed this value//--to assusre equitative rampsMaxTiempoGap=15Lookback=80//------------------------------ Codezz = ZigZag[4](close)p = zz<zz[1] and zz[1]>zz[2]v = zz>zz[1] and zz[1]<zz[2]if p thentop = zz[1]endifif v thenbottom = zz[1]endif//------ Point 1 detectionfor i =lookback downto 1 doif v[i] thenVpunto1= bottom[i]punto1=1vela1=ibreakENDIfnext//--------Point 2 detectionif punto1=1 then//-- Only in first point of waves is already detectedfor i =vela1-1 downto 1 do //--start to search from previous pointif p[i] thenVpunto2= top[i]punto2=1vela2=ibreakENDIfnextendif//------Point 3 detectionif punto2=1 thenfor i =vela2-1 downto 1 do//--start to search from previous pointif v[i] thenVpunto3= bottom[i]punto3=1vela3=ibreakENDIfnextendif//-----------Point 4 detectionif punto3=1 thenfor i =vela3-1 downto 1 do//--start to search from previous pointif p[i] thenVpunto4= top[i]punto4=1vela4=ibreakENDIfnextendif//--------Point 5 detectionif punto4=1 thenfor i =vela4-1 downto 1 do//--start to search from previous pointif v[i] thenVpunto5= bottom[i]punto5=1vela5=ibreakENDIfnextendif//---------------------------------Analysis//-- Value Point 3 compared with point 1 must not exceed the configured deltaGap13=abs((Vpunto3*100)/Vpunto1)-100Gap13OK=Gap13 <maxVGap//-- Value Point 4 compared with point 2 must not exceed the configured deltaGap24=abs((Vpunto4*100)/Vpunto2)-100Gap24OK=abs(Gap24) <maxVGap//--Distance between candles of point 1-2 and 3-4 must not differ more than the percentage set at begin,assuring equitative rampsTiempo12=abs(Vela2-Vela1)Tiempo34=abs(Vela4-Vela3)TiemposGap=abs(((tiempo34*100)/Tiempo12)-100)CT=TiemposGap<MaxTiempoGap//--Distance between points 1-3 and 2-4, must be lower than 3 candles//--may be used also percentageTiempo13=abs(Vela3-Vela1)//23Tiempo24=abs(Vela2-Vela4)//4CD=abs(Tiempo13-Tiempo24)<3C1= (punto1=1) and (Vpunto1<>0)C2= (punto2=1) and (Vpunto2<>0)C3= (punto3=1) and (Vpunto3<>0) and (Vpunto3 > Vpunto1) and Gap13OK //--ramps are equitativeC4= vela4<>0 and (punto4=1) and (Vpunto4<>0) and (Vpunto4 < Vpunto2) and Gap24OKC5= vela5<>0 and (punto5=1) and (Vpunto5<>0) and (Vpunto5 < Vpunto3) //-- Point 5 lowe than point 3screener[C1 and C2 and C3 and C4 and C5 and CT and CD ](Vpunto1)//- First point of WOLF WAVE, search for this valleyWas created in Spanish.. sorry for that.
Tiempo -> Time
Vela-> Candle
Punto->PointWhat does this code:
With this code is detect Wolfe wave pattern, can be configured to stablish the quality of the wolfe waves, detecting delta between candles and values of points.What doesn’t does this code:

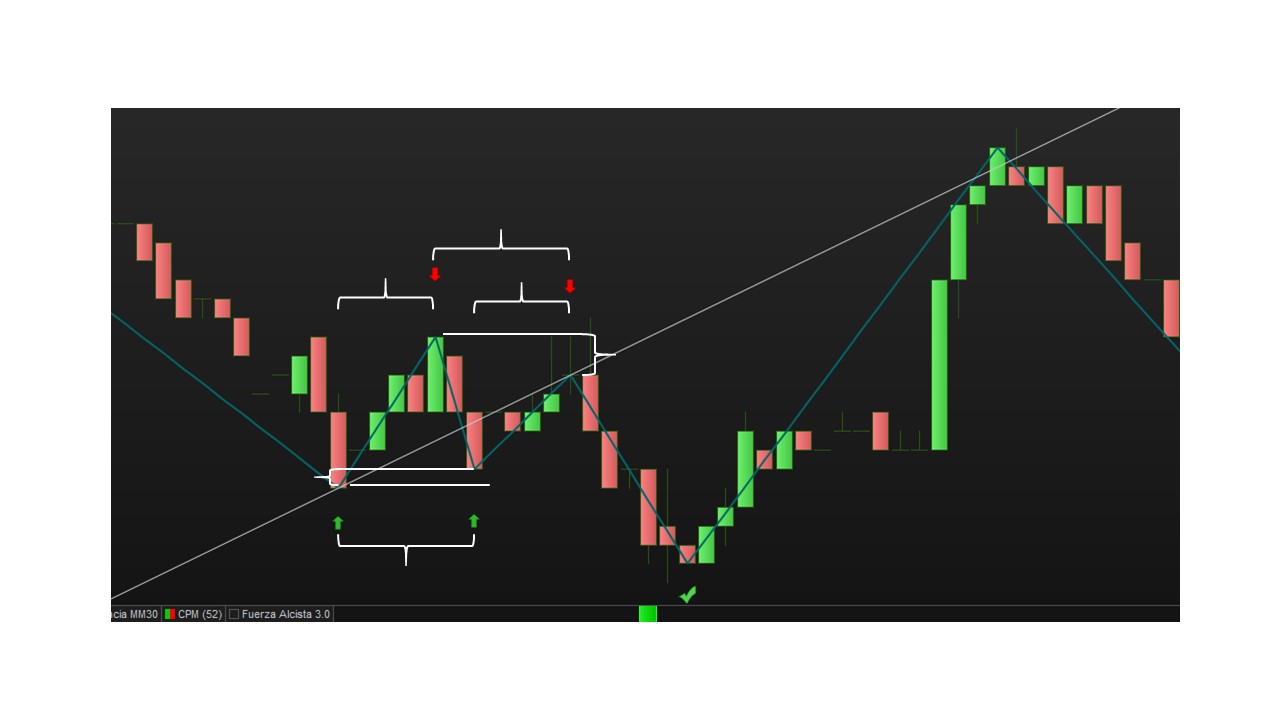

Detect if the last candle of chart is in buying area, wolfe pattern could be some candles before…In attachment there is an example of result…
What will be great from code Suite:
-Arrays.
-Debug of tags, or a list with tag values at end of execute, I had to add returning 1 by 1 all the tags to be sure that were okThanks
01/20/2020 at 7:51 PM #117353Hi, new version,
With this other type, are find values with current scenario in the point 5,
Show Wolfe actualV1.1123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126//-----------------------------Configure screenerTIMEFRAME(daily)//--analysis for value conditions// Maximum % allowed between peaks 1-3 and also for valley 2-4// Example: point 3 must not differ from point 1 more than this valuemaxVgap=2//-- Analysis for timing conditions//-- in %, maximum diference between ramps//--Distance between points 1-3 and 2-4 must not exceed this value//--to assusre equitative rampsMaxTiempoGap=30Lookback=80//------------------------------ Codezz = ZigZag[4](close)p = zz<zz[1] and zz[1]>zz[2]v = zz>zz[1] and zz[1]<zz[2]if p thentop = zz[1]endifif v thenbottom = zz[1]endif//------ Point 5 detectionfor i =1 to lookback doif v[i] thenVpunto5= bottom[i]punto5=1vela5=ibreakENDIfnext//--------Point 4 detectionif punto5=1 then//-- Only in first point of waves is already detectedfor i =vela5+1to lookback do //--start to search from previous pointif p[i] thenVpunto4= top[i]punto4=1vela4=ibreakENDIfnextendif//------Point 3 detectionif punto4=1 thenfor i =vela4+1 to lookback do//--start to search from previous pointif v[i] thenVpunto3= bottom[i]punto3=1vela3=ibreakENDIfnextendif//-----------Point 2 detectionif punto3=1 thenfor i =vela3+1to lookback do//--start to search from previous pointif p[i] thenVpunto2= top[i]punto2=1vela2=ibreakENDIfnextendif//--------Point 1 detectionif punto2=1 thenfor i =vela2+1 to lookback do//--start to search from previous pointif v[i] thenVpunto1= bottom[i]punto1=1vela1=ibreakENDIfnextendif//-----------Point recent peak detectionif punto5=1 thenfor i =1 to lookback do//-if p[i] then//Vpunto2= top[i]Recentpeak=1Peakpos=ibreakENDIfnextendif//---------------------------------Analysis//-- Value Point 3 compared with point 1 must not exceed the configured deltaGap13=abs((Vpunto3*100)/Vpunto1)-100Gap13OK=Gap13 <maxVGap//-- Value Point 4 compared with point 2 must not exceed the configured deltaGap24=abs((Vpunto4*100)/Vpunto2)-100Gap24OK=abs(Gap24) <maxVGap//--Distance between candles of point 1-2 and 3-4 must not differ more than the percentage set at begin,assuring equitative rampsTiempo12=abs(Vela2-Vela1)Tiempo34=abs(Vela4-Vela3)TiemposGap=abs(((tiempo34*100)/Tiempo12)-100)CT=TiemposGap<MaxTiempoGap//--Distance between points 1-3 and 2-4, must be lower than 3 candles//--may be used also percentageTiempo13=abs(Vela3-Vela1)//23Tiempo24=abs(Vela2-Vela4)//4CD=abs(Tiempo13-Tiempo24)<4buyOK=(Recentpeak=1) and (Peakpos > vela5) //-- Last Zigzag was the valley of Point 5, not peak aof zigzag after point 5C1= (punto1=1) and (Vpunto1<>0)C2= (punto2=1) and (Vpunto2<>0)C3= (punto3=1) and (Vpunto3<>0) and (Vpunto3 > Vpunto1) and Gap13OK //--ramps are equitativeC4= vela4<>0 and (punto4=1) and (Vpunto4<>0) and (Vpunto4 < Vpunto2) and Gap24OKC5= vela5<>0 and (punto5=1) and (Vpunto5<>0) and (Vpunto5 < Vpunto3) //-- Point 5 lowe than point 3screener[C1 and C2 and C3 and C4 and C5 and CT and CD and buyOK ](Vpunto1)//- First point of WOLF WAVE, search for thi valley01/21/2020 at 10:32 AM #117367Thanks a lot for this valuable screener code! It should be featured in the library! Could you please put it there if you don’t mind? With some explanations? If you don’t have time i would do it for you.
01/30/2020 at 8:30 PM #118305Hello and sorry for my absence..
I was busy these last days…
For me will be be very satisfactory to share my first code with the community, of course…
I will try to do it during weekend, did you played with the screener?
For me what is a pity is that screener cannot draw in the chart.. would be nicest…
01/31/2020 at 8:57 AM #118328 -
