Directional Movement Change

• 01/06/2017 at 12:37 PM #20034
  Johan

  I want to make a indicator that calculates the change of Directional Movement (DI) in current bar, compared to last bar.

  Say the last bar has a value of 20 and the current bar has a value of 10. The change would then be = 100%.

  Say the last bar has a value of -10 and the current bar has a value of 30. The change would then be = 400%.

  Say the last bar has a value of 15 and the current bar has a value of -15. The change would then be = 200%.

  This is some what easy to do. But the problem i face is when a bar has a value that starts with 0. Or when there’s a negative value on either side.

  My code

  volaDI = di[14](close) volaDIchange = ((volaDI - volaDI[1]) / volaDI[1]) * 100

  1 2	volaDI = di[14](close) volaDIchange = ((volaDI - volaDI[1]) / volaDI[1]) * 100





  Johan

  Participant

  Topics: 13

  Replies: 33

  Been thanked: 1 time
  01/06/2017 at 1:34 PM #20035
  Johan

  It’s not necessary to calculate it so it displays exactly like the example above. What i want is a indicator that shows the strength of the change.



  Johan

  Participant

  Topics: 13

  Replies: 33

  Been thanked: 1 time
  01/06/2017 at 4:14 PM #20062
  Nicolas

  Hey Johan, you are reinventing the wheel. You can use the Rate Of Change (ROC) to compare the change between the current value and one of the past. In your case, you only want to compare the actual one to the previous one, so the ROC period should be set to 1 and your code should now look like this:

  volaDI = di[14](close) //volaDIchange = ((volaDI - volaDI[1]) / volaDI[1]) * 100 volaDIchange = abs(ROC[1](volaDI)-volaDI[1]) return volaDIchange

  1 2 3 4 5

  volaDI = di[14](close) //volaDIchange = ((volaDI - volaDI[1]) / volaDI[1]) * 100 volaDIchange = abs(ROC[1](volaDI)-volaDI[1])   return volaDIchange

  Please tell me if I’m totally wrong, it’s Friday coding 🙂





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  01/06/2017 at 5:05 PM #20075
  Johan

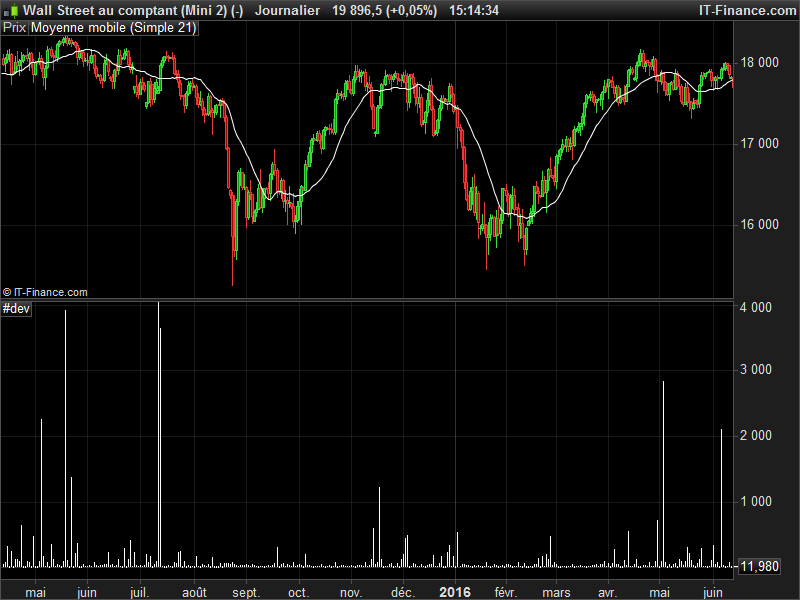

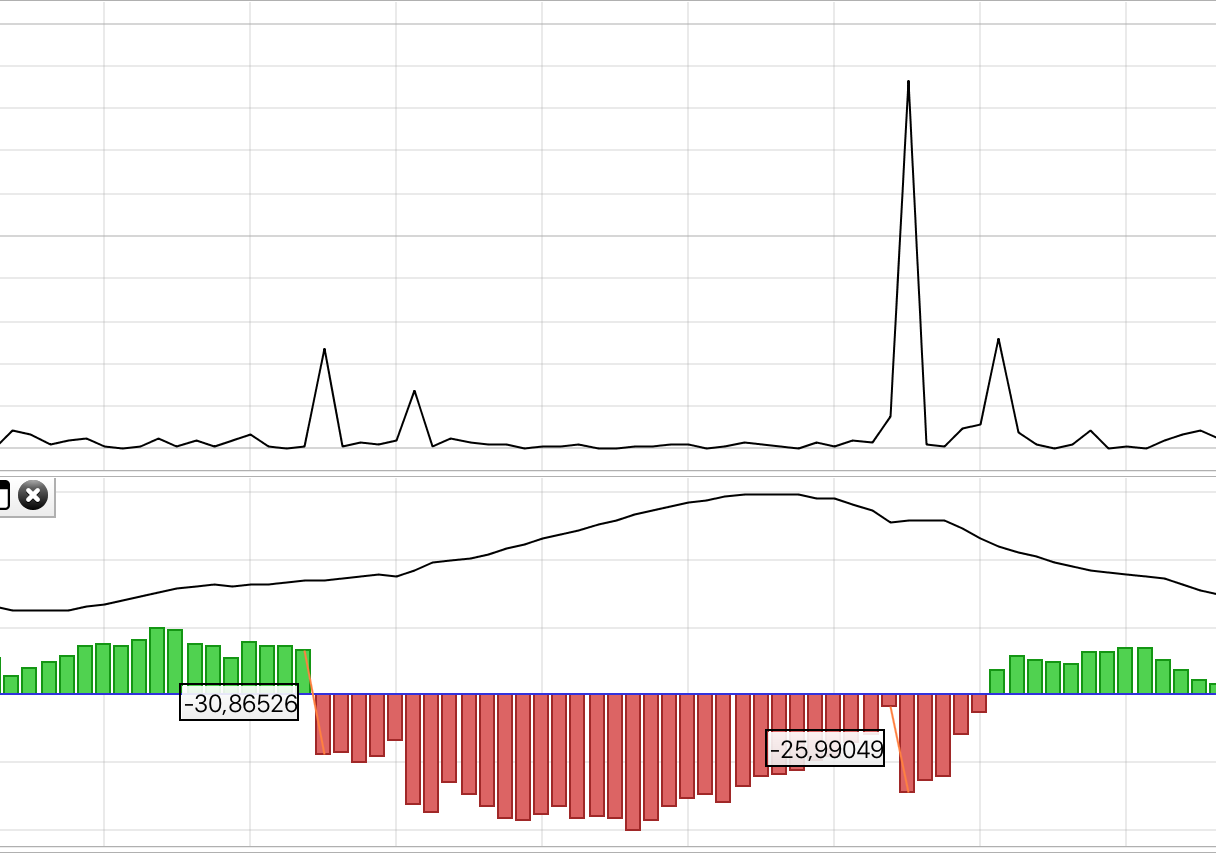

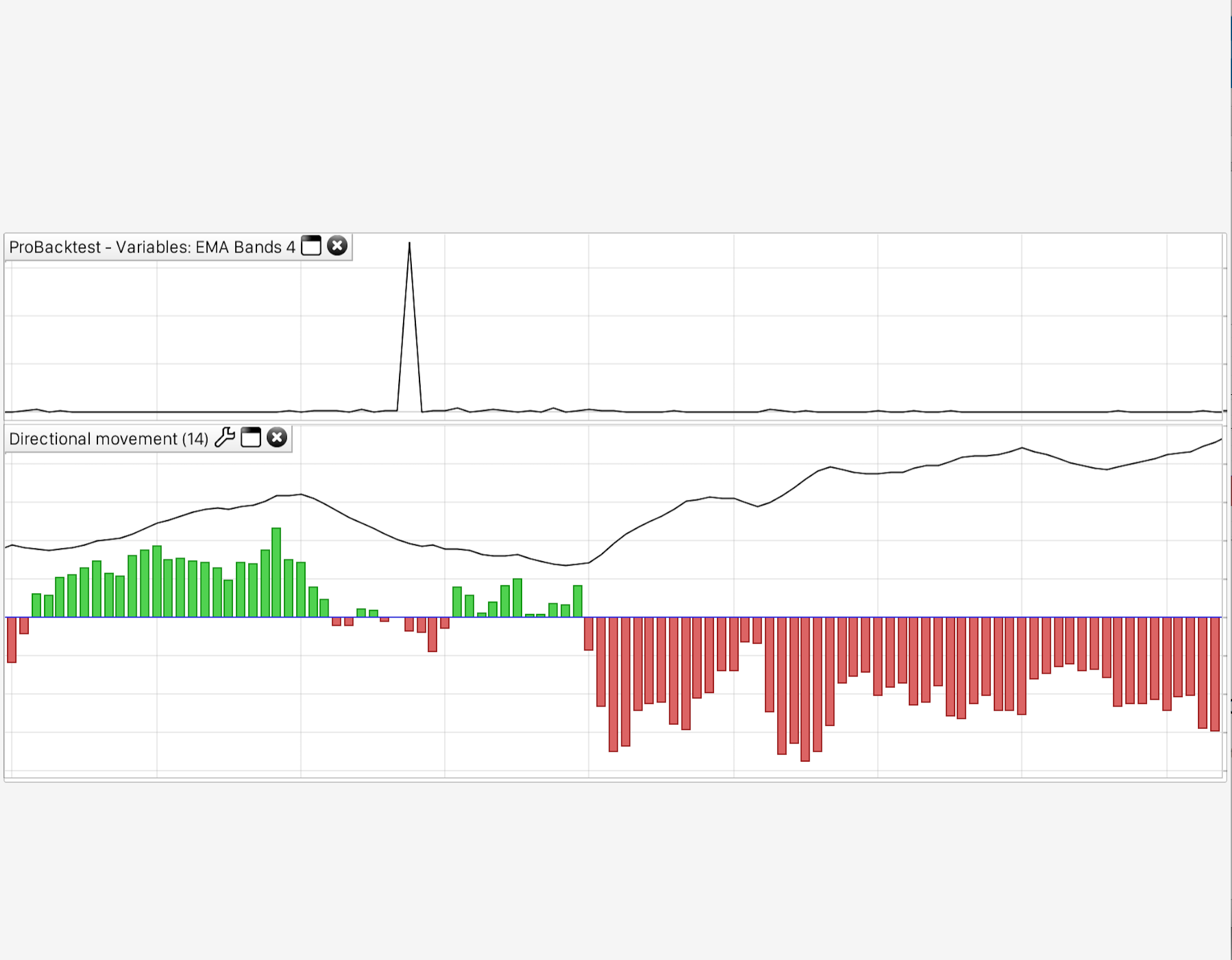

  Thanks Nicolas. Looks like this is the way to go. But still, get’s huge spikes when there’s a zero value involved. This becomes nasty noise when there’s a small rate of change in price action but the DI value flips side. See my attached image. If you look to the right, the ROC of the last green and the first red bar should have the spike. Does this make any sense? 🙂



  Johan

  Participant

  Topics: 13

  Replies: 33

  Been thanked: 1 time
  01/06/2017 at 6:07 PM #20083
  Johan

  Made some changes to get rid of the zero value.

  volaDI = di[14](close) volaDIround = round(volaDI) if (volaDIround = 0) then volaDIround = sgn(volaDIround) endif volaDIroc = abs(roc[1](volaDIround)) return volaDIroc

  1 2 3 4 5 6 7 8 9 10

  volaDI = di[14](close) volaDIround = round(volaDI)   if (volaDIround = 0) then volaDIround = sgn(volaDIround) endif   volaDIroc = abs(roc[1](volaDIround))   return volaDIroc

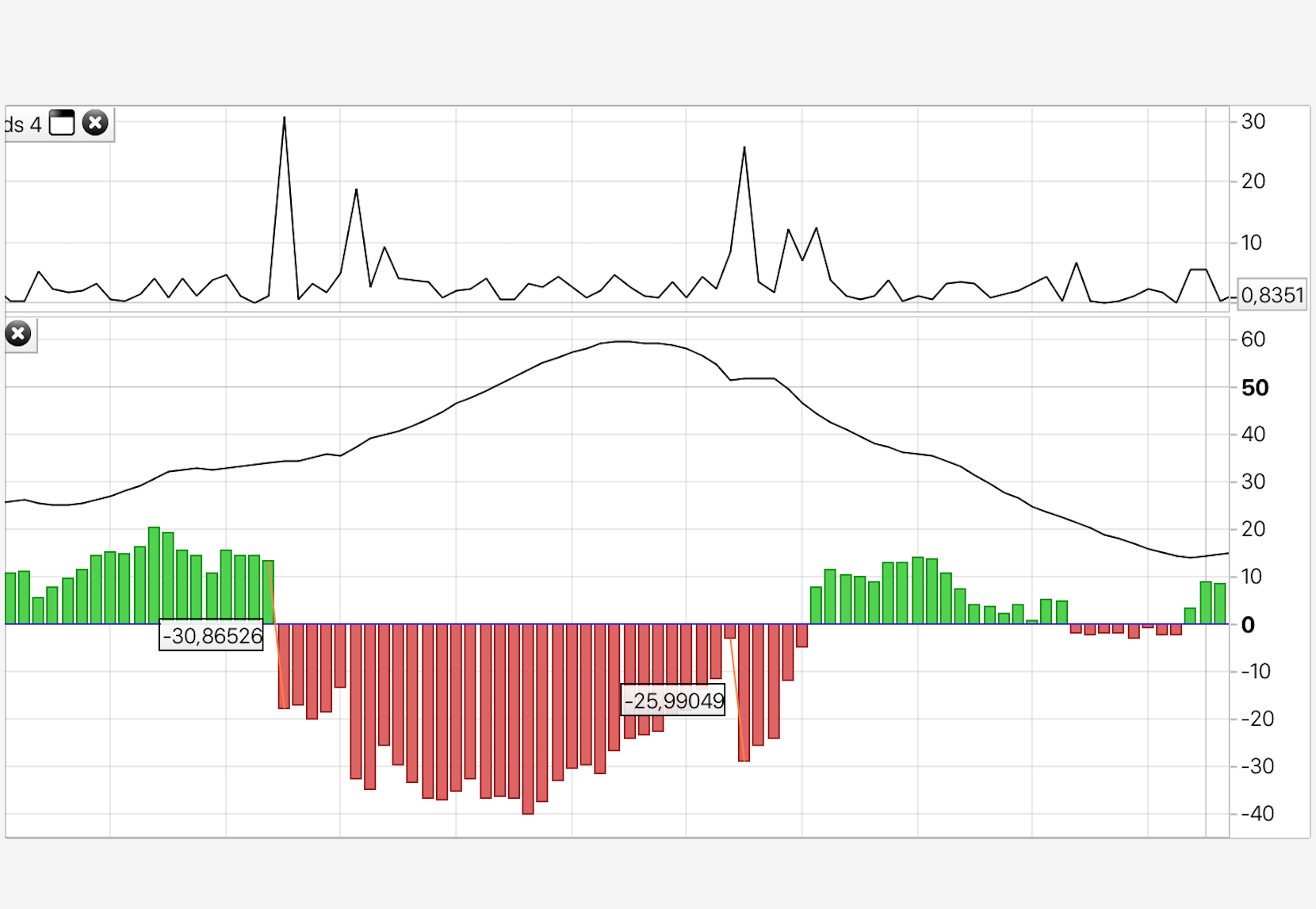

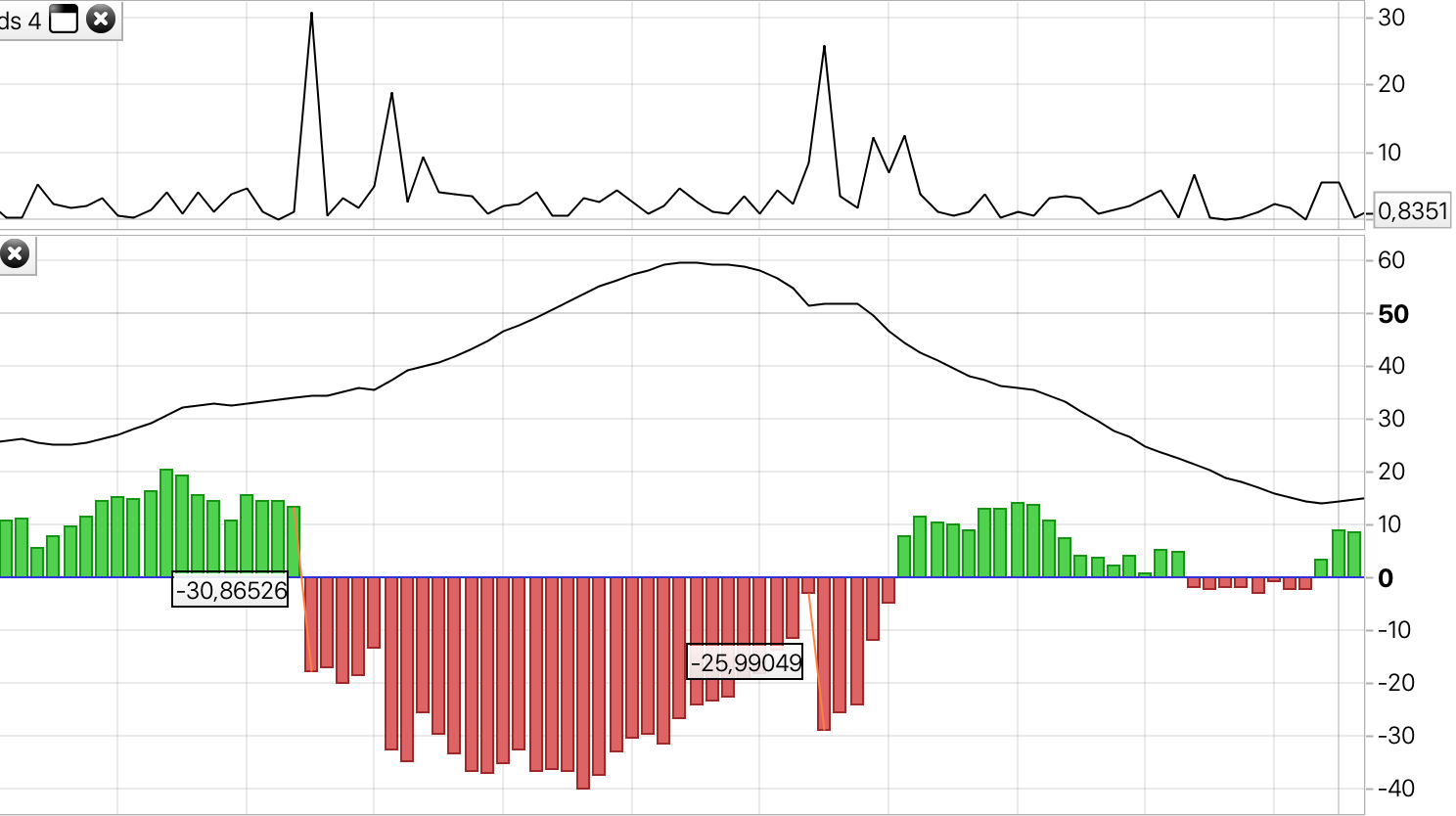

  But what i don’t understand is how the ROC work. If i draw two rulers between the values of the one that i can see has the most ROC (distance) and the one where the indicator spikes. You can clearly see the it don’t correspond to the distance of the DI move. See image…





  Johan

  Participant

  Topics: 13

  Replies: 33

  Been thanked: 1 time
  01/06/2017 at 6:19 PM #20086
  Johan

  OK. The ruler drawing was a good thing to do 🙂  I think i found the solution.

  volaDI = di[14](close) volaDIroc = abs(volaDI - volaDI[1]) return volaDIroc

  1 2 3 4

  volaDI = di[14](close) volaDIroc = abs(volaDI - volaDI[1])   return volaDIroc
