Draw a Trend at a Time period? please help

• 01/31/2018 at 2:04 AM #61034
  crolakstrading

  Hi.

  Is there any help i can get to draw a trend line at 6am. lets say using the 1hour chart .. taking 1am to 6am candles — Draw a trend line connecting a valid swing high with those 6candles  (highest point on that 6candles) to the  most recent swing high of the previous days (previous days high)

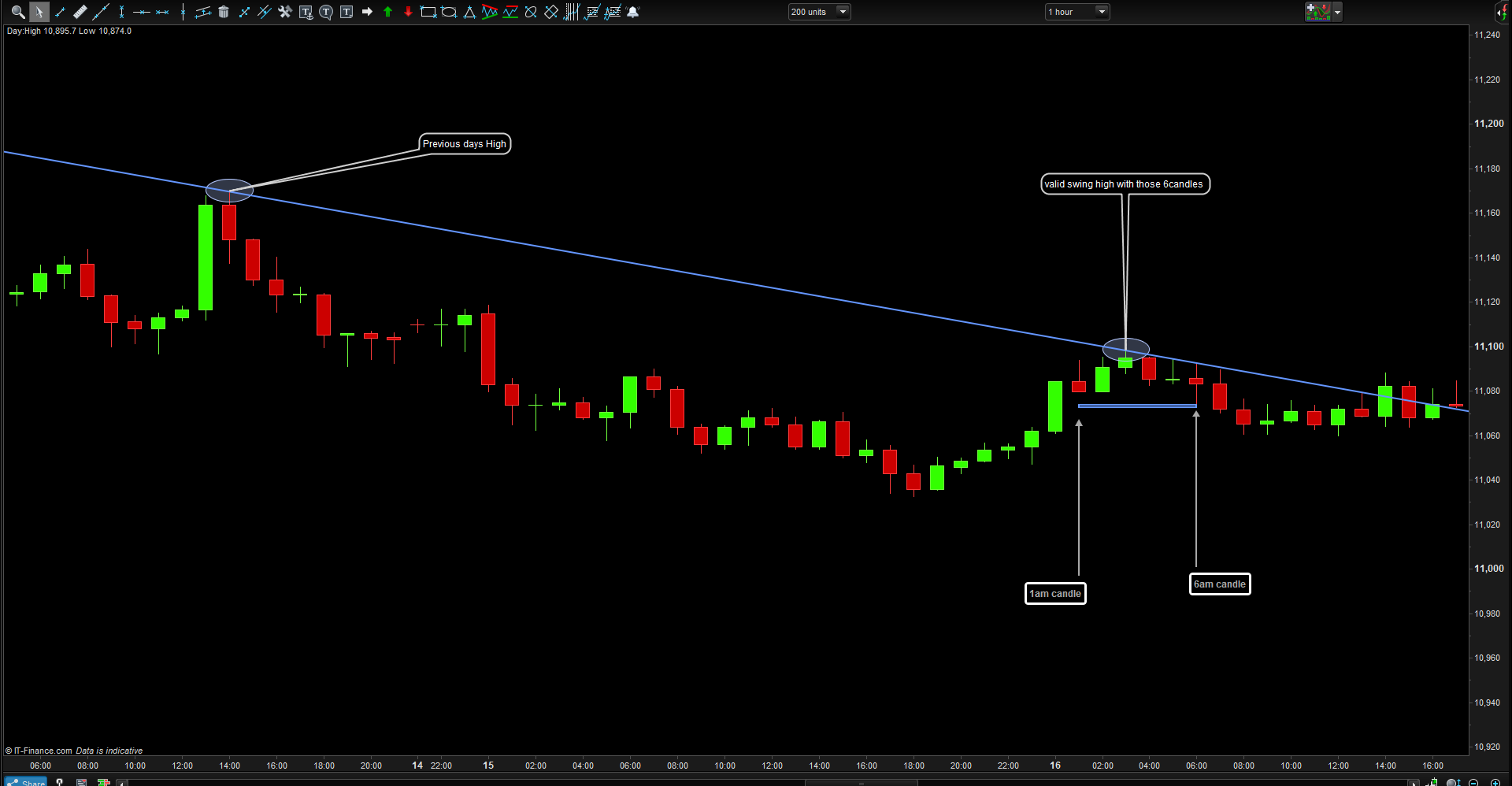

  is this possible?? please see the attached pic to get an idea!!!  please any help appreciated



  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  01/31/2018 at 11:24 AM #61074
  Nicolas

  Yes that’s possible, only for an 1 hour timeframe?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4775 times
  01/31/2018 at 4:20 PM #61112
  crolakstrading

  Hi Nicolas,

  Thanks for the reply.

  Yes this is only for 1hour time frame.. not sure how to get the swing high (highest) of that past 6 candles (1am to 6am) and connect to previous days high!!!

  Many thanks

  Ro



  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  02/05/2018 at 10:03 PM #61604
  crolakstrading

  Hi Nicolas,

  please are you able help to achieve this?



  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  02/06/2018 at 9:33 AM #61641
  Nicolas

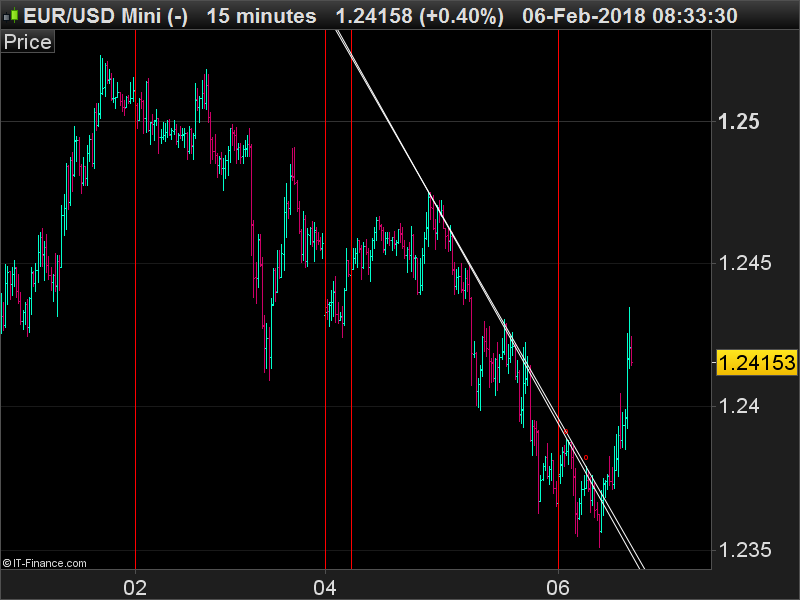

  I think it should works like the way you want. I only plot the lines for the current day, otherwise the chart would be filled with plenty of lines of previous days… since we can’t erase what’s already plotted.

  Arrow = 0 Ncandles = 5 Nside = (Ncandles - 1) / 2 ctime = time>010000 and time<=060000 and date=today hh=max(high,hh) if hh<>hh[1] then highbar=barindex endif if intradaybarindex=0 then hh=0 prevhighbar=highbar drawvline(barindex) coloured(255,0,0) endif if ctime then IF high[Nside] >= highest[Ncandles](high) THEN Fup = high[Nside] FupBar = barindex[Nside] Arrow = -1 ENDIF IF Arrow = -1 THEN DRAWtext("o",barindex[2],high[2]+Averagetruerange[5]/3)coloured(255,0,0) drawline(prevhighbar,dhigh(1),FupBar,Fup) ENDIF endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

  Arrow = 0 Ncandles = 5   Nside = (Ncandles - 1) / 2   ctime = time>010000 and time<=060000 and date=today   hh=max(high,hh) if hh<>hh[1] then highbar=barindex endif   if intradaybarindex=0 then hh=0 prevhighbar=highbar drawvline(barindex) coloured(255,0,0) endif   if ctime then IF high[Nside] >= highest[Ncandles](high) THEN Fup = high[Nside] FupBar = barindex[Nside] Arrow = -1 ENDIF    IF Arrow = -1 THEN DRAWtext("o",barindex[2],high[2]+Averagetruerange[5]/3)coloured(255,0,0) drawline(prevhighbar,dhigh(1),FupBar,Fup) ENDIF endif   return





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4775 times
  02/06/2018 at 11:15 AM #61660
  crolakstrading

  Hi nicolas,



  Thanks very much for the reply,

  how can i change this to 1 hour time frame? when its on the one hour only the vertical lines appear? but not the trend line?



  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  02/06/2018 at 1:59 PM #61690
  Nicolas

  Because no swing high had been detected today on the active instrument between the schedules (from 1AM to 6AM).



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4775 times
  02/06/2018 at 2:12 PM #61698
  crolakstrading

  ahh.. got it!!! thanks for the help nicolas!



  crolakstrading

  Participant

  Topics: 12

  Replies: 112

  Been thanked: 4 times
  06/05/2020 at 4:41 PM #134745
  tobytarczy

  Hi,



  I have been trying to find an example that I could use to create a downward and upward trend line based on the highest and lowest bar respectively that includes 3 bars. In otherwords only draw the line if there are 3 points that can be derived. I want to make this work across all the major time frames. I have tried a few examples but I haven’t been able to make it work. The example that was provided in this blog is a good one, only it hits just 2 high points.

  Thank you in advance.



  Toby



  tobytarczy

  Participant

  Topics: 1

  Replies: 8

  Been thanked: 0 times
