Draw lines from candle 12 hours ago

• 12/04/2023 at 12:36 PM #224807
  Crillezz

  Hey everyone! I’ve tried to make an indicator but can’t do it.

  I don’t think it’s a big problem for those of you who are talented.

  I am looking for an indicator that draws lines from high and low 12 hours ago.

  I am working with 60 minute chart, but would be great if it would work on other timeframes to.

  Then the lines should disappear after 24 hours.

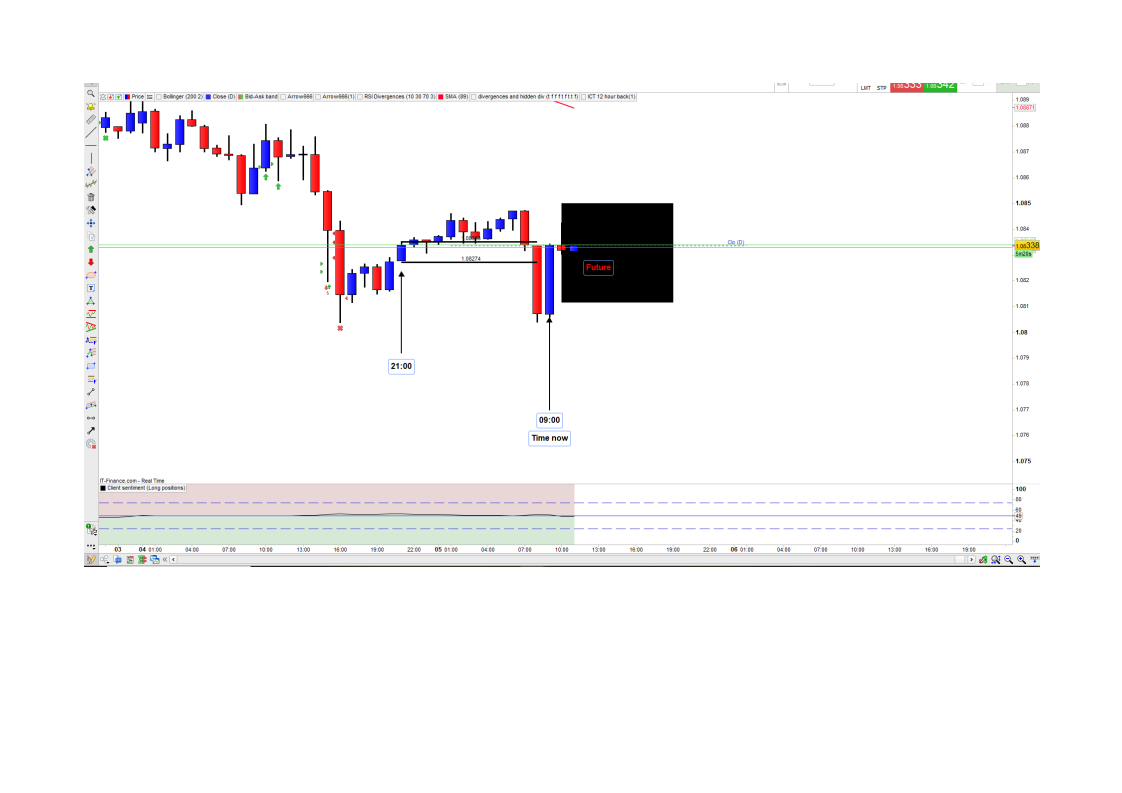

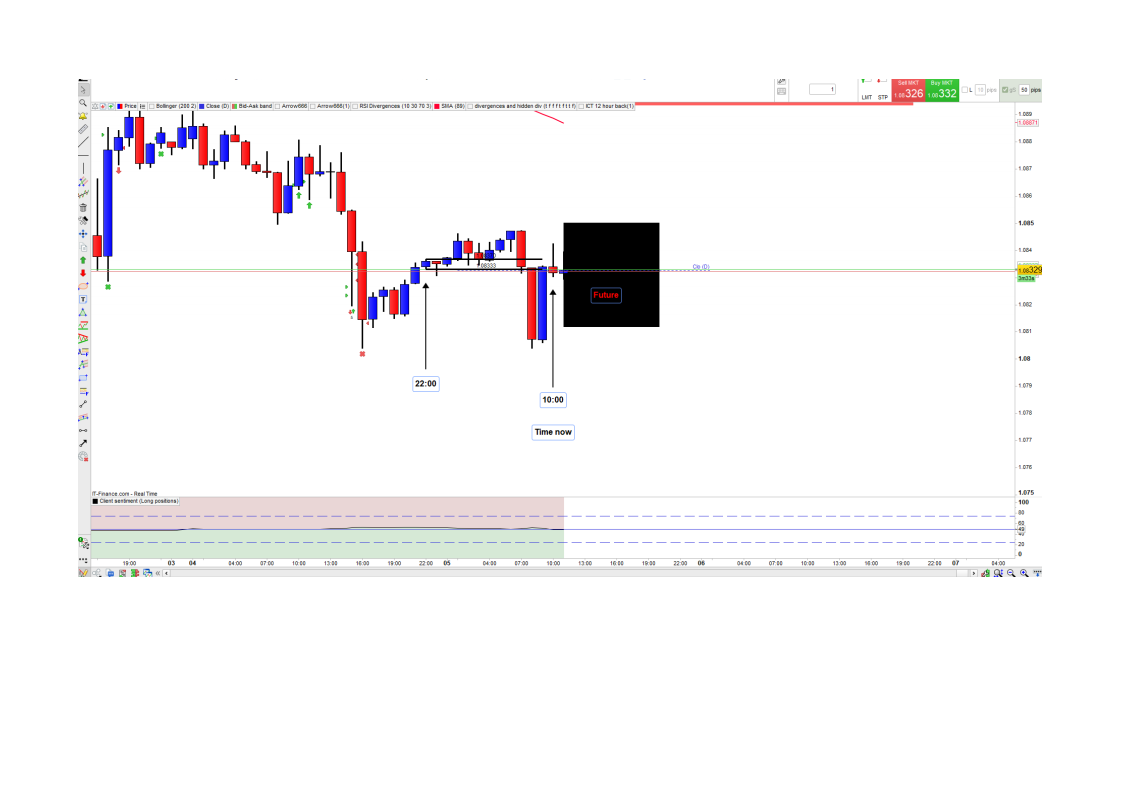

  Here is an example.

  Thx



  Crillezz

  Participant

  Topics: 18

  Replies: 43

  Been thanked: 0 times
  12/04/2023 at 12:51 PM #224809
  Crillezz

  Realized now that it doesn’t work as there will be so many lines.

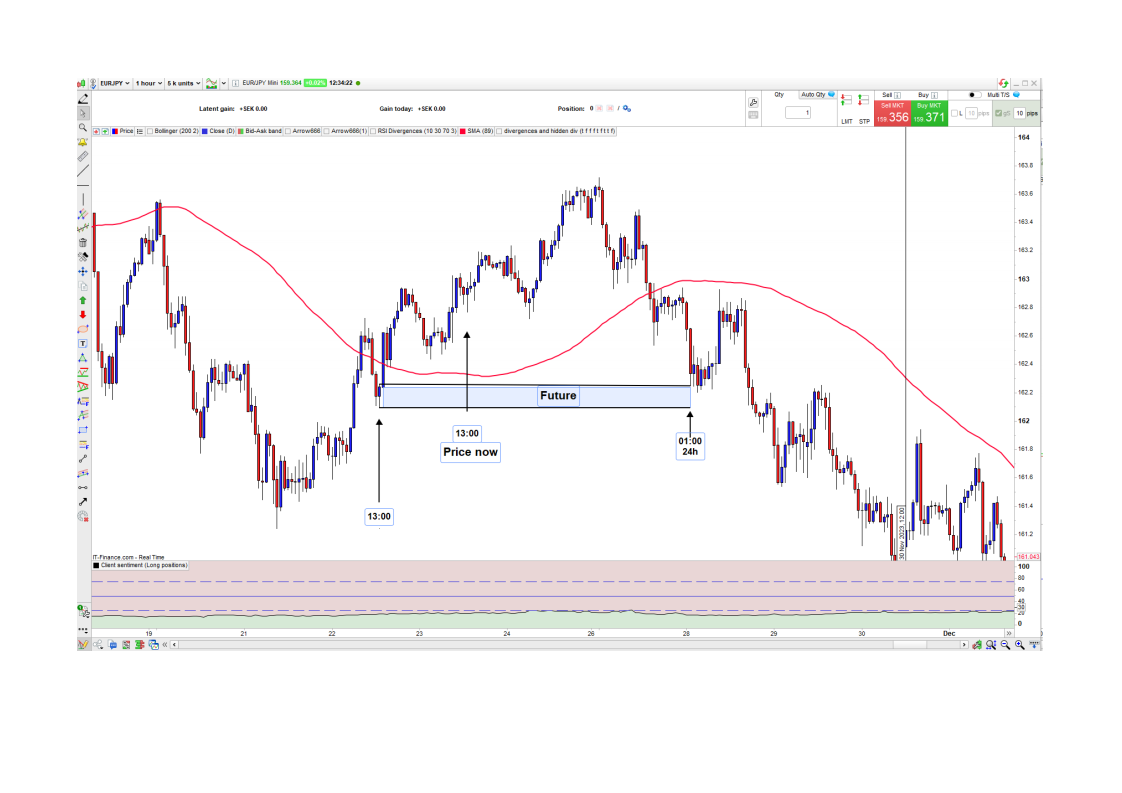

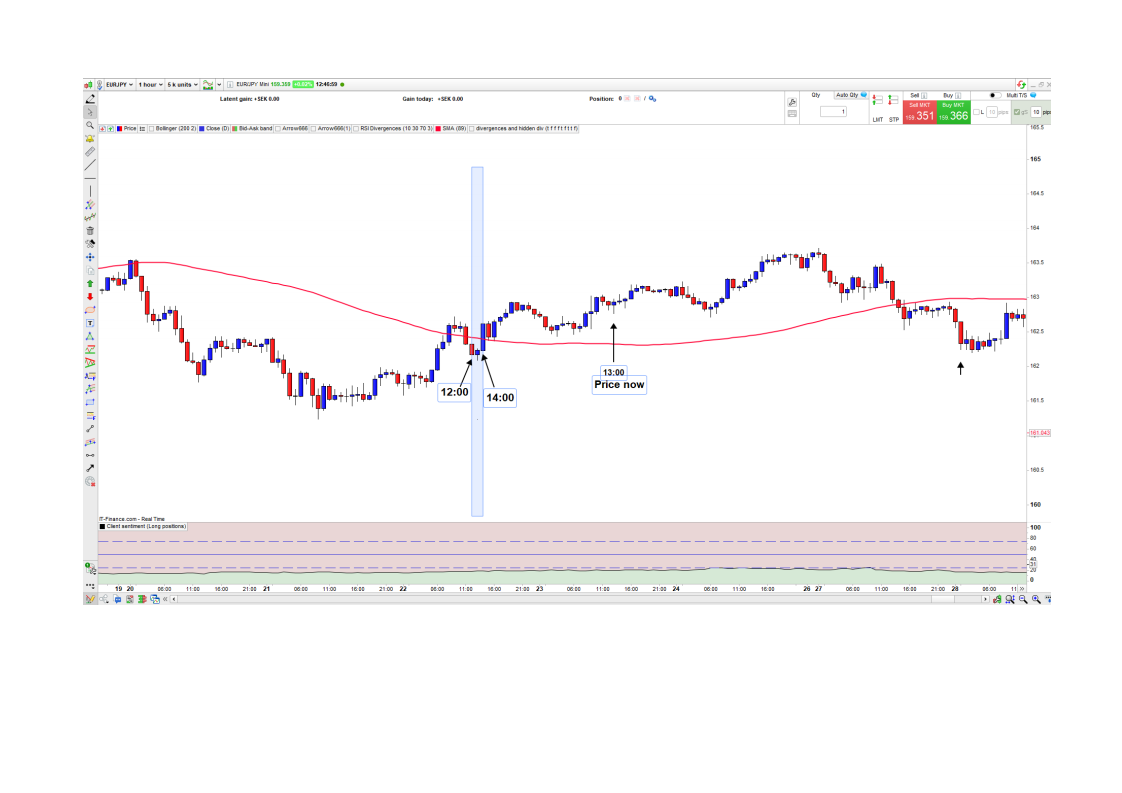

  It´s better to mark one area between 11-13 hours earlier like this.



  Crillezz

  Participant

  Topics: 18

  Replies: 43

  Been thanked: 0 times
  12/04/2023 at 1:39 PM #224817
  robertogozzi

  There you go:

  DEFPARAM DrawOnLastBarOnly = true DrawRectangle(BarIndex[13],0,BarIndex[11],99999) coloured("Cyan",80) bordercolor("Blue",255) RETURN

  1 2 3

  DEFPARAM DrawOnLastBarOnly = true DrawRectangle(BarIndex[13],0,BarIndex[11],99999) coloured("Cyan",80) bordercolor("Blue",255) RETURN

  1 user thanked author for this post.

  Crillezz



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17188

  Been thanked: 4064 times
  12/04/2023 at 3:07 PM #224824
  Crillezz

  That was fast. Just what I wanted.

  Thanks 🙂



  Crillezz

  Participant

  Topics: 18

  Replies: 43

  Been thanked: 0 times
  12/04/2023 at 3:14 PM #224825
  Crillezz

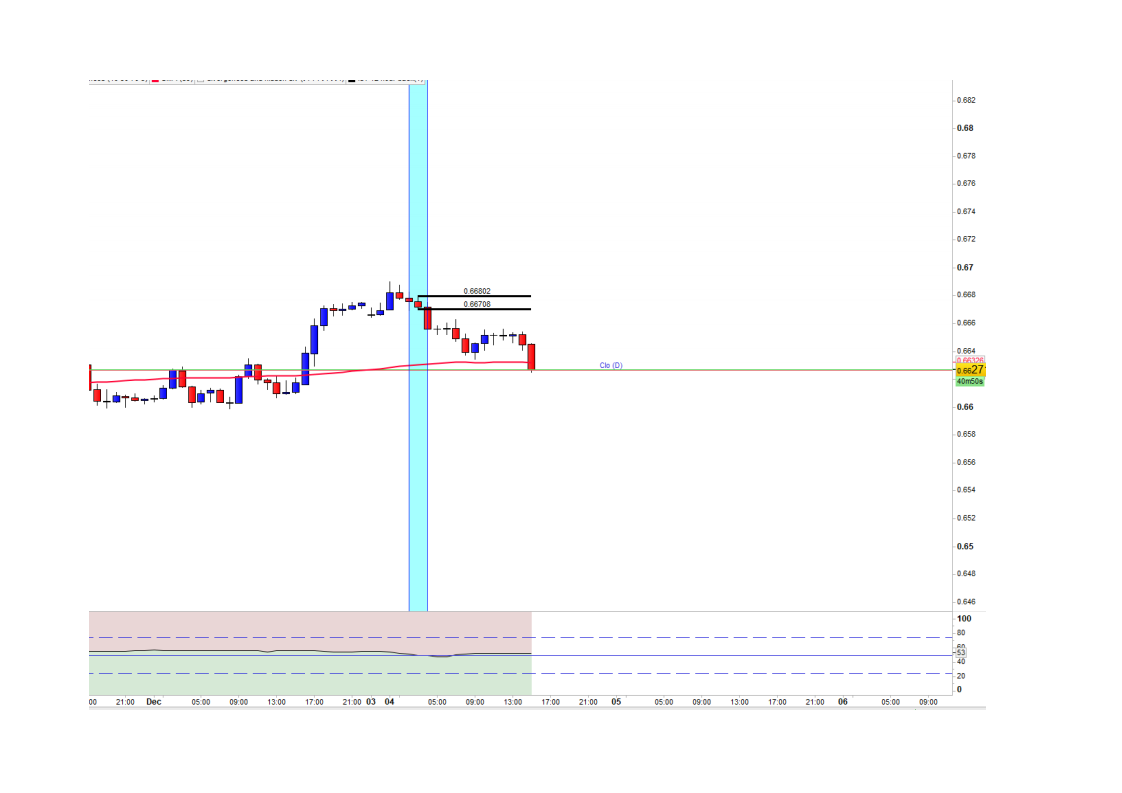

  Is it possible to draw a line also on the candle 12 hour back. High/low?

  I´m understand that there will be new lines every hour.



  Crillezz

  Participant

  Topics: 18

  Replies: 43

  Been thanked: 0 times
  12/04/2023 at 5:24 PM #224845
  robertogozzi

  Yes:

  DEFPARAM DrawOnLastBarOnly = true DrawVline(BarIndex[12]) coloured("Blue",255) RETURN

  1 2 3

  DEFPARAM DrawOnLastBarOnly = true DrawVline(BarIndex[12]) coloured("Blue",255) RETURN



  1 user thanked author for this post.

  Crillezz



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17188

  Been thanked: 4064 times
  12/04/2023 at 5:50 PM #224846
  Crillezz

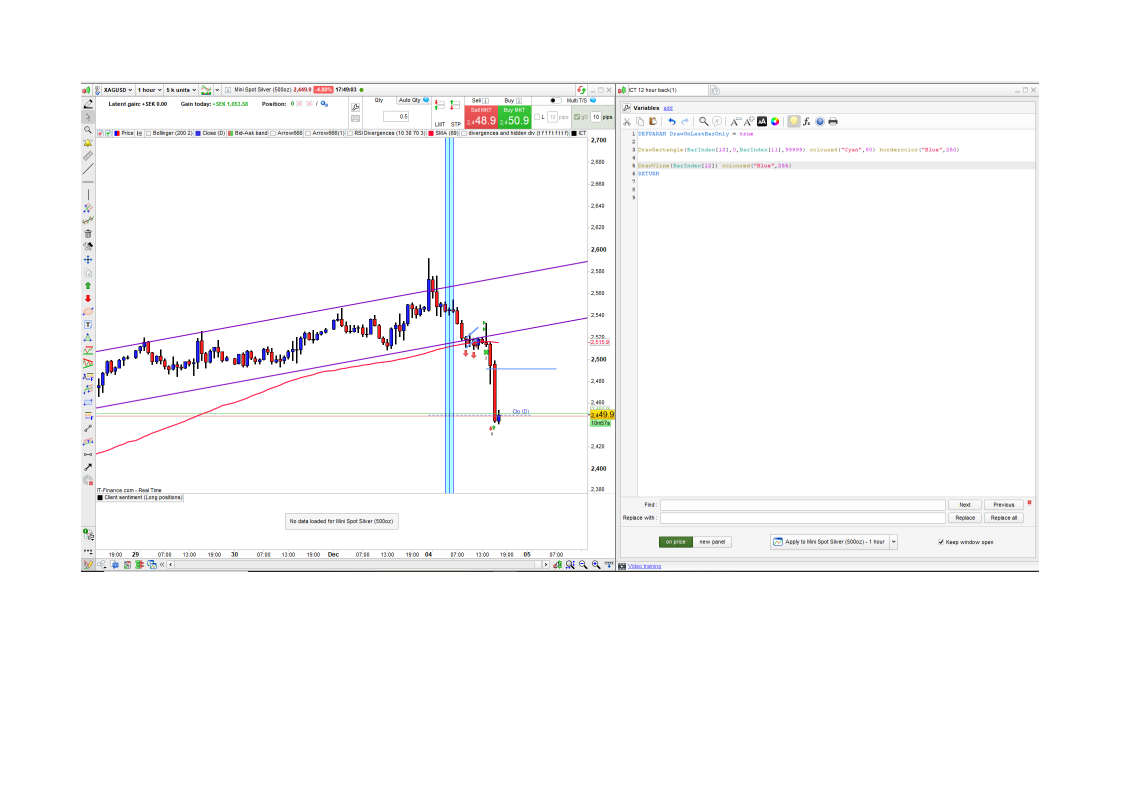

  Then I get a vertical line. Tried to switch to horizontal without success



  Crillezz

  Participant

  Topics: 18

  Replies: 43

  Been thanked: 0 times
  12/04/2023 at 6:41 PM #224850
  robertogozzi

  Where does the line should start and end?





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17188

  Been thanked: 4064 times
  12/05/2023 at 12:00 PM #224870
  Crillezz

  The lines should start on the candle 12 hours ago.
  And ends after a new 1h candle is close. And repeat the same procedure after every hour (1 hour timeframe).
  Draw new lines every hour on the high/low of the candle 12 hours ago.

  Hope you understand what I mean



  Crillezz

  Participant

  Topics: 18

  Replies: 43

  Been thanked: 0 times
  12/05/2023 at 5:02 PM #224895
  robertogozzi

  There it is:

  DEFPARAM DrawOnLastBarOnly = true DrawSegment(BarIndex[12],close[12],BarIndex,close[12]) coloured("Blue",255) RETURN

  1 2 3

  DEFPARAM DrawOnLastBarOnly = true DrawSegment(BarIndex[12],close[12],BarIndex,close[12]) coloured("Blue",255) RETURN



  1 user thanked author for this post.

  Crillezz



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17188

  Been thanked: 4064 times
