draw price on horizontal segement

• 04/10/2024 at 10:44 AM #231340
  samm85

  Hi

  I have an indicator which draws a horizontal segment for a given set of conditions, i would like to have it display the price that the segment is drawn at and have played around with various Anchor commands and drawtext options but cannot get it draw the price on the segment. Is there a way of doing this? Thanks

  The relevant section of the code:

  if conditions and not conditions[1] and sigdown then

  drawarrowUP(barindex,low-10) COLOURED (0,255,0)
  memobar=barindex
  memolow=low
  memohigh=high
  sigup=1
  sigdown=0

  DRAWSEGMENT(memobar, memohigh+1, memobar+5, memohigh+1)STYLE (DOTTEDLINE,1)COLOURED (255,255,0)
  DRAWSEGMENT(memobar, memohigh+1, memobar+5, memohigh+1)COLOURED (0,255,0)
  DRAWSEGMENT(memobar, memoLOW, memobar+5, memoLOW)COLOURED (0,255,0)

  1 user thanked author for this post.

  druby



  samm85

  Participant

  Topics: 2

  Replies: 4

  Been thanked: 1 time
  04/10/2024 at 12:37 PM #231346
  Iván

  Hi!
  Here you have an example:
  You have to write drawtext("#yourvar#",x,y)

  ma1 = average[20](close) ma2 = average[100](close) if ma1 crosses over ma2 then myprice=close drawtext("#myprice#",barindex,low-0.25*tr) endif return ma1 coloured("red"), ma2 coloured("blue")

  1 2 3 4 5 6 7 8

  ma1 = average[20](close) ma2 = average[100](close) if ma1 crosses over ma2 then myprice=close drawtext("#myprice#",barindex,low-0.25*tr) endif   return ma1 coloured("red"), ma2 coloured("blue")

  1 user thanked author for this post.

  samm85



  Iván

  Moderator

  Topics: 0

  Replies: 1055

  Been thanked: 375 times
  04/10/2024 at 1:55 PM #231349
  samm85

  Brilliant, thank you!



  samm85

  Participant

  Topics: 2

  Replies: 4

  Been thanked: 1 time
  04/10/2024 at 3:17 PM #231357
  druby

  Hi..

  Using ‘drawtext()’ can get a bit tricky, since no ‘mask’ of text, creating a smudge effect when chart scrolls.

  Often you have to use ‘DEFPARAM drawOnLastBarOnly = true’  to avoid that, but this affects historical drawn items, if there required!

  Then you may decide on using two similar indicators, one =true for text and other = false for historical draw items, overlapped on same chart pane.

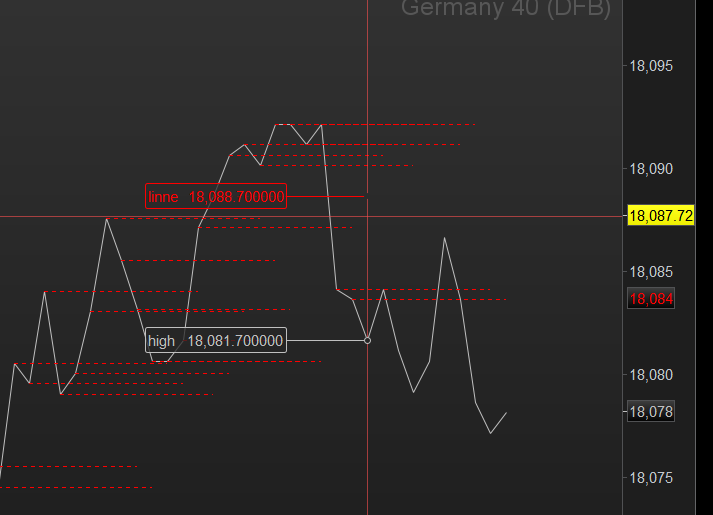

  Here’s a different example I thought up after seeing your post, didn’t realise this myself till trying it, so may be gremlins out of sight!

  druby



  // display a line segment's 'y' value as label in 'y' scale bar if islastbarupdate then // my condition block // if condition is true draw line segment drawsegment(barindex[10],high[10],barindex,high[10])coloured(255,0,0,255)style(dottedline,1) // also, set a variable to the 'y' value of segment inside the condition block! linne = high[10] // this is current segment's 'y' level else linne = undefined // defaults to '0' before condition sets, avoid auto 'y' scale issue on chart! // if extreme values used, mainly on independent indicator panels, no price! // doesn't have to be set 'undefined' here, could be at beginning of program. endif // end of condition block return high as "high", linne coloured(255,0,0,0) as "linne" // set name and colour but transparency to zero // colour sets both the return variable's line and label colour // setting transparency to 'zero' hides line, // but it doesn't work on label, leaving visible. // a bonus!..., each line segments 'y' value is available at the 'rhs' end of each // segments line if probed with cursor.

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

  // display a line segment's 'y' value as label in 'y' scale bar   if islastbarupdate then  //  my condition block   // if condition is true draw line segment drawsegment(barindex[10],high[10],barindex,high[10])coloured(255,0,0,255)style(dottedline,1)   // also, set a variable to the 'y' value of segment inside the condition block! linne = high[10]  // this is current segment's 'y' level else linne = undefined // defaults to '0' before condition sets, avoid auto 'y' scale issue on chart!                   // if extreme values used, mainly on independent indicator panels, no price!                   // doesn't have to be set 'undefined' here, could be at beginning of program.   endif // end of condition block   return high as "high", linne coloured(255,0,0,0) as "linne" // set name and colour but transparency to zero   // colour sets both the return variable's line and label colour // setting transparency to 'zero' hides line, // but it doesn't work on label, leaving visible.   // a bonus!..., each line segments 'y' value is available at the 'rhs' end of each // segments line if probed with cursor.



  druby

  Participant

  Topics: 1

  Replies: 380

  Been thanked: 291 times
