Draw segment on Low and High

• 05/03/2023 at 11:04 PM #214094
  Kole96

  Hello, can you help me to drawsegment on the 1 hour time frame.

  i need to drawsegment every hour, one for the high of each hour and one on the low of each hour.  the lengh of the segment can be the barindex + 2 for example

  So i need to declare the time frame to have the segment drawing on the lower time frame

  timeframe(1 hour)

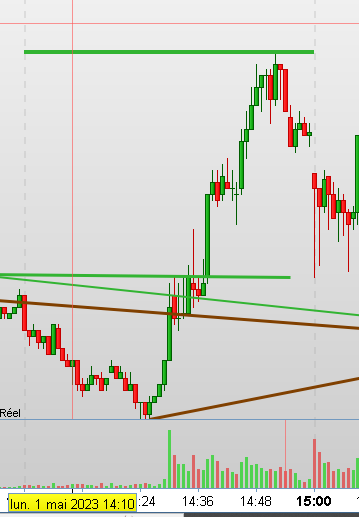

  Example attached

  Thank you



  Kole96

  Participant

  Topics: 8

  Replies: 26

  Been thanked: 2 times
  05/04/2023 at 12:18 AM #214102
  robertogozzi

  There you go:

  ONCE Hbar = 0 ONCE TF = gettimeframe ONCE Bars = 3600 / TF ONCE HH = high ONCE LL = LOW ONCE HHp = high ONCE LLp = low IF TF <= 3600 THEN IF OpenHour <> OpenHour[1] THEN HBar = BarIndex EndBar = HBar + Bars HHp = HH LLp = LL HH = high LL = low ENDIF HH = max(HH,high) LL = min(LL,low) DrawSegment(Hbar,HHp,EndBar,HHp) style(line,2) coloured("Blue",255) DrawSegment(Hbar,LLp,EndBar,LLp) style(line,2) coloured("Red",255) ENDIF RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

  ONCE Hbar = 0 ONCE TF   = gettimeframe ONCE Bars = 3600 / TF ONCE HH   = high ONCE LL   = LOW ONCE HHp  = high ONCE LLp  = low IF TF <= 3600 THEN    IF OpenHour <> OpenHour[1] THEN       HBar   = BarIndex       EndBar = HBar + Bars       HHp    = HH       LLp    = LL       HH     = high       LL     = low    ENDIF    HH = max(HH,high)    LL = min(LL,low)    DrawSegment(Hbar,HHp,EndBar,HHp) style(line,2) coloured("Blue",255)    DrawSegment(Hbar,LLp,EndBar,LLp) style(line,2) coloured("Red",255) ENDIF RETURN





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  05/04/2023 at 1:42 PM #214119
  Kole96

  Thank you
