DRAWHLINE on daily and display on lower timeframes?

• 07/09/2019 at 12:33 PM #102262
  robdav

  Hi

  I suspect it’s not possible but I thought I’d check.

  If you have an indicator that uses DRAWHLINE and you add it to a daily chart, is it possible to automatically display the lines drawn on lower time frames automatically?

  Many thanks

  Rob



  robdav

  Participant

  Topics: 65

  Replies: 116

  Been thanked: 7 times
  07/09/2019 at 4:25 PM #102282
  Nicolas

  No, the objects plotted by codes are only visible on the chart/timeframe they are applied to.

  1 user thanked author for this post.

  robdav



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  03/23/2024 at 1:42 PM #230319
  inverse

  Hello everyone,

  Is this still a thing in 2024 and can not be done or is it doable in V12?

  I’d like to have fib calcs (plotted by code) on a 1hr or 5min chart appear on lower TF, 1min or 10s for example.

  Cheers,

  inv





  inverse

  Participant

  Topics: 8

  Replies: 224

  Been thanked: 39 times
  03/23/2024 at 3:51 PM #230325
  robertogozzi

  No, it’s still not doable.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17138

  Been thanked: 4032 times
  03/23/2024 at 11:36 PM #230339
  inverse

  ah okay, thanks for the heads-up Roberto.



  inverse

  Participant

  Topics: 8

  Replies: 224

  Been thanked: 39 times
  03/24/2024 at 1:34 PM #230351
  druby

  Hi…

  Depending on complexity of what your trying to do,  the following could be an alternate option is some cases.

  Basically, add a custom indicator, call it ‘MAIN’, that only contains  a ‘CALL’ to another custom indicator let’s say ‘DATA’.

  Add ‘MAIN’ to all desired charts.

  Now the code in ‘DATA’ will run in all charts (price or stand alone) that contain ‘MAIN’.

  Therefore the  code in ‘DATA’ runs on all MAIN’s and if you modify ‘DATA’ and update it via the ‘ADD to indicator’ button, the changes are replicated onto all the charts. On the next tick event I think.

  Since, number of bars,barindex,intradaybarindex values are going to be different on different timeframes, using the x an y scale value of time and price, which appear the same on all charts, allows certain drawn objects to appear on all charts.

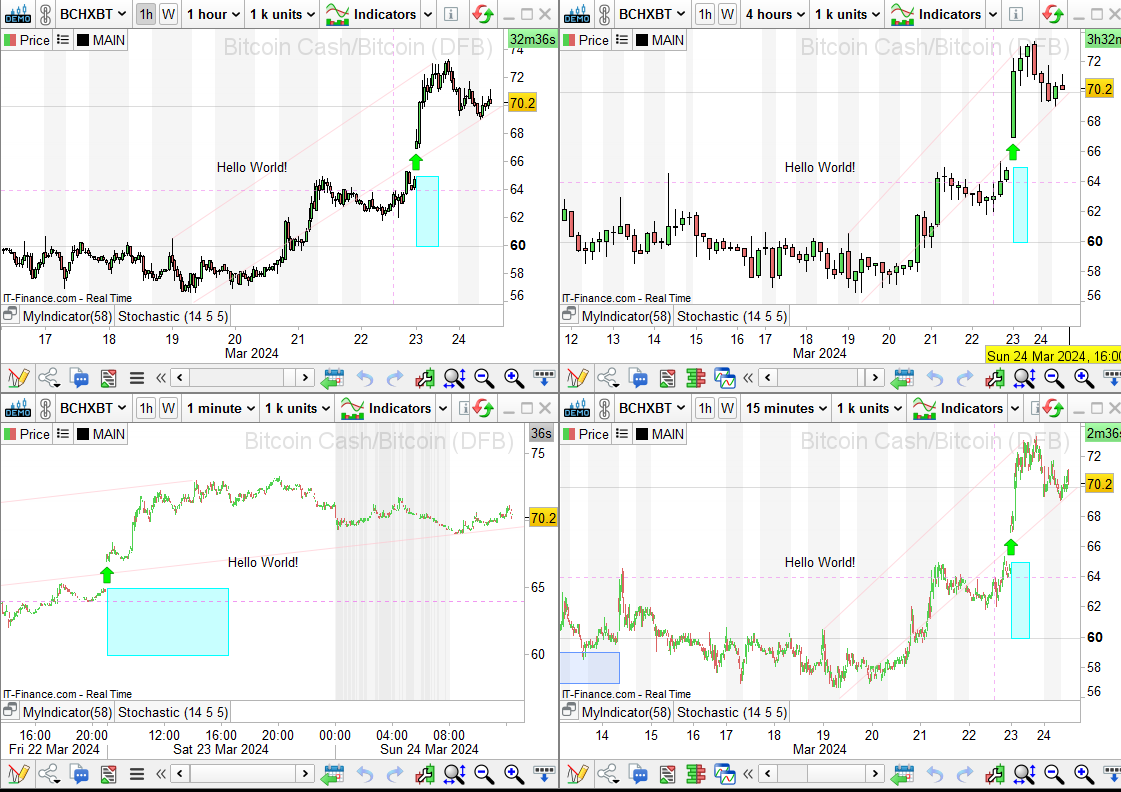

  Below are some simple examples of what could be achieved.

  Things to note, IMO, are:

  PRT appears to be an EVENT driven system, and the events are ‘ticks’

  For a bar to exist it needs a ‘tick’

  Code runs at the end of each bar.

  NO tick/bar, no bar, no run code, no update.

  regards druby

  DATA

  // 'CALL' this file from multiple charts and // replicate objects over all the charts from this file // object related to the 'x' and 'y' scale's of the chart // time, price. if islastbarupdate then // only draw objects on last bar //------------------------------------------------- V Line dt = 20240322// options -> YYYYMMDD//yesterday//today tm = 123500 // hhmmss x1 = (dt * 1000000) + tm drawVline(datetoBarindex(x1)) coloured("violet",150)style(dottedline,1) //------------------------------------------------- line segment x1 = 20240319000000 y1 = 60.6 x2 = 20240323140000 y2 = 73.1 drawsegment(datetobarindex(x1),y1,datetobarindex(x2),y2)coloured("pink",150) x1 = 20240319080000 y1 = 56 x2 = 20240324163000 y2 = 70 drawsegment(datetobarindex(x1),y1,datetobarindex(x2),y2)coloured("pink",150) //------------------------------------------------- H Line level = 64 drawHline(level) coloured("violet",150)style(dottedline,1) //------------------------------------------------- anchored text drawtext("Hello World!",0,0)anchor(middle,xshift,yshift) //------------------------------------------------- rectangle // YYYYMMDDhhmmss x1 = 20240323080000 y1 = 60 x2 = 20240323163000 y2 = 65 drawrectangle(datetobarindex(x1),y1,datetobarindex(x2),y2)coloured("aqua",55)bordercolor("aqua",255) //------------------------------------------------- arrow drawArrowUp(datetobarindex(x1),66 )coloured("lime") endif // islastbarupdate //------------------------------------------------- backgroundcolor // trade session if opentime < 80000 or opentime > 163000 then if opendayofweek < 5 then backgroundcolor("grey",20) endif endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

  // 'CALL' this file from multiple charts and // replicate objects over all the charts from this file   // object related to the 'x' and 'y' scale's of the chart // time, price.     if islastbarupdate then // only draw objects on last bar     //------------------------------------------------- V Line dt = 20240322// options ->   YYYYMMDD//yesterday//today tm = 123500  // hhmmss x1 = (dt * 1000000) + tm   drawVline(datetoBarindex(x1)) coloured("violet",150)style(dottedline,1)     //------------------------------------------------- line segment x1 = 20240319000000 y1 = 60.6 x2 = 20240323140000 y2 = 73.1 drawsegment(datetobarindex(x1),y1,datetobarindex(x2),y2)coloured("pink",150) x1 = 20240319080000 y1 = 56 x2 = 20240324163000 y2 = 70 drawsegment(datetobarindex(x1),y1,datetobarindex(x2),y2)coloured("pink",150) //------------------------------------------------- H Line level = 64 drawHline(level) coloured("violet",150)style(dottedline,1)   //------------------------------------------------- anchored text drawtext("Hello World!",0,0)anchor(middle,xshift,yshift)   //------------------------------------------------- rectangle //   YYYYMMDDhhmmss x1 = 20240323080000 y1 = 60 x2 = 20240323163000 y2 = 65 drawrectangle(datetobarindex(x1),y1,datetobarindex(x2),y2)coloured("aqua",55)bordercolor("aqua",255)     //------------------------------------------------- arrow drawArrowUp(datetobarindex(x1),66  )coloured("lime")       endif // islastbarupdate //------------------------------------------------- backgroundcolor // trade session if opentime < 80000 or opentime > 163000 then   if opendayofweek < 5 then backgroundcolor("grey",20) endif endif return

  MAIN

  CALL "DATA" return

  1 2	CALL "DATA" return





  2 users thanked author for this post.

  inverse, robertogozzi



  druby

  Participant

  Topics: 1

  Replies: 355

  Been thanked: 268 times
  03/24/2024 at 2:25 PM #230357
  robertogozzi

  Nice idea druby 🙂



  1 user thanked author for this post.

  druby



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17138

  Been thanked: 4032 times
  03/24/2024 at 4:55 PM #230361
  druby

  Learn’t from the best!

  Regard druby



  druby

  Participant

  Topics: 1

  Replies: 355

  Been thanked: 268 times
