England and United States Session Indicator

• 05/19/2022 at 2:51 AM #193419
  1Randy

  I have searched for a session indicator, but not found one.

  What I would appreciate is a box surrounding the session for England and United States session. I would also like the box to print the pip spread for each session. I am not that good at the coding just learning to code. Plan to use for back testing of strategies.



  Any help would be greatly appreciated.



  1Randy

  Member

  Topics: 2

  Replies: 5

  Been thanked: 0 times
  05/22/2022 at 10:19 AM #193635
  robertogozzi

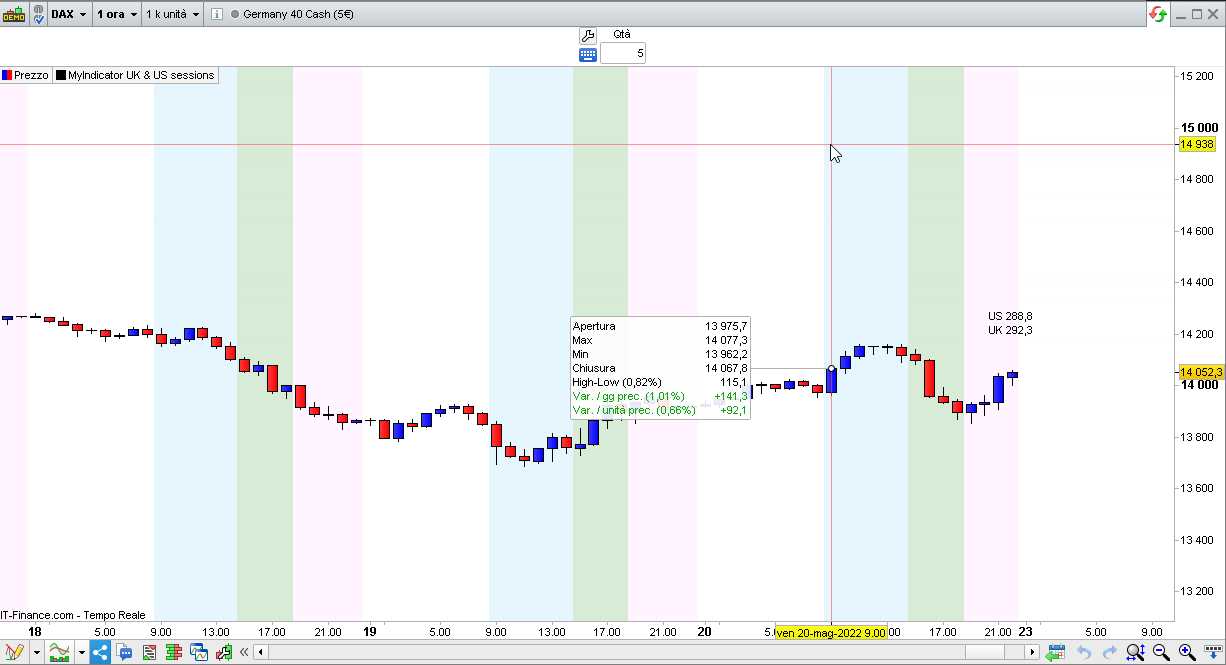

  I used the background colour to identify both sessions, as rectangles would move as new highs and lows are set.

  DEFPARAM DrawOnLastBarOnly = true ONCE UKstart = 090000 ONCE UKend = 180000 ONCE USstart = 150000 ONCE USend = 230000 ONCE UKhh = 0 ONCE UKll = 9999999 ONCE UShh = 0 ONCE USll = 9999999 TimeRef = OpenTime IF TimeRef = 000000 OR ((TimeRef > 000000) AND (TimeRef < TimeRef[1])) THEN UKhh = 0 UKll = 9999999 UShh = 0 USll = 9999999 ENDIF // UKsession = TimeRef >= UKstart AND TimeRef <= UKend USsession = TimeRef >= USstart AND TimeRef <= USend // backgroundcolor(255,255,255,255) //WHITE background (default) IF TimeRef >= UKstart AND TimeRef < USstart AND TimeRef <= UKend THEN backgroundcolor(176,226,255,80) //CYAN background (overlapping sessions) ELSIF TimeRef >= UKstart AND TimeRef <= UKend THEN backgroundcolor(0,128,0,40) //GREEN background (UK session) ELSIF TimeRef >= USstart AND TimeRef > UKend AND TimeRef <= USend THEN backgroundcolor(255,187,255,40) //PINK background (US session) ENDIF // IF UKsession THEN UKhh = max(UKhh,high) UKll = min(UKll,low) UKgap = UKhh - UKll ENDIF IF USsession THEN UShh = max(UShh,high) USll = min(USll,low) USgap = UShh - USll ENDIF // Offset = max(UKhh,UShh) Rng = average[100,0](range) DrawText("UK #UKgap#",BarIndex,Offset + rng) coloured(0,0,0,255) DrawText("US #USgap#",BarIndex,Offset + rng * 2) coloured(0,0,0,255) RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

  DEFPARAM DrawOnLastBarOnly = true ONCE UKstart  = 090000 ONCE UKend    = 180000 ONCE USstart  = 150000 ONCE USend    = 230000 ONCE UKhh     = 0 ONCE UKll     = 9999999 ONCE UShh     = 0 ONCE USll     = 9999999 TimeRef       = OpenTime IF TimeRef = 000000 OR ((TimeRef > 000000) AND (TimeRef < TimeRef[1])) THEN    UKhh       = 0    UKll       = 9999999    UShh       = 0    USll       = 9999999 ENDIF // UKsession     = TimeRef >= UKstart AND TimeRef <= UKend USsession     = TimeRef >= USstart AND TimeRef <= USend // backgroundcolor(255,255,255,255)                          //WHITE background (default) IF TimeRef >= UKstart AND TimeRef < USstart AND TimeRef <= UKend THEN    backgroundcolor(176,226,255,80)                        //CYAN  background (overlapping sessions) ELSIF TimeRef >= UKstart AND TimeRef <= UKend THEN    backgroundcolor(0,128,0,40)                            //GREEN background (UK session) ELSIF TimeRef >= USstart AND TimeRef > UKend AND TimeRef <= USend THEN    backgroundcolor(255,187,255,40)                        //PINK  background (US session) ENDIF // IF UKsession THEN    UKhh  = max(UKhh,high)    UKll  = min(UKll,low)    UKgap = UKhh - UKll ENDIF IF USsession THEN    UShh  = max(UShh,high)    USll  = min(USll,low)    USgap = UShh - USll ENDIF // Offset   = max(UKhh,UShh) Rng      = average[100,0](range) DrawText("UK #UKgap#",BarIndex,Offset + rng)     coloured(0,0,0,255) DrawText("US #USgap#",BarIndex,Offset + rng * 2) coloured(0,0,0,255) RETURN

  Most used colours can be found at http://cloford.com/resources/colours/500col.htm.

  The 4th parameter used with colours in PRT is usually named Alpha or Transparency, it’s optional and can range from 0 (invisible)  to 255 (fully visible),





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17150

  Been thanked: 4039 times
  05/22/2022 at 10:20 AM #193638
  robertogozzi

  You may want to change times to make them suit your needs.
