Find first high not highest high

• 07/16/2022 at 2:39 AM #197339
  IG_CFD_Trader

  Hello,

  How do I lookback (say 300 bars lookback) and find and store the first High encountered that is higher than the current High? I am not looking for highest high but first high that is higher than current high.



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  07/16/2022 at 5:24 AM #197340
  druby

  Hi… Looked at a few things like ‘barsSince’  looked promising but could get to work and ‘highest’ finds the highest high.

  Had to go back to nuts and bolts, this seems to work.

  ‘For’ loop loops  from the previous bar ‘1’ to a ‘Loopback’ variable which sets the max iterations of the loop to look back over.

  ‘If’ statement test for a higher high and continues looping back till either ‘i’ increment to ‘loopback’ or ‘if’ statement becomes true.

  On true ‘x’ is assigned with the current ‘i’ value which represents how many bars have been looked back.

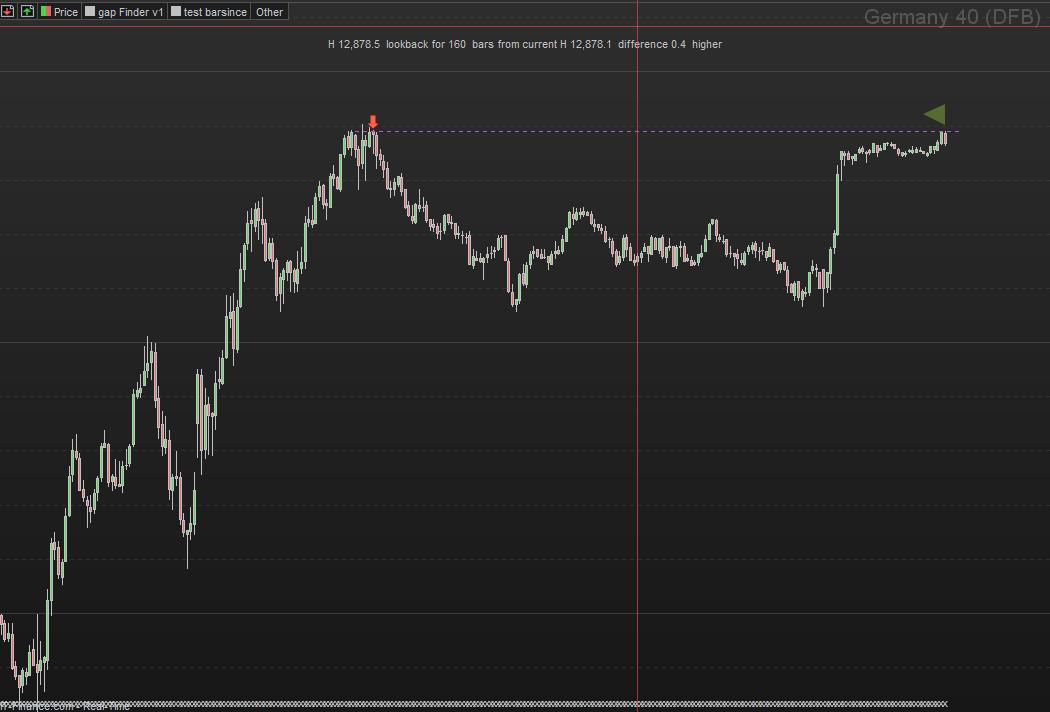

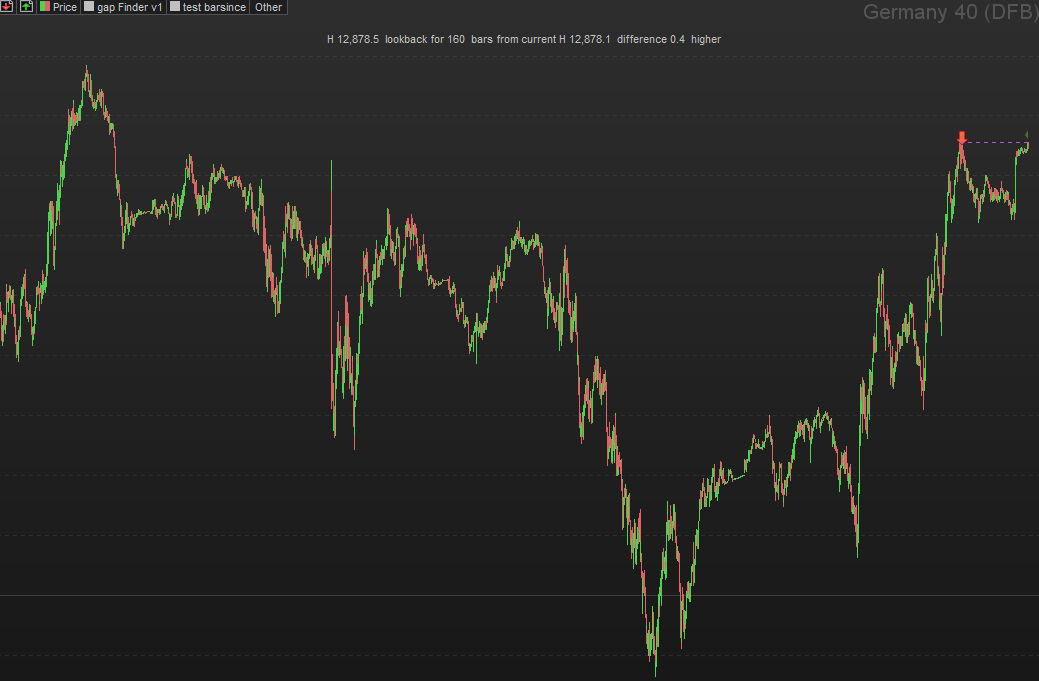

  Then some drawing stuff were ‘x’ is used for the look back index.

  And since that all what was needed the ‘for’ loop is terminated with ‘break’, no point carrying on.

  ‘drawonlastbaronly’ and ‘islastbarupdate are in there for drawing purposes and to make sure when looking back it doesn’t try to go beyond bar ‘0’. You may have to guard against that depending on how you use it, lookback < barindex condition.



  Find first previous highest high within a number of bars

  defparam drawonlastbaronly = true loopback = 300 if islastbarupdate then for i = 1 to loopback if high[i] > high then x = i preHigh=high[i] hi = high diff = preHigh - hi drawarrowdown(barindex[x],high[x]+3) coloured("tomato") drawtriangle(barindex,high+2,barindex[6],high+6,barindex,high+10)coloured("darkOliveGreen")bordercolor(0,0,0,0) drawtext("H #preHigh# lookback for #x# bars from current H #hi# difference #diff# higher",0,-40)Anchor(top) drawsegment(barindex[x]-5,high,barindex+5,high)coloured("mediumOrchid")style(dottedline,1) break endif next endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

  defparam drawonlastbaronly = true   loopback = 300   if islastbarupdate then for i = 1 to loopback   if high[i] > high  then x = i   preHigh=high[i] hi = high diff = preHigh - hi drawarrowdown(barindex[x],high[x]+3) coloured("tomato") drawtriangle(barindex,high+2,barindex[6],high+6,barindex,high+10)coloured("darkOliveGreen")bordercolor(0,0,0,0) drawtext("H #preHigh# lookback for #x# bars from current H #hi# difference #diff# higher",0,-40)Anchor(top) drawsegment(barindex[x]-5,high,barindex+5,high)coloured("mediumOrchid")style(dottedline,1)   break   endif next endif   return

  1 user thanked author for this post.

  robertogozzi



  druby

  Participant

  Topics: 1

  Replies: 355

  Been thanked: 271 times
  07/16/2022 at 12:24 PM #197357
  IG_CFD_Trader

  Thanks Druby.

  How do I improve it to find the first high that is nearest to the current high? by nearest I mean by value and not by occurrence. for example that high minus the current high is the smallest than all other higher highs irrespective of when they occurred.

  Example assume current high is 100 and first higher high occurred day before at 130 and next higher high occurred a week earlier at 120. I want x to = 120 because 120-100 =20 which is less than 30



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  07/17/2022 at 9:31 PM #197420
  druby

  This appears to work about 90% of time, not sure what affecting other 10%, needs some thinking time.

  I tried this on 10-30sec to see it tracking, seems to work fine but then deviates till next bar starts, or doesn’t track for a few bars.

  Not sure whats happening, maybe fresh eyes with see/think of something.

  Give it a try and let me know what you think, and btw what timeframe (s) are you working to.

  regards

  // NOTE: to set // dynamicVariable 'lookback' 'integer' default value '300' defparam drawonlastbaronly = true lbk = max(min(lookback,barindex),1) // entry guard limiter if islastbarupdate then // wait till last bar chigh = high // current high //once xibar=0 // zero current bar //once xdiff=0 // zero no difference, since current bar for i = 1 to lbk do // limited loopback scope if high[i] > chigh then // test for a higher high than current high diff = high[i] - chigh ibar = i if i = 1 then // used 1st previous value as default xdiff = diff xibar = ibar elsif diff < xdiff then // test futher values for smaller diffence xdiff = diff xibar = i endif xb=xibar xd=xdiff xh = high[xb] hi = chigh endif next // 1 to lookback endif // islastbarupdate drawarrowdown(barindex,xh+5) coloured("darkSeaGreen") // arrow over scope start start drawarrowdown(barindex[xb],xh+5) coloured("tomato") // arrow over target in scope drawpoint(barindex[xb],xh,2) coloured("tomato") // target point highlighted in scope drawpoint(barindex,hi,2) coloured("darkSeaGreen") // arrow over scope start start drawtext("#xb#",barindex[xb],xh+10) // look back value of target drawsegment(barindex[lbk],hi,barindex,hi)coloured(0,255,255,85)style(dottedline,1) // lookback scope line drawsegment(barindex[xb]-1,hi,barindex+2,hi)coloured("mediumorchid")style(dottedline,2) // target higher high line within scope drawtext("H #xh# lookback for #xb# bars from current H #hi# difference #xd# higher",0,-40)Anchor(top) // details! return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53

  // NOTE:  to set // dynamicVariable  'lookback'  'integer' default value  '300'   defparam drawonlastbaronly = true lbk = max(min(lookback,barindex),1)     // entry guard limiter   if islastbarupdate then           // wait till last bar chigh = high // current high //once xibar=0 // zero current bar //once xdiff=0  // zero no difference, since current bar   for i = 1 to lbk do               // limited loopback scope if high[i] > chigh then      // test for a higher high than current high   diff = high[i] - chigh ibar = i   if i = 1 then            // used 1st previous value as default xdiff = diff xibar = ibar   elsif diff < xdiff then  // test futher values for smaller diffence xdiff = diff xibar = i endif   xb=xibar xd=xdiff xh = high[xb] hi = chigh endif next            // 1 to lookback   endif              // islastbarupdate drawarrowdown(barindex,xh+5) coloured("darkSeaGreen") // arrow over scope start start drawarrowdown(barindex[xb],xh+5) coloured("tomato") //  arrow over target in scope drawpoint(barindex[xb],xh,2) coloured("tomato") //  target point highlighted in scope drawpoint(barindex,hi,2) coloured("darkSeaGreen") // arrow over scope start start   drawtext("#xb#",barindex[xb],xh+10) // look back value of target   drawsegment(barindex[lbk],hi,barindex,hi)coloured(0,255,255,85)style(dottedline,1) // lookback scope line drawsegment(barindex[xb]-1,hi,barindex+2,hi)coloured("mediumorchid")style(dottedline,2) // target higher high line within  scope   drawtext("H #xh# lookback for #xb# bars from current H #hi# difference #xd# higher",0,-40)Anchor(top) // details!   return







  druby

  Participant

  Topics: 1

  Replies: 355

  Been thanked: 271 times
  07/20/2022 at 4:20 PM #197579
  robertogozzi

  Try this one (not tested). I added variable J to count the very first occurrence, as it can’t be assumed it’s when I=1:

  // NOTE: to set // dynamicVariable 'lookback' 'integer' default value '300' defparam drawonlastbaronly = true lookback = 500 lbk = max(min(lookback,barindex),1) // entry guard limiter if islastbarupdate then // wait till last bar chigh = high // current high //once xibar=0 // zero current bar //once xdiff=0 // zero no difference, since current bar j = 0 for i = 1 to lbk do // limited loopback scope if high[i] > chigh then // test for a higher high than current high diff = high[i] - chigh ibar = i j = j + 1 if j = 1 then // used 1st previous value as default xdiff = diff xibar = ibar elsif diff < xdiff then // test futher values for smaller diffence xdiff = diff xibar = i endif xb=xibar xd=xdiff xh = high[xb] hi = chigh endif next // 1 to lookback endif // islastbarupdate drawarrowdown(barindex,xh+5) coloured("darkSeaGreen") // arrow over scope start start drawarrowdown(barindex[xb],xh+5) coloured("tomato") // arrow over target in scope drawpoint(barindex[xb],xh,2) coloured("tomato") // target point highlighted in scope drawpoint(barindex,hi,2) coloured("darkSeaGreen") // arrow over scope start start drawtext("#xb#",barindex[xb],xh+10) // look back value of target drawsegment(barindex[lbk],hi,barindex,hi)coloured(0,255,255,85)style(dottedline,1) // lookback scope line drawsegment(barindex[xb]-1,hi,barindex+2,hi)coloured("mediumorchid")style(dottedline,2) // target higher high line within scope drawtext("H #xh# lookback for #xb# bars from current H #hi# difference #xd# higher",0,-40)Anchor(top) // details! return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

  // NOTE:  to set // dynamicVariable  'lookback'  'integer' default value  '300' defparam drawonlastbaronly = true lookback = 500 lbk = max(min(lookback,barindex),1)     // entry guard limiter if islastbarupdate then           // wait till last bar    chigh = high // current high    //once xibar=0 // zero current bar    //once xdiff=0  // zero no difference, since current bar    j = 0    for i = 1 to lbk do               // limited loopback scope       if high[i] > chigh then      // test for a higher high than current high          diff = high[i] - chigh          ibar = i          j = j + 1          if j = 1 then            // used 1st previous value as default             xdiff = diff             xibar = ibar          elsif diff < xdiff then  // test futher values for smaller diffence             xdiff = diff             xibar = i          endif          xb=xibar          xd=xdiff          xh = high[xb]          hi = chigh       endif    next            // 1 to lookback endif              // islastbarupdate drawarrowdown(barindex,xh+5) coloured("darkSeaGreen") // arrow over scope start start drawarrowdown(barindex[xb],xh+5) coloured("tomato") //  arrow over target in scope drawpoint(barindex[xb],xh,2) coloured("tomato") //  target point highlighted in scope drawpoint(barindex,hi,2) coloured("darkSeaGreen") // arrow over scope start start drawtext("#xb#",barindex[xb],xh+10) // look back value of target drawsegment(barindex[lbk],hi,barindex,hi)coloured(0,255,255,85)style(dottedline,1) // lookback scope line drawsegment(barindex[xb]-1,hi,barindex+2,hi)coloured("mediumorchid")style(dottedline,2) // target higher high line within  scope drawtext("H #xh# lookback for #xb# bars from current H #hi# difference #xd# higher",0,-40)Anchor(top) // details! return

  1 user thanked author for this post.

  druby



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17150

  Been thanked: 4038 times
  07/20/2022 at 8:07 PM #197599
  druby

  hi… Rob

   I added variable J to count the very first occurrence, as it can’t be assumed it’s when I=1:

  It took me a while to grasp what you comments meant. Just for other’s following at home!

  When the loop starts, it doesn’t process anything until it looks back apon a high higher than the current high.

  Now if that just happens to be the 1st previous bar , when i = 1, then the calculated ‘diff’ value along with it index location would be stored in the ‘If’ statements ‘xdiff’ and ‘xibar’ as the default/first found value which is used later for comparisons.

  These values, but specifically, ‘xdiff’ is used to determine if following found ‘diff’ values are smaller than it. If it is, it replaces it, if its not , it lives through other  iterations of  the loop till it is, or the loop reaches the end and terminates.

  However, when i=1 and not a higher value, then ‘no’ code in the loop is executed, that correct. But when a later, the first, higher high is found and i > 1 then this new set of values are not stored in the ‘if’ statements ‘xdiff’ and ‘xibar’ lines because the condition is false so not updating ‘xdiff’ for ‘this’ first time.

  This creates a knock on affect because when it compares this first diff value, it’s comparing it to an invalid/previous, but wrong ‘xdiff’ value and also not being the first ‘xdiff’. This means that not only is it being compared to a wrong value, also any other finds are being compared to a wrong value and its not until a value registers as smaller higher high to this wrong value, that normal service is resumed, If this doesn’t correct itself before it draws, it ripples through to drawing elements, randomly not moving or making wild jumps. Just as i saw.

  Thanks for your time Roberto, that’s great, learned a lot from trying to understand my own code from you comments.

  Best Regards.

  1 user thanked author for this post.

  robertogozzi



  druby

  Participant

  Topics: 1

  Replies: 355

  Been thanked: 271 times
