First Hour Opening Range

• 03/26/2023 at 11:32 AM #212127
  Alex72

  Hi, can someone help to create an indicator showing me th First Hour Opening Range?

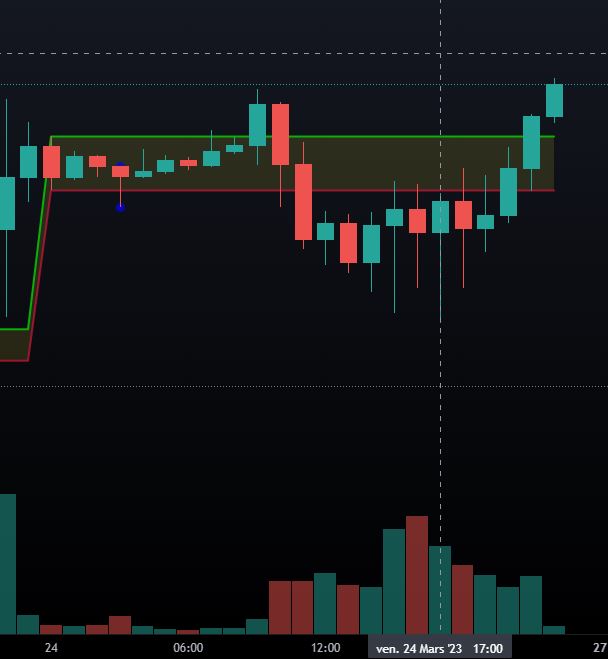

  in other word the Initial Balance for the first hour of trading drawing in a box from 0o am to 23 pm like showing in the picture.





  Alex72

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 1 time
  03/26/2023 at 11:51 AM #212130
  robertogozzi

  There you go:

  //DEFPARAM DrawOnLastBarOnly = true StartTime = 000000 EndTime = 010000 IF OpenTime = StartTime OR ((OpenTime > StartTime) AND (OpenTime < OpenTime[1])) THEN myBar = BarIndex HH = high LL = low ENDIF IF (OpenTime >= StartTime) AND (OpenTime <= EndTime) THEN HH = max(HH,high) LL = min(LL,low) ENDIF IF OpenTime >= EndTime THEN DrawSegment(myBar,HH,BarIndex,HH) coloured("Blue",255) DrawSegment(myBar,LL,BarIndex,LL) coloured("Red",255) ENDIF RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

  //DEFPARAM DrawOnLastBarOnly = true StartTime = 000000 EndTime   = 010000 IF OpenTime = StartTime OR ((OpenTime > StartTime) AND (OpenTime < OpenTime[1])) THEN    myBar = BarIndex    HH    = high    LL    = low ENDIF IF (OpenTime >= StartTime) AND (OpenTime <= EndTime) THEN    HH    = max(HH,high)    LL    = min(LL,low) ENDIF IF OpenTime >= EndTime THEN    DrawSegment(myBar,HH,BarIndex,HH) coloured("Blue",255)    DrawSegment(myBar,LL,BarIndex,LL) coloured("Red",255) ENDIF RETURN





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  03/26/2023 at 12:54 PM #212133
  Alex72

  Thank you, just one thing

  I want it to stay for the 1 Hour range in every time frame, can you tell me where to add a code for it?



  Alex72

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 1 time
  03/26/2023 at 1:13 PM #212134
  Alex72

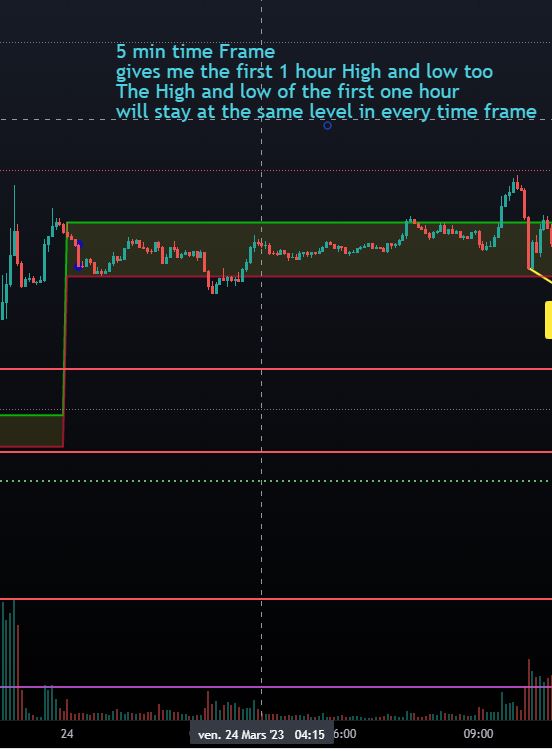

  Like in the picture



  Alex72

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 1 time
  03/26/2023 at 3:36 PM #212140
  robertogozzi

  That will show exactly, for any timeframe equal or less than 1 hour, the HIGH and LOW of the first hour (or whatever time you choose), from 0 to 23.







  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  03/26/2023 at 4:12 PM #212144
  Alex72

  i have made this change to get it



  timeframe(1 hour)  // I declare the timeframe, if not this will give the high and low of the first candle of the timeframe selected



  And thank you.



  Alex72

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 1 time
  03/26/2023 at 4:30 PM #212145
  Alex72

  I just copied and changed your code to apply it for the 15 minutes openning range, i got a scaling scaling down like in the picture here attached, can you tell me where is my error?

  Thank you

  //DEFPARAM DrawOnLastBarOnly = true timeframe(15mn) StartTime = 143000// this is my zone start time EndTime = 000000 IF OpenTime = StartTime OR ((OpenTime > StartTime) AND (OpenTime < OpenTime[1])) THEN myBar = BarIndex HH = high LL = low ENDIF IF (OpenTime >= StartTime) AND (OpenTime <= EndTime) THEN HH = max(HH,high) LL = min(LL,low) ENDIF IF OpenTime >= EndTime THEN DrawSegment(myBar,HH,BarIndex,HH) coloured("Green",255) DrawSegment(myBar,LL,BarIndex,LL) coloured("Red",255) ENDIF RETURN HH AS "OPR 15min High",LL AS "OPR 15min Low"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

  //DEFPARAM DrawOnLastBarOnly = true timeframe(15mn) StartTime = 143000// this is my zone start time EndTime   = 000000 IF OpenTime = StartTime OR ((OpenTime > StartTime) AND (OpenTime < OpenTime[1])) THEN myBar = BarIndex HH    = high LL    = low ENDIF IF (OpenTime >= StartTime) AND (OpenTime <= EndTime) THEN HH    = max(HH,high) LL    = min(LL,low) ENDIF IF OpenTime >= EndTime THEN DrawSegment(myBar,HH,BarIndex,HH) coloured("Green",255) DrawSegment(myBar,LL,BarIndex,LL) coloured("Red",255) ENDIF RETURN HH AS "OPR 15min High",LL AS "OPR 15min Low"





  Alex72

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 1 time
  03/26/2023 at 5:22 PM #212153
  robertogozzi

  There is no error, I used DRAWSEGMENT and DEFPARAM DrawOnLastBarOnly = true to prevent this.

  With RETURN you can’t change what has been printed in the prior candles, so you will always see steps when there’a new high or low. It can’t be gotten rid of.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  03/26/2023 at 5:48 PM #212157
  Alex72

  Thank you, i have a tradingview that doesnt show steps but it is a close source, so i can’t read it.



  Alex72

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 1 time
