Friday Close and Monday Open Gap

• 03/09/2023 at 11:52 AM #211198
  s00071609

  Hi Guys

  How to draw a horizontal shade between price close on Friday at 8 am and Open on Monday 10 am. This is Au time that my charts are in.



  Any help would be great



  s00071609

  Participant

  Topics: 9

  Replies: 133

  Been thanked: 16 times
  03/09/2023 at 12:27 PM #211222
  ZeroCafeine

  maybe you can draw a Rectangle ?



  ZeroCafeine

  Participant

  Topics: 115

  Replies: 477

  Been thanked: 43 times
  03/09/2023 at 12:30 PM #211227
  robertogozzi

  There you go:

  DEFPARAM DrawOnLastBarOnly = true IF OpenTime = 080000 AND OpenDayOfWeek = 5 THEN Bar8 = BarIndex cl = close Bar10 = Bar8 op = cl ENDIF IF OpenTime = 100000 AND OpenDayOfWeek = 1 THEN Bar10 = BarIndex op = open ENDIF DrawSegment(Bar8,cl,bar10,op) RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13

  DEFPARAM DrawOnLastBarOnly = true IF OpenTime = 080000 AND OpenDayOfWeek = 5 THEN    Bar8  = BarIndex    cl    = close    Bar10 = Bar8    op    = cl ENDIF IF OpenTime = 100000 AND OpenDayOfWeek = 1 THEN    Bar10 = BarIndex    op    = open ENDIF DrawSegment(Bar8,cl,bar10,op) RETURN

  1 user thanked author for this post.

  ZeroCafeine



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  03/09/2023 at 2:08 PM #211241
  s00071609

  I added it to the chart but it did not draw anything?



  s00071609

  Participant

  Topics: 9

  Replies: 133

  Been thanked: 16 times
  03/09/2023 at 2:26 PM #211242
  JC_Bywan

  Hi,

  Not knowing what TF you used and how much history you loaded, these are hypothetical items to check, just in case:

  – is it a timeframe compatible, meaning having candles open/close timing compatible with these coded times? (so… not x ticks, not daily, etc…)

  – and if yes, are there enough units loaded to have the first point last friday at 8 part of available history? (for example, if 1mn TF, having 10000 rather than only 1000 units)



  (PS: from moderation point of view, moving the topic from French forum to English forum in a few minutes, thanks)



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2651

  Been thanked: 915 times
  03/09/2023 at 2:42 PM #211247
  s00071609

  Thanks for the code. I am using it in 5m chart with 10K bars loaded, so its definately not working. I am sure something minor is missing



  s00071609

  Participant

  Topics: 9

  Replies: 133

  Been thanked: 16 times
  03/09/2023 at 2:49 PM #211248
  JC_Bywan

  Another possibility comes to mind: when you say “added to the chart”, do you mean inside the price window, or does it appear as a separate window at the bottom of the chart?



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2651

  Been thanked: 915 times
  03/09/2023 at 3:07 PM #211250
  s00071609

  Yes off course price window



  s00071609

  Participant

  Topics: 9

  Replies: 133

  Been thanked: 16 times
  03/09/2023 at 3:15 PM #211255
  s00071609

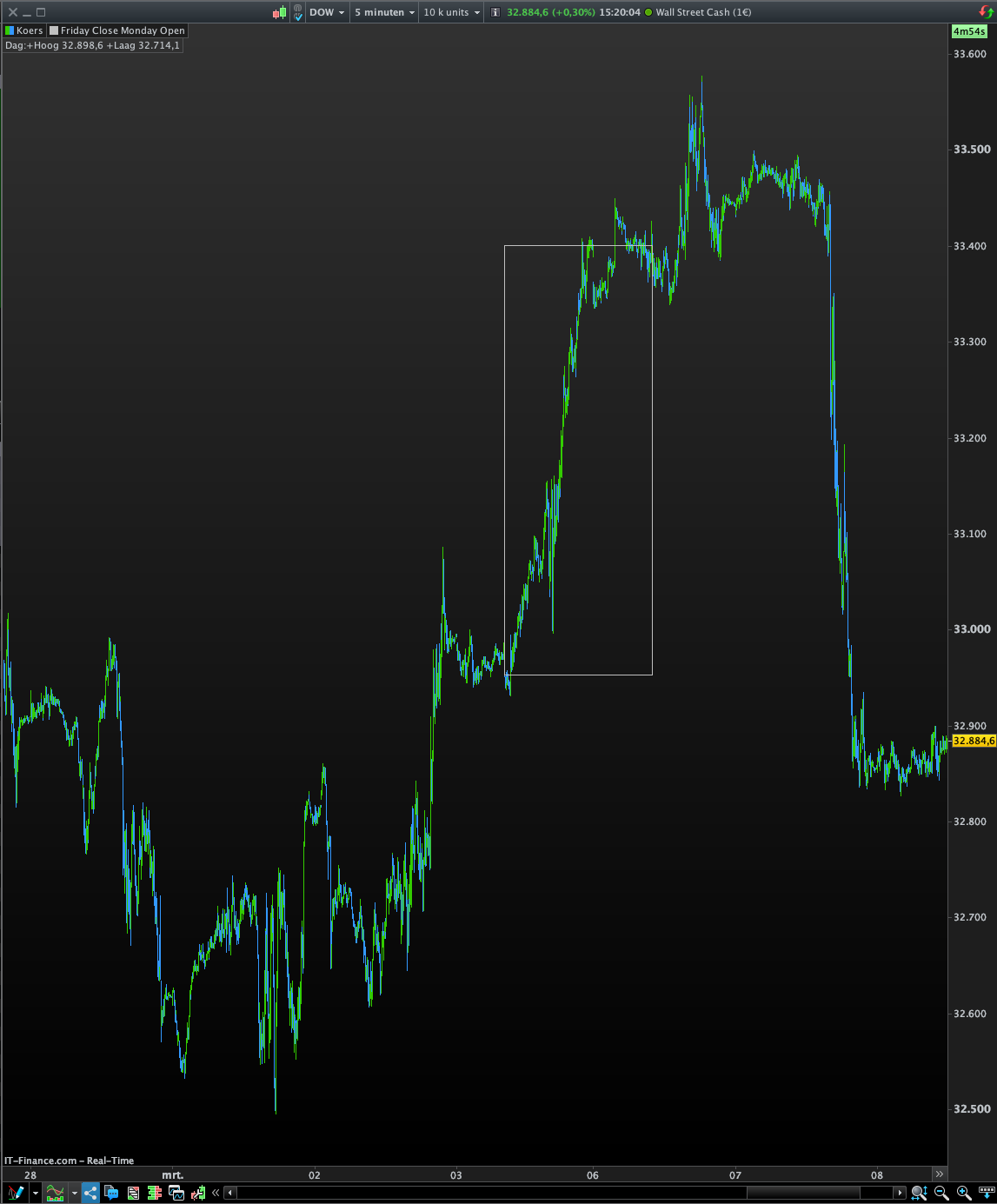

  Ok i could not see it due to colour its drawing a line. How can I have it draw a rectange that extends to current price just like line?



  s00071609

  Participant

  Topics: 9

  Replies: 133

  Been thanked: 16 times
  03/09/2023 at 3:22 PM #211257
  JS

  Friday Close Monday Open

  DEFPARAM DrawOnLastBarOnly = true IF OpenTime = 080000 AND OpenDayOfWeek = 5 THEN Bar8 = BarIndex cl = close ENDIF IF OpenTime = 100000 AND OpenDayOfWeek = 1 THEN Bar10 = BarIndex op = open ENDIF Drawrectangle(Bar8,cl,bar10,op) RETURN

  1 2 3 4 5 6 7 8 9 10 11

  DEFPARAM DrawOnLastBarOnly = true IF OpenTime = 080000 AND OpenDayOfWeek = 5 THEN Bar8  = BarIndex cl    = close ENDIF IF OpenTime = 100000 AND OpenDayOfWeek = 1 THEN Bar10 = BarIndex op    = open ENDIF Drawrectangle(Bar8,cl,bar10,op) RETURN

  1 user thanked author for this post.

  ZeroCafeine



  JS

  Participant

  Topics: 26

  Replies: 1718

  Been thanked: 779 times
  03/09/2023 at 5:59 PM #211267
  s00071609

  Horizontal Rectangle, like pivot lines. ITs because, if you load this indicator in 5m or 1 m chart, you cannot see it without scrolling all the way to Monday. thanks



  s00071609

  Participant

  Topics: 9

  Replies: 133

  Been thanked: 16 times
  03/09/2023 at 10:12 PM #211281
  s00071609

  Hi Roberto

  Is it possible to have hortizontal rectange accross rather than a segment?



  thanks

  PJ



  s00071609

  Participant

  Topics: 9

  Replies: 133

  Been thanked: 16 times
  03/10/2023 at 9:40 AM #211299
  robertogozzi

  This is a modified version of https://www.prorealcode.com/topic/friday-close-and-monday-open-gap/#post-211257:

  DEFPARAM DrawOnLastBarOnly = true IF OpenTime = 080000 AND OpenDayOfWeek = 5 THEN Bar8p = Bar8 Bar8 = BarIndex cl = close ENDIF IF OpenTime = 100000 AND OpenDayOfWeek = 1 THEN Bar10 = BarIndex op = open ENDIF Drawrectangle(Bar8p,cl,bar10,op) coloured("Red",20) bordercolor("Cyan") style(line,2) RETURN

  1 2 3 4 5 6 7 8 9 10 11 12

  DEFPARAM DrawOnLastBarOnly = true IF OpenTime = 080000 AND OpenDayOfWeek = 5 THEN    Bar8p = Bar8    Bar8  = BarIndex    cl    = close ENDIF IF OpenTime = 100000 AND OpenDayOfWeek = 1 THEN    Bar10 = BarIndex    op    = open ENDIF Drawrectangle(Bar8p,cl,bar10,op) coloured("Red",20) bordercolor("Cyan") style(line,2) RETURN

  20 is the transparency attribute (0=invisible, 255=max.visibility).

  2 is the line thickness (1 to 5).



  1 user thanked author for this post.

  ZeroCafeine



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  03/10/2023 at 11:34 AM #211306
  s00071609

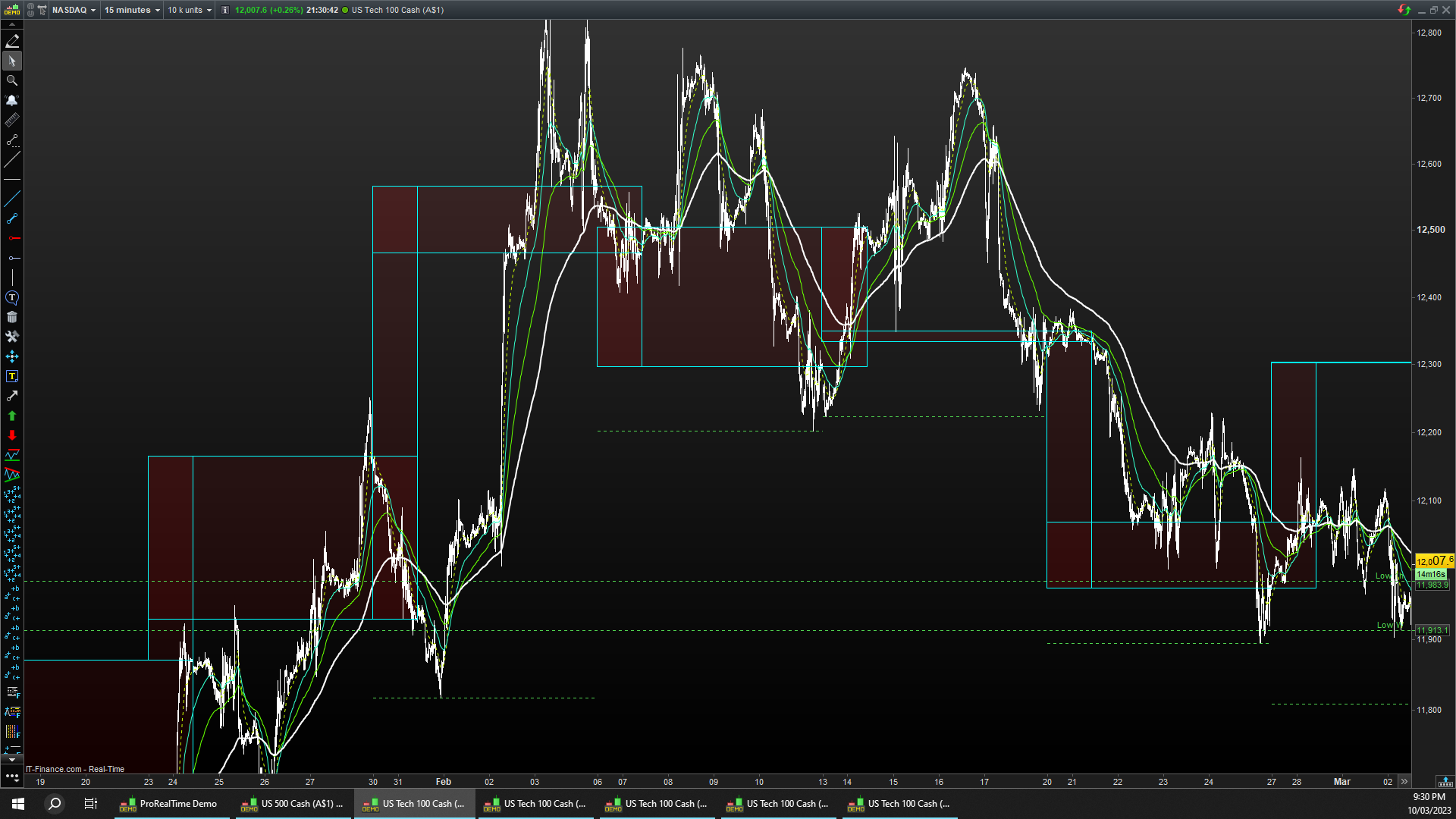

  Thanks but it looks bit odd in the chart. It seems to be connecting all open and close of new week. I was expecting it to have individual shades for DClose of Saturday (AEST) and DOpen (Monday). Is it not possible to have a line that extend to current price area?



  s00071609

  Participant

  Topics: 9

  Replies: 133

  Been thanked: 16 times
  03/10/2023 at 12:57 PM #211317
  robertogozzi

  This version gets rid of some mess (when uncommenting line 1):

  //DEFPARAM DrawOnLastBarOnly = true IF OpenTime = 080000 AND OpenDayOfWeek = 5 THEN Bar8 = BarIndex cl = close ENDIF IF OpenTime = 100000 AND OpenDayOfWeek = 1 THEN Bar10 = BarIndex op = open ENDIF IF Bar10 > Bar8 THEN Drawrectangle(Bar8,cl,bar10,op) coloured("Red",20) bordercolor("Cyan") style(line,2) ENDIF RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13

  //DEFPARAM DrawOnLastBarOnly = true IF OpenTime = 080000 AND OpenDayOfWeek = 5 THEN    Bar8  = BarIndex    cl    = close ENDIF IF OpenTime = 100000 AND OpenDayOfWeek = 1 THEN    Bar10 = BarIndex    op    = open ENDIF IF Bar10 > Bar8 THEN    Drawrectangle(Bar8,cl,bar10,op) coloured("Red",20) bordercolor("Cyan") style(line,2) ENDIF RETURN

  Of course you will have to change those times, as they are CET (EU) times.

  DCLOSE, DOPEN, etc… match the broker’s day start (which is now at 01:00, not 00:00). This means that 00:00 are still visible, but with OpenDayOfWeek they belong to the previous day, despite the date being correct.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
