Help with Higher Lows Price sync with Higher Low MACD when candle crosses MA

• 09/10/2019 at 9:00 AM #107033
  Malend

  I know the arrows and lines and segments… I was making it way to complicated.
  You make my day!!!!
  I keep you posted when all is done, the lows and the highs.



  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 10:08 AM #107038
  Malend

  So…the end result with cycle highs and lows :-).
  I tested it and it works for 90%. I just see one more last thing. See the attached image.
  I have some parameters which you can fill in yourself. like the MACD, Moving Average, and in the signal in the chart I have chosen to set 2 targets and 1 stoploss. So yo can see of the TA or SL will be reached first.
  .
  It would be great to have one green arrow up above the bar with the signal when the Target1 has reached first, to have 2 green arrows up when Target2 has been reached, and to have a red arrow down when the Stoploss has been reached first.
  .
  My gratitude is BIG. Thank you Vonasi

  DEFPARAM calculateonlastbars = 1000 macdl = macdline[ShortTermMA,LongTermMA,Periods] macds = exponentialaverage[Periods](macdl) //start of cycle low If macdl =< macds and macdl[1] > macds[1] then macdlowest2 = macdlowest lowestprice2 = lowestprice incyclelow = 1 macdlowest = macdl LowestPrice = low endif //End of cycle If macdl > macds and macdl[1] < macds[1] then incyclelow = 0 endif //lowest macd and price in cycle if incyclelow then macdlowest = min(macdlowest, macdl) lowestPrice = min(lowestprice, low) c1 = open < average[ma] c2 = close > average[ma] c3 = macdlowest > macdlowest2 c4 = lowestprice > lowestprice2 if c1 and c2 and c3 and c4 then DRAWSEGMENT (barindex, close+target1, barindex, close+target2)COLOURED(0,250,0) DRAWSEGMENT (barindex, close+target1, barindex+1, close+target1)COLOURED(0,250,0) DRAWTEXT("TA1", barindex-1, close+target1, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close+target2, barindex+1, close+target2)COLOURED(0,250,0) DRAWTEXT("TA2", barindex-1, close+target2, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close-stoploss, barindex+1, close-stoploss)COLOURED(250,0,100) DRAWSEGMENT (barindex, close-(stoploss-0.25), barindex, close-stoploss)COLOURED(250,0,100) DRAWTEXT("SL", barindex-1, close-stoploss, Dialog, Standard, 10) COLOURED(0,0,0) DRAWTEXT("LH", barindex, close+target2+0.75, Dialog, Standard, 14) COLOURED(0,250,0) endif endif //start of cycle high If macdl => macds and macdl[1] < macds[1] then macdhighest2 = macdhighest highestprice2 = highestprice incyclehigh = 1 macdhighest = macdl highestPrice = high endif //End of cycle If macdl < macds and macdl[1] > macds[1] then incyclehigh = 0 endif //highest macd and price in cycle high if incyclehigh then macdhighest = min(macdhighest, macdl) highestPrice = min(highestprice, low) c1a = open > average[ma] c2a = close < average[ma] c3a = macdhighest < macdhighest2 c4a = highestprice < highestprice2 if c1a and c2a and c3a and c4a then DRAWSEGMENT (barindex, close-target1, barindex, close-target2)COLOURED(0,250,0) DRAWSEGMENT (barindex, close-target1, barindex+1, close-target1)COLOURED(0,250,0) DRAWTEXT("TA1", barindex-1, close-target1, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close-target2, barindex+1, close-target2)COLOURED(0,250,0) DRAWTEXT("TA2", barindex-1, close-target2, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close+stoploss, barindex+1, close+stoploss)COLOURED(250,0,100) DRAWSEGMENT (barindex, close+(stoploss-0.25), barindex, close+stoploss)COLOURED(250,0,100) DRAWTEXT("SL", barindex-1, close+stoploss, Dialog, Standard, 10) COLOURED(0,0,0) DRAWTEXT("HL", barindex, close-target2-0.75, Dialog, Standard, 14) COLOURED(250,0,0) endif endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77

  DEFPARAM calculateonlastbars = 1000   macdl = macdline[ShortTermMA,LongTermMA,Periods] macds = exponentialaverage[Periods](macdl)   //start of cycle low If macdl =< macds and macdl[1] > macds[1] then macdlowest2 = macdlowest lowestprice2 = lowestprice incyclelow = 1 macdlowest = macdl LowestPrice = low endif //End of cycle If macdl > macds and macdl[1] < macds[1] then incyclelow = 0 endif //lowest macd and price in cycle if incyclelow then macdlowest = min(macdlowest, macdl) lowestPrice = min(lowestprice, low) c1 = open < average[ma] c2 = close > average[ma] c3 = macdlowest > macdlowest2 c4 = lowestprice > lowestprice2 if c1 and c2 and c3 and c4 then DRAWSEGMENT (barindex, close+target1, barindex, close+target2)COLOURED(0,250,0) DRAWSEGMENT (barindex, close+target1, barindex+1, close+target1)COLOURED(0,250,0) DRAWTEXT("TA1", barindex-1, close+target1, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close+target2, barindex+1, close+target2)COLOURED(0,250,0) DRAWTEXT("TA2", barindex-1, close+target2, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close-stoploss, barindex+1, close-stoploss)COLOURED(250,0,100) DRAWSEGMENT (barindex, close-(stoploss-0.25), barindex, close-stoploss)COLOURED(250,0,100) DRAWTEXT("SL", barindex-1, close-stoploss, Dialog, Standard, 10) COLOURED(0,0,0) DRAWTEXT("LH", barindex, close+target2+0.75, Dialog, Standard, 14) COLOURED(0,250,0) endif   endif //start of cycle high If macdl => macds and macdl[1] < macds[1] then macdhighest2 = macdhighest highestprice2 = highestprice incyclehigh = 1 macdhighest = macdl highestPrice = high endif //End of cycle If macdl < macds and macdl[1] > macds[1] then incyclehigh = 0 endif //highest macd and price in cycle high if incyclehigh then macdhighest = min(macdhighest, macdl) highestPrice = min(highestprice, low) c1a = open > average[ma] c2a = close < average[ma] c3a = macdhighest < macdhighest2 c4a = highestprice < highestprice2 if c1a and c2a and c3a and c4a then DRAWSEGMENT (barindex, close-target1, barindex, close-target2)COLOURED(0,250,0) DRAWSEGMENT (barindex, close-target1, barindex+1, close-target1)COLOURED(0,250,0) DRAWTEXT("TA1", barindex-1, close-target1, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close-target2, barindex+1, close-target2)COLOURED(0,250,0) DRAWTEXT("TA2", barindex-1, close-target2, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close+stoploss, barindex+1, close+stoploss)COLOURED(250,0,100) DRAWSEGMENT (barindex, close+(stoploss-0.25), barindex, close+stoploss)COLOURED(250,0,100) DRAWTEXT("SL", barindex-1, close+stoploss, Dialog, Standard, 10) COLOURED(0,0,0) DRAWTEXT("HL", barindex, close-target2-0.75, Dialog, Standard, 14) COLOURED(250,0,0) endif endif return





  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 10:20 AM #107040
  Malend

  Do I need to add somthing like this?

  // end of cycle
  If macdl > macds and macdl[1] < macds[1] or macdl < macdlowest then
  incyclelow = 0
  endif



  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 10:25 AM #107042
  Malend

  Nope…. that doesn’t work.





  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 10:32 AM #107043
  Malend

  This needs to be added.
  .

  //End of cycle low If macdl > macds and macdl[1] < macds[1] or macdl < macdlowest2 then incyclelow = 0 endif

  1 2 3 4

  //End of cycle low If macdl > macds and macdl[1] < macds[1] or macdl < macdlowest2 then incyclelow = 0 endif





  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 10:48 AM #107044
  Malend

  So here the last version.

  DEFPARAM calculateonlastbars = 1000 macdl = macdline[ShortTermMA,LongTermMA,Periods] macds = exponentialaverage[Periods](macdl) //start of cycle low If macdl =< macds and macdl[1] > macds[1] then macdlowest2 = macdlowest lowestprice2 = lowestprice incyclelow = 1 macdlowest = macdl LowestPrice = low endif //End of cycle If macdl > macds and macdl[1] < macds[1] or macdl < macdlowest2 then incyclelow = 0 endif //lowest macd and price in cycle if incyclelow then macdlowest = min(macdlowest, macdl) lowestPrice = min(lowestprice, low) c1 = open < average[ma] c2 = close > average[ma] c3 = macdlowest > macdlowest2 c4 = lowestprice > lowestprice2 if c1 and c2 and c3 and c4 then DRAWSEGMENT (barindex, close+target1, barindex, close+target2)COLOURED(0,250,0) DRAWSEGMENT (barindex, close+target1, barindex+1, close+target1)COLOURED(0,250,0) DRAWTEXT("TA1", barindex-1, close+target1, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close+target2, barindex+1, close+target2)COLOURED(0,250,0) DRAWTEXT("TA2", barindex-1, close+target2, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close-stoploss, barindex+1, close-stoploss)COLOURED(250,0,100) DRAWSEGMENT (barindex, close-(stoploss-0.25), barindex, close-stoploss)COLOURED(250,0,100) DRAWTEXT("SL", barindex-1, close-stoploss, Dialog, Standard, 10) COLOURED(0,0,0) DRAWTEXT("LH", barindex, close+target2+0.75, Dialog, Standard, 14) COLOURED(0,250,0) endif endif //start of cycle high If macdl => macds and macdl[1] < macds[1] then macdhighest2 = macdhighest highestprice2 = highestprice incyclehigh = 1 macdhighest = macdl highestPrice = high endif //End of cycle If macdl < macds and macdl[1] > macds[1] or macdl > macdhighest2 then incyclehigh = 0 endif //highest macd and price in cycle high if incyclehigh then macdhighest = min(macdhighest, macdl) highestPrice = min(highestprice, low) c1a = open > average[ma] c2a = close < average[ma] c3a = macdhighest < macdhighest2 c4a = highestprice < highestprice2 if c1a and c2a and c3a and c4a then DRAWSEGMENT (barindex, close-target1, barindex, close-target2)COLOURED(0,250,0) DRAWSEGMENT (barindex, close-target1, barindex+1, close-target1)COLOURED(0,250,0) DRAWTEXT("TA1", barindex-1, close-target1, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close-target2, barindex+1, close-target2)COLOURED(0,250,0) DRAWTEXT("TA2", barindex-1, close-target2, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close+stoploss, barindex+1, close+stoploss)COLOURED(250,0,100) DRAWSEGMENT (barindex, close+(stoploss-0.25), barindex, close+stoploss)COLOURED(250,0,100) DRAWTEXT("SL", barindex-1, close+stoploss, Dialog, Standard, 10) COLOURED(0,0,0) DRAWTEXT("HL", barindex, close-target2-0.75, Dialog, Standard, 14) COLOURED(250,0,0) endif endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77

  DEFPARAM calculateonlastbars = 1000   macdl = macdline[ShortTermMA,LongTermMA,Periods] macds = exponentialaverage[Periods](macdl)   //start of cycle low If macdl =< macds and macdl[1] > macds[1] then macdlowest2 = macdlowest lowestprice2 = lowestprice incyclelow = 1 macdlowest = macdl LowestPrice = low endif //End of cycle If macdl > macds and macdl[1] < macds[1] or macdl < macdlowest2 then incyclelow = 0 endif //lowest macd and price in cycle if incyclelow then macdlowest = min(macdlowest, macdl) lowestPrice = min(lowestprice, low) c1 = open < average[ma] c2 = close > average[ma] c3 = macdlowest > macdlowest2 c4 = lowestprice > lowestprice2 if c1 and c2 and c3 and c4 then DRAWSEGMENT (barindex, close+target1, barindex, close+target2)COLOURED(0,250,0) DRAWSEGMENT (barindex, close+target1, barindex+1, close+target1)COLOURED(0,250,0) DRAWTEXT("TA1", barindex-1, close+target1, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close+target2, barindex+1, close+target2)COLOURED(0,250,0) DRAWTEXT("TA2", barindex-1, close+target2, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close-stoploss, barindex+1, close-stoploss)COLOURED(250,0,100) DRAWSEGMENT (barindex, close-(stoploss-0.25), barindex, close-stoploss)COLOURED(250,0,100) DRAWTEXT("SL", barindex-1, close-stoploss, Dialog, Standard, 10) COLOURED(0,0,0) DRAWTEXT("LH", barindex, close+target2+0.75, Dialog, Standard, 14) COLOURED(0,250,0) endif   endif //start of cycle high If macdl => macds and macdl[1] < macds[1] then macdhighest2 = macdhighest highestprice2 = highestprice incyclehigh = 1 macdhighest = macdl highestPrice = high endif //End of cycle If macdl < macds and macdl[1] > macds[1] or macdl > macdhighest2 then incyclehigh = 0 endif //highest macd and price in cycle high if incyclehigh then macdhighest = min(macdhighest, macdl) highestPrice = min(highestprice, low) c1a = open > average[ma] c2a = close < average[ma] c3a = macdhighest < macdhighest2 c4a = highestprice < highestprice2 if c1a and c2a and c3a and c4a then DRAWSEGMENT (barindex, close-target1, barindex, close-target2)COLOURED(0,250,0) DRAWSEGMENT (barindex, close-target1, barindex+1, close-target1)COLOURED(0,250,0) DRAWTEXT("TA1", barindex-1, close-target1, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close-target2, barindex+1, close-target2)COLOURED(0,250,0) DRAWTEXT("TA2", barindex-1, close-target2, Dialog, Standard, 10) COLOURED(0,0,0) DRAWSEGMENT (barindex, close+stoploss, barindex+1, close+stoploss)COLOURED(250,0,100) DRAWSEGMENT (barindex, close+(stoploss-0.25), barindex, close+stoploss)COLOURED(250,0,100) DRAWTEXT("SL", barindex-1, close+stoploss, Dialog, Standard, 10) COLOURED(0,0,0) DRAWTEXT("HL", barindex, close-target2-0.75, Dialog, Standard, 14) COLOURED(250,0,0) endif endif return





  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 11:13 AM #107047
  Malend

  I have shared it in the forum.



  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 12:44 PM #107048
  Vonasi

  A lot of the setting variables that you use are not in the code. It might be a good idea to add them before we get lots of ‘it doesn’t work’ questions. Perhaps attaching the ITF file here might be useful too.



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  09/10/2019 at 12:52 PM #107049
  Malend

  You mean these ones?

  macdl = macdline[ShortTermMA,LongTermMA,Periods] macds = exponentialaverage[Periods](macdl)

  1 2 3

  macdl = macdline[ShortTermMA,LongTermMA,Periods]   macds = exponentialaverage[Periods](macdl)



  And how do I make/attach an ITF file?



  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 12:53 PM #107050
  Malend

  I took away all the DRAW things. I simplified it into 1 vertical line in the post.



  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 1:03 PM #107052
  Malend

  About the green and red arrows I want to see if it reaches target befor stoploss or stoploss befor target, I made this, but this isn’t right

  if Target1 < close + 10 and SL > close - 5 then // start cycle inposition = 1 endif if Target1 => close + 10 or SL =< close - 5 then inposition = 0 endif if inposition then c1 = close => target1 c2 = close =< SL if c1 then drawarrowup(barindex,low)coloured(0,250,0) endif if c2 then drawarrowdown(barindex,low)coloured(250,0,0) endif endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

  if Target1 < close + 10 and SL > close - 5 then // start cycle inposition = 1 endif if Target1 => close + 10 or SL =< close - 5 then inposition = 0 endif   if inposition then c1 = close => target1 c2 = close =< SL   if c1 then drawarrowup(barindex,low)coloured(0,250,0) endif if c2 then drawarrowdown(barindex,low)coloured(250,0,0) endif endif return





  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/10/2019 at 1:14 PM #107053
  Vonasi

  The variables that I mean are target1, target2, stoploss etc

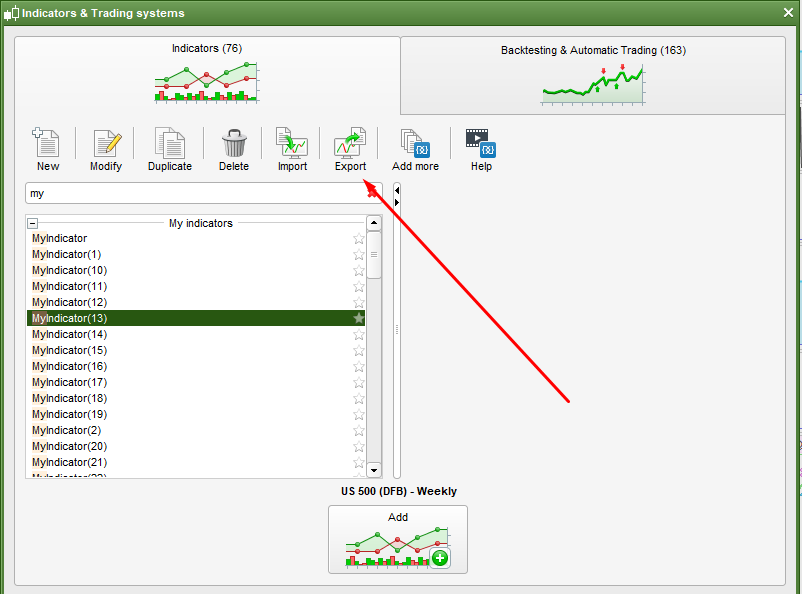

  Export indicator or strategy and then attach ITF as you would an image.



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  09/10/2019 at 1:22 PM #107057
  Malend

  Oh yes, I took the out allready at my first post, that didn’t add anything to the indicator itself. I changed it into a vertical line.



  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/11/2019 at 9:18 PM #107281
  Malend

  Hi Vonasi,
  I still miss a lot of signals in the cycle high version and I really can’t see what is wrong. The cycle low version works great.
  I have checked over and over again, but I can’t see find the error.
  See the attachment.

  DEFPARAM calculateonlastbars = 1000 macdl = macdline[ShortTermMA,LongTermMA,Periods] macds = exponentialaverage[Periods](macdl) //start of cycle high If macdl => macds and macdl[1] < macds[1] then macdhighest2 = macdhighest highestprice2 = highestprice incyclehigh = 1 macdhighest = macdl HighestPrice = high endif //End of cycle high If macdl < macds and macdl[1] > macds[1] then incyclehigh = 0 endif //highest macd and price in cycle high if incyclehigh then macdhighest = max(macdhighest, macdl) highestPrice = max(highestprice, high) c1 = open > average[ma] c2 = close < average[ma] c3 = macdhighest < macdhighest2 c4 = highestprice < highestprice2 if c1 and c2 and c3 and c4 then

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

  DEFPARAM calculateonlastbars = 1000   macdl = macdline[ShortTermMA,LongTermMA,Periods] macds = exponentialaverage[Periods](macdl)     //start of cycle high If macdl => macds and macdl[1] < macds[1] then macdhighest2 = macdhighest highestprice2 = highestprice incyclehigh = 1 macdhighest = macdl HighestPrice = high endif //End of cycle high If macdl < macds and macdl[1] > macds[1] then incyclehigh = 0 endif //highest macd and price in cycle high if incyclehigh then macdhighest = max(macdhighest, macdl) highestPrice = max(highestprice, high) c1 = open > average[ma] c2 = close < average[ma] c3 = macdhighest < macdhighest2 c4 = highestprice < highestprice2   if c1 and c2 and c3 and c4 then





  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
  09/11/2019 at 9:19 PM #107282
  Malend

  This is the cycle low verion which works perfect.

  DEFPARAM calculateonlastbars = 1000 macdl = macdline[ShortTermMA,LongTermMA,Periods] macds = exponentialaverage[Periods](macdl) //start of cycle low If macdl =< macds and macdl[1] > macds[1] then macdlowest2 = macdlowest lowestprice2 = lowestprice incyclelow = 1 macdlowest = macdl LowestPrice = low endif //End of cycle low If macdl > macds and macdl[1] < macds[1] then incyclelow = 0 endif //lowest macd and price in cycle if incyclelow then macdlowest = min(macdlowest, macdl) lowestPrice = min(lowestprice, low) c1 = open < average[ma] c2 = close > average[ma] c3 = macdlowest > macdlowest2 c4 = lowestprice => lowestprice2 if c1 and c2 and c3 and c4 then

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

  DEFPARAM calculateonlastbars = 1000   macdl = macdline[ShortTermMA,LongTermMA,Periods] macds = exponentialaverage[Periods](macdl)   //start of cycle low If macdl =< macds and macdl[1] > macds[1] then macdlowest2 = macdlowest lowestprice2 = lowestprice incyclelow = 1 macdlowest = macdl LowestPrice = low endif //End of cycle low If macdl > macds and macdl[1] < macds[1] then incyclelow = 0 endif //lowest macd and price in cycle if incyclelow then macdlowest = min(macdlowest, macdl) lowestPrice = min(lowestprice, low) c1 = open < average[ma] c2 = close > average[ma] c3 = macdlowest > macdlowest2 c4 = lowestprice => lowestprice2 if c1 and c2 and c3 and c4 then





  Malend

  Participant

  Topics: 14

  Replies: 100

  Been thanked: 4 times
