HIghest High since crossing an MA

• 05/20/2020 at 2:23 AM #132327
  bbgg91

  Does anyone have a suggestion on how to code the highest high or lowest low since crossing an MA and marking that bar on the screen? Thanks!



  bbgg91

  Participant

  Topics: 2

  Replies: 4

  Been thanked: 0 times
  05/20/2020 at 7:13 AM #132337
  robertogozzi

  Not tested:

  Once MyHigh = 0 Once MyLow = 0 CrossOver = close crosses over average[200,0](close) CrossUnder = close crosses under average[200,0](close) If CrossOver or CrossUnder Then MyHigh = high MyLow = low drawtext("●",barindex,high+15*pipsize,Dialog,Bold,10) coloured(255,0,0,255) Endif MyHigh = max(MyHigh,high) MyLow = min(MyLow,low) Return MyHigh as “HI”,MyLow as “LO”

  1 2 3 4 5 6 7 8 9 10 11 12

  Once MyHigh = 0 Once MyLow  = 0 CrossOver      = close crosses over average[200,0](close) CrossUnder     = close crosses under average[200,0](close) If CrossOver or CrossUnder Then    MyHigh = high    MyLow  = low    drawtext("●",barindex,high+15*pipsize,Dialog,Bold,10) coloured(255,0,0,255) Endif MyHigh = max(MyHigh,high) MyLow  = min(MyLow,low) Return MyHigh as “HI”,MyLow as “LO”



  1 user thanked author for this post.

  bbgg91



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17277

  Been thanked: 4126 times
  05/20/2020 at 9:00 AM #132343
  bbgg91

  Many thanks for the code and it works somewhat. What I am trying to do is plot something above the highest high between two crossings. For example, we cross above an MA, stay above for a while, then cross below. I am trying to mark the highest high in that time interval.



  bbgg91

  Participant

  Topics: 2

  Replies: 4

  Been thanked: 0 times
  05/20/2020 at 9:20 AM #132357
  robertogozzi

  Make an example, possibly attaching a screenshot of what you want to see.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17277

  Been thanked: 4126 times
  05/20/2020 at 9:33 AM #132364
  bbgg91

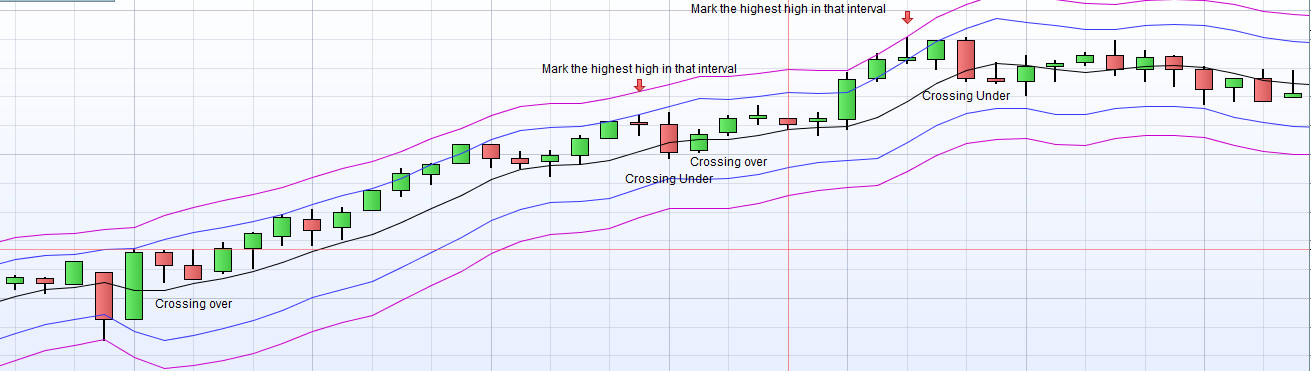

  I hope this make sense. Thanks for the help.



  bbgg91

  Participant

  Topics: 2

  Replies: 4

  Been thanked: 0 times
  05/20/2020 at 11:18 AM #132392
  robertogozzi

  (not tested):

  Once MyHigh = 0 Once MyLow = 0 CrossOver = close crosses over average[200,0](close) CrossUnder = close crosses under average[200,0](close) If CrossOver or CrossUnder Then MyHigh = high MyLow = low Endif MyHigh = max(MyHigh,high) MyLow = min(MyLow,low) IF MyHigh <> MyHigh[1] THEN DrawArrowDown(BarIndex,high + 10 * pipsize) coloured(0,128,0,255) ENDIF IF MyLow <> MyLow[1] THEN DrawArrowUP(BarIndex,high + 10 * pipsize) coloured(255,0,0,255) ENDIF Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

  Once MyHigh = 0 Once MyLow  = 0 CrossOver   = close crosses over average[200,0](close) CrossUnder  = close crosses under average[200,0](close) If CrossOver or CrossUnder Then    MyHigh = high    MyLow  = low Endif MyHigh = max(MyHigh,high) MyLow  = min(MyLow,low) IF MyHigh <> MyHigh[1] THEN    DrawArrowDown(BarIndex,high + 10 * pipsize) coloured(0,128,0,255) ENDIF IF MyLow <> MyLow[1] THEN    DrawArrowUP(BarIndex,high + 10 * pipsize) coloured(255,0,0,255) ENDIF Return



  1 user thanked author for this post.

  bbgg91



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17277

  Been thanked: 4126 times
  05/20/2020 at 12:32 PM #132403
  bbgg91

  Many thanks. It has put me on the right track.



  bbgg91

  Participant

  Topics: 2

  Replies: 4

  Been thanked: 0 times
  05/20/2020 at 1:10 PM #132408
  robertogozzi

  Do you need text on crossings, as well?



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17277

  Been thanked: 4126 times
  05/21/2020 at 1:57 AM #132495
  bbgg91

  No that is ok. It seems ProRealTime just does the processing on the last bar so as the bars develop it leaves the arrows behind it. It would be good if the previous arrows could be erased. Currently I am writing over them with white.



  bbgg91

  Participant

  Topics: 2

  Replies: 4

  Been thanked: 0 times
  05/21/2020 at 7:03 AM #132512
  robertogozzi

  There you go:

  Defparam DrawOnLastBarOnly = true Once MyHigh = 0 Once MyLow  = 0 CrossOver   = close crosses over average[200,0](close) CrossUnder  = close crosses under average[200,0](close) If CrossOver or CrossUnder Then    MyHigh = high    MyLow  = low Endif MyHigh = max(MyHigh,high) MyLow  = min(MyLow,low) IF MyHigh <> MyHigh[1] THEN   HiBar = BarIndex ENDIF IF MyLow <> MyLow[1] THEN   LoBar = BarIndex ENDIF DrawArrowDown(HiBar,MyHigh + 10 * pipsize) coloured(0,128,0,255) DrawArrowUP(LoBar,MyLow - 10 * pipsize) coloured(255,0,0,255) Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

  Defparam DrawOnLastBarOnly = true Once MyHigh = 0 Once MyLow  = 0 CrossOver   = close crosses over average[200,0](close) CrossUnder  = close crosses under average[200,0](close) If CrossOver or CrossUnder Then    MyHigh = high    MyLow  = low Endif MyHigh = max(MyHigh,high) MyLow  = min(MyLow,low) IF MyHigh <> MyHigh[1] THEN   HiBar = BarIndex ENDIF IF MyLow <> MyLow[1] THEN   LoBar = BarIndex ENDIF DrawArrowDown(HiBar,MyHigh + 10 * pipsize) coloured(0,128,0,255) DrawArrowUP(LoBar,MyLow - 10 * pipsize) coloured(255,0,0,255) Return





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17277

  Been thanked: 4126 times
