How Do i Draw ellipse

• 07/04/2017 at 11:44 AM #39774
  CHIFHE

  Can any one write a simple code to draw eclipse on the price once close.



  CHIFHE

  Participant

  Topics: 3

  Replies: 8

  Been thanked: 0 times
  07/04/2017 at 1:03 PM #39782
  Nicolas

  You meant “ellipse”? 😆

  To draw a circle (an ellipse), you need 2 set of coordinates, just like you would draw a rectangle for instance: DRAWELLIPSE

  What do you want to have inside the ellipse please?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  07/04/2017 at 3:03 PM #39796
  CHIFHE

  Yes, Ellipse, inside ellipse there must be Candle for that a period. like for example instead of putting buy signal then there must be ellipse. I have attached example with buy or sell signal. instead of those buy and sell signal I need to replace it with ellipse to show me that my startergy is activated once the candle closes then the trade will be placed.



  CHIFHE

  Participant

  Topics: 3

  Replies: 8

  Been thanked: 0 times
  07/04/2017 at 3:20 PM #39798
  Nicolas

  I copy/paste your document here:

  Description

  Long signal (buy)

  When cycle cross over value 0 then buy signal activated. When CCI cross over 100 then is over bought exit the trade.

  Short Signal (Sell)

  When cycle cross under value 0 then sell signal activated and when CCI cross under -100 is oversold exit the trade.



  // Conditions to enter long positions indicator1 = Cycle(close) c1 = (indicator1 CROSSES OVER 0) IF c1 THEN DRAWARROWUP(barindex, low*0.999) coloured (0,255,255) DRAWTEXT("BUY", barindex, LOW*0.992,SansSerif,Bold,12)coloured(0,255,255) ENDIF // Conditions to exit long positions indicator2 = CCI[20] c2 = (indicator2 CROSSES OVER 100) IF c2 THEN ENDIF // Conditions to enter short positions indicator3 = Cycle(close) c3 = (indicator3 CROSSES UNDER 0) IF c3 THEN DRAWARROWDOWN(barindex, HIGH*1.001) coloured (128,0,128) DRAWTEXT("SELL", barindex, HIGH*1.008,SansSerif,Bold,12)coloured(128,0,128) ENDIF // Conditions to exit short positions indicator4 = CCI[20] c4 = (indicator4 CROSSES UNDER -100) IF c4 THEN ENDIF //Inside Bar Breakout Failure indicator bullcandle=open<close bearcandle=open>close insidebarbear= bearcandle and high[0]<high[1] and low[0]>low[1] if insidebarbear then DRAWTEXT("↓", barindex, high[1], Dialog, ITALIC,10) COLOURED(147,112,219) //DRAWARROWDOWN(barindex,high[1]) COLOURED(0,0,0) DRAWCANDLE(open,high,low,close) COLOURED(0,0,0) BORDERCOLOR(255,0,0) endif insidebarbull= bullcandle and high[0]<high[1] and low[0]>low[1] if insidebarbull then DRAWTEXT("↑", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219) //DRAWARROWDOWN(barindex,high[1]) COLOURED(0,0,0) DRAWCANDLE(open,high,low,close) COLOURED(0,0,0) BORDERCOLOR(0,255,0) endif insidebarFailureBull=bullcandle and (low[1]<Low[0] or high[1]>high[0]) and(insidebarbull[1] and close[0]<close[1] and close[0]>open[1]) or insidebarbear[1] and close[0]<open[1] and close[0]>close[1] // if insidebarFailureBull and not (insidebarbear or insidebarbull) then DRAWTEXT("¬", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219) DRAWCANDLE(open,high,low,close) COLOURED(255,255,255) BORDERCOLOR(0,255,0) //DRAWARROWUP(barindex,low[0]) COLOURED(0,255,0) endif //================ insidebarFailureBear=bearcandle and (low[1]<Low[0] or high[1]>high[0]) and(insidebarbear[1] and close[0]>close[1] and close[0]<open[1]) or insidebarbull[1] and close[0]>open[1] and close[0]<close[1] if insidebarFailureBear and not (insidebarbear or insidebarbull) then DRAWTEXT("∟", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219) DRAWCANDLE(open,high,low,close) COLOURED(255,255,255) BORDERCOLOR(255,0,0) //DRAWARROWUP(barindex,low[0]) COLOURED(255,0,0) endif RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159

  // Conditions to enter long positions   indicator1 = Cycle(close)   c1 = (indicator1 CROSSES OVER 0)       IF c1 THEN   DRAWARROWUP(barindex, low*0.999) coloured (0,255,255)   DRAWTEXT("BUY", barindex, LOW*0.992,SansSerif,Bold,12)coloured(0,255,255)   ENDIF       // Conditions to exit long positions   indicator2 = CCI[20]   c2 = (indicator2 CROSSES OVER 100)       IF c2 THEN       ENDIF       // Conditions to enter short positions   indicator3 = Cycle(close)   c3 = (indicator3 CROSSES UNDER 0)       IF c3 THEN   DRAWARROWDOWN(barindex, HIGH*1.001) coloured (128,0,128)   DRAWTEXT("SELL", barindex, HIGH*1.008,SansSerif,Bold,12)coloured(128,0,128)               ENDIF       // Conditions to exit short positions   indicator4 = CCI[20]   c4 = (indicator4 CROSSES UNDER -100)       IF c4 THEN       ENDIF       //Inside Bar Breakout Failure indicator               bullcandle=open<close   bearcandle=open>close               insidebarbear= bearcandle and high[0]<high[1] and low[0]>low[1]   if insidebarbear then   DRAWTEXT("↓", barindex, high[1], Dialog, ITALIC,10) COLOURED(147,112,219)   //DRAWARROWDOWN(barindex,high[1]) COLOURED(0,0,0)   DRAWCANDLE(open,high,low,close) COLOURED(0,0,0) BORDERCOLOR(255,0,0)   endif   insidebarbull= bullcandle and high[0]<high[1] and low[0]>low[1]   if insidebarbull then   DRAWTEXT("↑", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219)   //DRAWARROWDOWN(barindex,high[1]) COLOURED(0,0,0)   DRAWCANDLE(open,high,low,close) COLOURED(0,0,0) BORDERCOLOR(0,255,0)   endif               insidebarFailureBull=bullcandle and (low[1]<Low[0] or high[1]>high[0]) and(insidebarbull[1] and close[0]<close[1] and close[0]>open[1]) or insidebarbear[1] and close[0]<open[1] and close[0]>close[1] //       if insidebarFailureBull and not (insidebarbear or insidebarbull) then   DRAWTEXT("¬", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219)   DRAWCANDLE(open,high,low,close) COLOURED(255,255,255) BORDERCOLOR(0,255,0)   //DRAWARROWUP(barindex,low[0]) COLOURED(0,255,0)   endif   //================       insidebarFailureBear=bearcandle and (low[1]<Low[0] or high[1]>high[0]) and(insidebarbear[1] and close[0]>close[1] and close[0]<open[1]) or insidebarbull[1] and close[0]>open[1] and close[0]<close[1]           if insidebarFailureBear and not (insidebarbear or insidebarbull) then   DRAWTEXT("∟", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219)   DRAWCANDLE(open,high,low,close) COLOURED(255,255,255) BORDERCOLOR(255,0,0)   //DRAWARROWUP(barindex,low[0]) COLOURED(255,0,0)   endif       RETURN

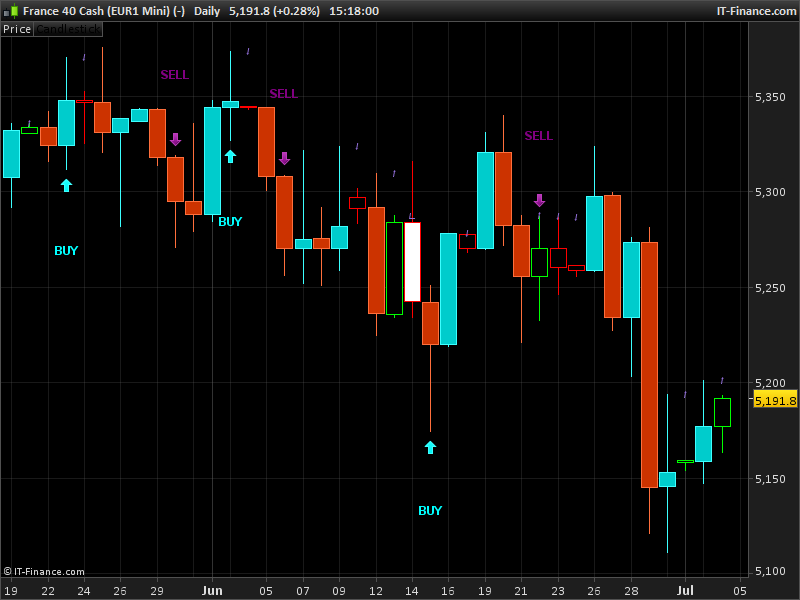

  I attached the example of what the code is doing right now, could you please tell me what signals should be replace by an ellipse now? There are many different things already plotted, that’s why I asked to be sure 🙂 Thanks.





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  07/05/2017 at 8:26 AM #39840
  CHIFHE

  Buy signal and sell signal to be replaced by ellipse.

  Thanks in advance Nico



  CHIFHE

  Participant

  Topics: 3

  Replies: 8

  Been thanked: 0 times
  07/05/2017 at 9:28 AM #39844
  Nicolas

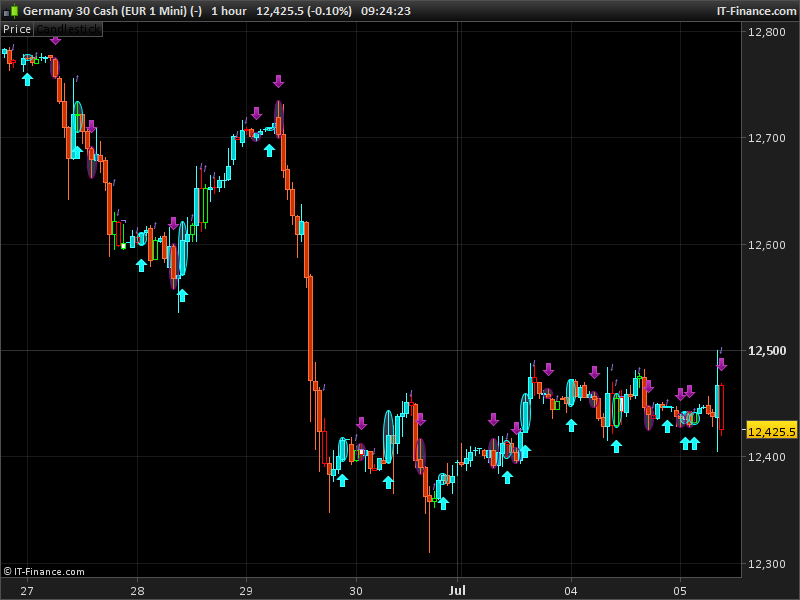

  Ok, so I replaced the “buy” and “sell” text with ellipse including the candlesticks that generate the signals. They are drawn 1 bar after the signal, because to include correctly the candlestick into the circle, we need to start to draw it before the bar and end after it.

  // Conditions to enter long positions indicator1 = Cycle(close) c1 = (indicator1 CROSSES OVER 0) IF c1 THEN DRAWARROWUP(barindex, low*0.999) coloured (0,255,255) //DRAWTEXT("BUY", barindex, LOW*0.992,SansSerif,Bold,12)coloured(0,255,255) ENDIF if c1[1] then DRAWELLIPSE(barindex[2], low[1], barindex, high[1])coloured(0,255,255) endif // Conditions to exit long positions indicator2 = CCI[20] c2 = (indicator2 CROSSES OVER 100) IF c2 THEN ENDIF // Conditions to enter short positions indicator3 = Cycle(close) c3 = (indicator3 CROSSES UNDER 0) IF c3 THEN DRAWARROWDOWN(barindex, HIGH*1.001) coloured (128,0,128) //DRAWTEXT("SELL", barindex, HIGH*1.008,SansSerif,Bold,12)coloured(128,0,128) ENDIF if c3[1] then DRAWELLIPSE(barindex[2], low[1], barindex, high[1])coloured(128,0,128) endif // Conditions to exit short positions indicator4 = CCI[20] c4 = (indicator4 CROSSES UNDER -100) IF c4 THEN ENDIF //Inside Bar Breakout Failure indicator bullcandle=open<close bearcandle=open>close insidebarbear= bearcandle and high[0]<high[1] and low[0]>low[1] if insidebarbear then DRAWTEXT("↓", barindex, high[1], Dialog, ITALIC,10) COLOURED(147,112,219) //DRAWARROWDOWN(barindex,high[1]) COLOURED(0,0,0) DRAWCANDLE(open,high,low,close) COLOURED(0,0,0) BORDERCOLOR(255,0,0) endif insidebarbull= bullcandle and high[0]<high[1] and low[0]>low[1] if insidebarbull then DRAWTEXT("↑", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219) //DRAWARROWDOWN(barindex,high[1]) COLOURED(0,0,0) DRAWCANDLE(open,high,low,close) COLOURED(0,0,0) BORDERCOLOR(0,255,0) endif insidebarFailureBull=bullcandle and (low[1]<Low[0] or high[1]>high[0]) and(insidebarbull[1] and close[0]<close[1] and close[0]>open[1]) or insidebarbear[1] and close[0]<open[1] and close[0]>close[1] // if insidebarFailureBull and not (insidebarbear or insidebarbull) then DRAWTEXT("¬", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219) DRAWCANDLE(open,high,low,close) COLOURED(255,255,255) BORDERCOLOR(0,255,0) //DRAWARROWUP(barindex,low[0]) COLOURED(0,255,0) endif //================ insidebarFailureBear=bearcandle and (low[1]<Low[0] or high[1]>high[0]) and(insidebarbear[1] and close[0]>close[1] and close[0]<open[1]) or insidebarbull[1] and close[0]>open[1] and close[0]<close[1] if insidebarFailureBear and not (insidebarbear or insidebarbull) then DRAWTEXT("∟", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219) DRAWCANDLE(open,high,low,close) COLOURED(255,255,255) BORDERCOLOR(255,0,0) //DRAWARROWUP(barindex,low[0]) COLOURED(255,0,0) endif RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154

  // Conditions to enter long positions   indicator1 = Cycle(close)   c1 = (indicator1 CROSSES OVER 0)       IF c1 THEN DRAWARROWUP(barindex, low*0.999) coloured (0,255,255) //DRAWTEXT("BUY", barindex, LOW*0.992,SansSerif,Bold,12)coloured(0,255,255) ENDIF if c1[1] then DRAWELLIPSE(barindex[2], low[1], barindex, high[1])coloured(0,255,255) endif       // Conditions to exit long positions   indicator2 = CCI[20]   c2 = (indicator2 CROSSES OVER 100)       IF c2 THEN       ENDIF       // Conditions to enter short positions   indicator3 = Cycle(close)   c3 = (indicator3 CROSSES UNDER 0)       IF c3 THEN   DRAWARROWDOWN(barindex, HIGH*1.001) coloured (128,0,128)   //DRAWTEXT("SELL", barindex, HIGH*1.008,SansSerif,Bold,12)coloured(128,0,128) ENDIF if c3[1] then DRAWELLIPSE(barindex[2], low[1], barindex, high[1])coloured(128,0,128) endif     // Conditions to exit short positions   indicator4 = CCI[20]   c4 = (indicator4 CROSSES UNDER -100)       IF c4 THEN       ENDIF       //Inside Bar Breakout Failure indicator               bullcandle=open<close   bearcandle=open>close               insidebarbear= bearcandle and high[0]<high[1] and low[0]>low[1]   if insidebarbear then   DRAWTEXT("↓", barindex, high[1], Dialog, ITALIC,10) COLOURED(147,112,219)   //DRAWARROWDOWN(barindex,high[1]) COLOURED(0,0,0)   DRAWCANDLE(open,high,low,close) COLOURED(0,0,0) BORDERCOLOR(255,0,0)   endif   insidebarbull= bullcandle and high[0]<high[1] and low[0]>low[1]   if insidebarbull then   DRAWTEXT("↑", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219)   //DRAWARROWDOWN(barindex,high[1]) COLOURED(0,0,0)   DRAWCANDLE(open,high,low,close) COLOURED(0,0,0) BORDERCOLOR(0,255,0)   endif               insidebarFailureBull=bullcandle and (low[1]<Low[0] or high[1]>high[0]) and(insidebarbull[1] and close[0]<close[1] and close[0]>open[1]) or insidebarbear[1] and close[0]<open[1] and close[0]>close[1] //       if insidebarFailureBull and not (insidebarbear or insidebarbull) then   DRAWTEXT("¬", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219)   DRAWCANDLE(open,high,low,close) COLOURED(255,255,255) BORDERCOLOR(0,255,0)   //DRAWARROWUP(barindex,low[0]) COLOURED(0,255,0)   endif   //================       insidebarFailureBear=bearcandle and (low[1]<Low[0] or high[1]>high[0]) and(insidebarbear[1] and close[0]>close[1] and close[0]<open[1]) or insidebarbull[1] and close[0]>open[1] and close[0]<close[1]           if insidebarFailureBear and not (insidebarbear or insidebarbull) then   DRAWTEXT("∟", barindex, high[1], Dialog,ITALIC, 10) COLOURED(147,112,219)   DRAWCANDLE(open,high,low,close) COLOURED(255,255,255) BORDERCOLOR(255,0,0)   //DRAWARROWUP(barindex,low[0]) COLOURED(255,0,0)   endif       RETURN





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  07/05/2017 at 12:22 PM #39870
  CHIFHE

  You are amazing, Thank you very much Nico. It work perfectly



  CHIFHE

  Participant

  Topics: 3

  Replies: 8

  Been thanked: 0 times
