How to add text

• 06/05/2023 at 10:32 PM #215679
  Owl888

  Hi, I’d like to insert some text above a below the current candle (according to certain conditions). The DRAWTEXT method (https://www.prorealcode.com/<wbr />documentation/drawtext/) doesn’t seem to work. Can someone explain where’s the error in the below code ?

  ONCE bStart = 0 Voffset = 5 * pipsize hd = 154500 hf = 193000 IF (Time >= hd AND Time <= hf AND bStart = 0) DRAWTEXT("START ALGO", barindex, Low[1] - Voffset, SansSerif, Standard, 16) COLOURED(153,153,0) bStart = 1 ENDIF

  1 2 3 4 5 6 7 8 9

  ONCE bStart = 0 Voffset = 5 * pipsize hd = 154500 hf = 193000   IF (Time >= hd AND Time <= hf AND bStart = 0)     DRAWTEXT("START ALGO", barindex, Low[1] - Voffset, SansSerif, Standard, 16) COLOURED(153,153,0)     bStart = 1 ENDIF

  And btw, it’d be nice to get more insight about syntax error, a hint when mousing over the warning symbol for instance…

  Thanks

  Fred

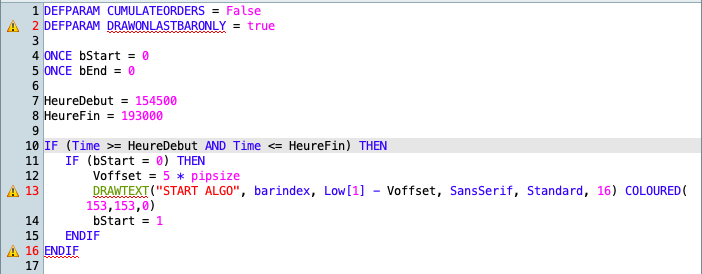

  PS : sorry I didn’t keep the source code, just a screen shot (attached) and tried to reproduce something meaningful above



  Owl888

  Participant

  Topics: 3

  Replies: 9

  Been thanked: 1 time
  06/05/2023 at 11:50 PM #215683
  robertogozzi

  Line 1 cannot be used in indicators, it’s reserved for strategies (indicators don’t deal with orderes).

  Line 2 will make ALL graphic objects and text being cancelled and being drawn again each new candle, so once bStart is set, the IF conditions will no more be met, thus DrawText will never be executed again, unless you clear bStart somewhere, and you wll no more seee the text that was previously printed.

  Any line starting with IF must end with THEN (this concerns the code you posted, not the one in the attached pic).





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  06/06/2023 at 12:01 AM #215684
  Owl888

  The screenshot is from a tradingsystem code.

  OK, let’s assume the code is not going to do what I want (I’d delete line 2 then), still it wouldn’t compile. What’s the problem with line 13 ?



  Owl888

  Participant

  Topics: 3

  Replies: 9

  Been thanked: 1 time
  06/06/2023 at 12:07 AM #215686
  robertogozzi

  This is the correct code for ProRealTime:

  ONCE bStart = 0 Voffset = 5 * pipsize hd = 154500 hf = 193000 IF (Time >= hd AND Time <= hf AND bStart = 0) THEN DRAWTEXT("START ALGO", barindex, Low[1] - Voffset, SansSerif, Standard, 16) COLOURED(153,153,0) //bStart = 1 ENDIF RETURN

  1 2 3 4 5 6 7 8 9

  ONCE bStart = 0 Voffset = 5 * pipsize hd = 154500 hf = 193000 IF (Time >= hd AND Time <= hf AND bStart = 0) THEN    DRAWTEXT("START ALGO", barindex, Low[1] - Voffset, SansSerif, Standard, 16) COLOURED(153,153,0)    //bStart = 1 ENDIF RETURN

  all indicators must end with the keyword RETURN.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  06/06/2023 at 12:20 AM #215687
  Owl888

  I guess the DRAWTEXT function doesn’t work in TradingSystem coding environment (see the little warning icon indicating a syntax / compile error on the screenshot ?).

  Of course, if I put it in an indicator code, everything works fine (no warning icon).

  // Variables contenant le prix d'achat ou de vente (en cas de signal) buyLevel = -1 sellLevel = -1 // Signal LONG lors d'une rupture de tendance descendante par les valeurs max // On dessine la flèche de signal, le prix d'achat, le take profit (tp) et le stop loss (sl) IF Low[1] < Low[2] AND High[1] < High[2] AND High > High[1] THEN buyLevel = High[1] + (dist + spread) * PointSize DRAWARROWUP(BarIndex, Low - 2) COLOURED(0,255,0) DRAWSEGMENT(BarIndex, buyLevel, BarIndex + 1, buyLevel) COLOURED("Blue") STYLE(LINE,2) DRAWSEGMENT(BarIndex, buyLevel + tp, BarIndex + 1, buyLevel + tp) COLOURED("MediumBlue") STYLE(DOTTEDLINE,2) DRAWSEGMENT(BarIndex, buyLevel - sl, BarIndex + 1, buyLevel - sl) COLOURED("Crimson") STYLE(DOTTEDLINE,2) ENDIF // Signal SHORT lors d'une rupture de tendance ascendante par les valeurs min IF Low[1] > Low[2] AND High[1] > High[2] AND Low < Low[1] THEN sellLevel = Low[1] - (dist + spread) * PointSize DRAWARROWDOWN(BarIndex, High + 2) COLOURED(255,0,0) DRAWSEGMENT(BarIndex, sellLevel, BarIndex + 1, sellLevel) COLOURED("Blue") STYLE(LINE,2) DRAWSEGMENT(BarIndex, sellLevel - tp, BarIndex + 1, sellLevel - tp) COLOURED("MediumBlue") STYLE(DOTTEDLINE,2) DRAWSEGMENT(BarIndex, sellLevel + sl, BarIndex + 1, sellLevel + sl) COLOURED("Crimson") STYLE(DOTTEDLINE,2) ENDIF DRAWTEXT("START ALGO", barindex, Low[1] - Voffset, SansSerif, Standard, 16) COLOURED(153,153,0) RETURN buyLevel, sellLevel

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

  // Variables contenant le prix d'achat ou de vente (en cas de signal) buyLevel = -1 sellLevel = -1   // Signal LONG lors d'une rupture de tendance descendante par les valeurs max // On dessine la flèche de signal, le prix d'achat, le take profit (tp) et le stop loss (sl) IF Low[1] < Low[2] AND High[1] < High[2] AND High > High[1] THEN buyLevel = High[1] + (dist + spread) * PointSize DRAWARROWUP(BarIndex, Low - 2) COLOURED(0,255,0) DRAWSEGMENT(BarIndex, buyLevel, BarIndex + 1, buyLevel) COLOURED("Blue") STYLE(LINE,2) DRAWSEGMENT(BarIndex, buyLevel + tp, BarIndex + 1, buyLevel + tp) COLOURED("MediumBlue") STYLE(DOTTEDLINE,2) DRAWSEGMENT(BarIndex, buyLevel - sl, BarIndex + 1, buyLevel - sl) COLOURED("Crimson") STYLE(DOTTEDLINE,2) ENDIF   // Signal SHORT lors d'une rupture de tendance ascendante par les valeurs min IF Low[1] > Low[2] AND High[1] > High[2] AND Low < Low[1] THEN sellLevel = Low[1] - (dist + spread) * PointSize DRAWARROWDOWN(BarIndex, High + 2) COLOURED(255,0,0) DRAWSEGMENT(BarIndex, sellLevel, BarIndex + 1, sellLevel) COLOURED("Blue") STYLE(LINE,2) DRAWSEGMENT(BarIndex, sellLevel - tp, BarIndex + 1, sellLevel - tp) COLOURED("MediumBlue") STYLE(DOTTEDLINE,2) DRAWSEGMENT(BarIndex, sellLevel + sl, BarIndex + 1, sellLevel + sl) COLOURED("Crimson") STYLE(DOTTEDLINE,2) ENDIF   DRAWTEXT("START ALGO", barindex, Low[1] - Voffset, SansSerif, Standard, 16) COLOURED(153,153,0)   RETURN buyLevel, sellLevel

  But this is neither what I want nor what I was trying to explain.

  Thanks for your help anyway



  Owl888

  Participant

  Topics: 3

  Replies: 9

  Been thanked: 1 time
  06/06/2023 at 12:35 AM #215689
  robertogozzi

  Trading systems cannot plot text, or objects. They can only enter and exit trades.







  robertogozzi

  Moderator

  Topics: 69

  Replies: 17142

  Been thanked: 4032 times
  06/06/2023 at 12:51 AM #215690
  PeterSt

  Owl888 wrote:

  Of course, if I put it in an indicator code, everything works fine (no warning icon).

  Hi Fred,

  The answer to your “line 13” question is : All of these commands only apply to Indicator code (which end with the Return command).



  Owl888 wrote:

  The screenshot is from a tradingsystem code.

  In brief, that only allows for Graph and GraphOnPrice.  Nothing of the graphical “nice stuff” works in that part of the platform.
  It is a bit confusing, but you will get used to it.

  Peter



  PeterSt

  Participant

  Topics: 73

  Replies: 2506

  Been thanked: 808 times
  06/06/2023 at 10:30 AM #215701
  Nicolas

  There is also now a new instruction to show variables in trading systems: PRINT



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  06/06/2023 at 11:40 AM #215706
  PeterSt

  … with the notice that this now also works with Indicators (assuming that “trading systems” was meant to say just that). I did not really use/test it for Indicators yet but for trading systems it is great.

  But maybe mentioned too early (after all 😉 ) because it is only for V12. At least for me it’s not there in V11.1.



  PeterSt

  Participant

  Topics: 73

  Replies: 2506

  Been thanked: 808 times
