How to draw only the lastest signal

• 04/29/2020 at 2:31 AM #128748
  mmichael

  Hello,

  with following code, PRT shows all the occurences in the graph (a lot of dots).

  for better visibility, I only want to show the last signal (and not the previous ones). Is there a way to do that please?

  Thanks in advance.

  My code:

  doji detection

  doji = abs(open - close) <= (high - low) * 0.1 IF doji THEN DRAWTEXT("•",barindex,low - 0.5,monospaced,standard,15) coloured(100,100,100,150) ENDIF return doji

  1 2 3 4 5 6 7

  doji = abs(open - close) <= (high - low) * 0.1   IF doji THEN DRAWTEXT("•",barindex,low - 0.5,monospaced,standard,15) coloured(100,100,100,150) ENDIF   return doji







  mmichael

  Participant

  Topics: 4

  Replies: 36

  Been thanked: 4 times
  04/29/2020 at 2:34 AM #128750
  robertogozzi

  Add this line at the beginning, as line 1:

  DEFPARAM DrawOnLastBarOnly = True

  1	DEFPARAM DrawOnLastBarOnly = True





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17280

  Been thanked: 4126 times
  04/29/2020 at 2:44 AM #128752
  robertogozzi

  You have broken one of the rule of this forum:

  Do not double post. Ask your question only once and only in one forum. All double posts will be deleted anyway so posting the same question multiple times will just be wasting your own time and will not get you an answer any quicker. Double posting just creates confusion in the forums.

  You had first posted here, then you duplicated your topic in the French forum. This is not allowed as it would shatter info across multiple topics making it difficult to retrieve that info.

  I deleted the other one. Please read the basic rules, highlighted in yellow just above the SUBMIT button and stick to them. Thank you 🙂

  1 user thanked author for this post.

  mmichael



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17280

  Been thanked: 4126 times
  04/29/2020 at 2:51 AM #128753
  mmichael

  Hello Roberto,

  thanks a lot for your reactivity.

  I have not thaught things could be simple like that… This instruction can be very useful. I will test it.

  Sorry for the doublon, but it thaught my post was refused in the english forum. Thank you for deleting it to avoid any confusion.



  mmichael

  Participant

  Topics: 4

  Replies: 36

  Been thanked: 4 times
  04/29/2020 at 3:02 AM #128754
  mmichael

  Hello,

  The proposed solution does not work and no signal is shown.

  I guess because the last signal is not necessarily in the last bar. Any idea to help on this?



  DEFPARAM DrawOnLastBarOnly = True doji = abs(open - close) <= (high - low) * 0.3 IF doji THEN DRAWTEXT("•",barindex,low,monospaced,standard,20) coloured(230,230,230,200) DRAWTEXT("•",barindex,high + 0.5,monospaced,standard,20) coloured(230,230,230,200) ENDIF return doji

  1 2 3 4 5 6 7 8 9 10

  DEFPARAM DrawOnLastBarOnly = True   doji = abs(open - close) <= (high - low) * 0.3 IF doji THEN DRAWTEXT("•",barindex,low,monospaced,standard,20) coloured(230,230,230,200) DRAWTEXT("•",barindex,high + 0.5,monospaced,standard,20) coloured(230,230,230,200) ENDIF return doji







  mmichael

  Participant

  Topics: 4

  Replies: 36

  Been thanked: 4 times
  04/29/2020 at 3:10 AM #128755
  mmichael

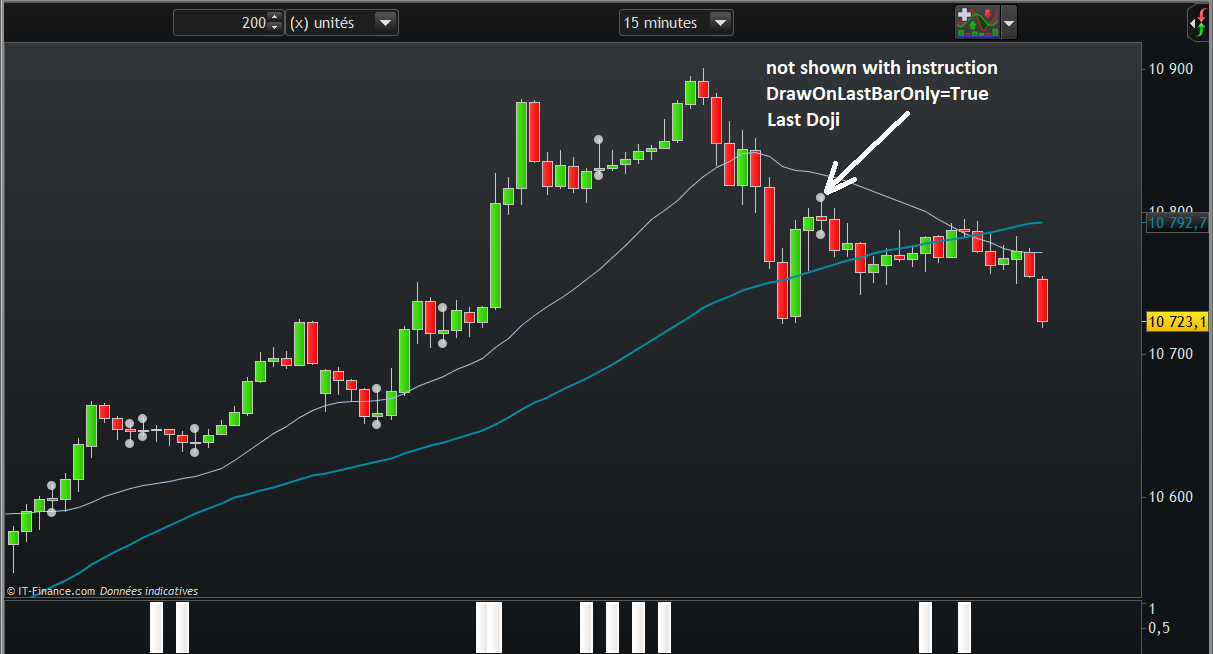

  Here by my screenshot



  mmichael

  Participant

  Topics: 4

  Replies: 36

  Been thanked: 4 times
  04/29/2020 at 4:05 AM #128757
  robertogozzi

  Yes, it’s because it only draws what is drawn on the last bar. Since DOJI occurred several bars before, it will not draw anything.

  To work it out, whenever a DOJI pattern occurs, it must save its BarIndex and the price levels where to plot it:

  DEFPARAM DrawOnLastBarOnly = True doji = abs(open - close) <= (high - low) * 0.3 IF doji THEN DojiBar = BarIndex DojiPrice1 = low DojiPrice2 = high + 0.5 ENDIF DRAWTEXT("•",DojiBar,DojiPrice1,monospaced,standard,20) coloured(230,230,230,200) DRAWTEXT("•",DojiBar,DojiPrice2,monospaced,standard,20) coloured(230,230,230,200) return doji

  1 2 3 4 5 6 7 8 9 10

  DEFPARAM DrawOnLastBarOnly = True doji = abs(open - close) <= (high - low) * 0.3 IF doji THEN    DojiBar    = BarIndex    DojiPrice1 =  low    DojiPrice2 =  high + 0.5 ENDIF DRAWTEXT("•",DojiBar,DojiPrice1,monospaced,standard,20) coloured(230,230,230,200) DRAWTEXT("•",DojiBar,DojiPrice2,monospaced,standard,20) coloured(230,230,230,200) return doji



  1 user thanked author for this post.

  mmichael



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17280

  Been thanked: 4126 times
  04/29/2020 at 12:45 PM #128809
  mmichael

  Hello Roberto,

  this works perfectly fine.

  Thanks for your precious help

  2 users thanked author for this post.

  wtangsiri, robertogozzi



  mmichael

  Participant

  Topics: 4

  Replies: 36

  Been thanked: 4 times
