How to DRAWTEXT right-justify on chart?!

• 09/16/2019 at 4:11 PM #107760
  matty

  How do we use the DRAWTEXT command without having to always reference a BarIndex, so we can permanently right-justify the text?

  I need to place text on the right-hand-side of the chart, up against the Y-Axis, exactly like we see on the PRT Pivot Points indicator  (eg. “S1 D”), as well as the numerical value for Horizontal Lines.

  This way when we scroll back in time through the chart, the DRAWTEXT value remains right-aligned and is therefore always visible (rather than only visible when we’re looking at the most recent bar).

  Thanks in advance!



  matty

  Participant

  Topics: 1

  Replies: 4

  Been thanked: 0 times
  09/16/2019 at 4:13 PM #107761
  robertogozzi

  You can only add leading spaces to your text, such as ”          #close#” instead of “#close#”.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17269

  Been thanked: 4119 times
  09/17/2019 at 7:04 AM #107803
  matty

  Ok yeah thx, I figured that out, but there’s no way to move the text once you start scrolling back through the chart.

  There must be a way to Right Justify!  After all, the functionality is on the platform for the two indicators I mentioned above. How have the developers implemented this feature?

  Surely it’s quite simple… someone must know…..



  matty

  Participant

  Topics: 1

  Replies: 4

  Been thanked: 0 times
  09/17/2019 at 7:54 AM #107807
  Nicolas

  No, there is no way to keep the text at right border of the screen when you scroll back with a custom code, sorry.

  1 user thanked author for this post.

  matty



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4775 times
  09/17/2019 at 8:51 AM #107817
  GraHal

  matty wrote:

  There must be a way to Right Justify!  After all, the functionality is on the platform for the two indicators I mentioned above. How have the developers implemented this feature?

  It is surprising and frustrating how features that seem straightforward to implement never get implemented by PRT no matter how many times we suggest and give reasons required!? 🙁

  I guess what we think is important, PRT don’t or they are max’d out on other Issues?

  2 users thanked author for this post.

  Bel, matty



  GraHal

  Participant

  Topics: 214

  Replies: 8878

  Been thanked: 2217 times
  09/17/2019 at 9:33 AM #107828
  matty

  Couldn’t agree more. Especially given there would already be code to do this.

  I can’t even think of a way round the issue… if there were a function to return the numerical range of bars currently displayed, then we could dynamically build the space-padded text item to be right-justified, but I don’t see any viable options…. how bout you?



  matty

  Participant

  Topics: 1

  Replies: 4

  Been thanked: 0 times
  09/17/2019 at 9:39 AM #107831
  robertogozzi

  Can you post an example of what you need the first bar and the how it should be after, say, 5 or 10 bars?



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17269

  Been thanked: 4119 times
  09/17/2019 at 10:33 AM #107835
  Nicolas

  Problem is simple: coordinates are not in pixels but in bars/price format, so we can’t anchor objects for a computer screener, but only for a price chart!

  While it would be possible to know what is the last bar of history, it is not possible to know what is the last bar displayed on your own screen.

  I agree that it is not the way it should be because it makes simple things harder or impossible to be made (such as anchor objects like the way you want)…

  1 user thanked author for this post.

  matty



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4775 times
  09/17/2019 at 11:15 AM #107840
  matty

  robertogozzi wrote:

  Can you post an example of what you need the first bar and the how it should be after, say, 5 or 10 bars?

  I’m not sure I understand your question…. do you mean the string that displays the text?

  The text value wouldn’t change obviously – let’s say it says “12000” – but as we scroll back thru the data we would need a way to display it near the visible bars on the screen, as opposed to the most recent bar (BarIndex) which would be far off to the right and not visible. Is there any way to know which bar we’ve scrolled back to and place the text there?

  Thanks



  matty

  Participant

  Topics: 1

  Replies: 4

  Been thanked: 0 times
  09/17/2019 at 11:25 AM #107841
  matty

  Nicolas wrote:

  Problem is simple: coordinates are not in pixels but in bars/price format, so we can’t anchor objects for a computer screener, but only for a price chart!

  While it would be possible to know what is the last bar of history, it is not possible to know what is the last bar displayed on your own screen.

  I agree that it is not the way it should be because it makes simple things harder or impossible to be made (such as anchor objects like the way you want)…

  I understand… but you’re a smart man Nicolas, how can we hack our way around this limitation? 🙂

  I can only think that instead of placing a text value, I could just draw a horizontal line… the problem with this is that the chart gets far too messy 🙁



  matty

  Participant

  Topics: 1

  Replies: 4

  Been thanked: 0 times
  09/17/2019 at 2:13 PM #107846
  GraHal

  matty wrote:

  I’m not sure I understand your question

  I guess Roberto was asking if you could do a mock up (using snagit or some drawing sw) to show what you would like to see on the screen?  Picture tells a thousand words etc? 🙂



  GraHal

  Participant

  Topics: 214

  Replies: 8878

  Been thanked: 2217 times
  09/17/2019 at 5:15 PM #107850
  robertogozzi

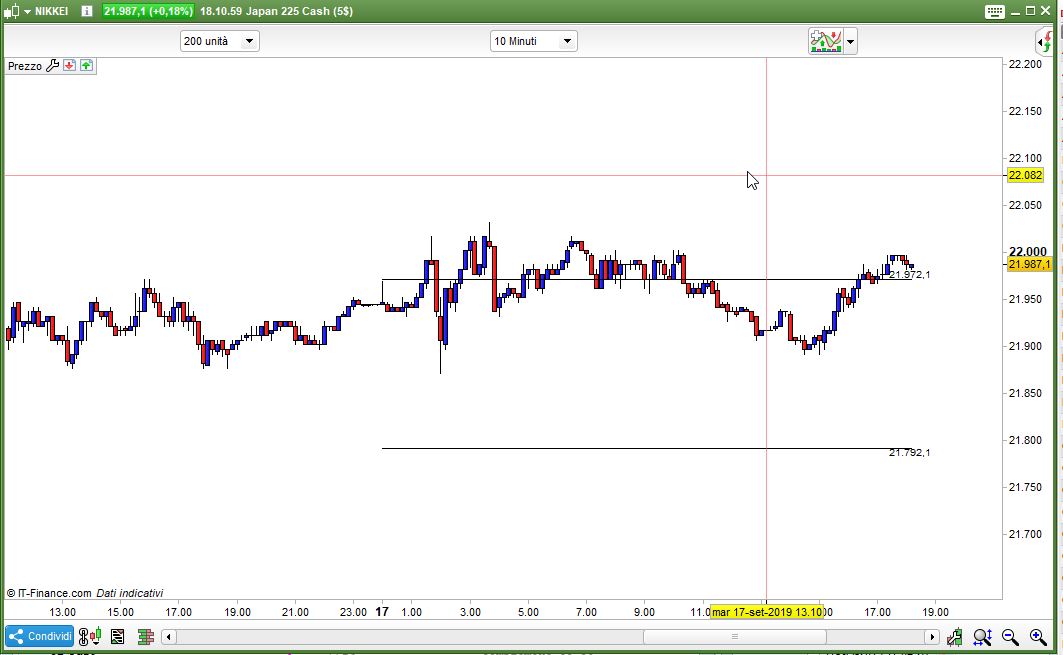

  If you need to plot something like a channel between the highest and lowest price of the day before, and you don’t need the previous lines, you can write:

  DEFPARAM CalculateOnLastBars = 3000 DEFPARAM DrawOnLastBarOnly = true IF barindex = 0 THEN PreviousHI = high PreviousLO = low HH = high LL = low StartFrom = 0 Offset = 5 * pipsize ENDIF IF IntraDayBarIndex = 0 THEN PreviousHI = HH PreviousLO = LL HH = high LL = low StartFrom = barindex ENDIF HH = max(HH,high) LL = min(LL,low) IF StartFrom > 0 THEN DRAWSEGMENT(StartFrom,PreviousHI,barindex,PreviousHI) DRAWTEXT("#PreviousHI#",barindex,PreviousHI + Offset) DRAWSEGMENT(StartFrom,PreviousLO,barindex,PreviousLO) DRAWTEXT("#PreviousLO#",barindex,PreviousLO - Offset) ENDIF RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

  DEFPARAM CalculateOnLastBars = 3000 DEFPARAM DrawOnLastBarOnly   = true IF barindex = 0 THEN    PreviousHI = high    PreviousLO = low    HH         = high    LL         = low    StartFrom  = 0    Offset     = 5 * pipsize ENDIF IF IntraDayBarIndex = 0 THEN    PreviousHI = HH    PreviousLO = LL    HH         = high    LL         = low    StartFrom  = barindex ENDIF HH            = max(HH,high) LL            = min(LL,low) IF StartFrom > 0 THEN    DRAWSEGMENT(StartFrom,PreviousHI,barindex,PreviousHI)    DRAWTEXT("#PreviousHI#",barindex,PreviousHI + Offset)    DRAWSEGMENT(StartFrom,PreviousLO,barindex,PreviousLO)    DRAWTEXT("#PreviousLO#",barindex,PreviousLO - Offset) ENDIF RETURN

  still this cannot keep track of you scrolling the chart leftwards or rightwards.



  1 user thanked author for this post.

  matty



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17269

  Been thanked: 4119 times
  12/18/2020 at 10:34 PM #154365
  Grantx

  matty wrote:

  How do we use the DRAWTEXT command without having to always reference a BarIndex, so we can permanently right-justify the text?

  I need to place text on the right-hand-side of the chart, up against the Y-Axis, exactly like we see on the PRT Pivot Points indicator (eg. “S1 D”), as well as the numerical value for Horizontal Lines.

  This way when we scroll back in time through the chart, the DRAWTEXT value remains right-aligned and is therefore always visible (rather than only visible when we’re looking at the most recent bar).

  Thanks in advance!

  Did you ever figure this out? I need the same functionality.



  Grantx

  Participant

  Topics: 23

  Replies: 23

  Been thanked: 3 times
  12/18/2020 at 10:46 PM #154367
  Vonasi

  This is not possible in PRT. You can draw something at any x, y point on a chart or indicator but it cannot know what the last bar on any window you choose to zoom in or out on is.

  You can send this as a suggestion to PRT via this forum topic:

  https://www.prorealcode.com/topic/centralization-of-queries-and-suggestions-on-prorealtime/

  GraHal will be along soon with a more direct link for suggestions to PRT! 🙂





  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  12/20/2020 at 2:24 PM #154591
  GraHal

  https://www.prorealtime.com/en/contact?suggestion=1

  🙂
