Bonjour Ivan,
Celui que tu as retranscrit ne correspond pas ou est différent de celui de Métatrader. Il n’agit pas en centre de gravité. Il doit y avoir une petite modification nécessaire.

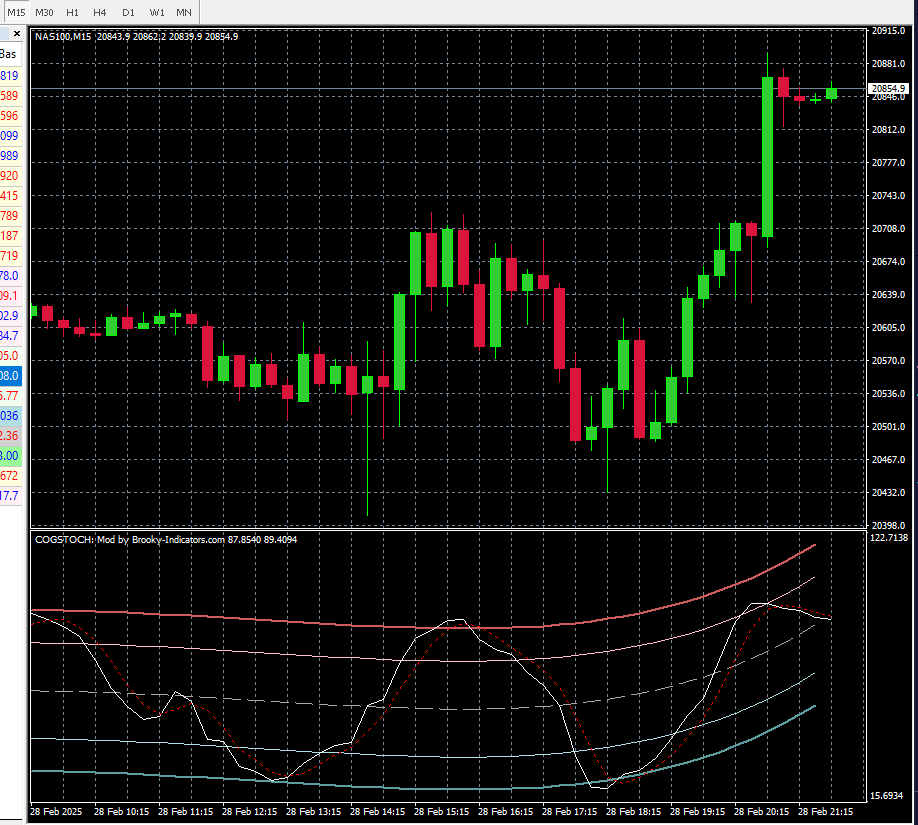

Je te joins un autre en stochastique avec le code et l’illustration
//| COGSTOCH.mq4 |
//| Original Code from NG3110@latchess.com |
//| Linuxser 2007 for TSD http://www.forex-tsd.com/ |
//| Stoch Modified Brooky http://www.brooky-indicators.com |
//+——————————————————————+
#property copyright “ANG3110@latchess.com”
//———ang_pr (Din)——————–
#property indicator_separate_window
#property indicator_buffers 7
#property indicator_color1 Gray
#property indicator_color2 IndianRed
#property indicator_color3 CadetBlue
#property indicator_color4 Pink
#property indicator_color5 PowderBlue
#property indicator_color6 Blue
#property indicator_color7 Red
#property indicator_level1 80
#property indicator_level2 50
#property indicator_level3 20
#property indicator_level4 100
#property indicator_level5 00
#property indicator_style1 1
#property indicator_style7 2
#property indicator_width2 2
#property indicator_width3 2
//———————————–
extern int bars_back = 192;
extern int stoch_k = 14;
extern int stoch_d = 5;
extern int stoch_s = 3;
extern int m = 5;
extern int i = 1;
extern double kstd = 1.618;
extern double kstd.internal = 0.8;
extern int sName = 2;
//———————–
double fx[], sqh[], sql[], stdh[], stdl[], stochdata[], stochsdata[];
double ai[10,10], b[10], x[10], sx[20];
double sum;
int ip, p, n, f;
double qq, mm, tt;
int ii, jj, kk, ll, nn;
double sq, std;
//*******************************************
int init()
{
IndicatorShortName(“COGSTOCH: Mod by Brooky-Indicators.com”);
SetIndexBuffer(0, fx);SetIndexStyle(0, DRAW_LINE);
SetIndexBuffer(1, sqh);
SetIndexBuffer(2, sql);
SetIndexBuffer(3, stdh);
SetIndexBuffer(4, stdl);
SetIndexBuffer(5, stochdata);SetIndexStyle(5, DRAW_LINE);
SetIndexBuffer(6, stochsdata);SetIndexStyle(6, DRAW_LINE);
p = MathRound(bars_back);
nn = m + 1;
ObjectCreate(“sstart” + sName, 22, 0, Time[p], fx[p]);
ObjectSet(“sstart” + sName, 14, 159);
return(0);
}
//———————————————————-
int deinit()
{
ObjectDelete(“sstart” + sName);
}
//**********************************************************************************************
int start()
{
int mi;
//——————————————————————————————-
ip = iBarShift(Symbol(), Period(), ObjectGet(“sstart” + sName, OBJPROP_TIME1));
p = bars_back;
sx[1] = p + 1;
SetIndexDrawBegin(0, Bars – p – 1);
SetIndexDrawBegin(1, Bars – p – 1);
SetIndexDrawBegin(2, Bars – p – 1);
SetIndexDrawBegin(3, Bars – p – 1);
SetIndexDrawBegin(4, Bars – p – 1);
//———————-sx——————————————————————-
int rlimit;
int rcounted_bars=IndicatorCounted();
//—- check for possible errors
if(rcounted_bars<0) return(-1);
//—- the last counted bar will be recounted
if(rcounted_bars>0) rcounted_bars–;
rlimit=Bars-rcounted_bars;
//—- main loop
for(int ri=0; ri<rlimit; ri++)
{
stochdata[ri]= iStochastic(NULL,0,stoch_k,stoch_d,stoch_s,MODE_SMA,0,MODE_MAIN,ri);
stochsdata[ri]= iStochastic(NULL,0,stoch_k,stoch_d,stoch_s,MODE_SMA,0,MODE_SIGNAL,ri);
}
for(mi = 1; mi <= nn * 2 – 2; mi++)
{
sum = 0;
for(n = i; n <= i + p; n++)
{
sum += MathPow(n, mi);
}
sx[mi + 1] = sum;
}
//———————-syx———–
for(mi = 1; mi <= nn; mi++)
{
sum = 0.00000;
for(n = i; n <= i + p; n++)
{
if(mi == 1)
sum += iStochastic(NULL,0,stoch_k,stoch_d,stoch_s,MODE_SMA,0,MODE_MAIN,n);//rsi_period iRSI(NULL,0,rsi_period,prICE_CLOSE,n)
else
sum += iStochastic(NULL,0,stoch_k,stoch_d,stoch_s,MODE_SMA,0,MODE_MAIN,n) * MathPow(n, mi – 1);
}
b[mi] = sum;
}
//===============Matrix=======================================================================================================
for(jj = 1; jj <= nn; jj++)
{
for(ii = 1; ii <= nn; ii++)
{
kk = ii + jj – 1;
ai[ii, jj] = sx[kk];
}
}
//===============Gauss========================================================================================================
for(kk = 1; kk <= nn – 1; kk++)
{
ll = 0; mm = 0;
for(ii = kk; ii <= nn; ii++)
{
if(MathAbs(ai[ii, kk]) > mm)
{
mm = MathAbs(ai[ii, kk]);
ll = ii;
}
}
if(ll == 0)
return(0);
if(ll != kk)
{
for(jj = 1; jj <= nn; jj++)
{
tt = ai[kk, jj];
ai[kk, jj] = ai[ll, jj];
ai[ll, jj] = tt;
}
tt = b[kk]; b[kk] = b[ll]; b[ll] = tt;
}
for(ii = kk + 1; ii <= nn; ii++)
{
qq = ai[ii, kk] / ai[kk, kk];
for(jj = 1; jj <= nn; jj++)
{
if(jj == kk)
ai[ii, jj] = 0;
else
ai[ii, jj] = ai[ii, jj] – qq * ai[kk, jj];
}
b[ii] = b[ii] – qq * b[kk];
}
}
x[nn] = b[nn] / ai[nn, nn];
for(ii = nn – 1; ii >= 1; ii–)
{
tt = 0;
for(jj = 1; jj <= nn – ii; jj++)
{
tt = tt + ai[ii, ii + jj] * x[ii + jj];
x[ii] = (1 / ai[ii, ii]) * (b[ii] – tt);
}
}
//===========================================================================================================================
for(n = i; n <= i + p; n++)
{
sum = 0;
for(kk = 1; kk <= m; kk++)
{
sum += x[kk + 1] * MathPow(n, kk);
}
fx[n] = x[1] + sum;
}
//———————————–Std———————————————————————————–
sq = 0.0;
for(n = i; n <= i + p; n++)
{
sq += MathPow(iStochastic(NULL,0,stoch_k,stoch_d,stoch_s,MODE_SMA,0,MODE_MAIN,n) – fx[n], 2);
}
sq = MathSqrt(sq / (p + 1)) * kstd;
std = iStdDevOnArray(stochdata,0,p,0,MODE_SMA,i) *kstd.internal;
for(n = i; n <= i + p; n++)
{
sqh[n] = fx[n] + sq;
sql[n] = fx[n] – sq;
stdh[n] = fx[n] + std;
stdl[n] = fx[n] – std;
}
//——————————————————————————-
ObjectMove(“sstart” + sName, 0, Time[p], fx[p]);
//—————————————————————————————————————————-
return(0);
.
