Indicator for identifying peaks and lows

• 05/08/2017 at 8:40 PM #34862
  balance

  Hi Nicholas.
  I have an indicator that identifies candle sequences – ascending sequences, and descending sequences.

  I really want to continue his action.
  And on the information obtained from it, create an indicator that identifies peak and low points.

  Could you please direct me how to do this?

  Here’s how it works –

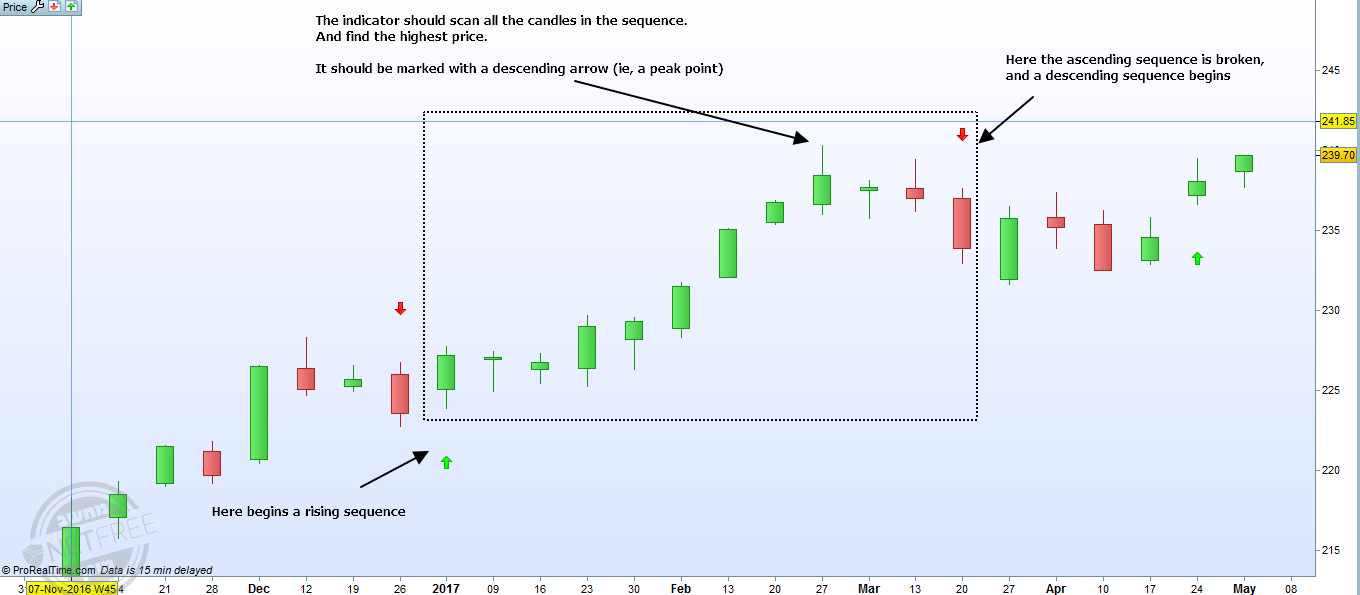

  The example is a peak search.

  . On Sunday the sequence started to rise

  . On Wednesday the rising sequence broke – and a descending sequence began

  As soon as the descending sequence begins, the indicator searches between them for the candle with the highest peak of all the candles and marks it as a peak point – with a gray or black arrow down. (Above the candle)



  I attach the existing code.
  (When the full code is ready, I’d be happy to share it and what you can get from it extensively – with our community members)

  // find the highest value from squence if highSeq < high[1] and dec = 0 then highSeq = high[1] HBlow = low[1] // Low of highest bar in sequence //Re-set the high of lowest bar LBHigh = 10000000000/PIPSize endif // find the highest value from squence if lowSeq > low[1] and inc = 0 then lowSeq = low[1] LBhigh = high[1]// High of lowest bar in sequence //Re-set the Low of highest bar HBlow = 0 endif // Check if close is higher than high of lowest bar on the sequance if LBhigh < Close and inc = 0 then // If condition meet, make incremental as true or 1 and decrimental as 0 or false inc = 1 dec = 0 // Re-sets decremental sequence lowseq = 10000000000/PIPSize // Darw arrow up when chart is shifted from incremental to decrimental DRAWARROWUP(barindex, low - ArrowDistance*Pipsize) COLOURED(UpArrowRValue,UpArrowGValue,UpArrowBValue) endif // Check if close is lower than low of highest bar on the sequance if HBlow > Close and dec = 0 then dec = 1 inc = 0 // Re-sets incremental sequence highseq = 0 // Darw arrow up when chart is shifted from incremental to decrimental DRAWARROWDOWN(barindex, high+ArrowDistance*Pipsize) COLOURED(DownArrowRValue,DownArrowGValue,DownArrowBValue) endif // Only for drawing line on the chart if inc = 1 and ShowMA then DRAWSEGMENT(barindex[1],low[1],barindex,low[0]) COLOURED(0,255,0) endif if dec = 1 and ShowMA then DRAWSEGMENT(barindex[1],high[1],barindex[0],high[0]) COLOURED(255,0,0) endif return //Nothing will be returned because it has to be shown in price

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49

  // find the highest value from squence if highSeq < high[1] and dec = 0 then   highSeq = high[1] HBlow = low[1] // Low of highest bar in sequence //Re-set the high of lowest bar LBHigh = 10000000000/PIPSize endif   // find the highest value from squence if lowSeq > low[1] and inc = 0 then   lowSeq = low[1] LBhigh = high[1]// High of lowest bar in sequence //Re-set the Low of highest bar HBlow = 0 endif   // Check if close is higher than high of lowest bar on the sequance if LBhigh < Close and inc = 0 then // If condition meet, make incremental as true or 1 and decrimental as 0 or false inc = 1 dec = 0 // Re-sets decremental sequence lowseq = 10000000000/PIPSize   // Darw arrow up when chart is shifted from incremental to decrimental DRAWARROWUP(barindex, low - ArrowDistance*Pipsize) COLOURED(UpArrowRValue,UpArrowGValue,UpArrowBValue)   endif   // Check if close is lower than low of highest bar on the sequance if HBlow > Close and dec = 0 then dec = 1 inc = 0 // Re-sets incremental sequence highseq = 0 // Darw arrow up when chart is shifted from incremental to decrimental DRAWARROWDOWN(barindex, high+ArrowDistance*Pipsize) COLOURED(DownArrowRValue,DownArrowGValue,DownArrowBValue) endif // Only for drawing line on the chart if inc = 1 and ShowMA then DRAWSEGMENT(barindex[1],low[1],barindex,low[0]) COLOURED(0,255,0) endif if dec = 1 and ShowMA then DRAWSEGMENT(barindex[1],high[1],barindex[0],high[0]) COLOURED(255,0,0) endif   return //Nothing will be returned because it has to be shown in price

  Edited by moderator to make “PRT code” format appear, please use “insert PRT code” button



  I very much beg your help – and thank you in advance.



  balance

  Participant

  Topics: 12

  Replies: 12

  Been thanked: 0 times
  05/09/2017 at 11:07 AM #34917
  Nicolas

  On your example, why is the ascending sequence only broke on Wednesday since 2 descending candlesticks has already been met since the lastest high?

  Does a sequence only start after X new highs / Y new lows?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  05/09/2017 at 8:00 PM #34982
  StantonR

  HI Balance

  You invited me to work on this on Freelancer.com. Better to do it here can help you for free then.

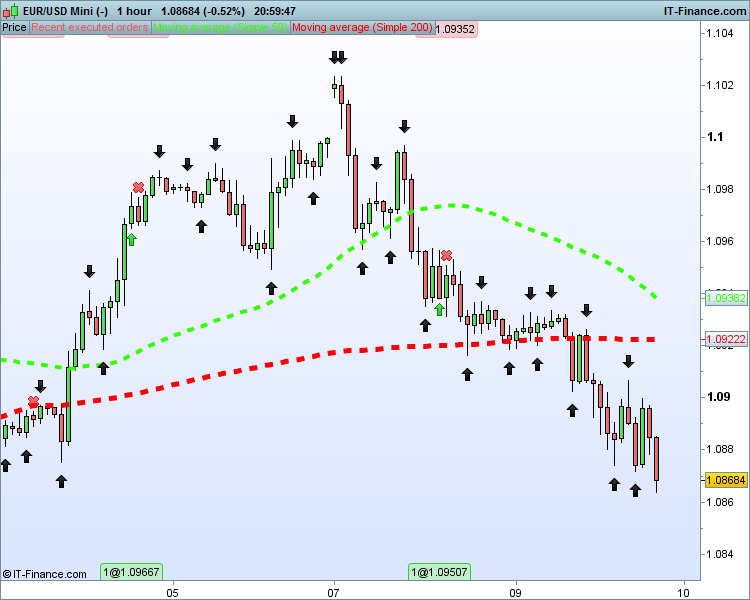

  When you first posted it to me I was looking at the Bill Williams Fractals as a possible solution.

  https://www.prorealcode.com/prorealtime-indicators/bill-williams-fractals/

  This Identifies the pivot points.



  StantonR

  Participant

  Topics: 7

  Replies: 70

  Been thanked: 7 times
  05/10/2017 at 9:47 PM #35134
  balance

  Hi Nicholas,
  Hope I understood your question correctly.

  Sequences are not dependent on peaks and lows, but on other conditions.
  For example – the condition for a rising sequence is – as long as the closing price of the current candle does not fall below the lowest of the highest candle in the rising sequence.

  In fact, the peak can only be determined after the ascending sequence has ended, because if I understand correctly, you can not delete arrows after they have already been marked in the graph



  balance

  Participant

  Topics: 12

  Replies: 12

  Been thanked: 0 times
  05/10/2017 at 10:25 PM #35138
  balance

  Hi StantonR

  First of all thank you for your kindness.
  And the proposal to use the indicator you mentioned.

  But, after looking at him, he seemed to have a real flood of arrows.
  It seems to me that according to my proposal there will be far fewer (each sequence can have only one point of peak or low)

  Am I not right? Please write me what you think.

  (By the way, you are still invited to accept my invitation.) What is your FREELANCER username?



  balance

  Participant

  Topics: 12

  Replies: 12

  Been thanked: 0 times
  05/11/2017 at 9:17 AM #35164
  Nicolas

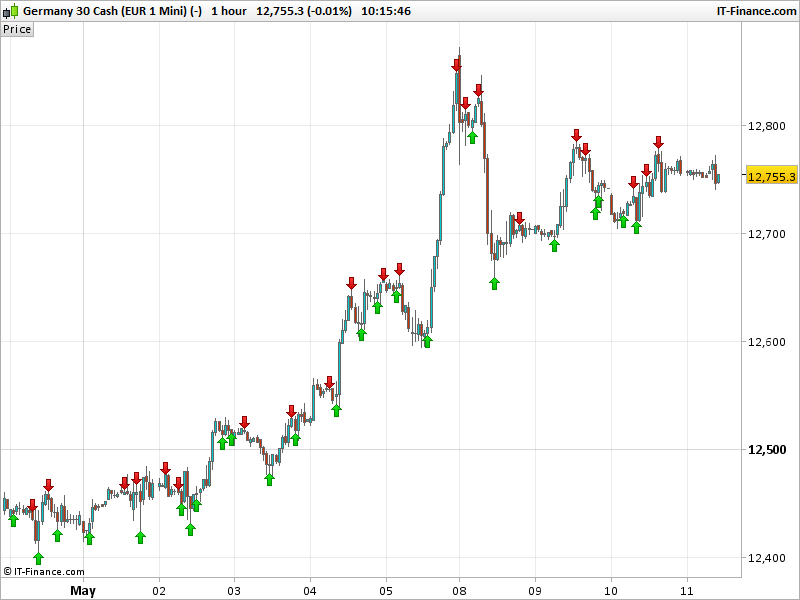

  So let’s try this code and give us your feedbacks about it. Just a rough code, because I’m busy this morning 🙂

  if close>close[1] and close>hightrough then //low of current peak lowpeak = low endif if close<close[1] and (close<lowpeak or lowpeak=0) then //high of current tough hightrough = high endif if hightrough>hightrough[1] then drawarrowdown(barindex[1],high[1])coloured(200,0,0) endif if lowpeak<lowpeak[1] then drawarrowup(barindex[1],low[1])coloured(0,200,0) endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

  if close>close[1] and close>hightrough then //low of current peak lowpeak = low endif   if close<close[1] and (close<lowpeak or lowpeak=0) then //high of current tough hightrough = high endif   if hightrough>hightrough[1] then drawarrowdown(barindex[1],high[1])coloured(200,0,0) endif   if lowpeak<lowpeak[1] then drawarrowup(barindex[1],low[1])coloured(0,200,0) endif   return





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  05/12/2017 at 5:23 PM #35348
  Sofitech

  Hello Nicolas.
  How can I create a return instruction show a result I can use to create alert on my chart ? (with your code).



  Sofitech

  Participant

  Topics: 55

  Replies: 147

  Been thanked: 10 times
  05/12/2017 at 9:14 PM #35364
  Nicolas

  You should use this code instead and get the values of the “up” and “down” variables in your own automated trading strategy:

  if close>close[1] and close>hightrough then //low of current peak lowpeak = low endif if close<close[1] and (close<lowpeak or lowpeak=0) then //high of current tough hightrough = high endif if hightrough>hightrough[1] then drawarrowdown(barindex[1],high[1])coloured(200,0,0) down=1 else down=0 endif if lowpeak<lowpeak[1] then drawarrowup(barindex[1],low[1])coloured(0,200,0) up=1 else up=0 endif return up, down

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

  if close>close[1] and close>hightrough then //low of current peak lowpeak = low endif   if close<close[1] and (close<lowpeak or lowpeak=0) then //high of current tough hightrough = high endif   if hightrough>hightrough[1] then drawarrowdown(barindex[1],high[1])coloured(200,0,0) down=1 else down=0 endif   if lowpeak<lowpeak[1] then drawarrowup(barindex[1],low[1])coloured(0,200,0) up=1 else up=0 endif   return up, down





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  05/14/2017 at 9:36 AM #35470
  balance

  Hi Nicholas,
  Thanks for the code you submitted. He looked great.
  But I have some comments on it to improve,

  1. There are lots of high and low points, making it difficult to filter.

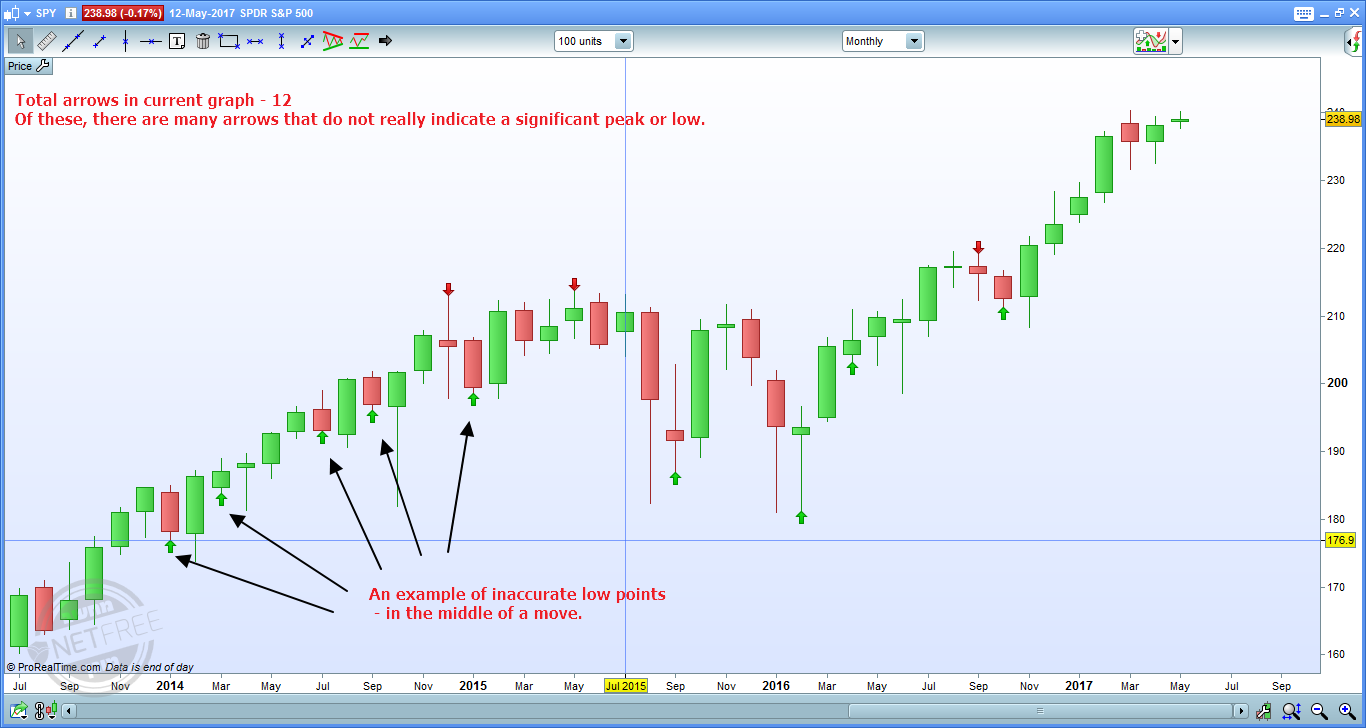

  2 are often not placed in an exact place – for example, you can see in the attached screenshot – a number of low points located in the middle of the rise …

  According to the definition I raised at the beginning of the topic – there will be far fewer points on the graph.

  I have attached two examples. You can see in them that there is a huge difference (75%) in the number of arrows on the graph compared to what is currently there.

  So what are you saying ? What do you think ?
  Could you please help develop something like this?

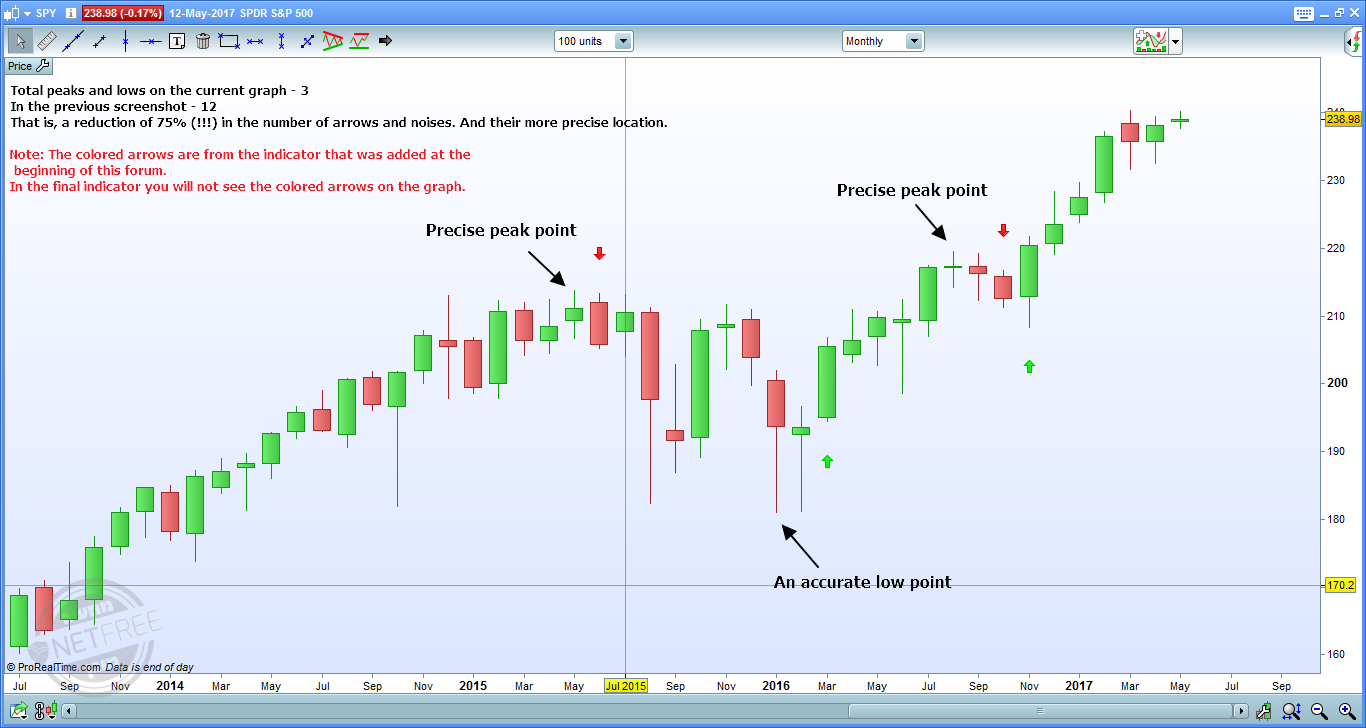

  As mentioned above, I have attached two examples. One – of the results of the code at the moment. And the second – of the desired results according to the definitions I wrote above.

  Thanks again.
  And a wonderful week.

  chaim (balance)



  balance

  Participant

  Topics: 12

  Replies: 12

  Been thanked: 0 times
  05/14/2017 at 9:38 AM #35472
  balance

  It seems that the second example did not come up,
  So I bring it up again.



  balance

  Participant

  Topics: 12

  Replies: 12

  Been thanked: 0 times
  05/15/2017 at 11:15 PM #35651
  GraHal

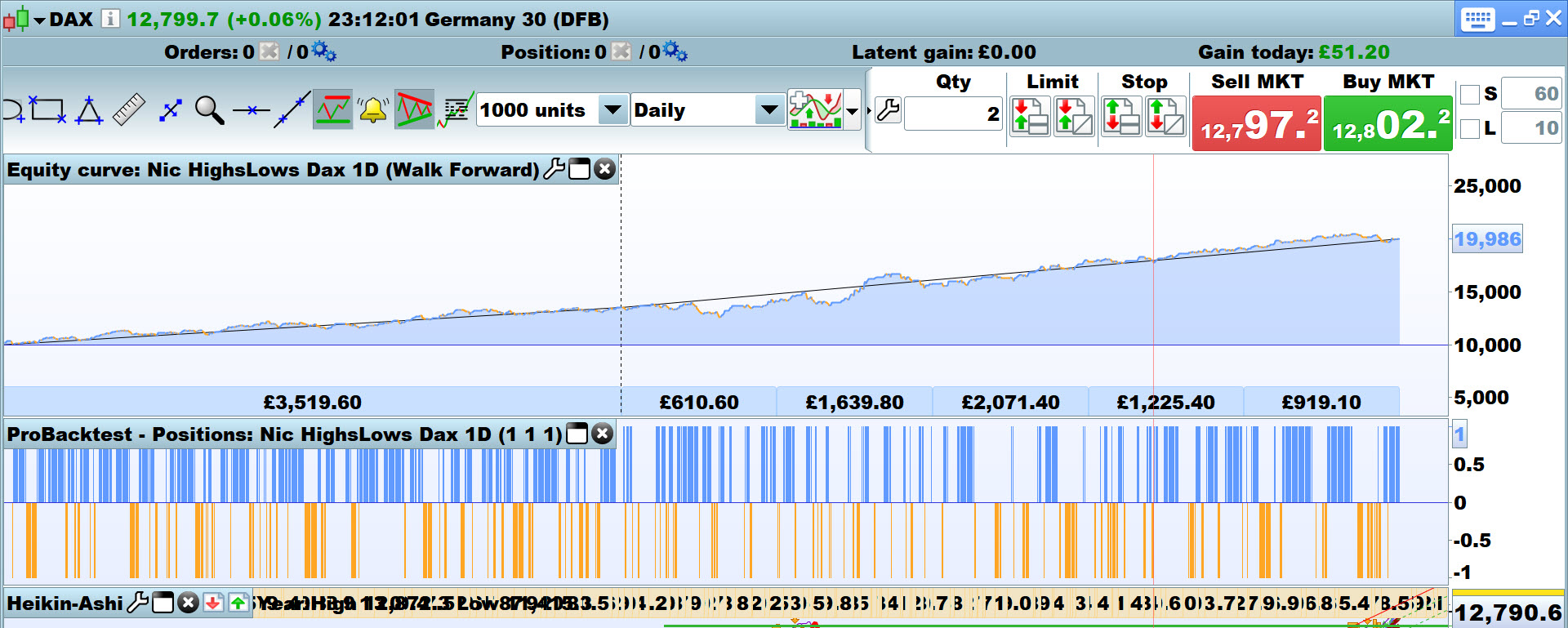

  If anybody is interested I made a Strategy out of Nicolas Code.

  Seemed rude not to! 🙂
  GraHal

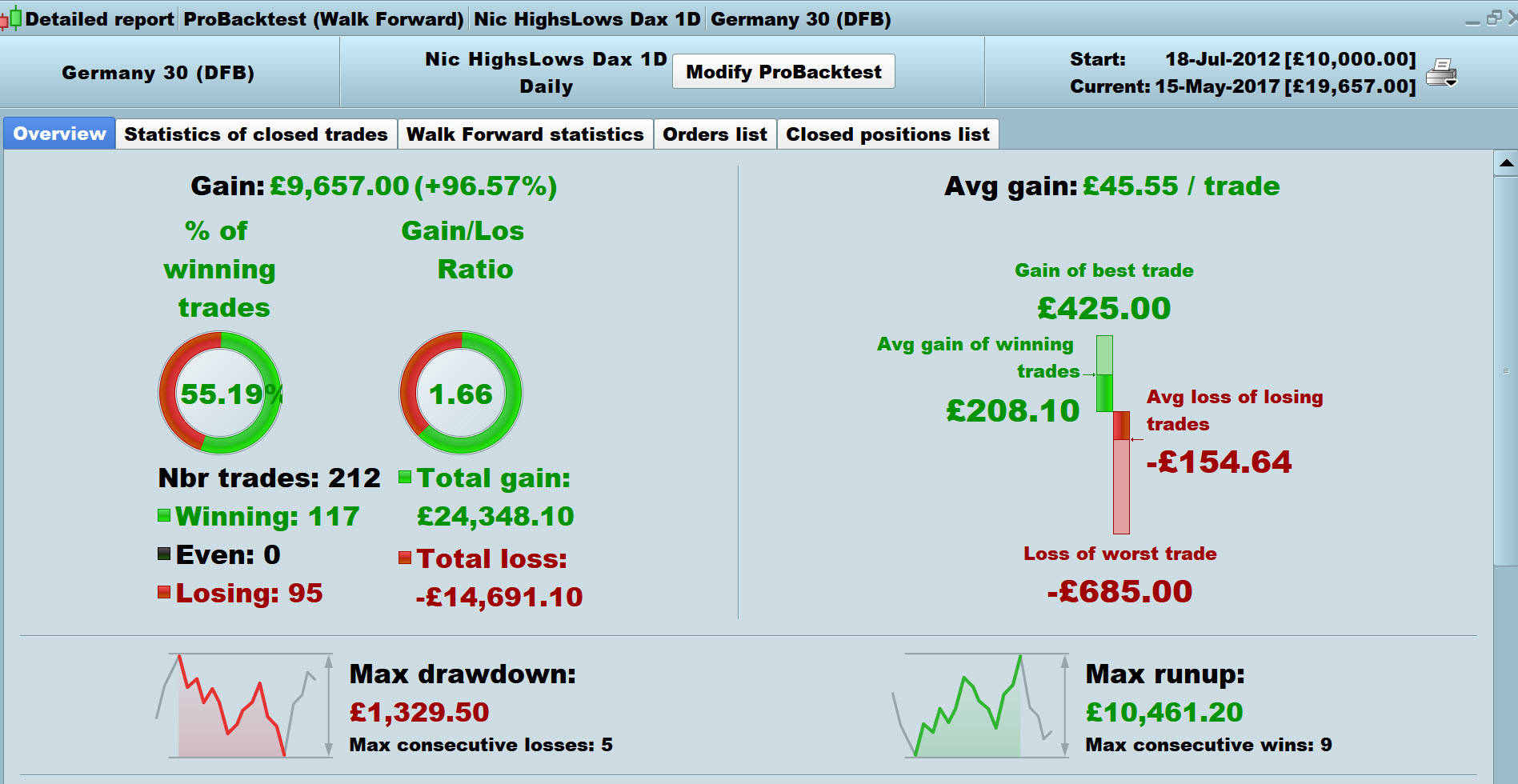

  Dax 1 Day and I just realised the results below are over only 1000 Days, Oops!  It was just a ‘curiosity exercise’ anyway.

  //https://www.prorealcode.com/topic/indicator-for-identifying-peaks-and-lows/ //Nic HighsLows Dax 1D DEFPARAM CUMULATEORDERS = False if close>close[1] and close>hightrough then //low of current peak lowpeak = low endif if close<close[1] and (close<lowpeak or lowpeak=0) then //high of current tough hightrough = high endif if hightrough>hightrough[1] then //drawarrowdown(barindex[1],high[1])coloured(200,0,0) down=1 else down=0 endif if lowpeak<lowpeak[1] then //drawarrowup(barindex[1],low[1])coloured(0,200,0) up=1 else up=0 endif If Up=1 and Chandle[20](close) > -45 Then Buy at Market Endif If Down=1 and Chandle[20](close) < 35 Then SellShort at Market Endif //Alternative Exit //If LongonMarket and Close < ExponentialAverage[190](close) Then //Sell at Market //endif // //If ShortonMarket and Close > ExponentialAverage[150](close) Then //Exitshort at Market //endif If LongonMarket Then SET TARGET PPROFIT 425 SET STOP PTRAILING 725 Endif If ShortonMarket Then SET TARGET PPROFIT 175 SET STOP PTRAILING 400 Endif //return up, down

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

  //https://www.prorealcode.com/topic/indicator-for-identifying-peaks-and-lows/ //Nic HighsLows Dax 1D   DEFPARAM CUMULATEORDERS = False   if close>close[1] and close>hightrough then //low of current peak lowpeak = low endif if close<close[1] and (close<lowpeak or lowpeak=0) then //high of current tough hightrough = high endif if hightrough>hightrough[1] then //drawarrowdown(barindex[1],high[1])coloured(200,0,0) down=1 else down=0 endif if lowpeak<lowpeak[1] then //drawarrowup(barindex[1],low[1])coloured(0,200,0) up=1 else up=0 endif   If Up=1 and Chandle[20](close) > -45 Then Buy at Market Endif   If Down=1 and Chandle[20](close) < 35 Then SellShort at Market Endif   //Alternative Exit //If LongonMarket and Close < ExponentialAverage[190](close) Then //Sell at Market //endif // //If ShortonMarket and Close > ExponentialAverage[150](close) Then //Exitshort at Market //endif   If LongonMarket Then SET TARGET PPROFIT 425 SET STOP PTRAILING 725 Endif   If ShortonMarket Then SET TARGET PPROFIT 175 SET STOP PTRAILING 400 Endif      //return up, down





  GraHal

  Participant

  Topics: 212

  Replies: 8789

  Been thanked: 2188 times
  05/24/2017 at 6:46 PM #36587
  Copperwave

  Hi – I have been looking into this and while the concept is good, it is asking too much of price action behaviour to work reliably…unless I’m missing something in your signal definitions. The indicator Nicolas prototyped does what you ask. Where it fails, (in terms of too many false positives) is because that is what price action does. Price chop you will get multiple triggers. I think filtering those out requires some sort of lookback comparison in which case then you might as well use a variation of  Fractals.

  For what its worth I made a small tweak to Nicolas’s code (I added [1] to the high/low statements in the draw sections) that reduces the false positives by about 50% but I think the basic concept is flawed. It will work fine if candles appear in an organised uptrend/downtrend but this rarely happens. It looks good in static analysis but will fail in realtime use – I think 🙂 Still nice idea – but my coding isn’t good enough.

  if (close>close[1]) and (close>hightrough) then //low of current peak lowpeak = low endif if (close<close[1]) and (close<lowpeak) then //high of current trough hightrough = high endif if hightrough>hightrough[1] then drawarrowdown(barindex[1],high[1])coloured(200,0,0) hightrough = high[1] endif if lowpeak<lowpeak[1] then drawarrowup(barindex[1],low[1])coloured(0,200,0) lowpeak = low[1] endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

  if (close>close[1]) and (close>hightrough) then //low of current peak lowpeak = low endif if (close<close[1]) and (close<lowpeak) then //high of current trough hightrough = high endif if hightrough>hightrough[1] then drawarrowdown(barindex[1],high[1])coloured(200,0,0) hightrough = high[1] endif   if lowpeak<lowpeak[1] then drawarrowup(barindex[1],low[1])coloured(0,200,0) lowpeak = low[1] endif   return





  Best

  //copperwave

  1 user thanked author for this post.

  Nicolas



  Copperwave

  Participant

  Topics: 1

  Replies: 9

  Been thanked: 2 times
