Indicator value on chart

• 05/05/2021 at 1:05 PM #168841
  IG_CFD_Trader

  Hello Gents,

  I am relatively new here. I have a fairly simple and general question.

  If my Indicator returns a value (for example 100), is it possible to show that value directly on the chart (above or below the last bar)?

  If possible, what is the syntax that I can use to achieve this?

  Thank you in advance.

  Regards



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  05/05/2021 at 1:38 PM #168851
  robertogozzi

  Data RETURNed are plotted every bar and this cannot be changed.

  You can plot data using a DRAW…. (see graphic instructions at https://www.prorealcode.com/documentation/category/graphical/), with which you can use DEFPARAM DRAWONLASTBARONLY=TRUE to plot only on the last candle only.







  robertogozzi

  Moderator

  Topics: 69

  Replies: 17153

  Been thanked: 4040 times
  05/05/2021 at 1:43 PM #168853
  IG_CFD_Trader

  Thanks Robert.

  So how would I show the value of my indicator directly above or below the current bar?

  For example a simple VWAP indicator returning 5000. How would I put that 5000 number directly above the current bar?



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  05/05/2021 at 2:05 PM #168859
  robertogozzi

  Add this line as first line:

  DEFPARAM DRAWONLASTBARONLY =true

  1	DEFPARAM DRAWONLASTBARONLY =true

  then add this one before RETURN (I assume your data is retained by variable VWAP, but it can be anything else):

  DrawText(“Vwap #Vwap#”,barindex,high+range*2)

  1	DrawText(“Vwap #Vwap#”,barindex,high+range*2)

  remove any data after RETURN.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17153

  Been thanked: 4040 times
  05/06/2021 at 12:27 AM #168890
  IG_CFD_Trader

  Thank you Rob. It worked. The # did the trick 🙂



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  05/06/2021 at 12:37 AM #168891
  IG_CFD_Trader

  How do I increase the font of the text?



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  05/06/2021 at 12:48 AM #168892
  robertogozzi

  You can add Font, Style and Size, as best described at https://www.prorealcode.com/documentation/drawtext/.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17153

  Been thanked: 4040 times
  05/06/2021 at 2:35 AM #168896
  IG_CFD_Trader

  Excellent thank you.

  I have the chart on 15 mins intraday and the vwap value resets every 15mins when a new bar forms (which is what i want it to do).

  Now how would I leave a copy of the value on the previous bar as soon as the new bar forms? is there a trick to do this?



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  05/06/2021 at 2:38 AM #168897
  IG_CFD_Trader

  for example, how would I define the last second of a bar? for example 14 mins and 59 seconds (on a 15 min bar)?



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  05/06/2021 at 9:07 AM #168918
  robertogozzi

  To plot the last two values, since it always plots on the last bar, deleting what’s been plotted before, you have to save the previous bar’s value of the indicator.

  The first line after DEFPARAM must be:

  Vwap1 = Vwap //save the previos value before VWAP is recalculated

  1	Vwap1 = Vwap      //save the previos value before VWAP is recalculated

  then use two separate DRAWTEXT lines:

  DrawText(“Vwap1 #Vwap1#”,barindex-1,high+range*3) DrawText(“Vwap #Vwap#” ,barindex, high+range*2)

  1 2	DrawText(“Vwap1 #Vwap1#”,barindex-1,high+range*3) DrawText(“Vwap  #Vwap#” ,barindex,  high+range*2)







  robertogozzi

  Moderator

  Topics: 69

  Replies: 17153

  Been thanked: 4040 times
  05/06/2021 at 10:12 AM #168927
  robertogozzi

  As to your last question, this is an indicator to be added under your 1-second price chart:

  Timeframe(15 minute,default) Minute15 = OpenMinute + 14 Timeframe(1 second,default) x = 0 IF (OpenMinute = Minute15) AND (CurrentSecond = 59) THEN x = 1 ENDIF return x AS "Next one is the Last Second"

  1 2 3 4 5 6 7 8

  Timeframe(15 minute,default) Minute15 = OpenMinute + 14 Timeframe(1 second,default) x = 0 IF (OpenMinute = Minute15) AND (CurrentSecond = 59) THEN    x = 1 ENDIF return x AS "Next one is the Last Second"





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17153

  Been thanked: 4040 times
  05/06/2021 at 1:01 PM #168936
  IG_CFD_Trader

  Thank you Robert. Much appreciated.

  Assume my indicator is calculating difference between two numbers (say a-b=c). Now is c is being continually calculated and is dynamically changing on the chart.

  Now let’s say c happens to be < 0 (say for argument sake = -100). Now as long as c is decreasing is value (eg -105, -107, -109 etc…) I keep on colouring c in red. But when c increases in value say switches from -105 to -103 (notice c is till <0 but increased in value), how do I then show it in green?



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  05/06/2021 at 2:10 PM #168942
  robertogozzi

  There you go (not tested):

  Once b = 0 //Blue Once t = 255 //Transparency MyCCI = Cci[14](TypicalPrice) If MyCCI < MyCCI[1] then r = 255 //Red g = 0 //Green ElsIf MyCCI >= MyCCI[1] then r = 0 //Red g = 255 //Green Endif Return MyCCI coloured(r,g,b,t) as “Cci”

  1 2 3 4 5 6 7 8 9 10 11

  Once b = 0     //Blue Once t = 255   //Transparency MyCCI = Cci[14](TypicalPrice) If MyCCI < MyCCI[1] then    r = 255     //Red    g = 0       //Green ElsIf MyCCI >= MyCCI[1] then    r = 0       //Red    g = 255     //Green Endif Return MyCCI coloured(r,g,b,t) as “Cci”





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17153

  Been thanked: 4040 times
  05/06/2021 at 2:30 PM #168949
  IG_CFD_Trader

  Tnx but your code is looking at a value 1 bar ago i.e. mycci[1]. The two values I need to compare are both occurring in the current bar (1 variable dynamically changing in the current bar so it need to compare it to itself ( i.e. its currentvalue – its previous value) …so I need something else other than [1] syntax



  IG_CFD_Trader

  Participant

  Topics: 31

  Replies: 74

  Been thanked: 2 times
  05/06/2021 at 3:18 PM #168955
  Zigo

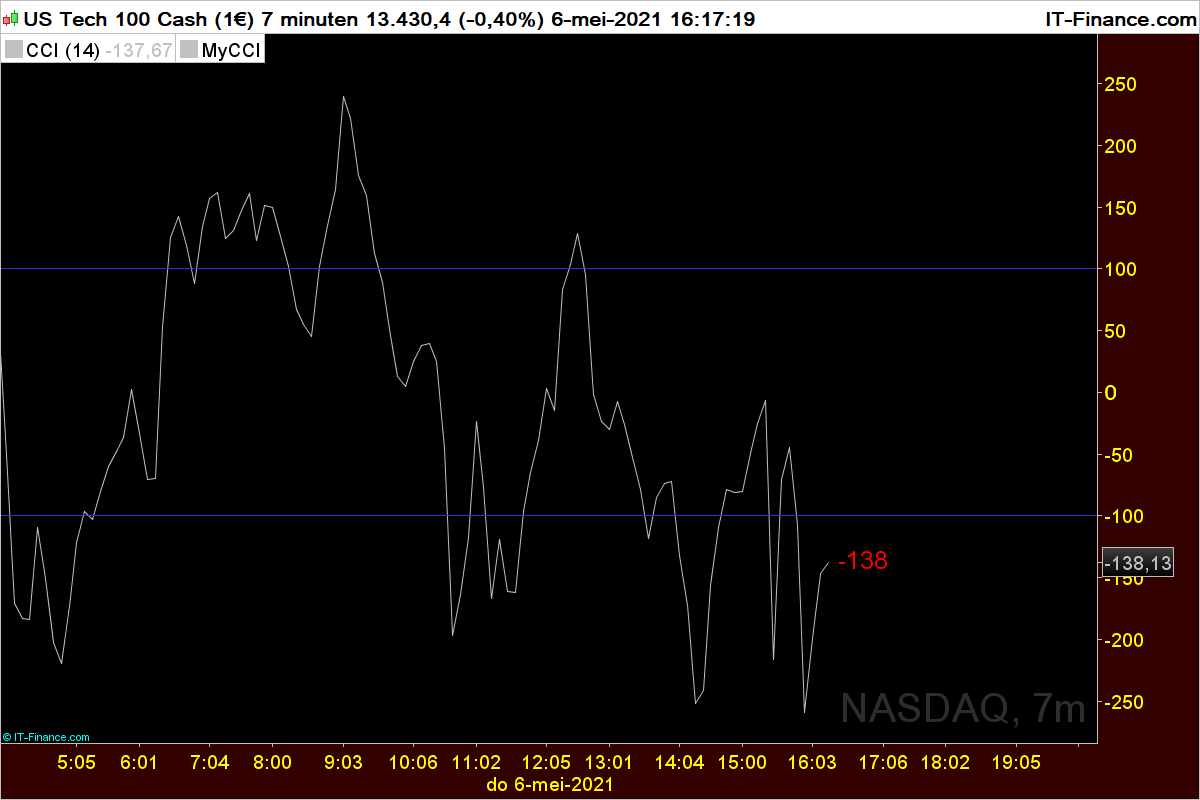

  Drawonlastbaronly

  //Zigo 6/05/2021 Defparam DRAWONLASTBARONLY =true mycci=round(CCI[14](typicalPrice)) if mycci <0 then r=255 g=0 bl=0 elsif mycci > 0 then r=0 g=255 bl=0 endif DRAWTEXT(" #mycci#", barindex, mycci, dialog,standard, 18)coloured(r,g,bl,255) return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14

  //Zigo 6/05/2021 Defparam DRAWONLASTBARONLY =true mycci=round(CCI[14](typicalPrice)) if mycci <0 then r=255 g=0 bl=0 elsif mycci > 0 then r=0 g=255 bl=0 endif DRAWTEXT("           #mycci#", barindex, mycci, dialog,standard, 18)coloured(r,g,bl,255) return





  Zigo

  Participant

  Topics: 24

  Replies: 343

  Been thanked: 63 times
