Indikator im Sastem und als Stop loss

• 01/15/2025 at 2:48 PM #242636
  axmichi

  Hallo



  ich habe im forum hier einen Indikator gefunden, den ATR Stop loss finder.

  diesen möchte ich als Bedingung für den einstieg und auch als Stop loss benutzen

  Wenn ich diesen im code anlege, dann kommt als Meldung ignored und das der Indikator nicht gefunden werden kann.

  Was muss ich tun, damit das funktioniert??



  Hier der code des Indikators

  // HstopL v1  20-07-2022 druby

  //

  // Dynamic variable settings

  // NAME           Type      Default         (comment)

  // ——————————————————————-

  // Period       integer        14           lookback range

  // Mul          Decimal        1.5          multiply the ATR value by:

  defparam drawonlastbaronly = true

  // input limiters – limit the range of values used in code calculations

  period = max(min(Period,barindex),1) // (1 to barindex)

  mul = max(min(Mul,10),0)             // (0 to 10)

  //true range calculation

  tr1 = abs(high – low)

  tr2 = abs(high – close[1])

  tr3 = abs(low – close[1])

  trf = max(tr3,max(tr1,tr2))  // absolute maximum of (tr1,tr2,tr3)

  if barindex > period then  // delay average calculations till enough bars avaliable

  // manual RMA calculation

  k= 1/(period)

  RMA = range * k + RMA[1] * (1–k)

  xma = RMA

  //  Atr, HLline calculations

  // Atr value

  a = xma * mul

  // Atr +/- high/low values

  x = xma * mul + high

  x2 = low – xma * mul

  endif // barindex > period

  // Drawing main text and values

  Drawtext(“ATR: #a#”,–255,10,dialog,bold,20)anchor(bottom) coloured (“dodgerblue”)

  Drawtext(“H: #x#”,   –70,10,dialog,bold,20)anchor(bottom) coloured (“red”)

  Drawtext(“L: #x2#”,  100,10,dialog,bold,20)anchor(bottom) coloured (“teal”)

  // draw averageType label

  Drawtext(“RMA”,40,10,dialog,bold,20)anchor(bottomLeft) coloured (“grey”)

  // return (atr * mul) high and low lines

  return x as“Hstop”,x2 as“Lstop”



  axmichi

  Participant

  Topics: 108

  Replies: 371

  Been thanked: 12 times
  01/15/2025 at 4:07 PM #242641
  Iván

  Tiene que definir la variable Period y Mul.

  // HstopL v1 20-07-2022 druby // // Dynamic variable settings // NAME Type Default (comment) // ——————————————————————- defparam drawonlastbaronly = true Period =14// integer 14 lookback range Mul=1.5// Decimal 1.5 multiply the ATR value by: // input limiters - limit the range of values used in code calculations period = max(min(Period,barindex),1) // (1 to barindex) mul = max(min(Mul,10),0) // (0 to 10) //true range calculation tr1 = abs(high - low) tr2 = abs(high - close[1]) tr3 = abs(low - close[1]) trf = max(tr3,max(tr1,tr2)) // absolute maximum of (tr1,tr2,tr3) if barindex > period then // delay average calculations till enough bars avaliable // manual RMA calculation k= 1/(period) RMA = range * k + RMA[1] * (1-k) xma = RMA // Atr, HLline calculations // Atr value a = xma * mul // Atr +/- high/low values x = xma * mul + high x2 = low - xma * mul endif // barindex > period // Drawing main text and values Drawtext("ATR: #a#",-255,10,dialog,bold,20)anchor(bottom) coloured ("dodgerblue") Drawtext("H: #x#", -70,10,dialog,bold,20)anchor(bottom) coloured ("red") Drawtext("L: #x2#", 100,10,dialog,bold,20)anchor(bottom) coloured ("teal") // draw averageType label Drawtext("RMA",40,10,dialog,bold,20)anchor(bottomLeft) coloured ("grey") // return (atr * mul) high and low lines return x as"Hstop",x2 as"Lstop"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

  // HstopL v1  20-07-2022 druby // // Dynamic variable settings // NAME           Type      Default         (comment) // ——————————————————————- defparam drawonlastbaronly = true Period =14//      integer        14           lookback range Mul=1.5//          Decimal        1.5          multiply the ATR value by: // input limiters - limit the range of values used in code calculations period = max(min(Period,barindex),1) // (1 to barindex) mul = max(min(Mul,10),0)             // (0 to 10) //true range calculation tr1 = abs(high - low) tr2 = abs(high - close[1]) tr3 = abs(low - close[1]) trf = max(tr3,max(tr1,tr2))  // absolute maximum of (tr1,tr2,tr3) if barindex > period then  // delay average calculations till enough bars avaliable // manual RMA calculation k= 1/(period) RMA = range * k + RMA[1] * (1-k) xma = RMA //  Atr, HLline calculations // Atr value a = xma * mul // Atr +/- high/low values x = xma * mul + high x2 = low - xma * mul endif // barindex > period // Drawing main text and values Drawtext("ATR: #a#",-255,10,dialog,bold,20)anchor(bottom) coloured ("dodgerblue") Drawtext("H: #x#",   -70,10,dialog,bold,20)anchor(bottom) coloured ("red") Drawtext("L: #x2#",  100,10,dialog,bold,20)anchor(bottom) coloured ("teal") // draw averageType label Drawtext("RMA",40,10,dialog,bold,20)anchor(bottomLeft) coloured ("grey") // return (atr * mul) high and low lines return x as"Hstop",x2 as"Lstop"





  Iván

  Moderator

  Topics: 0

  Replies: 1229

  Been thanked: 442 times
  01/16/2025 at 1:26 PM #242676
  axmichi

  Ok, hab ich gemacht. aber wie soll der Name für den Stop Loss sein?? Siehe Bild

  Und da steht wieder ignores im code?

  Hier der Code:



  DEFPARAM CumulateOrders = False // Kumulieren von Positionen deaktiviert

  // Bedingungen zum Einstieg in Long-Positionen
  indicator1 = ExponentialAverage[22](high)
  c1 = (close[1] > indicator1)
  ignored, indicator2 = CALL “ATR Stop loss finder”[14, 0.5]
  indicator3 = ExponentialAverage[22](low)
  c2 = (indicator2 < indicator3)
  indicator4 = Williams[4](close)
  c3 = (indicator4 < -80)

  IF c1 AND c2 AND c3 THEN
  BUY 1 SHARES AT MARKET
  ENDIf



  axmichi

  Participant

  Topics: 108

  Replies: 371

  Been thanked: 12 times
  01/16/2025 at 1:29 PM #242677
  axmichi

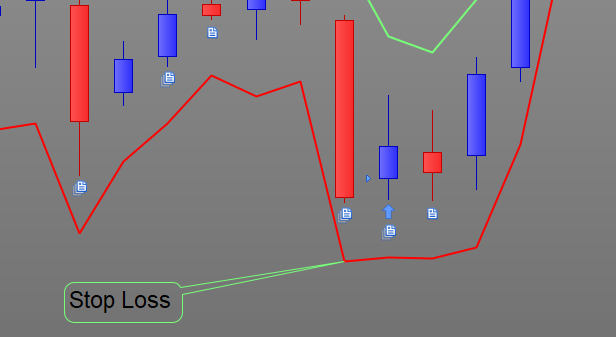

  Hier das Bild….



  axmichi

  Participant

  Topics: 108

  Replies: 371

  Been thanked: 12 times
  01/16/2025 at 3:23 PM #242686
  Iván

  Sie können den Stop-Loss festlegen, sobald die Einstiegsbedingungen erfüllt sind, und er bleibt so fixiert.

  IF not longonmarket and c1 AND c2 AND c3 THEN stoploss=x2 BUY 1 SHARES AT MARKET set stop price stoploss ENDIf

  1 2 3 4 5

  IF not longonmarket and c1 AND c2 AND c3 THEN stoploss=x2 BUY 1 SHARES AT MARKET set stop price stoploss ENDIf

  x2 stammt aus dem ursprünglichen Code. Von hier aus können Sie die Änderung des Stop-Loss testen, wenn andere Bedingungen erfüllt sind, oder sogar einen Trail-Stop anwenden. Ich überlasse es Ihnen jetzt, damit Sie es studieren können. Du hast im Forum viele Beispiele.



  Iván

  Moderator

  Topics: 0

  Replies: 1229

  Been thanked: 442 times
  01/16/2025 at 3:48 PM #242690
  axmichi

  Aber schauen Sie, obwohl der Indicator genau so im Chart ist, wird der Stop loss nicht gehandelt.

  Hier der Code mit Ihrem Hinweiß:



  EMA22=ExponentialAverage[22](high)
  c1 = close[1]>EMA22
  ignored, indicator2 = CALL “ATR Stop loss finder”[14, 0.5]
  indicator3 = ExponentialAverage[22](low)
  c2 = (indicator2 < indicator3)
  indicator4 = Williams[4](close)
  c3 = (indicator4 < -80)

  IF c1 AND c2 AND c3 THEN
  stoploss=x2
  BUY 1 SHARES AT MARKET
  ENDIf
  set stop price Stoploss







  axmichi

  Participant

  Topics: 108

  Replies: 371

  Been thanked: 12 times
  01/20/2025 at 4:36 PM #242870
  Iván

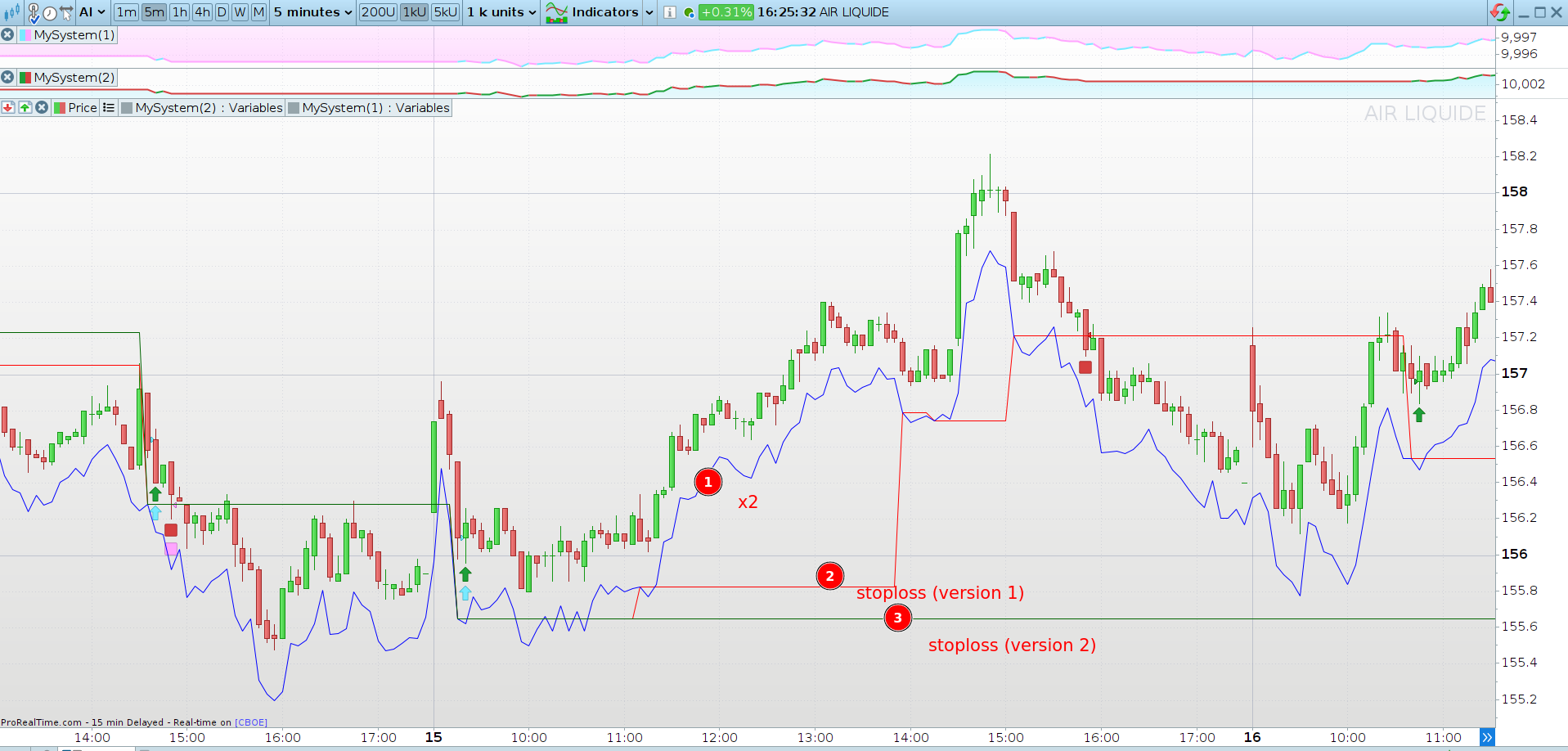

  Das Problem besteht darin, wo Sie die set stop price platzieren. Wie Sie es in Ihren Code eingegeben haben, aktualisiert das System den Stop-Loss-Wert jedes Mal, wenn C1, C2 und C3 gleichzeitig erfüllt werden, auf x2. Schauen Sie sich das an, das ist Ihr Code und im beigefügten Bild können Sie die Aktualisierung des Stop-Loss und den Wert von x2 sehen.

  defparam cumulateorders = false Period =14// integer 14 lookback range Mul=1.5// Decimal 1.5 multiply the ATR value by: // input limiters - limit the range of values used in code calculations period = max(min(Period,barindex),1) // (1 to barindex) mul = max(min(Mul,10),0) // (0 to 10) //true range calculation tr1 = abs(high - low) tr2 = abs(high - close[1]) tr3 = abs(low - close[1]) trf = max(tr3,max(tr1,tr2)) // absolute maximum of (tr1,tr2,tr3) if barindex > period then // delay average calculations till enough bars avaliable // manual RMA calculation k= 1/(period) RMA = range * k + RMA[1] * (1-k) xma = RMA // Atr, HLline calculations // Atr value a = xma * mul // Atr +/- high/low values x = xma * mul + high x2 = low - xma * mul endif // barindex > period EMA22=ExponentialAverage[22](high) c1 = close[1]>EMA22 //ignored, indicator2 = CALL "ATR Stop loss finder"[14, 0.5] indicator3 = ExponentialAverage[22](low) c2 = (x2 < indicator3) indicator4 = Williams[4](close) c3 = (indicator4 < -80) IF c1 AND c2 AND c3 THEN stoploss=x2 BUY 1 SHARES AT MARKET ENDIf set stop price Stoploss graphonprice Stoploss coloured("red") graphonprice x2 coloured("blue")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

  defparam cumulateorders = false Period =14//      integer        14           lookback range Mul=1.5//          Decimal        1.5          multiply the ATR value by: // input limiters - limit the range of values used in code calculations period = max(min(Period,barindex),1) // (1 to barindex) mul = max(min(Mul,10),0)             // (0 to 10) //true range calculation tr1 = abs(high - low) tr2 = abs(high - close[1]) tr3 = abs(low - close[1]) trf = max(tr3,max(tr1,tr2))  // absolute maximum of (tr1,tr2,tr3) if barindex > period then  // delay average calculations till enough bars avaliable // manual RMA calculation k= 1/(period) RMA = range * k + RMA[1] * (1-k) xma = RMA //  Atr, HLline calculations // Atr value a = xma * mul // Atr +/- high/low values x = xma * mul + high x2 = low - xma * mul endif // barindex > period   EMA22=ExponentialAverage[22](high) c1 = close[1]>EMA22 //ignored, indicator2 = CALL "ATR Stop loss finder"[14, 0.5] indicator3 = ExponentialAverage[22](low) c2 = (x2 < indicator3) indicator4 = Williams[4](close) c3 = (indicator4 < -80)   IF c1 AND c2 AND c3 THEN stoploss=x2 BUY 1 SHARES AT MARKET ENDIf set stop price Stoploss graphonprice Stoploss coloured("red") graphonprice x2 coloured("blue")



  Iván

  Moderator

  Topics: 0

  Replies: 1229

  Been thanked: 442 times
  01/20/2025 at 4:42 PM #242873
  Iván

  Dies ist der zweite Fall, der Ihnen den Code verrät, den Sie gerade betreten haben. In diesem Fall wird der Stoploss nur am Eingang angezeigt (die Stoploss-Linie wird auf der dunkelgrünen Grafik angezeigt).

  defparam cumulateorders = false Period =14// integer 14 lookback range Mul=1.5// Decimal 1.5 multiply the ATR value by: // input limiters - limit the range of values used in code calculations period = max(min(Period,barindex),1) // (1 to barindex) mul = max(min(Mul,10),0) // (0 to 10) //true range calculation tr1 = abs(high - low) tr2 = abs(high - close[1]) tr3 = abs(low - close[1]) trf = max(tr3,max(tr1,tr2)) // absolute maximum of (tr1,tr2,tr3) if barindex > period then // delay average calculations till enough bars avaliable // manual RMA calculation k= 1/(period) RMA = range * k + RMA[1] * (1-k) xma = RMA // Atr, HLline calculations // Atr value a = xma * mul // Atr +/- high/low values x = xma * mul + high x2 = low - xma * mul endif // barindex > period // Bedingungen zum Einstieg in Long-Positionen indicator1 = ExponentialAverage[22](high) c1 = (close[1] > indicator1) indicator3 = ExponentialAverage[22](low) c2 = (x2 < indicator3) indicator4 = Williams[4](close) c3 = (indicator4 < -80) IF not longonmarket and c1 AND c2 AND c3 THEN stoploss=x2 BUY 1 SHARES AT MARKET set stop price stoploss ENDIf graphonprice stoploss coloured("darkgreen")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

  defparam cumulateorders = false Period =14//      integer        14           lookback range Mul=1.5//          Decimal        1.5          multiply the ATR value by: // input limiters - limit the range of values used in code calculations period = max(min(Period,barindex),1) // (1 to barindex) mul = max(min(Mul,10),0)             // (0 to 10) //true range calculation tr1 = abs(high - low) tr2 = abs(high - close[1]) tr3 = abs(low - close[1]) trf = max(tr3,max(tr1,tr2))  // absolute maximum of (tr1,tr2,tr3) if barindex > period then  // delay average calculations till enough bars avaliable // manual RMA calculation k= 1/(period) RMA = range * k + RMA[1] * (1-k) xma = RMA //  Atr, HLline calculations // Atr value a = xma * mul // Atr +/- high/low values x = xma * mul + high x2 = low - xma * mul endif // barindex > period // Bedingungen zum Einstieg in Long-Positionen indicator1 = ExponentialAverage[22](high) c1 = (close[1] > indicator1)   indicator3 = ExponentialAverage[22](low) c2 = (x2 < indicator3) indicator4 = Williams[4](close) c3 = (indicator4 < -80)   IF not longonmarket and c1 AND c2 AND c3 THEN stoploss=x2 BUY 1 SHARES AT MARKET set stop price stoploss ENDIf   graphonprice stoploss coloured("darkgreen")



  Iván

  Moderator

  Topics: 0

  Replies: 1229

  Been thanked: 442 times
