List of Stocks below ATR Stop Line

• 07/23/2018 at 8:24 PM #76550
  rowestock

  List of Stocks/Instruments above/below ATR Stop Line

  The code below is the ATR stop line indicator (very similar to “Supertrend”).

  I would like to create a screener which finds stocks which are trading:

  1. Above their ATR stop line
  2. Below their ATR stop line

  Can someone help?

  Many thanks 🙂

  ATR Stop Line

  // Période p = 10 // Average True Range X ATRx = AverageTrueRange[p](close) * 3.0 // ATRts = ATR Trailing Stop // Inversion de tendance IF close crosses over ATRts THEN ATRts = close - ATRx r=0 g=200 ELSIF close crosses under ATRts THEN ATRts = close + ATRx r=200 g=0 ENDIF // Cacul de l'ATRts lors de la même tendance IF close > ATRts THEN ATRnew = close - ATRx IF ATRnew > ATRts THEN ATRts = ATRnew ENDIF ELSIF close < ATRts THEN ATRnew = close + ATRx IF ATRnew < ATRts THEN ATRts = ATRnew ENDIF ENDIF return ATRts coloured(r,g,0) as "ATR Trailing Stop"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

  // Période p = 10   // Average True Range X ATRx = AverageTrueRange[p](close) * 3.0   // ATRts = ATR Trailing Stop // Inversion de tendance IF close crosses over ATRts THEN ATRts = close - ATRx r=0 g=200 ELSIF close crosses under ATRts THEN ATRts = close + ATRx r=200 g=0 ENDIF   // Cacul de l'ATRts lors de la même tendance IF close > ATRts THEN ATRnew = close - ATRx IF ATRnew > ATRts THEN ATRts = ATRnew ENDIF ELSIF close < ATRts THEN ATRnew = close + ATRx IF ATRnew < ATRts THEN ATRts = ATRnew ENDIF ENDIF     return ATRts coloured(r,g,0) as "ATR Trailing Stop"







  rowestock

  Participant

  Topics: 4

  Replies: 9

  Been thanked: 0 times
  07/23/2018 at 11:29 PM #76560
  robertogozzi

  This is the code, but it will return tons of lines, you’ll have to filter them!

  ATR stop screener

  // Période p = 10 // Average True Range X ATRx = AverageTrueRange[p](close) * 3.0 // ATRts = ATR Trailing Stop // Inversion de tendance IF close crosses over ATRts THEN ATRts = close - ATRx //r=0 //g=200 ELSIF close crosses under ATRts THEN ATRts = close + ATRx //r=200 //g=0 ENDIF // Cacul de l'ATRts lors de la même tendance IF close > ATRts THEN ATRnew = close - ATRx IF ATRnew > ATRts THEN ATRts = ATRnew ENDIF ELSIF close < ATRts THEN ATRnew = close + ATRx IF ATRnew < ATRts THEN ATRts = ATRnew ENDIF ENDIF x = 0 IF close > ATRts THEN x = 1 ELSE x = 2 ENDIF SCREENER [x] (x AS "1=above/2=below")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

  // Période p = 10 // Average True Range X ATRx = AverageTrueRange[p](close) * 3.0 // ATRts = ATR Trailing Stop // Inversion de tendance IF close crosses over ATRts THEN ATRts = close - ATRx //r=0 //g=200 ELSIF close crosses under ATRts THEN    ATRts = close + ATRx    //r=200    //g=0 ENDIF // Cacul de l'ATRts lors de la même tendance IF close > ATRts THEN    ATRnew = close - ATRx    IF ATRnew > ATRts THEN       ATRts = ATRnew    ENDIF ELSIF close < ATRts THEN    ATRnew = close + ATRx    IF ATRnew < ATRts THEN       ATRts = ATRnew    ENDIF ENDIF   x = 0 IF close > ATRts THEN    x = 1 ELSE    x = 2 ENDIF SCREENER [x] (x AS "1=above/2=below")





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17131

  Been thanked: 4030 times
  07/24/2018 at 12:18 AM #76561
  rowestock

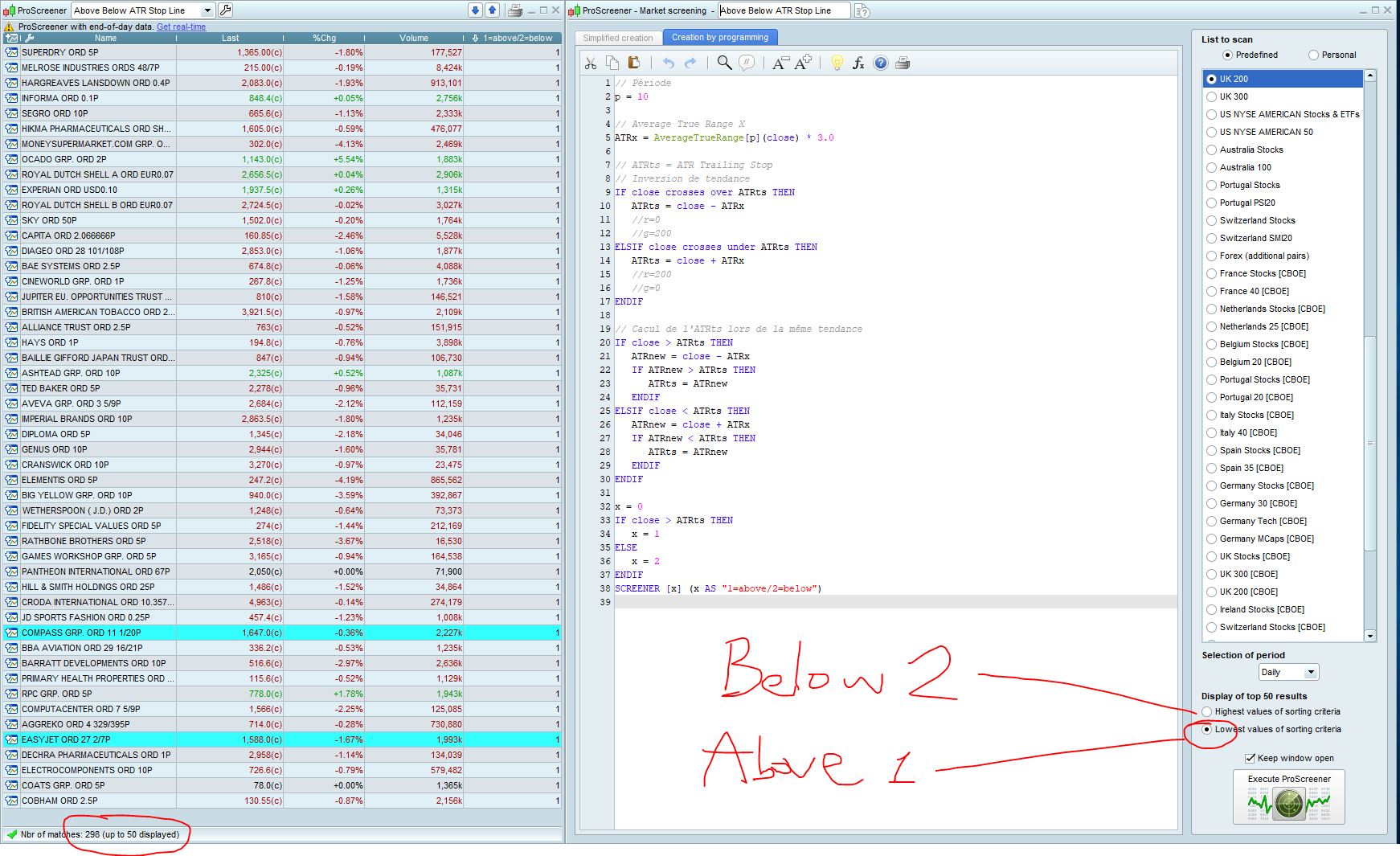

  Excellent thanks Roberto. Is there a way to make the list more than 50 results?  See screenshot.

  Also, is there a way to see the 1 & 2 (Above & Below) results in one window?  I can only separate the results of the screener using the “creation by programming” tab.



  rowestock

  Participant

  Topics: 4

  Replies: 9

  Been thanked: 0 times
  07/24/2018 at 10:07 AM #76582
  robertogozzi

  That limit cannot be changed, as of this version of PRT.

  You could duplicate the screener and have one of them return only 1’s and the other only 2’s. This way you’ll double the list, but will also double the screeners you’ll have to open.

  If you don’t have problems with the number of screeners open, you can select commodities on one of them, currencies on a duplicate, and so on!

  There’s no workaround.

  You could, for example, only stocks NOT above/below, but those where a crossing over/under is occurring, replacing lines 33-37 with:

  IF close CROSSES OVER ATRts THEN x = 1 ELSIF close CROSSES UNDER ATRts THEN x = 2 ENDIF

  1 2 3 4 5

  IF close CROSSES OVER ATRts THEN    x = 1 ELSIF close CROSSES UNDER ATRts THEN    x = 2 ENDIF

  or scan those stocks that are not just above/below now, but have been above/below for at least the last 3 bars, or setting an increasing number to sort them, one screener showing the first 50 lines, another one another 50 lines… I’ll work on that!

  filters are the only chance to get less than 50 lines!





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17131

  Been thanked: 4030 times
  07/24/2018 at 11:40 AM #76595
  robertogozzi

  This is the version with CROSSOVERs

  ATR stop screener with CROSSOVERs

  // Période p = 10 // Average True Range X ATRx = AverageTrueRange[p](close) * 3.0 // ATRts = ATR Trailing Stop // Inversion de tendance IF close crosses over ATRts THEN ATRts = close - ATRx //r=0 //g=200 ELSIF close crosses under ATRts THEN ATRts = close + ATRx //r=200 //g=0 ENDIF // Cacul de l'ATRts lors de la même tendance IF close > ATRts THEN ATRnew = close - ATRx IF ATRnew > ATRts THEN ATRts = ATRnew ENDIF ELSIF close < ATRts THEN ATRnew = close + ATRx IF ATRnew < ATRts THEN ATRts = ATRnew ENDIF ENDIF x = 0 IF close CROSSES OVER ATRts THEN x = 1 ELSIF close CROSSES UNDER ATRts THEN x = 2 ENDIF SCREENER [x] (x AS "1=above/2=below")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

  // Période p = 10 // Average True Range X ATRx = AverageTrueRange[p](close) * 3.0 // ATRts = ATR Trailing Stop // Inversion de tendance IF close crosses over ATRts THEN ATRts = close - ATRx //r=0 //g=200 ELSIF close crosses under ATRts THEN ATRts = close + ATRx //r=200 //g=0 ENDIF // Cacul de l'ATRts lors de la même tendance IF close > ATRts THEN ATRnew = close - ATRx IF ATRnew > ATRts THEN ATRts = ATRnew ENDIF ELSIF close < ATRts THEN ATRnew = close + ATRx IF ATRnew < ATRts THEN ATRts = ATRnew ENDIF ENDIF   x = 0 IF close CROSSES OVER ATRts THEN x = 1 ELSIF close CROSSES UNDER ATRts THEN x = 2 ENDIF   SCREENER [x] (x AS "1=above/2=below")



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17131

  Been thanked: 4030 times
  07/24/2018 at 11:43 AM #76596
  rowestock

  Thank you very much Roberto! I shall experiment with the new codes 🙂



  rowestock

  Participant

  Topics: 4

  Replies: 9

  Been thanked: 0 times
  07/24/2018 at 11:47 AM #76597
  robertogozzi

  This is the version scanning for Stocks/Pairs being Above/Below for the latest 40 bars:

  ATR stop screener using SUMMATION

  // Période p = 10 // Average True Range X ATRx = AverageTrueRange[p](close) * 3.0 // ATRts = ATR Trailing Stop // Inversion de tendance IF close crosses over ATRts THEN ATRts = close - ATRx //r=0 //g=200 ELSIF close crosses under ATRts THEN ATRts = close + ATRx //r=200 //g=0 ENDIF // Cacul de l'ATRts lors de la même tendance IF close > ATRts THEN ATRnew = close - ATRx IF ATRnew > ATRts THEN ATRts = ATRnew ENDIF ELSIF close < ATRts THEN ATRnew = close + ATRx IF ATRnew < ATRts THEN ATRts = ATRnew ENDIF ENDIF LookBack = 40 x = 0 IF summation[LookBack](close > ATRts) = LookBack THEN x = 1 ELSIF summation[LookBack](close < ATRts) = LookBack THEN x = 2 ENDIF SCREENER [x] (x AS "1=above/2=below")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

  // Période p = 10 // Average True Range X ATRx = AverageTrueRange[p](close) * 3.0 // ATRts = ATR Trailing Stop // Inversion de tendance IF close crosses over ATRts THEN ATRts = close - ATRx //r=0 //g=200 ELSIF close crosses under ATRts THEN ATRts = close + ATRx //r=200 //g=0 ENDIF // Cacul de l'ATRts lors de la même tendance IF close > ATRts THEN ATRnew = close - ATRx IF ATRnew > ATRts THEN ATRts = ATRnew ENDIF ELSIF close < ATRts THEN ATRnew = close + ATRx IF ATRnew < ATRts THEN ATRts = ATRnew ENDIF ENDIF   LookBack = 40 x = 0 IF summation[LookBack](close > ATRts) = LookBack THEN x = 1 ELSIF summation[LookBack](close < ATRts) = LookBack THEN x = 2 ENDIF   SCREENER [x] (x AS "1=above/2=below")

  I could not find a way to set a count to limit display to the first 50 lines, or the second 50 lines, and so on…

  I’ll try to find a way, but remind me within, say, 10 days.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17131

  Been thanked: 4030 times
  07/24/2018 at 11:48 AM #76598
  rowestock

  Excellent. Will do. Thank you !



  rowestock

  Participant

  Topics: 4

  Replies: 9

  Been thanked: 0 times
