LNEAS DE TENDENCIA CON BREAKOUTS EN RSI ****************************************

• 02/07/2024 at 5:34 PM #227597
  NEOMKEY

  Hola a todos,

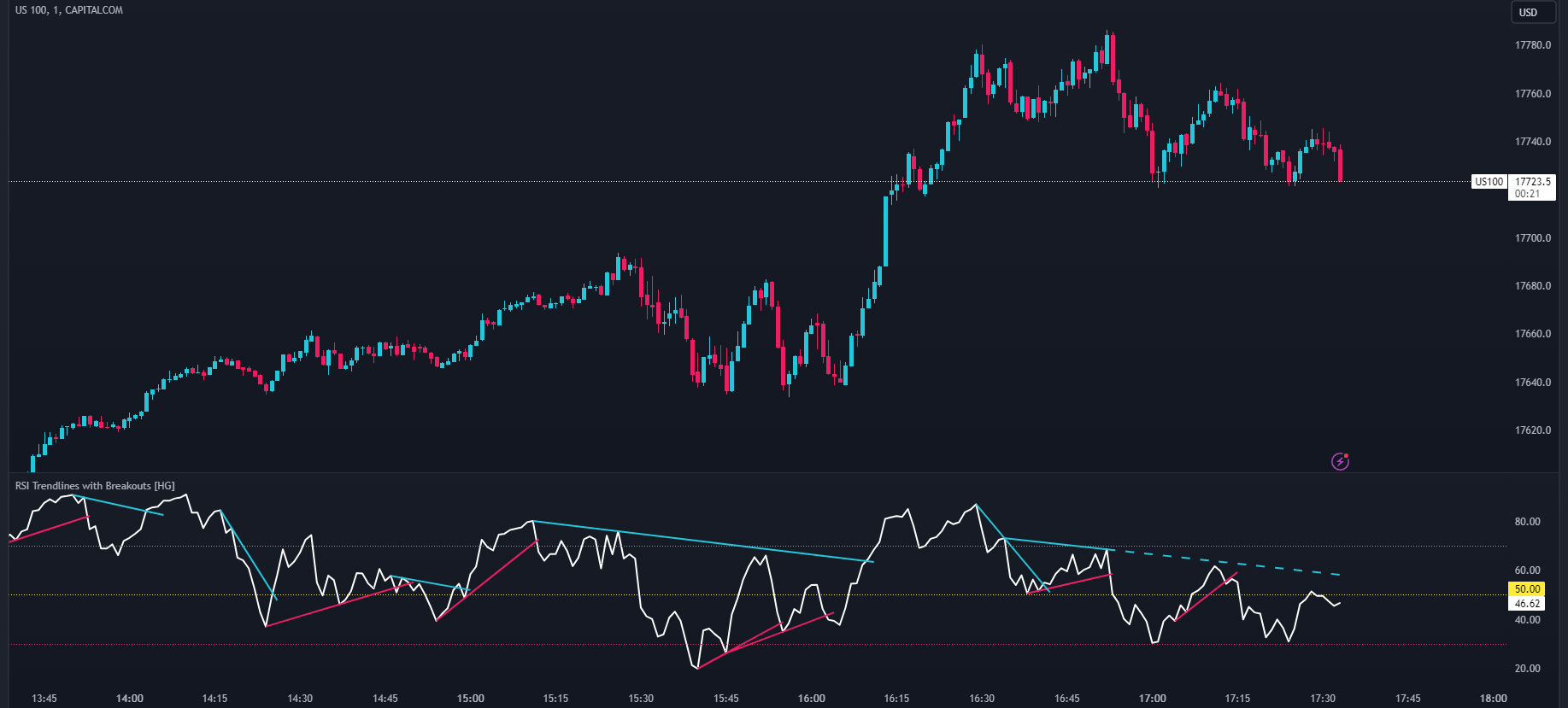

  he estado buscando un indicador que dibuje las lineas de tendencia y marque los breakouts en un RSI, pero no he encontrado nada en el foro. Conocéis alguno o similar a éste de Tradingview. Podéis transcribirlo a ProRealcode?, porque con mis conocimientos no he podido transcribirlo.

  Gracias

  ————————————————————————–

  // © HoanGhetti

  //@version=5

  indicator(“RSI Trendlines with Breakouts [HG]”, precision = 2, max_labels_count = 500, max_lines_count = 500)

  import HoanGhetti/SimpleTrendlines/3 as tl

  g_trendlines    = ‘Trendline Settings’, g_conditions = ‘Conditions’,  g_styling = ‘Styling’, g_timeframe = ‘Timeframe’

  input_timeframe = input.timeframe(defval = ”, title = ‘Timeframe’, group = g_timeframe)

  input_pLen      = input.int(defval = 4, title = ‘Lookback Range’, minval = 1, group = g_trendlines, tooltip = ‘How many bars to determine when a swing high/low is detected.’)

  input_rLen      = input.int(defval = 14, title = ‘RSI Length’ , minval = 1, group = g_trendlines)

  input_rSrc      = input.source(defval = close, title = ‘RSI Source’, group = g_trendlines)

  input_repaint   = input.string(defval = ‘On’, title = ‘Repainting’, group = g_conditions, options = [‘On’, ‘Off: Bar Confirmation’], tooltip = ‘Bar Confirmation: Generates alerts when candle closes. (1 Candle Later)’)

  input_rsiDiff   = input.int(defval = 3, title = ‘RSI Difference’, group = g_conditions, tooltip = ‘The difference between the current RSI value and the breakout value.\n\nHow much higher in value should the current RSI be compared to the breakout value in order to detect a breakout?’)

  input_rsiCol    = input.color(defval = color.blue, title = ‘RSI Color’, group = g_styling)

  input_width     = input.int(defval = 2, title = ‘Line Width’, minval = 1, group = g_styling)

  input_lblType   = input.string(defval = ‘Simple’, title = ‘Label Type’, group = g_styling, options = [‘Full’, ‘Simple’])

  input_lblSize   = input.string(defval = size.small, title = ‘Label Size’, group = g_styling, options = [size.huge, size.large, size.normal, size.small, size.tiny])

  input_pLowCol   = input.color(defval = color.red, title = ‘Pivot Low’, inline = ‘col’, group = g_styling)

  input_pHighCol  = input.color(defval = #089981, title = ‘Pivot High’, inline = ‘col’, group = g_styling)

  input_override  = input.bool(defval = false, title = ‘Override Text Color’, group = g_styling, inline = ‘override’)

  input_overCol   = input.color(defval = color.white, title = ‘ ‘, group = g_styling, inline = ‘override’)

  lblText = switch input_lblType

      ‘Simple’ => ‘Br’

      ‘Full’   => ‘Break’

  repaint = switch input_repaint

      ‘On’ => true

      ‘Off: Bar Confirmation’ => false

  rsi_v = ta.rsi(input_rSrc, input_rLen)

  rsi = input_timeframe == ” ? rsi_v : request.security(syminfo.tickerid, input_timeframe, rsi_v, lookahead = barmerge.lookahead_on)

  pl = fixnan(ta.pivotlow(rsi, 1, input_pLen))

  ph = fixnan(ta.pivothigh(rsi, 1, input_pLen))

  pivot(float pType) =>

      pivot = pType == pl ? pl : ph

      xAxis = ta.valuewhen(ta.change(pivot), bar_index, 0) – ta.valuewhen(ta.change(pivot), bar_index, 1)

      prevPivot = ta.valuewhen(ta.change(pivot), pivot, 1)

      pivotCond = ta.change(pivot) and (pType == pl ? pivot > prevPivot : pivot < prevPivot)

      pData = tl.new(x_axis = xAxis, offset = input_pLen, strictMode = true, strictType = pType == pl ? 0 : 1)

      pData.drawLine(pivotCond, prevPivot, pivot, rsi)

      pData

  breakout(tl.Trendline this, float pType) =>

      var bool hasCrossed = false

      if ta.change(this.lines.startline.get_y1())

          hasCrossed := false

      this.drawTrendline(not hasCrossed)

      condType = (pType == pl ? rsi < this.lines.trendline.get_y2() – input_rsiDiff : rsi > this.lines.trendline.get_y2() + input_rsiDiff) and not hasCrossed

      condition = repaint ? condType : condType and barstate.isconfirmed

      if condition

          hasCrossed := true

          this.lines.startline.set_xy2(this.lines.trendline.get_x2(), this.lines.trendline.get_y2())

          this.lines.trendline.set_xy2(na, na)

          this.lines.startline.copy()

          label.new(

               bar_index,

               this.lines.startline.get_y2(),

               text=lblText,color=pType==pl?color.new(input_pLowCol,50) :color.new(input_pHighCol,50),

               size=input_lblSize,style=pType==pl?label.style_label_lower_left:label.style_label_upper_left,

               textcolor = pType == pl ? (input_override ? input_overCol : input_pLowCol) : input_override ? input_overCol : input_pHighCol)

      hasCrossed

  method style(tl.Trendline this, color col) =>

      this.lines.startline.set_color(col)

      this.lines.startline.set_width(input_width)

      this.lines.trendline.set_color(col)

      this.lines.trendline.set_width(input_width)

      this.lines.trendline.set_style(line.style_dashed)

  plData = pivot(pl)

  phData = pivot(ph)

  plData.style(input_pLowCol)

  phData.style(input_pHighCol)

  cu = breakout(plData, pl)

  co = breakout(phData, ph)

  hline(70, title = ‘Overbought’, color = input_pHighCol, linestyle = hline.style_dotted)

  hline(30, title = ‘Oversold’, color = input_pLowCol, linestyle = hline.style_dotted)

  plot(rsi, title = ‘Relative Strength Index’, linewidth = 2, color = input_rsiCol)

  alertcondition(ta.change(plData.lines.startline.get_y1()), ‘New Pivot Low Trendline’)

  alertcondition(ta.change(cu) and cu, ‘Pivot Low Breakout’)

  alertcondition(ta.change(phData.lines.startline.get_y1()), ‘New Pivot High Trendline’)

  alertcondition(ta.change(co) and co, ‘Pivot High Breakout’)



  NEOMKEY

  Participant

  Topics: 39

  Replies: 78

  Been thanked: 5 times
  02/08/2024 at 8:47 PM #227686
  larouedegann

  holà
  aqui esta el codigo utilizado para cualquier discrepancia en obv rsi macd

  // by Jose Callao // twitter @jose7674 // //N = 40 //N is the number of bars to look back for a divergence. // Normal values are 20-40. Must be the same in both indicators // MiRSI = RSI[14](close) Offset = MiRSI * 0.1 IF (BarIndex > 10+1+N) THEN ///divergencia bajista IF (miRSI[1]>miRSI AND miRSI[1]>miRSI[2]) THEN extremum2=miRSI[1] extremum1=highest[N](miRSI) preciomax2=close[1] preciomax=Highest[N](close) IF(extremum2<extremum1 AND preciomax2>preciomax[1]) THEN for i=1 to N if miRSI[i]=extremum1 then zz=i drawsegment (barindex[1], miRSI[1]+Offset, barindex[zz], miRSI[zz]+Offset) coloured("RED")STYLE(line,4) endif next endif endif ///divergencia alcista IF (miRSI[1]<miRSI AND miRSI[1]<miRSI[2]) THEN extremum22=miRSI[1] extremum11=lowest[N](miRSI) preciomin2=close[1] preciomin=lowest[N](close) IF(extremum22>extremum11 AND preciomin2<preciomin[1]) THEN for i2=1 to N if miRSI[i2]=extremum11[1] then zz2=i2 drawsegment(barindex[1], miRSI[1]-Offset, barindex[zz2], miRSI[zz2]-Offset) coloured("DARKGREEN")STYLE(line,4) endif next ENDIF ENDIF endif return miRSI as "RSI", 50 as "50"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41

  //    by Jose Callao //    twitter @jose7674 // //N      = 40                      //N is the number of bars to look back for a divergence. //                                   Normal values are 20-40. Must be the same in both indicators // MiRSI  = RSI[14](close) Offset = MiRSI * 0.1 IF (BarIndex > 10+1+N) THEN ///divergencia bajista IF (miRSI[1]>miRSI AND miRSI[1]>miRSI[2]) THEN extremum2=miRSI[1] extremum1=highest[N](miRSI) preciomax2=close[1] preciomax=Highest[N](close) IF(extremum2<extremum1 AND preciomax2>preciomax[1]) THEN for i=1 to N if miRSI[i]=extremum1 then zz=i drawsegment (barindex[1], miRSI[1]+Offset, barindex[zz], miRSI[zz]+Offset) coloured("RED")STYLE(line,4) endif next endif endif ///divergencia alcista IF (miRSI[1]<miRSI AND miRSI[1]<miRSI[2]) THEN extremum22=miRSI[1] extremum11=lowest[N](miRSI) preciomin2=close[1] preciomin=lowest[N](close) IF(extremum22>extremum11 AND preciomin2<preciomin[1]) THEN for i2=1 to N if miRSI[i2]=extremum11[1] then zz2=i2 drawsegment(barindex[1], miRSI[1]-Offset, barindex[zz2], miRSI[zz2]-Offset) coloured("DARKGREEN")STYLE(line,4) endif next ENDIF ENDIF endif return miRSI as "RSI", 50 as "50"

  1 user thanked author for this post.

  NEOMKEY



  larouedegann

  Participant

  Topics: 62

  Replies: 180

  Been thanked: 13 times
  02/11/2024 at 12:34 PM #227910
  NEOMKEY

  Hola larouedegann, muchísimas gracias por responder, pero tu indicador muestra las divergencias no los breakouts tal y cómo muestra la imagen que adjunté.

  Muchas gracias de todos modos



  NEOMKEY

  Participant

  Topics: 39

  Replies: 78

  Been thanked: 5 times
  02/19/2024 at 4:36 PM #228409
  Iván

  Buenas tardes
  Aquí tienes el indicador mostrando los breakouts del RSI.

  PRC_RSI breakouts

  defparam DRAWONLASTBARONLY=false ////inputs///////////////// BarsAfter = 8 BarsBefore = 8 BarLookBack = BarsAfter + 1 ////RSI myrsi = rsi[14](close) /////pivots low IF myrsi[BarsAfter] < lowest[BarsBefore](myrsi)[BarLookBack] THEN IF myrsi[BarsAfter] = lowest[BarLookBack](myrsi) THEN $ply[z] = myrsi[BarsAfter] $plx[z] = barindex-BarsAfter z=z+1 ENDIF ENDIF /////pivots low line //(x-x1)/(x2-x1) = (y-y1)/(y2-y1) y2 = $ply[max(z-1,1)] x2 = $plx[max(z-1,1)] y1 = $ply[max(z-2,1)] x1 = $plx[max(z-2,1)] xl = barindex yl = y1+(xl-x1)*(y2-y1)/(x2-x1) //draw line only when rsi is over the line if y2 > y1 then drawsegment(x1,y1,x2,y2)coloured("red") //look for the cross under if myrsi crosses under yl then drawarrowdown(xl,yl+5)coloured("red") drawsegment(x2,y2,xl,yl)style(dottedline,2)coloured("red") endif endif /////pivots high if myrsi[Barsafter] > highest[BarsBefore](myrsi)[BarLookBack] THEN IF myrsi[BarsAfter] = highest[BarLookBack](myrsi) THEN $phy[n] = myrsi[BarsAfter] $phx[n] = barindex-BarsAfter n=n+1 ENDIF ENDIF /////pivots high line ////(x-x1)/(x2-x1) = (y-y1)/(y2-y1) y22 = $phy[max(n-1,1)] x22 = $phx[max(n-1,1)] y11 = $phy[max(n-2,1)] x11 = $phx[max(n-2,1)] xh = barindex yh = y11+(xh-x11)*(y22-y11)/(x22-x11) //draw line only when rsi is under the line if y22 < y11 then drawsegment(x11,y11,x22,y22)coloured("green") //look for the cross over if myrsi crosses over yh then drawarrowup(xh,yh-5)coloured("green") drawsegment(x22,y22,xh,yh)style(dottedline,2)coloured("green") endif endif ///////////////////////////// return myrsi as "RSI" coloured(250,250,250)style(line,2)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

  defparam DRAWONLASTBARONLY=false ////inputs///////////////// BarsAfter = 8 BarsBefore = 8 BarLookBack  = BarsAfter + 1 ////RSI myrsi = rsi[14](close) /////pivots low IF myrsi[BarsAfter] < lowest[BarsBefore](myrsi)[BarLookBack] THEN IF myrsi[BarsAfter] = lowest[BarLookBack](myrsi) THEN $ply[z]  = myrsi[BarsAfter] $plx[z] = barindex-BarsAfter z=z+1 ENDIF ENDIF /////pivots low line //(x-x1)/(x2-x1) = (y-y1)/(y2-y1) y2 = $ply[max(z-1,1)] x2 = $plx[max(z-1,1)] y1 = $ply[max(z-2,1)] x1 = $plx[max(z-2,1)] xl = barindex yl = y1+(xl-x1)*(y2-y1)/(x2-x1) //draw line only when rsi is over the line if y2 > y1 then drawsegment(x1,y1,x2,y2)coloured("red") //look for the cross under if myrsi crosses under yl then drawarrowdown(xl,yl+5)coloured("red") drawsegment(x2,y2,xl,yl)style(dottedline,2)coloured("red") endif endif /////pivots high if myrsi[Barsafter] > highest[BarsBefore](myrsi)[BarLookBack] THEN IF myrsi[BarsAfter] = highest[BarLookBack](myrsi) THEN $phy[n]  = myrsi[BarsAfter] $phx[n] = barindex-BarsAfter n=n+1 ENDIF ENDIF /////pivots high line ////(x-x1)/(x2-x1) = (y-y1)/(y2-y1) y22 = $phy[max(n-1,1)] x22 = $phx[max(n-1,1)] y11 = $phy[max(n-2,1)] x11 = $phx[max(n-2,1)] xh = barindex yh = y11+(xh-x11)*(y22-y11)/(x22-x11) //draw line only when rsi is under the line if y22 < y11 then drawsegment(x11,y11,x22,y22)coloured("green") //look for the cross over if myrsi crosses over yh then drawarrowup(xh,yh-5)coloured("green") drawsegment(x22,y22,xh,yh)style(dottedline,2)coloured("green") endif endif /////////////////////////////   return myrsi as "RSI" coloured(250,250,250)style(line,2)

  1 user thanked author for this post.

  NEOMKEY



  Iván

  Moderator

  Topics: 0

  Replies: 1049

  Been thanked: 375 times
  02/19/2024 at 4:42 PM #228410
  NEOMKEY

  Muchas gracias Iván, tremendo trabajo. Magnífico. Esto es lo que buscaba. Mil gracias.



  NEOMKEY

  Participant

  Topics: 39

  Replies: 78

  Been thanked: 5 times
  02/25/2024 at 10:27 AM #228701
  LucasBest

  Agregué dos opciones del código original (repintar y rsiDiff) y simplifiqué el anidamiento de condiciones.

  RSI Trendlines with Breakouts

  defparam DRAWONLASTBARONLY=false ////inputs///////////////// BarLookBack = 8 repaint = 0 RSIdiff = 2 ////RSI myrsi = rsi[14](close) /////pivots low IF myrsi[repaint*BarLookBack+1] = lowest[repaint*BarLookBack+BarLookBack+1](myrsi) THEN $ply[z] = myrsi[repaint*BarLookBack+1] $plx[z] = barindex-(repaint*BarLookBack+1) z=z+1 ENDIF /////pivots low line //(x-x1)/(x2-x1) = (y-y1)/(y2-y1) y2 = $ply[max(z-1,1)] x2 = $plx[max(z-1,1)] y1 = $ply[max(z-2,1)] x1 = $plx[max(z-2,1)] xl = barindex yl = y1+(xl-x1)*(y2-y1)/(x2-x1) //draw line only when rsi is over the line if y2 > y1 then drawsegment(x1,y1,x2,y2)coloured("red") //look for the cross under if myrsi crosses under yl-RSIdiff then drawarrowdown(xl,yl+5)coloured("red") drawsegment(x2,y2,xl,yl)style(dottedline,2)coloured("red") endif endif /////pivots high IF myrsi[repaint*BarLookBack+1] = highest[repaint*BarLookBack+BarLookBack+1](myrsi) THEN $phy[n] = myrsi[repaint*BarLookBack+1] $phx[n] = barindex-(repaint*BarLookBack+1) n=n+1 ENDIF /////pivots high line ////(x-x1)/(x2-x1) = (y-y1)/(y2-y1) y22 = $phy[max(n-1,1)] x22 = $phx[max(n-1,1)] y11 = $phy[max(n-2,1)] x11 = $phx[max(n-2,1)] xh = barindex yh = y11+(xh-x11)*(y22-y11)/(x22-x11) //draw line only when rsi is under the line if y22 < y11 then drawsegment(x11,y11,x22,y22)coloured("green") //look for the cross over if myrsi crosses over yh+RSIdiff then drawarrowup(xh,yh-5)coloured("green") drawsegment(x22,y22,xh,yh)style(dottedline,2)coloured("green") endif endif ///////////////////////////// return myrsi as "RSI" coloured("black",255 )style(line,2)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58

  defparam DRAWONLASTBARONLY=false ////inputs///////////////// BarLookBack = 8 repaint = 0 RSIdiff = 2 ////RSI myrsi = rsi[14](close) /////pivots low IF myrsi[repaint*BarLookBack+1] = lowest[repaint*BarLookBack+BarLookBack+1](myrsi) THEN $ply[z] = myrsi[repaint*BarLookBack+1] $plx[z] = barindex-(repaint*BarLookBack+1) z=z+1 ENDIF   /////pivots low line //(x-x1)/(x2-x1) = (y-y1)/(y2-y1) y2 = $ply[max(z-1,1)] x2 = $plx[max(z-1,1)] y1 = $ply[max(z-2,1)] x1 = $plx[max(z-2,1)] xl = barindex yl = y1+(xl-x1)*(y2-y1)/(x2-x1) //draw line only when rsi is over the line if y2 > y1 then drawsegment(x1,y1,x2,y2)coloured("red") //look for the cross under if myrsi crosses under yl-RSIdiff then drawarrowdown(xl,yl+5)coloured("red") drawsegment(x2,y2,xl,yl)style(dottedline,2)coloured("red") endif endif /////pivots high IF myrsi[repaint*BarLookBack+1] = highest[repaint*BarLookBack+BarLookBack+1](myrsi) THEN $phy[n] = myrsi[repaint*BarLookBack+1] $phx[n] = barindex-(repaint*BarLookBack+1) n=n+1 ENDIF   /////pivots high line ////(x-x1)/(x2-x1) = (y-y1)/(y2-y1) y22 = $phy[max(n-1,1)] x22 = $phx[max(n-1,1)] y11 = $phy[max(n-2,1)] x11 = $phx[max(n-2,1)] xh = barindex yh = y11+(xh-x11)*(y22-y11)/(x22-x11) //draw line only when rsi is under the line if y22 < y11 then drawsegment(x11,y11,x22,y22)coloured("green") //look for the cross over if myrsi crosses over yh+RSIdiff then drawarrowup(xh,yh-5)coloured("green") drawsegment(x22,y22,xh,yh)style(dottedline,2)coloured("green") endif endif /////////////////////////////   return myrsi as "RSI" coloured("black",255 )style(line,2)

  1 user thanked author for this post.

  NEOMKEY



  LucasBest

  Participant

  Topics: 16

  Replies: 222

  Been thanked: 80 times
  02/25/2024 at 12:18 PM #228708
  NEOMKEY

  Muchas gracias Lucas. Muy buena y práctica la mejora. Saludos.



  NEOMKEY

  Participant

  Topics: 39

  Replies: 78

  Been thanked: 5 times
