modiication taille rectangle dans indicateur fvg

• 03/12/2025 at 2:03 PM #244876
  yann31660

  bonjour,

  je souhaiterais avoir les rectangles fvg (bleu et rose) qui se mettent à l’infini sur la droite.

  pouvez vous me dire ce que je dois modifier ?

  d’avance un grand merci.

  ci dessous le programme que j’ai utilisé :

  2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

  // Author: toniyecla // FVG (Fair Value Gap / Imbalances) rango = 5 alcista = close[2] > open[2] if (alcista) then maximo = low[1] minimo = high[3] if (maximo–minimo > rango) then drawrectangle(barindex[2], maximo, barindex + 1, minimo) coloured (0,157,157,32) bordercolor (0,153,153,0) drawsegment(barindex[2], maximo – (maximo – minimo) / 2, barindex + 1, maximo – (maximo – minimo) / 2) coloured (255,255,255,64) drawsegment(barindex[2], maximo – (maximo – minimo) / 4, barindex + 1, maximo – (maximo – minimo) / 4) coloured (255,255,255,64) drawsegment(barindex[2], minimo + (maximo – minimo) / 4, barindex + 1, minimo + (maximo – minimo) / 4) coloured (255,255,255,64) endif else maximo = low[3] minimo = high[1] if (maximo–minimo > rango) then drawrectangle(barindex[2], maximo, barindex + 1, minimo) coloured (255,0,0,32) bordercolor (255,102,102,0) drawsegment(barindex[2], maximo – (maximo – minimo) / 2, barindex + 1, maximo – (maximo – minimo) / 2) coloured (255,255,255,64) drawsegment(barindex[2], maximo – (maximo – minimo) / 4, barindex + 1, maximo – (maximo – minimo) / 4) coloured (255,255,255,64) drawsegment(barindex[2], minimo + (maximo – minimo) / 4, barindex + 1, minimo + (maximo – minimo) / 4) coloured (255,255,255,64) endif endif return



  yann31660

  Participant

  Topics: 3

  Replies: 0

  Been thanked: 0 times
  03/12/2025 at 9:17 PM #244891
  larouedegann

  DEFPARAM DrawOnLastBarOnly = true DEBUG = 0 // Start of code, don't change anything below IF IsLastBarUpdate THEN $RangeHigh[0] = 0 $RangeLow[0] = 0 $RangeIndex[0] = 0 RangeIdx = 0 BI = 0 B = 0 RI = 0 TotalBars = BarIndex[0] IF DEBUG = 1 THEN DRAWTEXT("Total bars: #TotalBars#", BarIndex[0], High[0]) ENDIF // List all imbalance FOR RI = 1 TO TotalBars - 2 DO BI = BarIndex[RI] //drawtext("#BI#", BI, High[RI]) IF High[BI - 1] < Low[BI + 1] THEN RangeIdx = RangeIdx + 1 $RangeHigh[RangeIdx] = Low[BI + 1] $RangeLow[RangeIdx] = High[BI - 1] $RangeIndex[RangeIdx] = RI ENDIF IF High[BI + 1] < Low[BI - 1] THEN RangeIdx = RangeIdx + 1 $RangeHigh[RangeIdx] = Low[BI - 1] $RangeLow[RangeIdx] = High[BI + 1] $RangeIndex[RangeIdx] = RI ENDIF NEXT IF DEBUG = 1 THEN DRAWTEXT("Imbalance found: #RangeIdx#", BarIndex[0], Low[0]) ENDIF // Remove mitigated imbalance FOR RI = 1 TO RangeIdx DO IF DEBUG = 1 THEN DRAWRECTANGLE($RangeIndex[RI] - 1, $RangeHigh[RI], $RangeIndex[RI] + 1, $RangeLow[RI]) COLOURED("yellow",150) ENDIF Valid = 1 FOR B = $RangeIndex[RI] + 2 TO TotalBars DO LB = Low[BarIndex[B]] HB = High[BarIndex[B]] // Candle is above or below our zone, ignore it IF LB >= $RangeHigh[RI] OR HB <= $RangeLow[RI] THEN IF DEBUG = 1 THEN DRAWTEXT("Out", B, High[BarIndex[B]]) ENDIF CONTINUE ENDIF IF LB <= $RangeLow[RI] THEN // Candle engulfs our zone, so imbalance is mitigated IF HB >= $RangeHigh[RI] THEN IF DEBUG = 1 THEN DRAWTEXT("Mitigated", B, High[BarIndex[B]]) ENDIF Valid = 0 BREAK ENDIF IF DEBUG = 1 THEN DRAWTEXT("High", B, High[BarIndex[B]]) ENDIF $RangeLow[RI] = HB ELSE // In this case, Low is within the zone IF DEBUG = 1 THEN DRAWTEXT("Low", B, High[BarIndex[B]]) ENDIF $RangeHigh[RI] = LB ENDIF NEXT IF Valid = 1 THEN DRAWRECTANGLE($RangeIndex[RI], $RangeHigh[RI], TotalBars+2000, $RangeLow[RI]) COLOURED(0,0,0,0) FILLCOLOR("yellow",150) ENDIF NEXT ENDIF RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89

  DEFPARAM DrawOnLastBarOnly = true DEBUG = 0 // Start of code, don't change anything below IF IsLastBarUpdate THEN $RangeHigh[0] = 0 $RangeLow[0] = 0 $RangeIndex[0] = 0 RangeIdx = 0 BI = 0 B = 0 RI = 0 TotalBars = BarIndex[0] IF DEBUG = 1 THEN DRAWTEXT("Total bars: #TotalBars#", BarIndex[0], High[0]) ENDIF // List all imbalance FOR RI = 1 TO TotalBars - 2 DO BI = BarIndex[RI] //drawtext("#BI#", BI, High[RI]) IF High[BI - 1] < Low[BI + 1] THEN RangeIdx = RangeIdx + 1 $RangeHigh[RangeIdx] = Low[BI + 1] $RangeLow[RangeIdx] = High[BI - 1] $RangeIndex[RangeIdx] = RI ENDIF IF High[BI + 1] < Low[BI - 1] THEN RangeIdx = RangeIdx + 1 $RangeHigh[RangeIdx] = Low[BI - 1] $RangeLow[RangeIdx] = High[BI + 1] $RangeIndex[RangeIdx] = RI ENDIF NEXT IF DEBUG = 1 THEN DRAWTEXT("Imbalance found: #RangeIdx#", BarIndex[0], Low[0]) ENDIF // Remove mitigated imbalance FOR RI = 1 TO RangeIdx DO IF DEBUG = 1 THEN DRAWRECTANGLE($RangeIndex[RI] - 1, $RangeHigh[RI], $RangeIndex[RI] + 1, $RangeLow[RI]) COLOURED("yellow",150) ENDIF Valid = 1 FOR B = $RangeIndex[RI] + 2 TO TotalBars DO LB = Low[BarIndex[B]] HB = High[BarIndex[B]] // Candle is above or below our zone, ignore it IF LB >= $RangeHigh[RI] OR HB <= $RangeLow[RI] THEN IF DEBUG = 1 THEN DRAWTEXT("Out", B, High[BarIndex[B]]) ENDIF CONTINUE ENDIF IF LB <= $RangeLow[RI] THEN // Candle engulfs our zone, so imbalance is mitigated IF HB >= $RangeHigh[RI] THEN IF DEBUG = 1 THEN DRAWTEXT("Mitigated", B, High[BarIndex[B]]) ENDIF Valid = 0 BREAK ENDIF IF DEBUG = 1 THEN DRAWTEXT("High", B, High[BarIndex[B]]) ENDIF $RangeLow[RI] = HB ELSE // In this case, Low is within the zone IF DEBUG = 1 THEN DRAWTEXT("Low", B, High[BarIndex[B]]) ENDIF $RangeHigh[RI] = LB ENDIF NEXT IF Valid = 1 THEN DRAWRECTANGLE($RangeIndex[RI], $RangeHigh[RI], TotalBars+2000, $RangeLow[RI]) COLOURED(0,0,0,0) FILLCOLOR("yellow",150) ENDIF NEXT ENDIF RETURN



  larouedegann

  Participant

  Topics: 65

  Replies: 195

  Been thanked: 14 times
  03/13/2025 at 9:55 AM #244900
  Iván

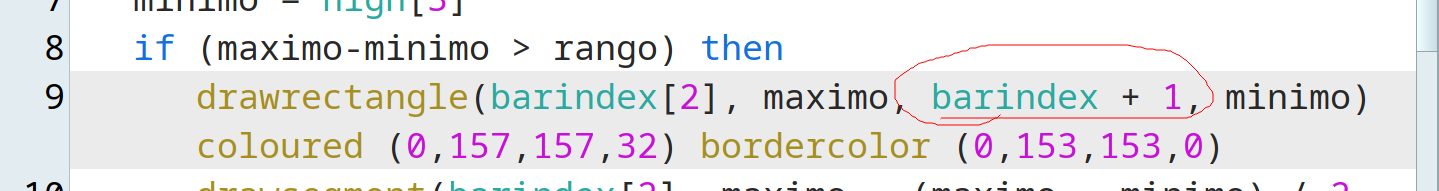

  Bonjour. Si vous souhaitez étendre les rectangles du premier code vers le futur, il vous suffit de modifier les instructions de dessin. Je vais vous donner un exemple (voir capture d'écran). L'instruction barindex+ barindex + 1 est ce qui fait que le rectangle s'étend vers la droite d'une barre ou de barindex + 2000 .



  Iván

  Moderator

  Topics: 0

  Replies: 1289

  Been thanked: 467 times
