Monthly High Low Close Indicator

• 09/22/2017 at 10:09 AM #46897
  galenfoton

  Swingforfortune wrote:
  Strange, this code works as an indicator but not as a screener??

   Yes that’s what I also found.

  Nicolas wrote:
  @swingforfortune Because it needs at least some history to be loaded (barindex>20):

  Ahh, great, thank you for you work Nicolas!



  galenfoton

  Participant

  Topics: 0

  Replies: 2

  Been thanked: 0 times
  12/08/2017 at 9:55 PM #55202
  jhonhamy

  Bonjour ,

  J’ai essayer ton code “plus haut et plus bas trimestriel” en M15 sa me mais un ligne tout en bas du graphique ??

  Aurait tu une idée ??

  Plus Haut & Plus bas Trimestrial

  trimH=max(trimH,high) trimL=min(trimL,low) If openMonth<>openMonth[1] then if openmonth=4 or openmonth=7 or openmonth=10 or openmonth=1 then trimestrialH=trimH trimestrialL=trimL trimL=close*100 trimH=0 endif Endif return trimestrialH,trimestrialL

  1 2 3 4 5 6 7 8 9 10 11 12

  trimH=max(trimH,high) trimL=min(trimL,low) If openMonth<>openMonth[1] then if openmonth=4 or openmonth=7 or openmonth=10 or openmonth=1 then trimestrialH=trimH trimestrialL=trimL trimL=close*100 trimH=0 endif Endif   return trimestrialH,trimestrialL



  Amicalement John



  jhonhamy

  Participant

  Topics: 10

  Replies: 33

  Been thanked: 2 times
  01/18/2018 at 10:16 PM #59838
  tradingtrader80

  Nicolas wrote:

  Sorry, wrong code, this one should work better:

  trimH=max(trimH,high)<br /> trimL=min(trimL,low)<br /> If openMonth<>openMonth[1] then<br /> if openmonth=4 or openmonth=7 or openmonth=10 or openmonth=1 then<br /> trimestrialH=trimH<br /> trimestrialL=trimL<br /> trimL=close*100<br /> trimH=0<br /> endif<br /> Endif</p> <p>return trimestrialH,trimestrialL

  1 2 3 4 5 6 7 8 9 10 11 12

  trimH=max(trimH,high) trimL=min(trimL,low) If openMonth<>openMonth[1] then if openmonth=4 or openmonth=7 or openmonth=10 or openmonth=1 then trimestrialH=trimH trimestrialL=trimL trimL=close*100 trimH=0 endif Endif return trimestrialH,trimestrialL

  Hello,



  Thanks a lot for your help.

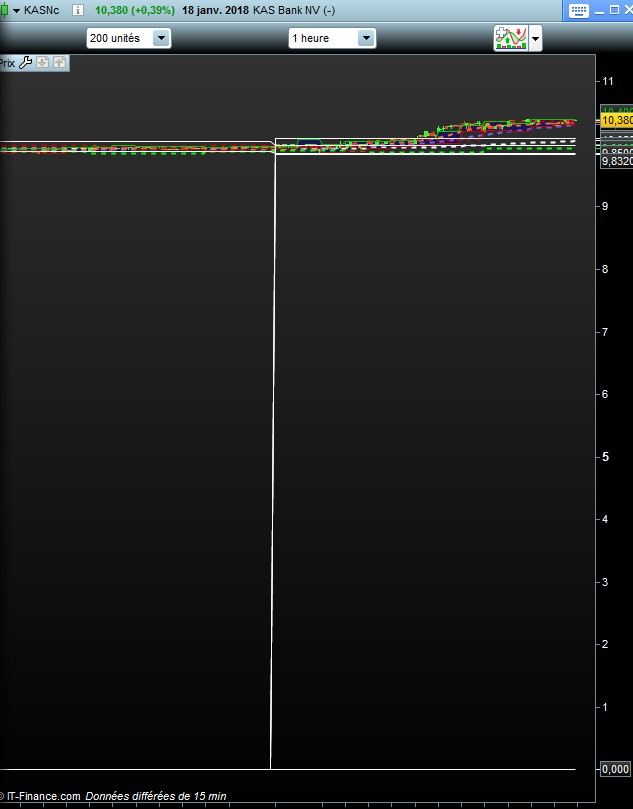

  Your code works fine for quarter on daily graph, but not on lower timeframe, where value for quarter low is equal to 0.

  Any idea to fix that bug ?



  Thanks



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/18/2018 at 10:26 PM #59842
  Nicolas

  That’s not a bug. 200 1hour units is not sufficient to get enough bars for a quarter. Expand the displayed units.

  2 users thanked author for this post.

  tradingtrader80, jhonhamy



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4774 times
  01/19/2018 at 7:24 PM #59916
  tradingtrader80

  Thanks a lot for your help.



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/19/2018 at 8:10 PM #59918
  tradingtrader80

  Nicolas wrote:

  I can not do anything with OpenMonth, I fixed the screener to return information with “Month” instead, but the values of the quarters may not be the right ones, to be checked:

  // previous quartly high/low<br /> trimH = max(trimH,high)<br /> trimL = min(trimL,low)<br /> if month <> month[1] then<br /> Mhi=trimH<br /> Mlo=trimL<br /> if month = 4 or month = 7 or month = 10 or month = 1 then<br /> Qhi = trimH<br /> Qlo = trimL<br /> trimL = close*100<br /> trimH = 0<br /> endif<br /> endif</p> <p>if close > Qhi then<br /> q = 20<br /> endif<br /> if close < Qlo then<br /> q = 10<br /> endif<br /> if close < Qhi and close > Qlo then<br /> q = 0<br /> endif</p> <p>//m=0<br /> if close > Mhi then<br /> m = 2<br /> endif<br /> if close < Mlo then<br /> m = 1<br /> endif<br /> if close < Mhi and close > Mlo then<br /> m = 0<br /> endif</p> <p>t = q + m</p> <p>SCREENER (t as “Q M”)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

  // previous quartly high/low trimH = max(trimH,high) trimL = min(trimL,low) if month <> month[1] then Mhi=trimH Mlo=trimL if month = 4 or month = 7 or month = 10 or month = 1 then Qhi = trimH Qlo = trimL trimL = close*100 trimH = 0 endif endif if close > Qhi then q = 20 endif if close < Qlo then q = 10 endif if close < Qhi and close > Qlo then q = 0 endif //m=0 if close > Mhi then m = 2 endif if close < Mlo then m = 1 endif if close < Mhi and close > Mlo then m = 0 endif t = q + m SCREENER (t as “Q M”)

  Hello Nicolas,



  I really thank you for the help you provide to all of us.

  When you correct that screener, you wrote :

  Mhi = trimH

  Mlo = trimL

  I understand that means that the value returned for monthly will be the trimestrial one.

  Is that right ?

  Thanks



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/21/2018 at 11:15 AM #60066
  Nicolas

  tradingtrader80 wrote:

  I understand that means that the value returned for monthly will be the trimestrial one. Is that right ?

  Don’t remember exactly how I coded it, but seems right to me after a quick read of the code.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4774 times
  01/21/2018 at 7:04 PM #60086
  tradingtrader80

  H i Nicolas,



  I don’t understand your answer. Do you want to say it’s right for you that mensual and trimertrial values are the same or it’s right for you that the screener return 2 different value ?

  thanks for your help



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  04/04/2019 at 7:35 PM #95493
  vetrader

  The code is not correct in a weekly chart – see attachment. It is always the problem with the first candle. How can this be fixed?

  Will there be soon a variable for week and month high/low? I think this would help a lot!!!!

  trimH=max(trimH,high) trimL=min(trimL,low) If openMonth <> openMonth[1] then if openmonth=4 or openmonth=7 or openmonth=10 or openmonth=1 then trimestrialH=trimH trimestrialL=trimL trimL=close*100 trimH=0 endif Endif

  1 2 3 4 5 6 7 8 9 10

  trimH=max(trimH,high) trimL=min(trimL,low) If openMonth <> openMonth[1] then if openmonth=4 or openmonth=7 or openmonth=10 or openmonth=1 then trimestrialH=trimH trimestrialL=trimL trimL=close*100 trimH=0 endif Endif





  vetrader

  Participant

  Topics: 11

  Replies: 19

  Been thanked: 2 times
  04/05/2019 at 8:50 AM #95501
  Nicolas

  It should works correctly if you activate the week-end data for the instrument displayed on the chart.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4774 times
  04/05/2019 at 9:20 AM #95503
  vetrader

  I searched in the documentation, but can’t find this setting. Where is it? Could you also please provide a solution without this setting?



  vetrader

  Participant

  Topics: 11

  Replies: 19

  Been thanked: 2 times
  04/05/2019 at 10:19 AM #95515
  vetrader

  There is a SERIOUS problem in ProRealtime with previous OHLC values. Everthing works fine with “Dlow” and “Dhigh”, but every other OHLC (Hour, Week, Month etc.) doesn’t work correct in the several timeframes. I really need a solution for this, otherwise I can’t use PRT!!! Why is there only the inbuild variable dhigh/dlow? In other platforms are OHLC values avaailable for every Timeframe. This one of the basic tools and should be simple!!! How can I contact Prorealtime directly in order to implement this?



  vetrader

  Participant

  Topics: 11

  Replies: 19

  Been thanked: 2 times
  04/05/2019 at 11:05 AM #95523
  Nicolas

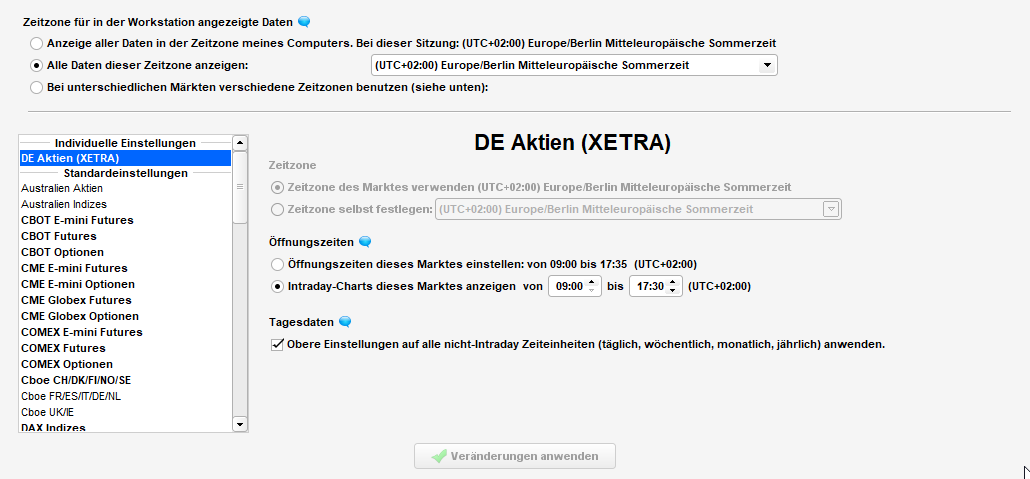

  You can change custom trading hours by right clicking on a price chart then change the week-end data display in this window.

  As you already surely know, there is no multi-timeframe support for indicators. You can contact PRT on their website.

  vetrader wrote:

  but every other OHLC (Hour, Week, Month etc.) doesn’t work correct in the several timeframes.

  They don’t exist, you have to calculate them. Be sure to have sufficient units displayed in order to get the calculation right.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4774 times
  04/05/2019 at 11:44 AM #95526
  vetrader

  Ok, I tried, but nothing changed – see attachment below. The previous High/Low are still wrong.

  Sure, previous OHLC values have to be calculated! BUT due to several other settings this is difficult for the USER. This makes it time consuming for the USER!!! With the variable Dhigh/Dlow everything works fine!!!! So users also need further variables for Hour/Month/Week etc. High/Low (even better OHLC). In this Forum so many users have problems with this!!! Just an example below out of TradingView. Within one line of code I can adress every OHLC within every previous hour/day/week/month and I can plot his information in every chart with every timeframe. If I change the exchange hours in TradingView, the calculation simply adapts the OHLC to the new exchange hours – VERY SIMPLE. Also easy possible in other charting software….

  To put it simple: Like Dhigh and Dlow, which exist now in PRT, further varibales are needed.

  //Monthly
  mo = security(tickerid, ‘M’, open[1], lookahead=barmerge.lookahead_on)
  mc = security(tickerid, ‘M’, close[1], lookahead=barmerge.lookahead_on)
  mh = security(tickerid, ‘M’, high[1], lookahead=barmerge.lookahead_on)
  ml = security(tickerid, ‘M’, low[1], lookahead=barmerge.lookahead_on)
  //Weekly
  wo = security(tickerid, ‘W’, open[1], lookahead=barmerge.lookahead_on)
  wc = security(tickerid, ‘W’, close[1], lookahead=barmerge.lookahead_on)
  wh = security(tickerid, ‘W’, high[1], lookahead=barmerge.lookahead_on)
  wl = security(tickerid, ‘W’, low[1], lookahead=barmerge.lookahead_on)
  //Daily
  do = security(tickerid, ‘D’, open[1], lookahead=barmerge.lookahead_on)
  dc = security(tickerid, ‘D’, close[1], lookahead=barmerge.lookahead_on)
  dh = security(tickerid, ‘D’, high[1], lookahead=barmerge.lookahead_on)
  dl = security(tickerid, ‘D’, low[1], lookahead=barmerge.lookahead_on)
  //1 Hour
  oho = security(tickerid, ’60’, open[1], lookahead=barmerge.lookahead_on)
  ohc = security(tickerid, ’60’, close[1], lookahead=barmerge.lookahead_on)
  ohh = security(tickerid, ’60’, high[1], lookahead=barmerge.lookahead_on)
  ohl = security(tickerid, ’60’, low[1], lookahead=barmerge.lookahead_on)



  vetrader

  Participant

  Topics: 11

  Replies: 19

  Been thanked: 2 times
  04/05/2019 at 11:53 AM #95528
  Nicolas

  vetrader wrote:

  also need further variables for Hour/Month/Week

  I agree. I’m helping people program things here since 3 years, do you think you are the first one to ask for multi timeframe instruction? Or OHLC constant for other timeframes? No, you are not the first one, and we are counting almost 20.000 members now.

  I understand that this is frustrating, but solutions exist with codes, and even if it is not the easy way, me, you, we, have to deal with it.

  Feel free to drop a suggestion to ProRealTime by using their suggestion box, here: https://www.prorealtime.com/en/contact?suggestion=1



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4774 times
