MT4 Fractal Box

• 02/07/2018 at 12:27 PM #61854
  saif

  Good Morning Nicolas,

  Will you please be able to convert the attached MT4 indicator for me to use on PRT?

  I currently use the Bill Williams Fractal ( attached) but find the MT4 indicator showing less but more reliable breaks.

  Thanks in advance.Fractal-Box-V5.1_



  1 user thanked author for this post.

  mr blue



  saif

  Participant

  Topics: 2

  Replies: 11

  Been thanked: 1 time
  02/08/2018 at 4:27 PM #62040
  Nicolas

  I made the conversion of the indicator. You can find it in this post: Fractals Box



  2 users thanked author for this post.

  Pere, mr blue



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  02/09/2018 at 2:23 AM #62090
  saif

  Thank you very much for your help. Your’e a genius!

  How do I remove the vertical lines within the box? With the line in place only the body of a candle is visible.

  Is it also possible to highlight value on Y-axis of the high and low fractal, and a way to change the colour of the box to suit individual preference.

  PS: trying to covert a few traders to PRT…They are all used to the MT4 indicator!!!!

  Cheers mate!





  saif

  Participant

  Topics: 2

  Replies: 11

  Been thanked: 1 time
  02/09/2018 at 3:31 PM #62136
  Nicolas

  It is not possible to remove the vertical lines, sorry. You can play with alpha transparency (a setting I included in the manual parameter). To highlight the last fractals on the price axis, you can change the RETURN instruction like this:

  return hil, lol

  1	return hil, lol

  and set them to invisible.

  About the box color, you need to change the r,g,b variables  in the code with the ones that suit your preference. RGB color table example: http://cloford.com/resources/colours/500col.htm



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  02/12/2018 at 5:31 AM #62320
  saif

  Hi Nicolas, Thank you and hope you had a great weekend!

  I can set the “alpha” to 0 which removes the vertical lines. When I change the return instruction as above, I am not getting it on the price axis.

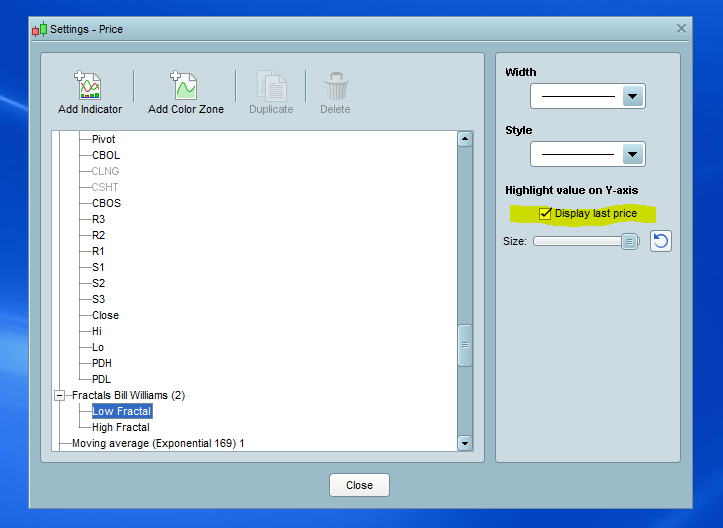

  Pls see attached pic. What am I doing wrong??

  Also couldn’t change colours of the box.

  How do I modify to change colours in the settings and not have to modify indicator when changing colours?



  saif

  Participant

  Topics: 2

  Replies: 11

  Been thanked: 1 time
  02/12/2018 at 6:30 AM #62328
  saif

  Sorry I forgot to ask in my previous post…What is the use of MaxPipsBox ( when unchecked/checked)

  Cheers!



  saif

  Participant

  Topics: 2

  Replies: 11

  Been thanked: 1 time
  02/12/2018 at 8:38 AM #62331
  Nicolas

  saif wrote:

  I can set the “alpha” to 0 which removes the vertical lines.

  Great! I was not expecting that 🙂

  It is not possible to change the color fill of objects sorry..

  To get the good fractals points  values on the chart, change the code according to this one:

  //PRC_FractalsBox | indicator //08.02.2017 //Nicolas @ www.prorealcode.com //Sharing ProRealTime knowledge defparam drawonlastbaronly=true // --- settings //LookBackBars = 100 //MaxPipsBox = 0 //MaxBoxPips = 15 //alpha = 100 // --- end of settings //fractals cp = 2 if high[cp] >= highest[2*cp+1](high) then hil = high[cp] hh = hil else hil=0 endif if low[cp] <= lowest[2*cp+1](low) then lol=low[cp] ll = lol else lol=0 endif if barindex>LookBackBars then for li28 = LookBackBars downto 0 do if(hil[li28]<>0) then price4=hil[li28] endif if(lol[li28]<>0) then price12=lol[li28] endif if(MaxPipsBox and price4-price12>MaxBoxPips*pipsize) then r=240 g=0 b=0 else r=0 g=0 b=255 endif drawrectangle(barindex[li28+cp],price4,barindex[li28+cp+1],price12) coloured(r,g,b,alpha) next drawrectangle(barindex[0],price4,barindex[li28+cp+1],price12) coloured(r,g,b,alpha) endif return hh,ll

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53

  //PRC_FractalsBox | indicator //08.02.2017 //Nicolas @ www.prorealcode.com //Sharing ProRealTime knowledge   defparam drawonlastbaronly=true   // --- settings //LookBackBars = 100 //MaxPipsBox = 0 //MaxBoxPips = 15 //alpha = 100 // --- end of settings   //fractals cp = 2 if high[cp] >= highest[2*cp+1](high) then hil = high[cp] hh = hil else hil=0 endif if low[cp] <= lowest[2*cp+1](low)  then lol=low[cp] ll = lol else lol=0 endif   if barindex>LookBackBars then for li28 = LookBackBars downto 0 do if(hil[li28]<>0) then price4=hil[li28] endif if(lol[li28]<>0) then price12=lol[li28] endif   if(MaxPipsBox and price4-price12>MaxBoxPips*pipsize) then r=240 g=0 b=0 else r=0 g=0 b=255 endif drawrectangle(barindex[li28+cp],price4,barindex[li28+cp+1],price12) coloured(r,g,b,alpha) next drawrectangle(barindex[0],price4,barindex[li28+cp+1],price12) coloured(r,g,b,alpha) endif   return hh,ll

  I added 2 new variables named hh and ll.

  1 user thanked author for this post.

  Real Pro



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  02/13/2018 at 3:48 AM #62514
  saif

  Hi Nicolas,

  Actually I prefer the fractal box of your 1^st version. When I add the variables to get the Value listed on price Axis the box somewhat changes to the second version.

  Hope this makes sense. Basically I want to use your original indicator and make changes to the return instructions to highlight price. Adding the variables hh,ll reverts back to your second version!

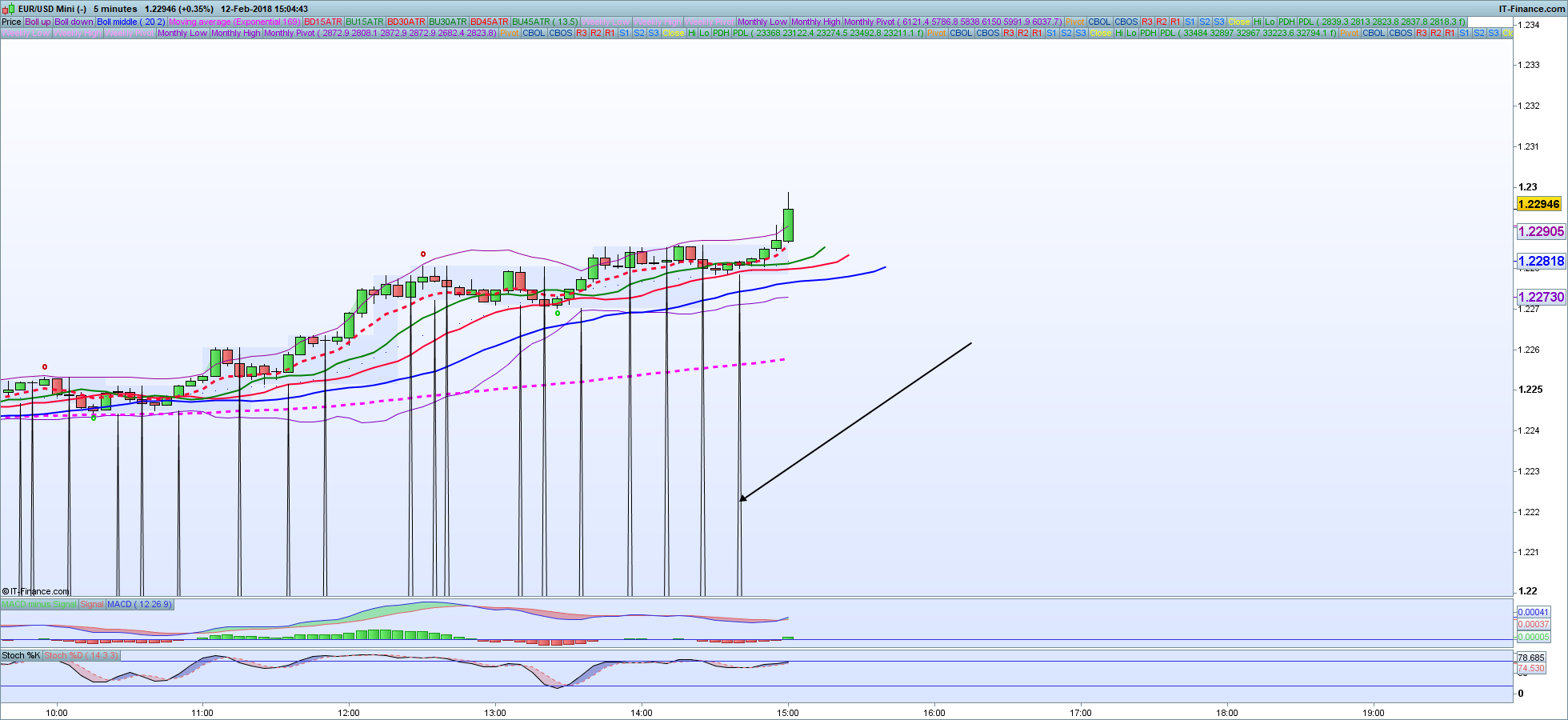

  if I tried “return hil, lol” it then gives me vertical lines.

  Thanks and sorry to be a pain!!!



  saif

  Participant

  Topics: 2

  Replies: 11

  Been thanked: 1 time
  02/13/2018 at 11:42 AM #62556
  Nicolas

  I did not change anything about the boxes calculation. Bear in mind that the boxes are plotted in the past, just like Fractals. The new hh and ll variables are only the price levels of the last known fractals.

  1 user thanked author for this post.

  saif



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  02/13/2018 at 12:28 PM #62573
  saif

  I used hh = hil and ll = lol and return hh,ll

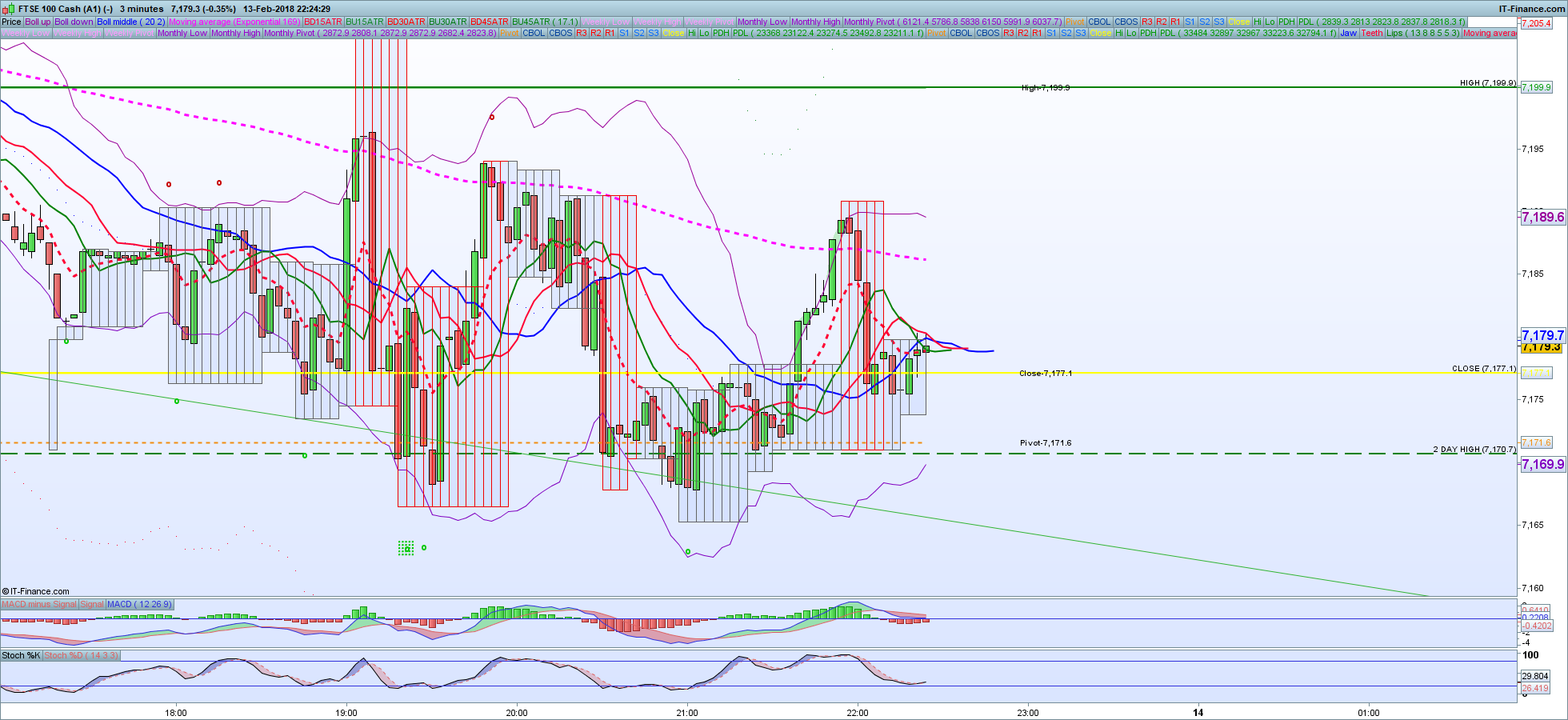

  The result is a different looking box. I have attached some pics.

  I cant use return hil,lol ( then I get vertical lines )

  PS: the new version lets me change colour of the box!!

  I know your’e probably busy doing more important things but pls look into this when time permits.

  Thanks Nicolas





  saif

  Participant

  Topics: 2

  Replies: 11

  Been thanked: 1 time
  02/13/2018 at 1:48 PM #62595
  Nicolas

  You are not changing the color of the boxes but the fill color between the 2 fractals (hh and ll in this case) and that’s why you are thinking it’s a box (these 2 price levels are filled with a color between them).

  Once again 🙂 it looks different because it draws the current fractals levels at the moment they are discovered and not in the past like in the original MT4 code. But they are the true fractals price levels, the levels you want to be written on the Y-axis, that’s why I added them.

  2 users thanked author for this post.

  nbhudia, saif



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  02/14/2018 at 12:05 PM #62716
  saif

  Thank You Nicolas..Appreciate you taking the time to help.

  BTW, I’m trying to figure out where I thank you. It says’ s you’ve been thanked 1166 times ( not enough)

  Cheers bud!



  saif

  Participant

  Topics: 2

  Replies: 11

  Been thanked: 1 time
  02/14/2018 at 2:56 PM #62736
  Nicolas

  There is a “thanks” button just above my avatar, feel free to click on it 😉

  1 user thanked author for this post.

  saif



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
