MUV indicator

• 05/18/2020 at 9:15 AM #132089
  Loop

  Hi everybody,

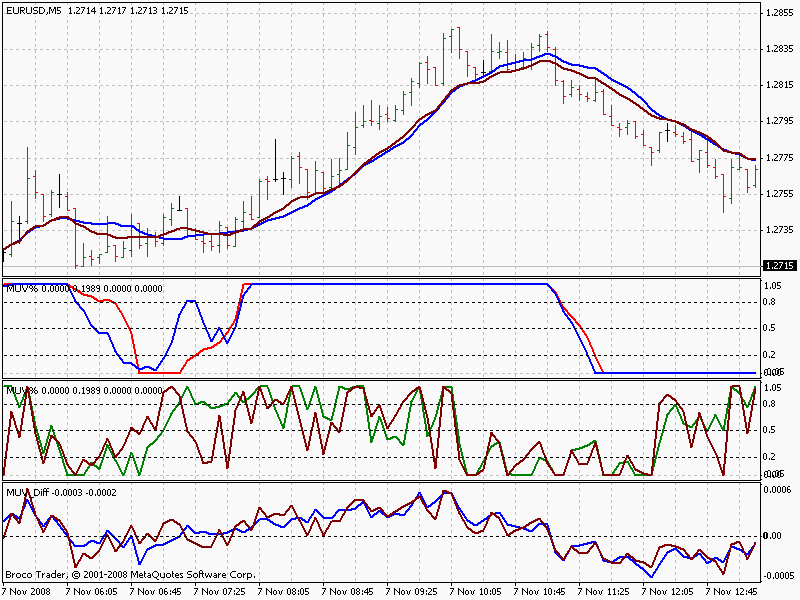

  I found these “MUV” indicators for Metatrader interesting:

  https://www.mql5.com/en/code/8549

  Would it be possible to obtain the corresponding version in Prorealtime code (if not exsisting already).

  Thanks a lot in advance

  Loop

  MT5 MUV

  +------------------------------------------------------------------+ //| 111.mq4 | //| Copyright © 2008, MetaQuotes Software Corp. | //| http://www.metaquotes.net | //+------------------------------------------------------------------+ #property copyright "Copyright © 2008, MetaQuotes Software Corp." #property link "http://www.metaquotes.net" #property indicator_separate_window #property indicator_buffers 4 #property indicator_color1 Green #property indicator_color2 Yellow #property indicator_color3 Red #property indicator_color4 Blue //extern int MAMetod = 0; extern int MAPeriod = 14; extern int KPeriod = 14; extern bool ShowDif = true; extern bool ShowMUV = true; //---- buffers double ExtMapBuffer1[]; double ExtMapBuffer2[]; double ExtMapBuffer3[]; double ExtMapBuffer4[]; //double ExtMapBuffer1[]; //double ExtMapBuffer2[]; //double K[]; double K0[]; double K1[]; double K2[]; double K3[]; //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ int init() { //---- indicators IndicatorBuffers(8); if (ShowDif) {SetIndexStyle(0,DRAW_LINE); SetIndexStyle(1,DRAW_LINE);} else {SetIndexStyle(0,DRAW_NONE); SetIndexStyle(1,DRAW_NONE);} if (ShowMUV) {SetIndexStyle(2,DRAW_LINE); SetIndexStyle(3,DRAW_LINE);} else {SetIndexStyle(2,DRAW_NONE); SetIndexStyle(3,DRAW_NONE);} SetIndexBuffer(0,ExtMapBuffer1); SetIndexBuffer(1,ExtMapBuffer2); SetIndexBuffer(2,ExtMapBuffer3); SetIndexBuffer(3,ExtMapBuffer4); SetIndexBuffer(4,K0); SetIndexBuffer(5,K1); SetIndexBuffer(6,K2); SetIndexBuffer(7,K3); //---- return(0); } //+------------------------------------------------------------------+ //| Custom indicator deinitialization function | //+------------------------------------------------------------------+ int deinit() { //---- //---- return(0); } //+------------------------------------------------------------------+ //| Custom indicator iteration function | //+------------------------------------------------------------------+ int start() { int counted_bars = IndicatorCounted(); if(counted_bars < 0) return(-1); if(counted_bars > 0) counted_bars--; int limit = Bars - counted_bars; if(counted_bars==0) limit-=1+1; //---- for (int i = limit;i >=0; i--) { K0[i] = iCustom(NULL,0,"MUV",MAPeriod,0,1,i)-iCustom(NULL,0,"MUV",MAPeriod,0,1,i+1); K1[i] = iCustom(NULL,0,"MUV",MAPeriod,1,1,i)-iCustom(NULL,0,"MUV",MAPeriod,1,1,i+1); K2[i] = iCustom(NULL,0,"MUV",MAPeriod,0,1,i); K3[i] = iCustom(NULL,0,"MUV",MAPeriod,1,1,i); double K0mx = K0[ArrayMaximum(K0,KPeriod,i)]; double K0mm = K0[ArrayMinimum(K0,KPeriod,i)]; double K1mx = K1[ArrayMaximum(K1,KPeriod,i)]; double K1mm = K1[ArrayMinimum(K1,KPeriod,i)]; double K2mx = K2[ArrayMaximum(K2,MAPeriod,i)]; double K2mm = K2[ArrayMinimum(K2,MAPeriod,i)]; double K3mx = K3[ArrayMaximum(K3,MAPeriod,i)]; double K3mm = K3[ArrayMinimum(K3,MAPeriod,i)]; if ((K0mx - K0mm)>0) double k0 = 1-((K0mx-K0[i])/(K0mx-K0mm)); else k0 = 1; if ((K1mx - K1mm)>0) double k1 = 1-((K1mx-K1[i])/(K1mx-K1mm)); else k1 = 1; if ((K2mx - K2mm)>0) double k2 = 1-((K2mx-K2[i])/(K2mx-K2mm)); else k2 = 0; if ((K3mx - K3mm)>0) double k3 = 1-((K3mx-K3[i])/(K3mx-K3mm)); else k3 = 0; ExtMapBuffer1[i] = k0; ExtMapBuffer2[i] = k1; ExtMapBuffer3[i] = k2; ExtMapBuffer4[i] = k3; } //---- return(0);

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109

  +------------------------------------------------------------------+ //|                                                          111.mq4 | //|                      Copyright © 2008, MetaQuotes Software Corp. | //|                                        http://www.metaquotes.net | //+------------------------------------------------------------------+ #property copyright "Copyright © 2008, MetaQuotes Software Corp." #property link      "http://www.metaquotes.net"   #property indicator_separate_window #property indicator_buffers 4 #property indicator_color1 Green #property indicator_color2 Yellow #property indicator_color3 Red #property indicator_color4 Blue   //extern int MAMetod = 0; extern int MAPeriod = 14; extern int KPeriod = 14; extern bool ShowDif = true; extern bool ShowMUV = true; //---- buffers double ExtMapBuffer1[]; double ExtMapBuffer2[]; double ExtMapBuffer3[]; double ExtMapBuffer4[]; //double ExtMapBuffer1[]; //double ExtMapBuffer2[]; //double K[]; double K0[]; double K1[]; double K2[]; double K3[];   //+------------------------------------------------------------------+ //| Custom indicator initialization function                         | //+------------------------------------------------------------------+ int init()   { //---- indicators IndicatorBuffers(8);    if (ShowDif) {SetIndexStyle(0,DRAW_LINE); SetIndexStyle(1,DRAW_LINE);}    else {SetIndexStyle(0,DRAW_NONE); SetIndexStyle(1,DRAW_NONE);}    if (ShowMUV) {SetIndexStyle(2,DRAW_LINE); SetIndexStyle(3,DRAW_LINE);}    else {SetIndexStyle(2,DRAW_NONE); SetIndexStyle(3,DRAW_NONE);}      SetIndexBuffer(0,ExtMapBuffer1);    SetIndexBuffer(1,ExtMapBuffer2);    SetIndexBuffer(2,ExtMapBuffer3);    SetIndexBuffer(3,ExtMapBuffer4);      SetIndexBuffer(4,K0);      SetIndexBuffer(5,K1);    SetIndexBuffer(6,K2);      SetIndexBuffer(7,K3);       //----    return(0);   } //+------------------------------------------------------------------+ //| Custom indicator deinitialization function                       | //+------------------------------------------------------------------+ int deinit()   { //----    //----    return(0);   } //+------------------------------------------------------------------+ //| Custom indicator iteration function                              | //+------------------------------------------------------------------+ int start()   {    int counted_bars = IndicatorCounted();    if(counted_bars < 0)  return(-1);    if(counted_bars > 0)   counted_bars--;    int limit = Bars - counted_bars;    if(counted_bars==0) limit-=1+1; //----     for (int i = limit;i >=0; i--)   {     K0[i] = iCustom(NULL,0,"MUV",MAPeriod,0,1,i)-iCustom(NULL,0,"MUV",MAPeriod,0,1,i+1);   K1[i] = iCustom(NULL,0,"MUV",MAPeriod,1,1,i)-iCustom(NULL,0,"MUV",MAPeriod,1,1,i+1);   K2[i] = iCustom(NULL,0,"MUV",MAPeriod,0,1,i);   K3[i] = iCustom(NULL,0,"MUV",MAPeriod,1,1,i);      double K0mx = K0[ArrayMaximum(K0,KPeriod,i)];   double K0mm = K0[ArrayMinimum(K0,KPeriod,i)];        double K1mx = K1[ArrayMaximum(K1,KPeriod,i)];   double K1mm = K1[ArrayMinimum(K1,KPeriod,i)];        double K2mx = K2[ArrayMaximum(K2,MAPeriod,i)];   double K2mm = K2[ArrayMinimum(K2,MAPeriod,i)];        double K3mx = K3[ArrayMaximum(K3,MAPeriod,i)];   double K3mm = K3[ArrayMinimum(K3,MAPeriod,i)];      if ((K0mx - K0mm)>0) double k0 = 1-((K0mx-K0[i])/(K0mx-K0mm)); else k0 = 1;           if ((K1mx - K1mm)>0) double k1 = 1-((K1mx-K1[i])/(K1mx-K1mm)); else k1 = 1;   if ((K2mx - K2mm)>0) double k2 = 1-((K2mx-K2[i])/(K2mx-K2mm)); else k2 = 0;   if ((K3mx - K3mm)>0) double k3 = 1-((K3mx-K3[i])/(K3mx-K3mm)); else k3 = 0;     ExtMapBuffer1[i] = k0;   ExtMapBuffer2[i] = k1;   ExtMapBuffer3[i] = k2;   ExtMapBuffer4[i] = k3;   } //----    return(0);

  MUV'

  //+------------------------------------------------------------------+ //| MUV.mq4 | //| 3 ноября 2008г. Yuriy Tokman | //| ICQ#:481-971-287 yuriytokman@gmail.com | //+------------------------------------------------------------------+ #property copyright "Yuriy Tokman" #property link "yuriytokman@gmail.com" #property indicator_chart_window #property indicator_buffers 2 #property indicator_color1 LightYellow #property indicator_color2 Red extern int period = 14; extern int ma_method = 0; //MODE_SMA 0 Простое скользящее среднее //MODE_EMA 1 Экспоненциальное скользящее среднее //MODE_SMMA 2 Сглаженное скользящее среднее //MODE_LWMA 3 Линейно-взвешенное скользящее среднее double Buf0[]; double Buf1[]; //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ int init() { //---- indicators SetIndexBuffer(0,Buf0); SetIndexBuffer(1,Buf1); SetIndexStyle(0,DRAW_NONE); SetIndexStyle(1,DRAW_LINE); //---- return(0); } //+------------------------------------------------------------------+ //| Custom indicator deinitialization function | //+------------------------------------------------------------------+ int deinit() { //---- //---- return(0); } //+------------------------------------------------------------------+ //| Custom indicator iteration function | //+------------------------------------------------------------------+ int start() { int limit; int counted_bars=IndicatorCounted(); if(counted_bars<0) return(-1); if(counted_bars>0) counted_bars--; limit=Bars-counted_bars; for(int i=0; i<limit; i++) { double x=0.0, h = iHigh(NULL,0,i), l = iLow(NULL,0,i), o = iOpen(NULL,0,i), c = iClose(NULL,0,i); if(c<o) { x=(h+l+c+l)/2;} else if(c>o) { x=(h+l+c+h)/2;} else if(c==o){ x=(h+l+c+c)/2;} Buf0[i]=((x-l)+(x-h))/2; } for(i=0; i<limit; i++) { Buf1[i]=iMAOnArray(Buf0,0,period,0,ma_method,i); } //---- return(0);

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77

  //+------------------------------------------------------------------+ //|                                                          MUV.mq4 | //|  3 ноября 2008г.                                    Yuriy Tokman | //| ICQ#:481-971-287                           yuriytokman@gmail.com | //+------------------------------------------------------------------+ #property copyright "Yuriy Tokman" #property link      "yuriytokman@gmail.com"   #property indicator_chart_window   #property indicator_buffers 2   #property indicator_color1 LightYellow #property indicator_color2 Red   extern int period     = 14; extern int ma_method  = 0;  //MODE_SMA   0   Простое скользящее среднее                               //MODE_EMA   1   Экспоненциальное скользящее среднее   //MODE_SMMA  2   Сглаженное скользящее среднее   //MODE_LWMA  3   Линейно-взвешенное скользящее среднее     double Buf0[]; double Buf1[]; //+------------------------------------------------------------------+ //| Custom indicator initialization function                         | //+------------------------------------------------------------------+ int init()   { //---- indicators    SetIndexBuffer(0,Buf0);    SetIndexBuffer(1,Buf1);      SetIndexStyle(0,DRAW_NONE);    SetIndexStyle(1,DRAW_LINE);   //----    return(0);   } //+------------------------------------------------------------------+ //| Custom indicator deinitialization function                       | //+------------------------------------------------------------------+ int deinit()   { //----   //----    return(0);   } //+------------------------------------------------------------------+ //| Custom indicator iteration function                              | //+------------------------------------------------------------------+ int start()   {    int limit;    int counted_bars=IndicatorCounted();    if(counted_bars<0)  return(-1);    if(counted_bars>0) counted_bars--;    limit=Bars-counted_bars;    for(int i=0; i<limit; i++)      {       double x=0.0,       h = iHigh(NULL,0,i),       l = iLow(NULL,0,i),       o = iOpen(NULL,0,i),       c = iClose(NULL,0,i);       if(c<o) { x=(h+l+c+l)/2;}       else if(c>o) { x=(h+l+c+h)/2;}       else if(c==o){ x=(h+l+c+c)/2;}       Buf0[i]=((x-l)+(x-h))/2;      }      for(i=0; i<limit; i++)      {       Buf1[i]=iMAOnArray(Buf0,0,period,0,ma_method,i);      } //----    return(0);

  MT5 MUV diff

  //+------------------------------------------------------------------+ //| 111.mq4 | //| Copyright © 2008, MetaQuotes Software Corp. | //| http://www.metaquotes.net | //+------------------------------------------------------------------+ #property copyright "Copyright © 2008, MetaQuotes Software Corp." #property link "http://www.metaquotes.net" #property indicator_separate_window #property indicator_buffers 2 #property indicator_color1 Blue #property indicator_color2 Yellow #property indicator_level1 0 extern int MAPeriod=14; //---- buffers double ExtMapBuffer1[]; double ExtMapBuffer2[]; //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ int init() { //---- indicators SetIndexStyle(0,DRAW_LINE); SetIndexBuffer(0,ExtMapBuffer1); SetIndexStyle(1,DRAW_LINE); SetIndexBuffer(1,ExtMapBuffer2); //---- return(0); } //+------------------------------------------------------------------+ //| Custom indicator deinitialization function | //+------------------------------------------------------------------+ int deinit() { //---- //---- return(0); } //+------------------------------------------------------------------+ //| Custom indicator iteration function | //+------------------------------------------------------------------+ int start() { int counted_bars=IndicatorCounted(); if(counted_bars < 0) return(-1); if(counted_bars>0) counted_bars--; int limit=Bars-counted_bars; if(counted_bars==0) limit-=1+1; //---- for(int i=limit;i>=0; i--) { ExtMapBuffer1[i] = iCustom(NULL,0,"MUV",MAPeriod,0,1,i)-iCustom(NULL,0,"MUV",MAPeriod,0,1,i+1); ExtMapBuffer2[i] = iCustom(NULL,0,"MUV",MAPeriod,1,1,i)-iCustom(NULL,0,"MUV",MAPeriod,1,1,i+1); } //---- return(0);

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

  //+------------------------------------------------------------------+ //|                                                          111.mq4 | //|                      Copyright © 2008, MetaQuotes Software Corp. | //|                                        http://www.metaquotes.net | //+------------------------------------------------------------------+ #property copyright "Copyright © 2008, MetaQuotes Software Corp." #property link      "http://www.metaquotes.net"   #property indicator_separate_window #property indicator_buffers 2 #property indicator_color1 Blue #property indicator_color2 Yellow #property indicator_level1 0   extern int MAPeriod=14; //---- buffers double ExtMapBuffer1[]; double ExtMapBuffer2[]; //+------------------------------------------------------------------+ //| Custom indicator initialization function                         | //+------------------------------------------------------------------+ int init()   { //---- indicators    SetIndexStyle(0,DRAW_LINE);    SetIndexBuffer(0,ExtMapBuffer1);    SetIndexStyle(1,DRAW_LINE);    SetIndexBuffer(1,ExtMapBuffer2); //----    return(0);   } //+------------------------------------------------------------------+ //| Custom indicator deinitialization function                       | //+------------------------------------------------------------------+ int deinit()   { //----   //----    return(0);   } //+------------------------------------------------------------------+ //| Custom indicator iteration function                              | //+------------------------------------------------------------------+ int start()   {    int counted_bars=IndicatorCounted();    if(counted_bars < 0)  return(-1);    if(counted_bars>0) counted_bars--;    int limit=Bars-counted_bars;    if(counted_bars==0) limit-=1+1; //----    for(int i=limit;i>=0; i--)      {       ExtMapBuffer1[i] = iCustom(NULL,0,"MUV",MAPeriod,0,1,i)-iCustom(NULL,0,"MUV",MAPeriod,0,1,i+1);       ExtMapBuffer2[i] = iCustom(NULL,0,"MUV",MAPeriod,1,1,i)-iCustom(NULL,0,"MUV",MAPeriod,1,1,i+1);      } //----    return(0);



  Loop

  Participant

  Topics: 13

  Replies: 13

  Been thanked: 0 times
  05/18/2020 at 12:05 PM #132127
  Nicolas

  Why interesting please? This MUV indicator is a moving average based of different price calculation depending of the candlestick form:

  //MUV indicator period = 14 mamethod = 0 hh = high l = low o = open c = close if(c<o) then x=(hh+l+c+l)/2 elsif(c>o) then x=(hh+l+c+hh)/2 elsif(c=o)then x=(hh+l+c+c)/2 endif Buf0=((x-l)+(x-hh))/2 Buf1=average[period,mamethod](Buf0) return buf1

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

  //MUV indicator   period     = 14 mamethod  = 0   hh = high l = low o = open c = close if(c<o) then x=(hh+l+c+l)/2 elsif(c>o) then x=(hh+l+c+hh)/2 elsif(c=o)then x=(hh+l+c+c)/2 endif Buf0=((x-l)+(x-hh))/2   Buf1=average[period,mamethod](Buf0)   return buf1

  Then, the other indicators are just difference of this one from a period to another or a stochastic based oscillator.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4775 times
  05/18/2020 at 6:07 PM #132192
  Loop

  Thanks Nico anyway…

  Loop



  Loop

  Participant

  Topics: 13

  Replies: 13

  Been thanked: 0 times
