My first Inidicator Markttechnik ZigZag based

• 12/21/2023 at 2:42 PM #225574
  gidien

  Hello,

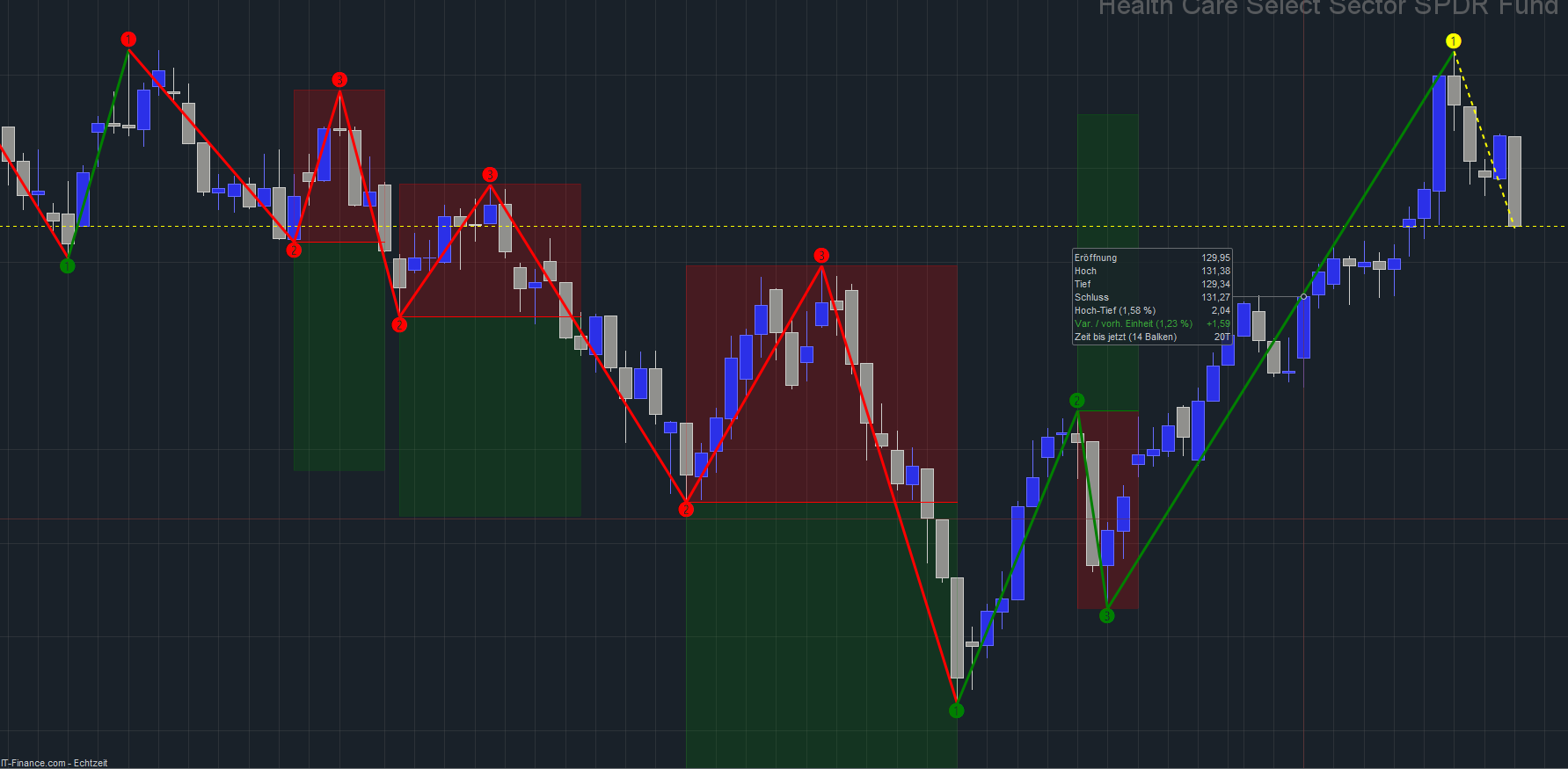

  just a preview for my first prorealcode indicator. I’m still learning and coding is not perfect.
  I make it to take my trades with “Markttechnik” strategy. It is like  1-2-3 swing trading.

  best regard

  Guido



  gidien

  Participant

  Topics: 1

  Replies: 2

  Been thanked: 2 times
  12/27/2023 at 12:28 PM #225727
  Jean FX

  Real zigzag indicators actually do object retracement, which we do not do because it is unrealistic and cannot be used in real trading.



  Jean FX

  Moderator

  Topics: 0

  Replies: 83

  Been thanked: 21 times
  12/27/2023 at 12:44 PM #225731
  robertogozzi

  Yes, ZigZag, DPO and other indicators are the so-colled REPAINTING indicators and cannot be used for autotrading.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17188

  Been thanked: 4064 times
  11/28/2024 at 7:09 AM #240838
  xpe74

  Roberto hi,  at some stage, there are some calculations done by this indicator to draw lines. Is the calculation unable to generate a signal we could convert to a trading signal and why ? best regards



  xpe74

  Participant

  Topics: 2

  Replies: 9

  Been thanked: 0 times
  11/28/2024 at 12:29 PM #240853
  robertogozzi

  It’s a repainting indicator, i.e. if it NOW detects a signal on a PAST candle, it goes back to that candle and plots the signal on it!

  This is visually acceptable, but CAN’T be used in trading, as you cannor enter a trade back in the past!

  I am attaching a custom version of DPO which returns the CURRENT value which CAN be used in automatic trading (BLACK line), it also plots the DPO as it is usually done, and as it is done by PRT (FUCHSIA line, which CAN’T be used in automatic trading).

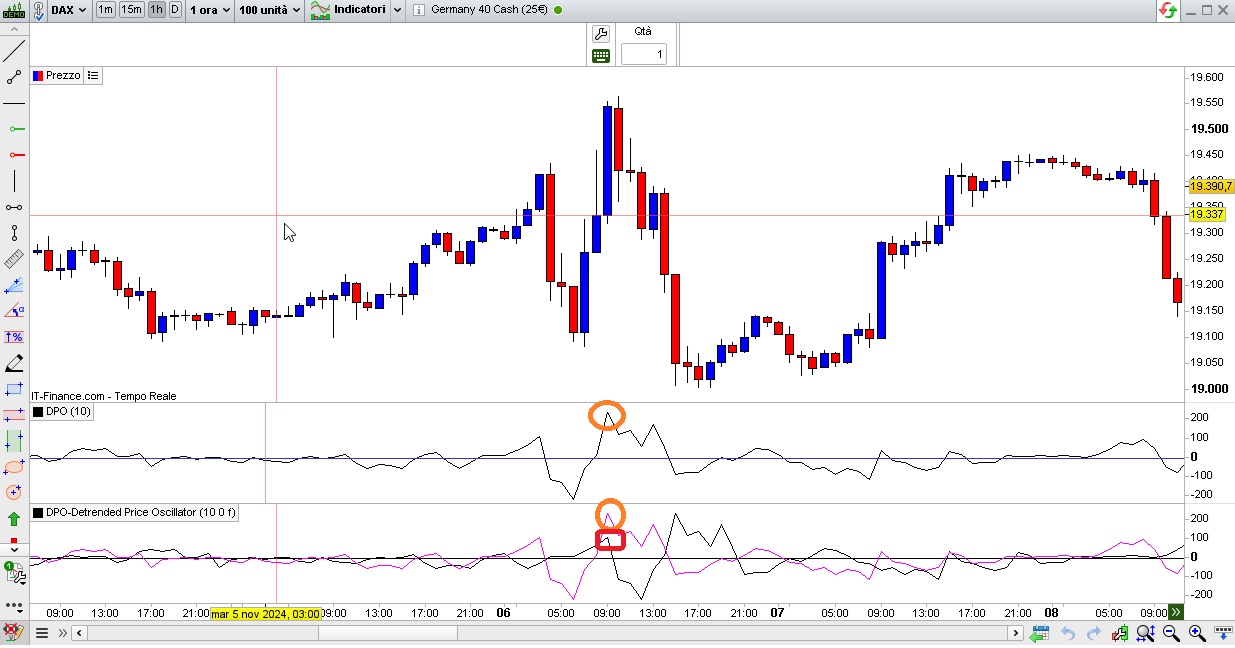

  Pic Dpo1 shows the repainting signals circled in ORANGE, while the CURRENT signal is circled in RED.

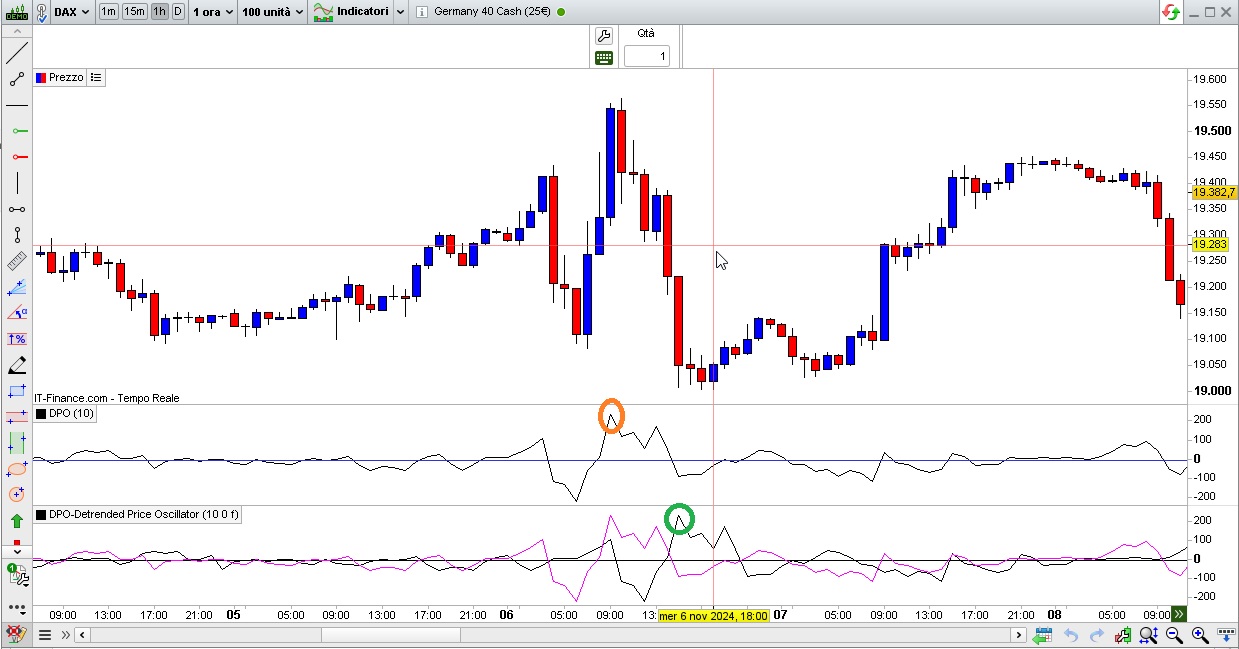

  Pic Dpo2 shows where the REPAINTING signal is plotted and where it really is as CURRENT. There’s a 10-bar distance because the indicator was set with 10 periods., The more the periods, the bigger the gap, the less the periods the smaller the gap.

  This is the code:

  // DPO - Detrended Price Oscillator // // Formula and calculation: // // The DPO is calculated by subtracting the simple moving average over an "n" day period and shifted // n/2+1 days back from the price. // // To calculate the detrended price oscillator: // // Decide on the time frame that you wish to analyze. Set "n" as half of that cycle period. // Calculate a simple moving average for n periods. // Calculate (n / 2 + 1) // Subtract the moving average, from (n / 2 + 1) days ago, from the closing price: // DPO = Close - Simple moving average [from (n / 2 + 1) days ago] // Periods = 21 MAtype = 0 //(sma) Arrows = 1 Periods = max(1,min(999,Periods)) MAtype = max(0,min(8,MAtype)) src = CustomClose n = round((Periods / 2) - 0.5) + 1 MyDPO = src[n] - Average[Periods,MAtype](src) // Plot shifted DPO (somewhat like Ichimoku's Chikou) DrawSegment(BarIndex - n -1,MyDpo[1],BarIndex - n,MyDPO) coloured(255,0,255,255) //Fuchsia // Bullish = close > open Bearish = close < open // If ARROWS are ticked then display signals IF Arrows THEN IF MyDPO CROSSES OVER MyDPO[n] AND Bullish THEN DrawArrowUP(BarIndex,MyDPO) coloured(0,255,0,180) //Green ENDIF IF MyDPO CROSSES UNDER MyDPO[n] AND Bearish THEN DrawArrowDOWN(BarIndex,MyDPO) coloured(255,0,0,180) //Red ENDIF ENDIF // RETURN MyDPO AS "DPO",0 AS "Zero"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

  // DPO - Detrended Price Oscillator // //       Formula and calculation: // // The DPO is calculated by subtracting the simple moving average over an "n" day period and shifted // n/2+1 days back from the price. // // To calculate the detrended price oscillator: // //      Decide on the time frame that you wish to analyze. Set "n" as half of that cycle period. //      Calculate a simple moving average for n periods. //      Calculate (n / 2 + 1) //      Subtract the moving average, from (n / 2 + 1) days ago, from the closing price: //      DPO = Close - Simple moving average [from (n / 2 + 1) days ago] // Periods = 21 MAtype  = 0    //(sma) Arrows  = 1 Periods    = max(1,min(999,Periods)) MAtype     = max(0,min(8,MAtype)) src        = CustomClose n          = round((Periods / 2) - 0.5) + 1 MyDPO      = src[n] - Average[Periods,MAtype](src) // Plot shifted DPO   (somewhat like Ichimoku's Chikou) DrawSegment(BarIndex - n -1,MyDpo[1],BarIndex - n,MyDPO) coloured(255,0,255,255) //Fuchsia // Bullish    = close > open Bearish    = close < open // If ARROWS are ticked then display signals IF Arrows THEN    IF MyDPO CROSSES OVER  MyDPO[n] AND Bullish THEN       DrawArrowUP(BarIndex,MyDPO) coloured(0,255,0,180)                          //Green    ENDIF    IF MyDPO CROSSES UNDER MyDPO[n] AND Bearish THEN       DrawArrowDOWN(BarIndex,MyDPO) coloured(255,0,0,180)                        //Red    ENDIF ENDIF // RETURN MyDPO AS "DPO",0 AS "Zero"









  robertogozzi

  Moderator

  Topics: 69

  Replies: 17188

  Been thanked: 4064 times
  11/28/2024 at 12:32 PM #240857
  robertogozzi

  Actually the gap is 6 bars, since the calculation is (Periods / 2) + 1, so 10/2 + 1 = 6.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17188

  Been thanked: 4064 times
