NAS 3M RSIH & DMH V0.1 – John Ehlers

• 01/18/2022 at 2:57 PM #185837
  SnorreDK

  I have made an attempt at a strategy that combines John Ehlers Yet Another Improved RSI – RSIH & John Ehlers DMH – AN IMPROVED DIRECTIONAL MOVEMENT INDICATOR
  Both of these indicators are coded by Bruno Carnazzi

  What do you think. How can we make it better?

  // Definition of code parameters DEFPARAM CumulateOrders = False // Cumulating positions deactivated //SnorreDK:s Stratetgy cobined of TASC DEC 2021 RSIH and DMH - Directional Movement using Hann Windowing Sll = 1.3 // Stoploss long SLs = 2 // Stoploss short //Indicator: TASC DEC 2021 RSIH // TASC JAN 2022 // RSIH - RSI with Hann Windowing // (C) 2005-2021 John F. Ehlers // Parameters // Accumulate "Closes Up" and "Closes Down" CU = 0 CD = 0 RSILength=14 for count = 1 to RSILength do if Close[count - 1] - Close[count] > 0 then CU = CU + (1 - cos(360*count / (RSILength + 1))) * (Close[count - 1] - Close[count]) endif if Close[count] - Close[count - 1]> 0 then CD = CD + (1 - cos(360*count / (RSILength + 1))) *(Close[count] - Close[count - 1]) endif next if CU + CD <> 0 then MyRSI = (CU - CD) / (CU + CD) endif c2 = (MyRSI > 0.5) c4 = (MyRSI < -0.7) //-------------------------------- // DMH - Directional Movement using Hann Windowing // (C) 2021 John F. Ehlers // Parameters Length= 14 // Vars once DMH = 0 once EMA = 0 once SF = 1 / Length if barindex > Length then UpperMove = High - High[1] LowerMove = Low[1] - Low PlusDM = 0 MinusDM = 0 If UpperMove > LowerMove and UpperMove > 0 Then PlusDM = UpperMove ElsIf LowerMove > UpperMove and LowerMove > 0 Then MinusDM = LowerMove endif EMA = SF*(PlusDM - MinusDM) + (1 - SF)* EMA[1] //Smooth Directional Movements with Hann Windowed FIR filter DMSum = 0 coef = 0 For count = 1 to Length do DMSum = DMSum + (1 - cos(360*count / (Length + 1)))*EMA[count - 1] coef = coef + (1 - cos(360*count / (Length + 1))) next If coef <> 0 Then DMH = DMSum / coef endif endif c1 = (DMH CROSSES OVER 0) c3 = (DMH CROSSES under 0) //------------------------------------ CB1 = C1 and C2 IF CB1 THEN BUY 1 CONTRACT AT MARKET SET STOP %LOSS SLl ENDIF CS1 = C3 and C4 IF CS1 THEN SELLSHORT 1 CONTRACT AT MARKET SET STOP %LOSS SLs ENDIF MS=0 TGL=10 TGS=6 TRP=14 // TRAILINGSTOP //---------------------------------------------- atrtrail = averagetruerange[TRP]((close/10)*pipsize)/1000 trailingstartl = round(atrtrail*TGL) trailingstarts = round(atrtrail*TGS) if not onmarket or ((longonmarket and shortonmarket[1]) or (longonmarket[1] and shortonmarket)) then maxprice = 0 minprice = close exitprice = 0 endif if longonmarket then maxprice = max(maxprice,close) if maxprice-tradeprice(1)>=trailingstartl*pointsize then if maxprice-tradeprice(1)>=MS then exitprice = maxprice-trailingstartl*pointsize else exitprice = maxprice - MS*pointsize endif endif endif if shortonmarket then minprice = min(minprice,close) if tradeprice(1)-minprice>=trailingstarts*pointsize then if tradeprice(1)-minprice>=MS then exitprice = minprice+trailingstarts*pointsize else exitprice = minprice + MS*pointsize endif endif endif if onmarket and exitprice>0 then exitshort at exitprice stop sell at exitprice stop endif

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136

  // Definition of code parameters DEFPARAM CumulateOrders = False // Cumulating positions deactivated //SnorreDK:s Stratetgy cobined of TASC DEC 2021 RSIH and DMH - Directional Movement using Hann Windowing Sll = 1.3 // Stoploss long SLs = 2 // Stoploss short     //Indicator:  TASC DEC 2021 RSIH // TASC JAN 2022 // RSIH - RSI with Hann Windowing // (C) 2005-2021 John F. Ehlers   // Parameters // Accumulate "Closes Up" and "Closes Down" CU = 0 CD = 0 RSILength=14   for count = 1 to RSILength do if Close[count - 1] - Close[count] > 0 then CU = CU + (1 - cos(360*count / (RSILength + 1))) * (Close[count - 1] - Close[count]) endif if Close[count] - Close[count - 1]> 0 then CD = CD + (1 - cos(360*count / (RSILength + 1))) *(Close[count] - Close[count - 1]) endif next   if CU + CD <> 0 then MyRSI = (CU - CD) / (CU + CD) endif   c2 = (MyRSI > 0.5) c4 = (MyRSI < -0.7)   //-------------------------------- // DMH - Directional Movement using Hann Windowing // (C) 2021 John F. Ehlers   // Parameters Length= 14   // Vars once DMH = 0 once EMA = 0   once SF = 1 / Length   if barindex > Length then UpperMove = High - High[1] LowerMove = Low[1] - Low   PlusDM = 0 MinusDM = 0 If UpperMove > LowerMove and UpperMove > 0 Then PlusDM = UpperMove ElsIf LowerMove > UpperMove and LowerMove > 0 Then MinusDM = LowerMove endif   EMA = SF*(PlusDM - MinusDM) + (1 - SF)* EMA[1]   //Smooth Directional Movements with Hann Windowed FIR filter DMSum = 0 coef = 0 For count = 1 to Length do DMSum = DMSum + (1 - cos(360*count / (Length + 1)))*EMA[count - 1] coef = coef + (1 - cos(360*count / (Length + 1))) next   If coef <> 0 Then DMH = DMSum / coef endif endif   c1 = (DMH CROSSES OVER 0) c3 = (DMH CROSSES under 0) //------------------------------------     CB1 = C1 and C2   IF CB1 THEN BUY 1 CONTRACT AT MARKET SET STOP %LOSS SLl ENDIF     CS1 = C3 and C4   IF CS1 THEN SELLSHORT 1 CONTRACT AT MARKET SET STOP %LOSS SLs ENDIF   MS=0 TGL=10 TGS=6 TRP=14 // TRAILINGSTOP //----------------------------------------------   atrtrail = averagetruerange[TRP]((close/10)*pipsize)/1000 trailingstartl = round(atrtrail*TGL) trailingstarts = round(atrtrail*TGS)       if not onmarket or ((longonmarket and shortonmarket[1]) or (longonmarket[1] and shortonmarket)) then maxprice = 0 minprice = close exitprice = 0 endif if longonmarket then maxprice = max(maxprice,close) if maxprice-tradeprice(1)>=trailingstartl*pointsize then if maxprice-tradeprice(1)>=MS then exitprice = maxprice-trailingstartl*pointsize else exitprice = maxprice - MS*pointsize endif endif endif if shortonmarket then minprice = min(minprice,close) if tradeprice(1)-minprice>=trailingstarts*pointsize then if tradeprice(1)-minprice>=MS then exitprice = minprice+trailingstarts*pointsize else exitprice = minprice + MS*pointsize endif endif endif if onmarket and exitprice>0 then exitshort at exitprice stop sell at exitprice stop endif



  2 users thanked author for this post.

  Midlanddave, GraHal



  SnorreDK

  Participant

  Topics: 15

  Replies: 101

  Been thanked: 5 times
  01/18/2022 at 4:26 PM #185844
  GraHal

  Looks better on 10 min TF?



  GraHal

  Participant

  Topics: 209

  Replies: 8661

  Been thanked: 2130 times
  01/18/2022 at 5:25 PM #185854
  SnorreDK

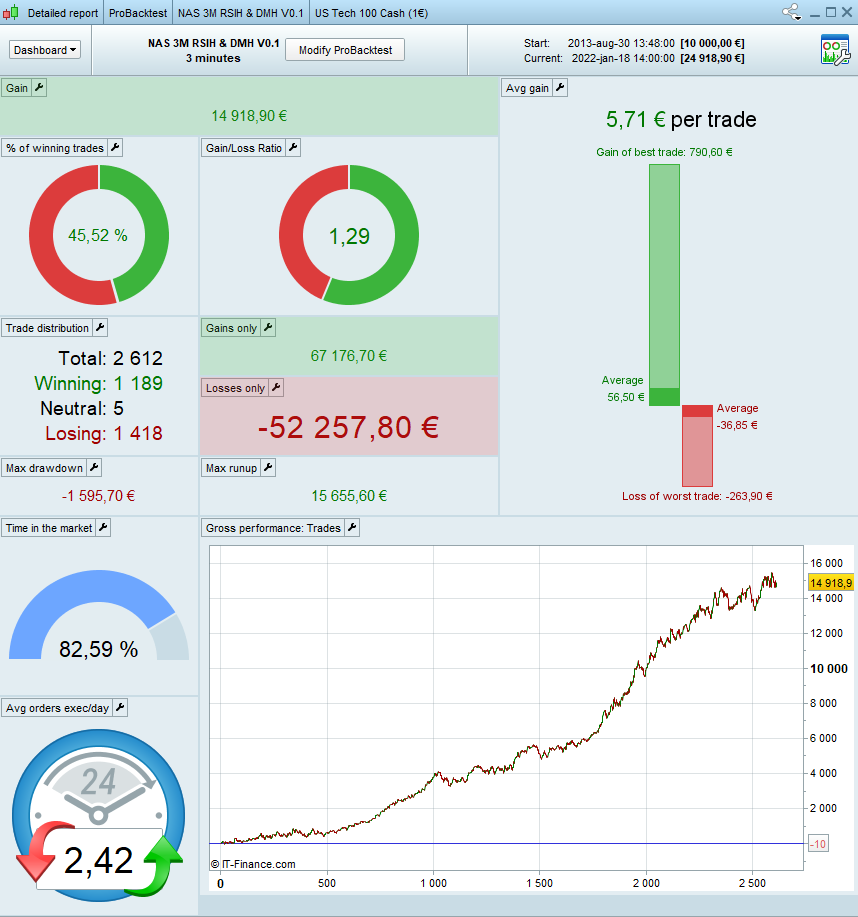

  hmm? With same values? Not better for me. Would u like to show 1Munits  backtest



  SnorreDK

  Participant

  Topics: 15

  Replies: 101

  Been thanked: 5 times
  01/18/2022 at 7:02 PM #185868
  GraHal

  Ah right, I knew there must be a reason?

  I’m too old to use 1,000,000 bars … not got enough life left to wait for backtest to finish!!!! 🙂

  2 users thanked author for this post.

  lnskrlssn, PeterSt



  GraHal

  Participant

  Topics: 209

  Replies: 8661

  Been thanked: 2130 times
