need help make a value that backtesing can use

• 11/19/2024 at 5:36 PM #240543
  Patrick K Templar

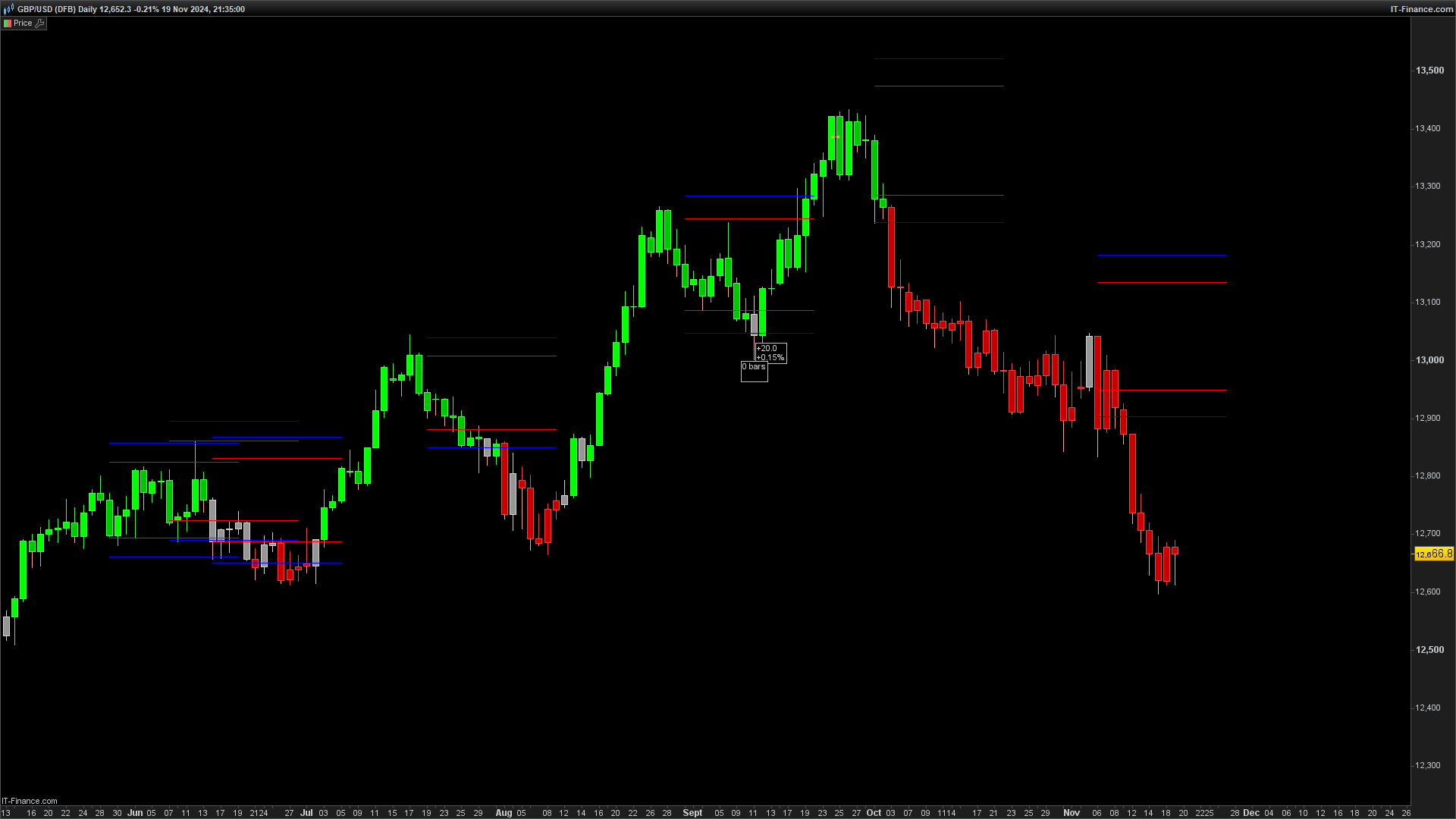

  I’ve used this indicator or made this indicator for back testing but the issue I’m having is that the back testing won’t recognise the horizontal lines so basically price goes through it I want it to sell it’s visually visually being represent on the screen but doesn’t seem to have any value to it if you could please help me thank you very much

  nfxbar1

  // NNFX ATR Band Script atrLength = 14 atrProfit = 1.5 atrLoss = 1 // Calculate ATR atr = averagetruerange[atrLength] // Buy Stop-Loss and Take-Profit Levels bAtrBuy = close[1] + atr * atrProfit // Buy Take-Profit bAtrSell = close[1] - atr * atrLoss // Buy Stop-Loss // Sell Stop-Loss and Take-Profit Levels sAtrBuy = close[1] - atr * atrProfit // Sell Take-Profit sAtrSell = close[1] + atr * atrLoss // Sell Stop-Loss // Example condition: Indicator crosses under indicator1 = CALL "STIPH10"[1, 10] // use ma condition = close CROSSES over indicator1 condition = close CROSSES under indicator1 // Draw horizontal lines only when the condition is met if condition then // Draw horizontal lines for Buy Stop-Loss and Take-Profit drawsegment(barindex + 15, bAtrBuy, barindex, bAtrBuy) coloured(0, 0, 255) // Blue for Buy TP drawsegment(barindex + 15, bAtrSell, barindex, bAtrSell) coloured(255, 0, 0) // Red for Buy SL // Draw horizontal lines for Sell Stop-Loss and Take-Profit drawsegment(barindex + 15, sAtrBuy, barindex, sAtrBuy) coloured(0, 0, 255) // Blue for Sell TP drawsegment(barindex + 15, sAtrSell, barindex, sAtrSell) coloured(255, 0, 0) // Red for Sell SL endif // Return ATR for visualization/debugging return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

  // NNFX ATR Band Script atrLength = 14 atrProfit = 1.5 atrLoss = 1   // Calculate ATR atr = averagetruerange[atrLength]   // Buy Stop-Loss and Take-Profit Levels bAtrBuy = close[1] + atr * atrProfit  // Buy Take-Profit bAtrSell = close[1] - atr * atrLoss   // Buy Stop-Loss   // Sell Stop-Loss and Take-Profit Levels sAtrBuy = close[1] - atr * atrProfit  // Sell Take-Profit sAtrSell = close[1] + atr * atrLoss   // Sell Stop-Loss   // Example condition: Indicator crosses under indicator1 = CALL "STIPH10"[1, 10] // use ma condition = close CROSSES over indicator1 condition = close CROSSES under indicator1 // Draw horizontal lines only when the condition is met if condition then // Draw horizontal lines for Buy Stop-Loss and Take-Profit drawsegment(barindex + 15, bAtrBuy, barindex, bAtrBuy) coloured(0, 0, 255)  // Blue for Buy TP drawsegment(barindex + 15, bAtrSell, barindex, bAtrSell) coloured(255, 0, 0)  // Red for Buy SL   // Draw horizontal lines for Sell Stop-Loss and Take-Profit drawsegment(barindex + 15, sAtrBuy, barindex, sAtrBuy) coloured(0, 0, 255)  // Blue for Sell TP drawsegment(barindex + 15, sAtrSell, barindex, sAtrSell) coloured(255, 0, 0)  // Red for Sell SL endif   // Return ATR for visualization/debugging return



  Patrick K Templar

  Participant

  Topics: 20

  Replies: 82

  Been thanked: 1 time
  11/20/2024 at 12:01 AM #240549
  JS

  If you make this indicator part of your trading system and replace all the graphical elements, such as “draw segment”, with what you want there, for example a “Take Profit” (Set Target Price x) or a “Stop Loss”, then your code will execute what you see on the screen…

  1 user thanked author for this post.

  Iván



  JS

  Participant

  Topics: 26

  Replies: 1748

  Been thanked: 803 times
  11/20/2024 at 9:13 AM #240563
  Iván

  Also if you want to see these levels you can type at the end of the code this:

  // Draw horizontal lines for Buy Stop-Loss and Take-Profit graphonprice bAtrBuy coloured(0,0,255) graphonprice bAtrSell coloured(255,0,0)

  1 2 3

  // Draw horizontal lines for Buy Stop-Loss and Take-Profit graphonprice bAtrBuy coloured(0,0,255) graphonprice bAtrSell coloured(255,0,0)

  1 user thanked author for this post.

  Patrick K Templar



  Iván

  Moderator

  Topics: 0

  Replies: 1055

  Been thanked: 375 times
