Neely Elliott Wave indicator

This topic has 4 replies, 3 voices, and was last updated 6 years ago by Lighthouse.

Viewing 5 posts - 1 through 5 (of 5 total)

11/18/2018 at 1:44 PM #85139

Lighthouse

Neely method is based on the concept monowaves which is a simple movement until the price change of direction. Monowaves can be identified by constructing price maxima and minima for a selected period in the order of occurrence of the beginning and the center slot.

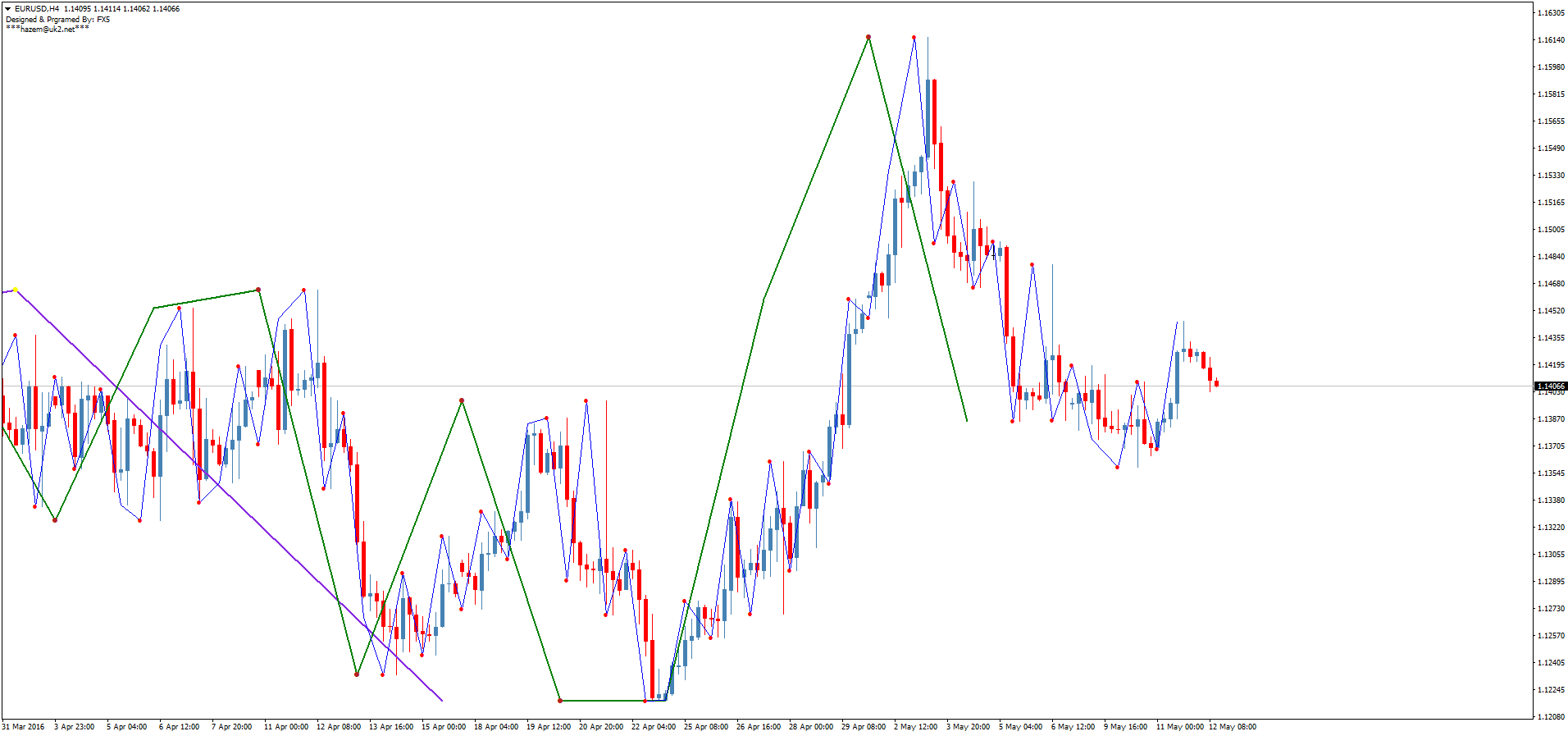

Forex indicator NeelyElliotWave builds on the chart four monowaves according to different time periods:

Monthly (by default – a blue-violet color).
Weekly (default – green).
Day (default – blue).
6-hour (default – yellow).
The beginning and end of each monowaves marked point.

Lighthouse

Participant

Topics: 15

Replies: 32

Been thanked: 14 times

11/18/2018 at 1:46 PM #85142

Lighthouse

I can’t find a way to edit the first post and its title.

Of course it is a request to convert from mq4 to PRT

//+------------------------------------------------------------------+
//|                                          FX5_NellyElliotWave.mq4 |
//|                                            FX5, Copyright © 2007 |
//|                                                    hazem@uk2.net |
//+------------------------------------------------------------------+
#property copyright "FX5, Copyright © 2007"
#property link      "hazem@uk2.net"

#property indicator_chart_window
#property indicator_buffers 8

#define Sunday 0
#define Monday 1

//---- input parameters
extern string    segment_0="*** Daily Close Settings ***";
extern bool      enableCustomDailyClose=false;
extern string    dailyCloseTime="00:00";
extern string    segment_1="*** Waves Display Setting ***";
extern bool      showMonthlyWaves= true;
extern bool      showWeeklyWaves = true;
extern bool      showDailyWaves=true;
extern bool      showQuarterDailyWaves=true;
extern string    segment_2="*** Waves Color Settings ***";
extern color     monthlyWavesColor= clrBlueViolet;
extern color     weeklyWavesColor = clrGreen;
extern color     dailyWavesColor=clrBlue;
extern color     quarterDailyWavesColor=clrYellow;
extern string    segment_3="*** SwingPoints Color Settings ***";
extern color     monthlySwingColor= clrYellow;
extern color     weeklySwingColor = clrFireBrick;
extern color     dailySwingColor=clrRed;
extern color     quarterDailySwingColor=clrChocolate;
//---- buffers
double monthlyWaves[];
double monthlySwings[];
double weeklyWaves[];
double weeklySwings[];
double dailyWaves[];
double dailySwings[];
double quarterDailyWaves[];
double quarterDailySwings[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   datetime time=StrToTime(dailyCloseTime);
   dailyCloseTime=TimeToStr(time,TIME_MINUTES);

//---- indicators
   int timeFrame=Period();

   int monthlyWidth= 2;
   int weeklyWidth = 2;
   int dailyWidth=2;
   int quarterDailyWidth=1;

   if(timeFrame>=PERIOD_D1)
      weeklyWidth= 1;
   if(timeFrame >= PERIOD_H4)
      dailyWidth = 1;

   SetIndexStyle(0,DRAW_SECTION,STYLE_SOLID,monthlyWidth,monthlyWavesColor);
   SetIndexStyle(2,DRAW_SECTION,STYLE_SOLID,weeklyWidth,weeklyWavesColor);
   SetIndexStyle(4,DRAW_SECTION,STYLE_SOLID,dailyWidth,dailyWavesColor);
   SetIndexStyle(6,DRAW_SECTION,STYLE_SOLID,quarterDailyWidth,quarterDailyWavesColor);

   SetIndexStyle(1,DRAW_ARROW,EMPTY,monthlyWidth,monthlySwingColor);
   SetIndexStyle(3,DRAW_ARROW,EMPTY,weeklyWidth,weeklySwingColor);
   SetIndexStyle(5,DRAW_ARROW,EMPTY,dailyWidth,dailySwingColor);
   SetIndexStyle(7,DRAW_ARROW,EMPTY,quarterDailyWidth,quarterDailySwingColor);

   SetIndexArrow(1,159);
   SetIndexArrow(3,159);
   SetIndexArrow(5,159);
   SetIndexArrow(7,159);

   SetIndexBuffer(0,monthlyWaves);
   SetIndexBuffer(1,monthlySwings);
   SetIndexBuffer(2,weeklyWaves);
   SetIndexBuffer(3,weeklySwings);
   SetIndexBuffer(4,dailyWaves);
   SetIndexBuffer(5,dailySwings);
   SetIndexBuffer(6,quarterDailyWaves);
   SetIndexBuffer(7,quarterDailySwings);

   SetIndexEmptyValue(0,0);
   SetIndexEmptyValue(1,0);
   SetIndexEmptyValue(2,0);
   SetIndexEmptyValue(3,0);
   SetIndexEmptyValue(4,0);
   SetIndexEmptyValue(5,0);
   SetIndexEmptyValue(6,0);
   SetIndexEmptyValue(7,0);

   IndicatorDigits(Digits);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
   Comment("");

   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   Comment("Designed & Prgramed By: FX5\n","***hazem@uk2.net***");
   int countedBars=IndicatorCounted();
   if(countedBars<0)
      countedBars=0;

   int timeFrame=Period();

   if(showMonthlyWaves)
     {
      if(timeFrame==PERIOD_D1 || timeFrame==PERIOD_H4)
         IdentifyMonthlyWaves(countedBars);
     }

   if(showWeeklyWaves)
     {
      if(timeFrame==PERIOD_D1 || timeFrame==PERIOD_H4 ||
         timeFrame==PERIOD_H1)
         IdentifyWeeklyWaves(countedBars);
     }
   if(showDailyWaves)
     {
      if(timeFrame==PERIOD_H4 || timeFrame==PERIOD_H1 ||
         timeFrame == PERIOD_M30 ||timeFrame == PERIOD_M15 ||
         timeFrame == PERIOD_M5 || timeFrame == PERIOD_M1)
         IdentifyDailyWaves(countedBars);
     }
   if(showQuarterDailyWaves)
     {
      if(timeFrame==PERIOD_H1 || timeFrame==PERIOD_M30 ||
         timeFrame == PERIOD_M15 || timeFrame == PERIOD_M5 ||
         timeFrame == PERIOD_M1)
         IdentifyQuarterDailyWaves(countedBars);
     }

   return(0);
  }
//+------------------------------------------------------------------+
void IdentifyMonthlyWaves(int countedBars)
  {
   int lastShift=-1;
   int limit=Bars-countedBars;
   if(countedBars==0) limit--;

   for(int i=limit; i>=0; i--)
     {
      int lastClose=GetLastMonthlyClose(i);

      if(lastShift==lastClose)
         continue;
      else
         lastShift=lastClose;

      int lastOpen=GetLastMonthlyClose(lastClose);

      if(lastClose==-1 || lastOpen==-1)
         continue;

      int highShift= GetHighestHighShift(lastClose+1,lastOpen-lastClose);
      int lowShift = GetLowestLowShift(lastClose+1,lastOpen-lastClose);

      double highPrice= High[highShift];
      double lowPrice = Low[lowShift];

      if(highShift>lowShift)
        {
         monthlyWaves[lastOpen]=highPrice;
         int middleShift=lastClose+MathCeil((lastOpen-lastClose+1)/2);
         monthlyWaves[middleShift]=lowPrice;
        }
      else
        {
         monthlyWaves[lastOpen]=lowPrice;
         middleShift=lastClose+MathCeil((lastOpen-lastClose+1)/2);
         monthlyWaves[middleShift]=highPrice;
        }

      int swing_0 = GetLastMonthlySwing(i);
      int swing_1 = GetLastMonthlySwing(swing_0);
      int swing_2 = GetLastMonthlySwing(swing_1);
      int swing_3 = GetLastMonthlySwing(swing_2);
      if(swing_0>=0 && swing_1>=0 && swing_2>=0 && swing_3>=0)
        {
         if(monthlyWaves[swing_1]>monthlyWaves[swing_0] && monthlyWaves[swing_1]>monthlyWaves[swing_2])
            monthlySwings[swing_1]=monthlyWaves[swing_1];

         if(monthlyWaves[swing_1]<monthlyWaves[swing_0] && monthlyWaves[swing_1]<monthlyWaves[swing_2])
            monthlySwings[swing_1]=monthlyWaves[swing_1];

         if(monthlyWaves[swing_2]>monthlyWaves[swing_1] && monthlyWaves[swing_2]>monthlyWaves[swing_3])
            monthlySwings[swing_2]=monthlyWaves[swing_2];

         if(monthlyWaves[swing_2]<monthlyWaves[swing_1] && monthlyWaves[swing_2]<monthlyWaves[swing_3])
            monthlySwings[swing_2]=monthlyWaves[swing_2];
        }
     }
  }
//+------------------------------------------------------------------+
void IdentifyWeeklyWaves(int countedBars)
  {
   int lastShift=-1;
   int limit=Bars-countedBars;
   if(countedBars==0) limit--;
   for(int i=limit; i>=0; i--)
     {
      int lastWeekClose=GetLastWeeklyClose(i);

      if(lastShift==lastWeekClose)
         continue;
      else
         lastShift=lastWeekClose;

      int lastWeekOpen=GetLastWeeklyClose(lastWeekClose);

      if(lastWeekClose==-1 || lastWeekOpen==-1)
         continue;

      int weekHighShift= GetHighestHighShift(lastWeekClose+1,lastWeekOpen-lastWeekClose);
      int weekLowShift = GetLowestLowShift(lastWeekClose+1,lastWeekOpen-lastWeekClose);

      double weekHighPrice= High[weekHighShift];
      double weekLowPrice = Low[weekLowShift];

      if(weekHighShift>weekLowShift)
        {
         weeklyWaves[lastWeekOpen]=weekHighPrice;
         int middleWeekShift=lastWeekClose+MathCeil((lastWeekOpen-lastWeekClose+1)/2);
         weeklyWaves[middleWeekShift]=weekLowPrice;
        }
      else
        {
         weeklyWaves[lastWeekOpen]=weekLowPrice;
         middleWeekShift=lastWeekClose+MathCeil((lastWeekOpen-lastWeekClose+1)/2);
         weeklyWaves[middleWeekShift]=weekHighPrice;
        }

      int swing_0 = GetLastWeeklySwing(i);
      int swing_1 = GetLastWeeklySwing(swing_0);
      int swing_2 = GetLastWeeklySwing(swing_1);
      int swing_3 = GetLastWeeklySwing(swing_2);
      if(swing_0>=0 && swing_1>=0 && swing_2>=0 && swing_3>=0)
        {
         if(weeklyWaves[swing_1]>weeklyWaves[swing_0] && weeklyWaves[swing_1]>weeklyWaves[swing_2])
            weeklySwings[swing_1]=weeklyWaves[swing_1];

         if((swing_2>=0) && weeklyWaves[swing_1]<weeklyWaves[swing_0] && weeklyWaves[swing_1]<weeklyWaves[swing_2])
            weeklySwings[swing_1]=weeklyWaves[swing_1];

         if(weeklyWaves[swing_2]>weeklyWaves[swing_1] && weeklyWaves[swing_2]>weeklyWaves[swing_3])
            weeklySwings[swing_2]=weeklyWaves[swing_2];

         if(weeklyWaves[swing_2]<weeklyWaves[swing_1] && weeklyWaves[swing_2]<weeklyWaves[swing_3])
            weeklySwings[swing_2]=weeklyWaves[swing_2];
        }
     }
  }
//+------------------------------------------------------------------+
void IdentifyDailyWaves(int countedBars)
  {
   int lastShift=-1;
   int limit=Bars-countedBars;
   if(countedBars==0) limit--;
   for(int i=limit; i>=0; i--)
     {
      int lastDayClose=GetLastDailyClose(i);

      if(lastShift==lastDayClose)
         continue;
      else
         lastShift=lastDayClose;

      int lastDayOpen=GetLastDailyClose(lastDayClose);

      if(lastDayClose==-1 || lastDayOpen==-1)
         continue;

      int dayHighShift= GetHighestHighShift(lastDayClose+1,lastDayOpen-lastDayClose);
      int dayLowShift = GetLowestLowShift(lastDayClose+1,lastDayOpen-lastDayClose);

      double dayHighPrice= High[dayHighShift];
      double dayLowPrice = Low[dayLowShift];
      //+------------------------------------------------------------------+
      //|                                                                  |
      //+------------------------------------------------------------------+
      if(dayHighShift>dayLowShift)
        {
         dailyWaves[lastDayOpen]=dayHighPrice;
         int middleDayShift=lastDayClose+MathCeil((lastDayOpen-lastDayClose+1)/2);
         dailyWaves[middleDayShift]=dayLowPrice;
        }
      //+------------------------------------------------------------------+
      //|                                                                  |
      //+------------------------------------------------------------------+
      else
        {
         dailyWaves[lastDayOpen]=dayLowPrice;
         middleDayShift=lastDayClose+MathCeil((lastDayOpen-lastDayClose+1)/2);
         dailyWaves[middleDayShift]=dayHighPrice;
        }

      int swing_0 = GetLastDailySwing(i);
      int swing_1 = GetLastDailySwing(swing_0);
      int swing_2 = GetLastDailySwing(swing_1);
      int swing_3 = GetLastDailySwing(swing_2);
      if(swing_0>=0 && swing_1>=0 && swing_2>=0 && swing_3>=0)
        {
         if(dailyWaves[swing_1]>dailyWaves[swing_0] && dailyWaves[swing_1]>dailyWaves[swing_2])
            dailySwings[swing_1]=dailyWaves[swing_1];

         if(dailyWaves[swing_1]<dailyWaves[swing_0] && dailyWaves[swing_1]<dailyWaves[swing_2])
            dailySwings[swing_1]=dailyWaves[swing_1];

         if(dailyWaves[swing_2]>dailyWaves[swing_1] && dailyWaves[swing_2]>dailyWaves[swing_3])
            dailySwings[swing_2]=dailyWaves[swing_2];

         if(dailyWaves[swing_2]<dailyWaves[swing_1] && dailyWaves[swing_2]<dailyWaves[swing_3])
            dailySwings[swing_2]=dailyWaves[swing_2];
        }
     }
  }
//+------------------------------------------------------------------+
void IdentifyQuarterDailyWaves(int countedBars)
  {
   int lastShift=-1;
   int limit=Bars-countedBars;
   if(countedBars==0) limit--;
   for(int i=limit; i>=0; i--)
     {
      int lastClose=GetLastQuarterDailyClose(i);

      if(lastShift==lastClose)
         continue;
      else
         lastShift=lastClose;

      int lastOpen=GetLastQuarterDailyClose(lastClose);

      if(lastClose==-1 || lastOpen==-1)
         continue;

      int highShift= GetHighestHighShift(lastClose+1,lastOpen-lastClose);
      int lowShift = GetLowestLowShift(lastClose+1,lastOpen-lastClose);

      double highPrice= High[highShift];
      double lowPrice = Low[lowShift];
      //+------------------------------------------------------------------+
      //|                                                                  |
      //+------------------------------------------------------------------+
      if(highShift>lowShift)
        {
         quarterDailyWaves[lastOpen]=highPrice;
         int middleShift=lastClose+MathCeil((lastOpen-lastClose+1)/2);
         quarterDailyWaves[middleShift]=lowPrice;
        }
      //+------------------------------------------------------------------+
      //|                                                                  |
      //+------------------------------------------------------------------+
      else
        {
         quarterDailyWaves[lastOpen]=lowPrice;
         middleShift=lastClose+MathCeil((lastOpen-lastClose+1)/2);
         quarterDailyWaves[middleShift]=highPrice;
        }

      int swing_0 = GetLastQuarterDailySwing(i);
      int swing_1 = GetLastQuarterDailySwing(swing_0);
      int swing_2 = GetLastQuarterDailySwing(swing_1);
      int swing_3 = GetLastQuarterDailySwing(swing_2);
      if(swing_0>=0 && swing_1>=0 && swing_2>=0 && swing_3>=0)
        {
         if(quarterDailyWaves[swing_1]>quarterDailyWaves[swing_0] && quarterDailyWaves[swing_1]>quarterDailyWaves[swing_2])
            quarterDailySwings[swing_1]=quarterDailyWaves[swing_1];

         if(quarterDailyWaves[swing_1]<quarterDailyWaves[swing_0] && quarterDailyWaves[swing_1]<quarterDailyWaves[swing_2])
            quarterDailySwings[swing_1]=quarterDailyWaves[swing_1];

         if(quarterDailyWaves[swing_2]>quarterDailyWaves[swing_1] && quarterDailyWaves[swing_2]>quarterDailyWaves[swing_3])
            quarterDailySwings[swing_2]=quarterDailyWaves[swing_2];

         if(quarterDailyWaves[swing_2]<quarterDailyWaves[swing_1] && quarterDailyWaves[swing_2]<quarterDailyWaves[swing_3])
            quarterDailySwings[swing_2]=quarterDailyWaves[swing_2];
        }
     }
  }
//+------------------------------------------------------------------+
int GetLastMonthlySwing(int shift)
  {
   for(int i=shift+1;(i<Bars-1); i++)
     {
      if(monthlyWaves[i]!=0)
         return(i);
     }
   return(-1);
  }
//+------------------------------------------------------------------+
int GetLastWeeklySwing(int shift)
  {
   for(int i=shift+1;(i<Bars-1); i++)
     {
      if(weeklyWaves[i]!=0)
         return(i);
     }
   return(-1);
  }
//+------------------------------------------------------------------+
int GetLastDailySwing(int shift)
  {
   for(int i=shift+1;(i<Bars-1); i++)
     {
      if(dailyWaves[i]!=0)
         return(i);
     }
   return(-1);
  }
//+------------------------------------------------------------------+
int GetLastQuarterDailySwing(int shift)
  {
   for(int i=shift+1;(i<Bars-1); i++)
     {
      if(quarterDailyWaves[i]!=0)
         return(i);
     }
   return(-1);
  }
//+------------------------------------------------------------------+
int GetLastMonthlyClose(int shift)
  {
   for(int i=shift+1;(i<Bars-1); i++)
     {
      if(TimeDay(Time[i])<TimeDay(Time[i+1]))
         return(i);
     }
   return(-1);
  }
//+------------------------------------------------------------------+
int GetLastWeeklyClose(int shift)
  {
   for(int i=shift+1;(i<Bars-1); i++)
     {
      if(TimeDayOfWeek(Time[i])<TimeDayOfWeek(Time[i+1]))
         return(i);
     }
   return(-1);
  }
//+------------------------------------------------------------------+
int GetLastDailyClose(int shift)
  {
   if(enableCustomDailyClose)
     {
      for(int i=shift+1;(i<Bars-1); i++)
         //+------------------------------------------------------------------+
         //|                                                                  |
         //+------------------------------------------------------------------+
        {
         string candleDateString=TimeToStr(Time[i],TIME_DATE);
         datetime closeTime=StrToTime(candleDateString+" "+dailyCloseTime);

         if(closeTime<Time[shift] && closeTime>=Time[i])
            return(i);
        }
     }
   else
     {
      for(i=shift+1;(i<Bars-1); i++)
         //+------------------------------------------------------------------+
         //|                                                                  |
         //+------------------------------------------------------------------+
        {
         if(TimeDayOfWeek(Time[i])!=TimeDayOfWeek(Time[i+1]) &&
            TimeDayOfWeek(Time[i])!=Monday && TimeDayOfWeek(Time[i+1])!=Sunday)
            return(i);
        }
     }
   return(-1);
  }
//+------------------------------------------------------------------+
int GetLastQuarterDailyClose(int shift)
  {
   if(enableCustomDailyClose)
     {
      int colonIndex= StringFind(dailyCloseTime,":",0);
      if(colonIndex == -1)
         return(-1);

      string closeHourString=StringSubstr(dailyCloseTime,0,colonIndex);
      int closeHour=StrToInteger(closeHourString);
     }
   else
      closeHour=0;

   for(int i=shift+1; i<Bars; i++)
     {
      string candleDateString=TimeToStr(Time[i],TIME_DATE);

      int quarterHour=HourSum(closeHour,0);
      datetime closeTime=StrToTime(candleDateString+" "+DoubleToStr(quarterHour,0)+":00");
      if(closeTime<Time[shift] && closeTime>=Time[i])
         return(i);

      quarterHour=HourSum(closeHour,6);
      closeTime=StrToTime(candleDateString+" "+DoubleToStr(quarterHour,0)+":00");
      if(closeTime<Time[shift] && closeTime>=Time[i])
         return(i);

      quarterHour=HourSum(closeHour,12);
      closeTime=StrToTime(candleDateString+" "+DoubleToStr(quarterHour,0)+":00");
      if(closeTime<Time[shift] && closeTime>=Time[i])
         return(i);

      quarterHour=HourSum(closeHour,18);
      closeTime=StrToTime(candleDateString+" "+DoubleToStr(quarterHour,0)+":00");
      if(closeTime<Time[shift] && closeTime>=Time[i])
         return(i);
     }
   return(-1);
  }
//+------------------------------------------------------------------+
int HourSum(int firstHour,int secondHour)
  {
   int sum = firstHour + secondHour;
   if(sum >= 24)
      sum -= 24;

   return(sum);
  }
//+------------------------------------------------------------------+
int GetHighestHighShift(int start,int count)
  {
   int highestShift=-1;
   double highestPrice=-1;
   for(int i=start; i<start+count; i++)
      //+------------------------------------------------------------------+
      //|                                                                  |
      //+------------------------------------------------------------------+
     {
      if(High[i]>highestPrice)
        {
         highestShift = i;
         highestPrice = High[i];
        }
     }
   return(highestShift);
  }
//+------------------------------------------------------------------+
int GetLowestLowShift(int start,int count)
  {
   int lowestShift=-1;
   double lowestPrice=9999999;
   for(int i=start; i<start+count; i++)
      //+------------------------------------------------------------------+
      //|                                                                  |
      //+------------------------------------------------------------------+
     {
      if(Low[i]<lowestPrice)
        {
         lowestShift = i;
         lowestPrice = Low[i];
        }
     }
   return(lowestShift);
  }
//+------------------------------------------------------------------+
//+------------------------------------------------------------------+

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

//+------------------------------------------------------------------+

//| FX5_NellyElliotWave.mq4 |

//| hazem@uk2.net |

//+------------------------------------------------------------------+

#property link "hazem@uk2.net"

#property indicator_chart_window

#property indicator_buffers 8

#define Sunday 0

#define Monday 1

//---- input parameters

extern string segment_0="*** Daily Close Settings ***";

extern bool enableCustomDailyClose=false;

extern string dailyCloseTime="00:00";

extern string segment_1="*** Waves Display Setting ***";

extern bool showMonthlyWaves= true;

extern bool showWeeklyWaves = true;

extern bool showDailyWaves=true;

extern bool showQuarterDailyWaves=true;

extern string segment_2="*** Waves Color Settings ***";

extern color monthlyWavesColor= clrBlueViolet;

extern color weeklyWavesColor = clrGreen;

extern color dailyWavesColor=clrBlue;

extern color quarterDailyWavesColor=clrYellow;

extern string segment_3="*** SwingPoints Color Settings ***";

extern color monthlySwingColor= clrYellow;

extern color weeklySwingColor = clrFireBrick;

extern color dailySwingColor=clrRed;

extern color quarterDailySwingColor=clrChocolate;

//---- buffers

double monthlyWaves[];

double monthlySwings[];

double weeklyWaves[];

double weeklySwings[];

double dailyWaves[];

double dailySwings[];

double quarterDailyWaves[];

double quarterDailySwings[];

//+------------------------------------------------------------------+

//| Custom indicator initialization function |

//+------------------------------------------------------------------+

int init()

{

datetime time=StrToTime(dailyCloseTime);

dailyCloseTime=TimeToStr(time,TIME_MINUTES);

//---- indicators

int timeFrame=Period();

int monthlyWidth= 2;

int weeklyWidth = 2;

int dailyWidth=2;

int quarterDailyWidth=1;

if(timeFrame>=PERIOD_D1)

weeklyWidth= 1;

if(timeFrame >= PERIOD_H4)

dailyWidth = 1;

SetIndexStyle(0,DRAW_SECTION,STYLE_SOLID,monthlyWidth,monthlyWavesColor);

SetIndexStyle(2,DRAW_SECTION,STYLE_SOLID,weeklyWidth,weeklyWavesColor);

SetIndexStyle(4,DRAW_SECTION,STYLE_SOLID,dailyWidth,dailyWavesColor);

SetIndexStyle(6,DRAW_SECTION,STYLE_SOLID,quarterDailyWidth,quarterDailyWavesColor);

SetIndexStyle(1,DRAW_ARROW,EMPTY,monthlyWidth,monthlySwingColor);

SetIndexStyle(3,DRAW_ARROW,EMPTY,weeklyWidth,weeklySwingColor);

SetIndexStyle(5,DRAW_ARROW,EMPTY,dailyWidth,dailySwingColor);

SetIndexStyle(7,DRAW_ARROW,EMPTY,quarterDailyWidth,quarterDailySwingColor);

SetIndexArrow(1,159);

SetIndexArrow(3,159);

SetIndexArrow(5,159);

SetIndexArrow(7,159);

SetIndexBuffer(0,monthlyWaves);

SetIndexBuffer(1,monthlySwings);

SetIndexBuffer(2,weeklyWaves);

SetIndexBuffer(3,weeklySwings);

SetIndexBuffer(4,dailyWaves);

SetIndexBuffer(5,dailySwings);

SetIndexBuffer(6,quarterDailyWaves);

SetIndexBuffer(7,quarterDailySwings);

SetIndexEmptyValue(0,0);

SetIndexEmptyValue(1,0);

SetIndexEmptyValue(2,0);

SetIndexEmptyValue(3,0);

SetIndexEmptyValue(4,0);

SetIndexEmptyValue(5,0);

SetIndexEmptyValue(6,0);

SetIndexEmptyValue(7,0);

IndicatorDigits(Digits);

//----

return(0);

}

//+------------------------------------------------------------------+

//| Custom indicator deinitialization function |

//+------------------------------------------------------------------+

int deinit()

{

Comment("");

return(0);

}

//+------------------------------------------------------------------+

//| Custom indicator iteration function |

//+------------------------------------------------------------------+

int start()

{

Comment("Designed & Prgramed By: FX5\n","***hazem@uk2.net***");

int countedBars=IndicatorCounted();

if(countedBars<0)

countedBars=0;

int timeFrame=Period();

if(showMonthlyWaves)

{

if(timeFrame==PERIOD_D1 || timeFrame==PERIOD_H4)

IdentifyMonthlyWaves(countedBars);

}

if(showWeeklyWaves)

{

if(timeFrame==PERIOD_D1 || timeFrame==PERIOD_H4 ||

timeFrame==PERIOD_H1)

IdentifyWeeklyWaves(countedBars);

}

if(showDailyWaves)

{

if(timeFrame==PERIOD_H4 || timeFrame==PERIOD_H1 ||

timeFrame == PERIOD_M30 ||timeFrame == PERIOD_M15 ||

timeFrame == PERIOD_M5 || timeFrame == PERIOD_M1)

IdentifyDailyWaves(countedBars);

}

if(showQuarterDailyWaves)

{

if(timeFrame==PERIOD_H1 || timeFrame==PERIOD_M30 ||

timeFrame == PERIOD_M15 || timeFrame == PERIOD_M5 ||

timeFrame == PERIOD_M1)

IdentifyQuarterDailyWaves(countedBars);

}

return(0);

}

//+------------------------------------------------------------------+

void IdentifyMonthlyWaves(int countedBars)

{

int lastShift=-1;

int limit=Bars-countedBars;

if(countedBars==0) limit--;

for(int i=limit; i>=0; i--)

{

int lastClose=GetLastMonthlyClose(i);

if(lastShift==lastClose)

continue;

else

lastShift=lastClose;

int lastOpen=GetLastMonthlyClose(lastClose);

if(lastClose==-1 || lastOpen==-1)

continue;

int highShift= GetHighestHighShift(lastClose+1,lastOpen-lastClose);

int lowShift = GetLowestLowShift(lastClose+1,lastOpen-lastClose);

double highPrice= High[highShift];

double lowPrice = Low[lowShift];

if(highShift>lowShift)

{

monthlyWaves[lastOpen]=highPrice;

int middleShift=lastClose+MathCeil((lastOpen-lastClose+1)/2);

monthlyWaves[middleShift]=lowPrice;

}

else

{

monthlyWaves[lastOpen]=lowPrice;

middleShift=lastClose+MathCeil((lastOpen-lastClose+1)/2);

monthlyWaves[middleShift]=highPrice;

}

int swing_0 = GetLastMonthlySwing(i);

int swing_1 = GetLastMonthlySwing(swing_0);

int swing_2 = GetLastMonthlySwing(swing_1);

int swing_3 = GetLastMonthlySwing(swing_2);

if(swing_0>=0 && swing_1>=0 && swing_2>=0 && swing_3>=0)

{

if(monthlyWaves[swing_1]>monthlyWaves[swing_0] && monthlyWaves[swing_1]>monthlyWaves[swing_2])

monthlySwings[swing_1]=monthlyWaves[swing_1];

if(monthlyWaves[swing_1]<monthlyWaves[swing_0] && monthlyWaves[swing_1]<monthlyWaves[swing_2])

monthlySwings[swing_1]=monthlyWaves[swing_1];

if(monthlyWaves[swing_2]>monthlyWaves[swing_1] && monthlyWaves[swing_2]>monthlyWaves[swing_3])

monthlySwings[swing_2]=monthlyWaves[swing_2];

if(monthlyWaves[swing_2]<monthlyWaves[swing_1] && monthlyWaves[swing_2]<monthlyWaves[swing_3])

monthlySwings[swing_2]=monthlyWaves[swing_2];

}

//+------------------------------------------------------------------+

void IdentifyWeeklyWaves(int countedBars)

{

int lastShift=-1;

int limit=Bars-countedBars;

if(countedBars==0) limit--;

for(int i=limit; i>=0; i--)

{

int lastWeekClose=GetLastWeeklyClose(i);

if(lastShift==lastWeekClose)

continue;

else

lastShift=lastWeekClose;

int lastWeekOpen=GetLastWeeklyClose(lastWeekClose);

if(lastWeekClose==-1 || lastWeekOpen==-1)

continue;

int weekHighShift= GetHighestHighShift(lastWeekClose+1,lastWeekOpen-lastWeekClose);

int weekLowShift = GetLowestLowShift(lastWeekClose+1,lastWeekOpen-lastWeekClose);

double weekHighPrice= High[weekHighShift];

double weekLowPrice = Low[weekLowShift];

if(weekHighShift>weekLowShift)

{

weeklyWaves[lastWeekOpen]=weekHighPrice;

int middleWeekShift=lastWeekClose+MathCeil((lastWeekOpen-lastWeekClose+1)/2);

weeklyWaves[middleWeekShift]=weekLowPrice;

}

else

{

weeklyWaves[lastWeekOpen]=weekLowPrice;

middleWeekShift=lastWeekClose+MathCeil((lastWeekOpen-lastWeekClose+1)/2);

weeklyWaves[middleWeekShift]=weekHighPrice;

}

int swing_0 = GetLastWeeklySwing(i);

int swing_1 = GetLastWeeklySwing(swing_0);

int swing_2 = GetLastWeeklySwing(swing_1);

int swing_3 = GetLastWeeklySwing(swing_2);

if(swing_0>=0 && swing_1>=0 && swing_2>=0 && swing_3>=0)

{

if(weeklyWaves[swing_1]>weeklyWaves[swing_0] && weeklyWaves[swing_1]>weeklyWaves[swing_2])

weeklySwings[swing_1]=weeklyWaves[swing_1];

if((swing_2>=0) && weeklyWaves[swing_1]<weeklyWaves[swing_0] && weeklyWaves[swing_1]<weeklyWaves[swing_2])

weeklySwings[swing_1]=weeklyWaves[swing_1];

if(weeklyWaves[swing_2]>weeklyWaves[swing_1] && weeklyWaves[swing_2]>weeklyWaves[swing_3])

weeklySwings[swing_2]=weeklyWaves[swing_2];

if(weeklyWaves[swing_2]<weeklyWaves[swing_1] && weeklyWaves[swing_2]<weeklyWaves[swing_3])

weeklySwings[swing_2]=weeklyWaves[swing_2];

}

//+------------------------------------------------------------------+

void IdentifyDailyWaves(int countedBars)

{

int lastShift=-1;

int limit=Bars-countedBars;

if(countedBars==0) limit--;

for(int i=limit; i>=0; i--)

{

int lastDayClose=GetLastDailyClose(i);

if(lastShift==lastDayClose)

continue;

else

lastShift=lastDayClose;

int lastDayOpen=GetLastDailyClose(lastDayClose);

if(lastDayClose==-1 || lastDayOpen==-1)

continue;

int dayHighShift= GetHighestHighShift(lastDayClose+1,lastDayOpen-lastDayClose);

int dayLowShift = GetLowestLowShift(lastDayClose+1,lastDayOpen-lastDayClose);

double dayHighPrice= High[dayHighShift];

double dayLowPrice = Low[dayLowShift];

//+------------------------------------------------------------------+

//| |

//+------------------------------------------------------------------+

if(dayHighShift>dayLowShift)

{

dailyWaves[lastDayOpen]=dayHighPrice;

int middleDayShift=lastDayClose+MathCeil((lastDayOpen-lastDayClose+1)/2);

dailyWaves[middleDayShift]=dayLowPrice;

}

//+------------------------------------------------------------------+

//| |

//+------------------------------------------------------------------+

else

{

dailyWaves[lastDayOpen]=dayLowPrice;

middleDayShift=lastDayClose+MathCeil((lastDayOpen-lastDayClose+1)/2);

dailyWaves[middleDayShift]=dayHighPrice;

}

int swing_0 = GetLastDailySwing(i);

int swing_1 = GetLastDailySwing(swing_0);

int swing_2 = GetLastDailySwing(swing_1);

int swing_3 = GetLastDailySwing(swing_2);

if(swing_0>=0 && swing_1>=0 && swing_2>=0 && swing_3>=0)

{

if(dailyWaves[swing_1]>dailyWaves[swing_0] && dailyWaves[swing_1]>dailyWaves[swing_2])

dailySwings[swing_1]=dailyWaves[swing_1];

if(dailyWaves[swing_1]<dailyWaves[swing_0] && dailyWaves[swing_1]<dailyWaves[swing_2])

dailySwings[swing_1]=dailyWaves[swing_1];

if(dailyWaves[swing_2]>dailyWaves[swing_1] && dailyWaves[swing_2]>dailyWaves[swing_3])

dailySwings[swing_2]=dailyWaves[swing_2];

if(dailyWaves[swing_2]<dailyWaves[swing_1] && dailyWaves[swing_2]<dailyWaves[swing_3])

dailySwings[swing_2]=dailyWaves[swing_2];

}

//+------------------------------------------------------------------+

void IdentifyQuarterDailyWaves(int countedBars)

{

int lastShift=-1;

int limit=Bars-countedBars;

if(countedBars==0) limit--;

for(int i=limit; i>=0; i--)

{

int lastClose=GetLastQuarterDailyClose(i);

if(lastShift==lastClose)

continue;

else

lastShift=lastClose;

int lastOpen=GetLastQuarterDailyClose(lastClose);

if(lastClose==-1 || lastOpen==-1)

continue;

int highShift= GetHighestHighShift(lastClose+1,lastOpen-lastClose);

int lowShift = GetLowestLowShift(lastClose+1,lastOpen-lastClose);

double highPrice= High[highShift];

double lowPrice = Low[lowShift];

//+------------------------------------------------------------------+

//| |

//+------------------------------------------------------------------+

if(highShift>lowShift)

{

quarterDailyWaves[lastOpen]=highPrice;

int middleShift=lastClose+MathCeil((lastOpen-lastClose+1)/2);

quarterDailyWaves[middleShift]=lowPrice;

}

//+------------------------------------------------------------------+

//| |

//+------------------------------------------------------------------+

else

{

quarterDailyWaves[lastOpen]=lowPrice;

middleShift=lastClose+MathCeil((lastOpen-lastClose+1)/2);

quarterDailyWaves[middleShift]=highPrice;

}

int swing_0 = GetLastQuarterDailySwing(i);

int swing_1 = GetLastQuarterDailySwing(swing_0);

int swing_2 = GetLastQuarterDailySwing(swing_1);

int swing_3 = GetLastQuarterDailySwing(swing_2);

if(swing_0>=0 && swing_1>=0 && swing_2>=0 && swing_3>=0)

{

if(quarterDailyWaves[swing_1]>quarterDailyWaves[swing_0] && quarterDailyWaves[swing_1]>quarterDailyWaves[swing_2])

quarterDailySwings[swing_1]=quarterDailyWaves[swing_1];

if(quarterDailyWaves[swing_1]<quarterDailyWaves[swing_0] && quarterDailyWaves[swing_1]<quarterDailyWaves[swing_2])

quarterDailySwings[swing_1]=quarterDailyWaves[swing_1];

if(quarterDailyWaves[swing_2]>quarterDailyWaves[swing_1] && quarterDailyWaves[swing_2]>quarterDailyWaves[swing_3])

quarterDailySwings[swing_2]=quarterDailyWaves[swing_2];

if(quarterDailyWaves[swing_2]<quarterDailyWaves[swing_1] && quarterDailyWaves[swing_2]<quarterDailyWaves[swing_3])

quarterDailySwings[swing_2]=quarterDailyWaves[swing_2];

}

//+------------------------------------------------------------------+

int GetLastMonthlySwing(int shift)

{

for(int i=shift+1;(i<Bars-1); i++)

{

if(monthlyWaves[i]!=0)

return(i);

}

return(-1);

}

//+------------------------------------------------------------------+

int GetLastWeeklySwing(int shift)

{

for(int i=shift+1;(i<Bars-1); i++)

{

if(weeklyWaves[i]!=0)

return(i);

}

return(-1);

}

//+------------------------------------------------------------------+

int GetLastDailySwing(int shift)

{

for(int i=shift+1;(i<Bars-1); i++)

{

if(dailyWaves[i]!=0)

return(i);

}

return(-1);

}

//+------------------------------------------------------------------+

int GetLastQuarterDailySwing(int shift)

{

for(int i=shift+1;(i<Bars-1); i++)

{

if(quarterDailyWaves[i]!=0)

return(i);

}

return(-1);

}

//+------------------------------------------------------------------+

int GetLastMonthlyClose(int shift)

{

for(int i=shift+1;(i<Bars-1); i++)

{

if(TimeDay(Time[i])<TimeDay(Time[i+1]))

return(i);

}

return(-1);

}

//+------------------------------------------------------------------+

int GetLastWeeklyClose(int shift)

{

for(int i=shift+1;(i<Bars-1); i++)

{

if(TimeDayOfWeek(Time[i])<TimeDayOfWeek(Time[i+1]))

return(i);

}

return(-1);

}

//+------------------------------------------------------------------+

int GetLastDailyClose(int shift)

{

if(enableCustomDailyClose)

{

for(int i=shift+1;(i<Bars-1); i++)

//+------------------------------------------------------------------+

//| |

//+------------------------------------------------------------------+

{

string candleDateString=TimeToStr(Time[i],TIME_DATE);

datetime closeTime=StrToTime(candleDateString+" "+dailyCloseTime);

if(closeTime<Time[shift] && closeTime>=Time[i])

return(i);

}

else

{

for(i=shift+1;(i<Bars-1); i++)

//+------------------------------------------------------------------+

//| |

//+------------------------------------------------------------------+

{

if(TimeDayOfWeek(Time[i])!=TimeDayOfWeek(Time[i+1]) &&

TimeDayOfWeek(Time[i])!=Monday && TimeDayOfWeek(Time[i+1])!=Sunday)

return(i);

}

return(-1);

}

//+------------------------------------------------------------------+

int GetLastQuarterDailyClose(int shift)

{

if(enableCustomDailyClose)

{

int colonIndex= StringFind(dailyCloseTime,":",0);

if(colonIndex == -1)

return(-1);

string closeHourString=StringSubstr(dailyCloseTime,0,colonIndex);

int closeHour=StrToInteger(closeHourString);

}

else

closeHour=0;

for(int i=shift+1; i<Bars; i++)

{

string candleDateString=TimeToStr(Time[i],TIME_DATE);

int quarterHour=HourSum(closeHour,0);

datetime closeTime=StrToTime(candleDateString+" "+DoubleToStr(quarterHour,0)+":00");

if(closeTime<Time[shift] && closeTime>=Time[i])

return(i);

quarterHour=HourSum(closeHour,6);

closeTime=StrToTime(candleDateString+" "+DoubleToStr(quarterHour,0)+":00");

if(closeTime<Time[shift] && closeTime>=Time[i])

return(i);

quarterHour=HourSum(closeHour,12);

closeTime=StrToTime(candleDateString+" "+DoubleToStr(quarterHour,0)+":00");

if(closeTime<Time[shift] && closeTime>=Time[i])

return(i);

quarterHour=HourSum(closeHour,18);

closeTime=StrToTime(candleDateString+" "+DoubleToStr(quarterHour,0)+":00");

if(closeTime<Time[shift] && closeTime>=Time[i])

return(i);

}

return(-1);

}

//+------------------------------------------------------------------+

int HourSum(int firstHour,int secondHour)

{

int sum = firstHour + secondHour;

if(sum >= 24)

sum -= 24;

return(sum);

}

//+------------------------------------------------------------------+

int GetHighestHighShift(int start,int count)

{

int highestShift=-1;

double highestPrice=-1;

for(int i=start; i<start+count; i++)

//+------------------------------------------------------------------+

//| |

//+------------------------------------------------------------------+

{

if(High[i]>highestPrice)

{

highestShift = i;

highestPrice = High[i];

}

return(highestShift);

}

//+------------------------------------------------------------------+

int GetLowestLowShift(int start,int count)

{

int lowestShift=-1;

double lowestPrice=9999999;

for(int i=start; i<start+count; i++)

//+------------------------------------------------------------------+

//| |

//+------------------------------------------------------------------+

{

if(Low[i]<lowestPrice)

{

lowestShift = i;

lowestPrice = Low[i];

}

return(lowestShift);

}

//+------------------------------------------------------------------+

Lighthouse

Participant

Topics: 15

Replies: 32

Been thanked: 14 times

11/18/2018 at 2:58 PM #85147

Vonasi

You only have the option to edit your posts for five minutes after they have been posted. After that time there is no option to edit.

Reminder to all forum members – all requests for code conversion should be done using the following page:

https://www.prorealcode.com/free-code-conversion/

Vonasi

Moderator

Topics: 192

Replies: 5088

Been thanked: 1811 times

11/20/2018 at 9:18 AM #85269

Nicolas

Sorry, but this code have too many data arrays and functions that are impossible to be coded with ProBuilder.

But I heard (to be confirmed) that an Elliot Wave indicator could be added by PRT into the version 11.

Nicolas

Keymaster

Topics: 81

Replies: 20863

Been thanked: 4773 times

11/20/2018 at 9:52 PM #85356

Lighthouse

Nicolas wrote:

Sorry, but this code have too many data arrays and functions that are impossible to be coded with ProBuilder.

But I heard (to be confirmed) that an Elliot Wave indicator could be added by PRT into the version 11.

OK then, Thanks anyway 😉

Lighthouse

Participant

Topics: 15

Replies: 32

Been thanked: 14 times

Author

Posts

Viewing 5 posts - 1 through 5 (of 5 total)

Find exclusive trading pro-tools on
