Nigel Hawks volume indicator

Viewing 11 posts - 1 through 11 (of 11 total)
  • Author
    Posts
  • 07/28/2023 at 9:30 PM #218276 quote
    SVK
    Participant
    Junior

    Hi all,

    would it be possible to translate PineScript indicator to Prorealcode please ?

    Thank you very much

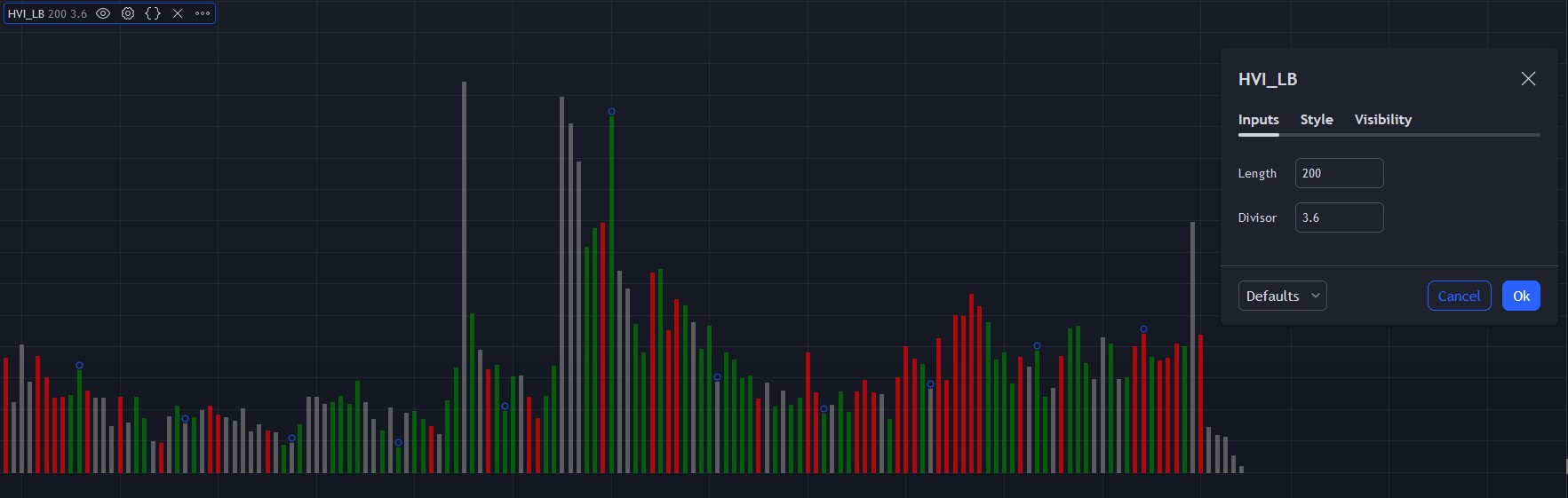

    HawkEye volume, developed by Nigel Hawks, is supposed to be a premier VSA indicator.

    // @author LazyBear
    // If you use this code, in its original or modified form, do drop me a note. Thx.
    //
    study(“HawkEye Volume Indicator [LazyBear]”, shorttitle=”HVI_LB”)
    length=input(200)
    range=high-low
    rangeAvg=sma(range,length)
    volumeA=sma(volume, length)
    divisor=input(3.6)
    high1=high[1]
    low1=low[1]
    mid1=hl2[1]
    u1 = mid1 + (high1-low1)/divisor
    d1 = mid1 – (high1-low1)/divisor
    r_enabled1 = (range > rangeAvg) and (close < d1) and volume > volumeA
    r_enabled2 = close < mid1
    r_enabled = r_enabled1 or r_enabled2
    g_enabled1 = close > mid1
    g_enabled2 = (range > rangeAvg) and (close > u1) and (volume > volumeA)
    g_enabled3 = (high > high1) and (range < rangeAvg/1.5) and (volume < volumeA)
    g_enabled4 = (low < low1) and (range < rangeAvg/1.5) and (volume > volumeA)
    g_enabled = g_enabled1 or g_enabled2 or g_enabled3 or g_enabled4
    gr_enabled1 = (range > rangeAvg) and (close > d1) and (close < u1) and (volume > volumeA) and (volume < volumeA*1.5) and (volume > volume[1])
    gr_enabled2 = (range < rangeAvg/1.5) and (volume < volumeA/1.5)
    gr_enabled3 = (close > d1) and (close < u1)
    gr_enabled = gr_enabled1 or gr_enabled2 or gr_enabled3
    v_color=gr_enabled ? gray : g_enabled ? green : r_enabled ? red : blue
    plot(volume, style=histogram, color=v_color, linewidth=5)
    07/29/2023 at 1:02 AM #218278 quote
    JS
    Participant
    Senior

    Hi @SVK

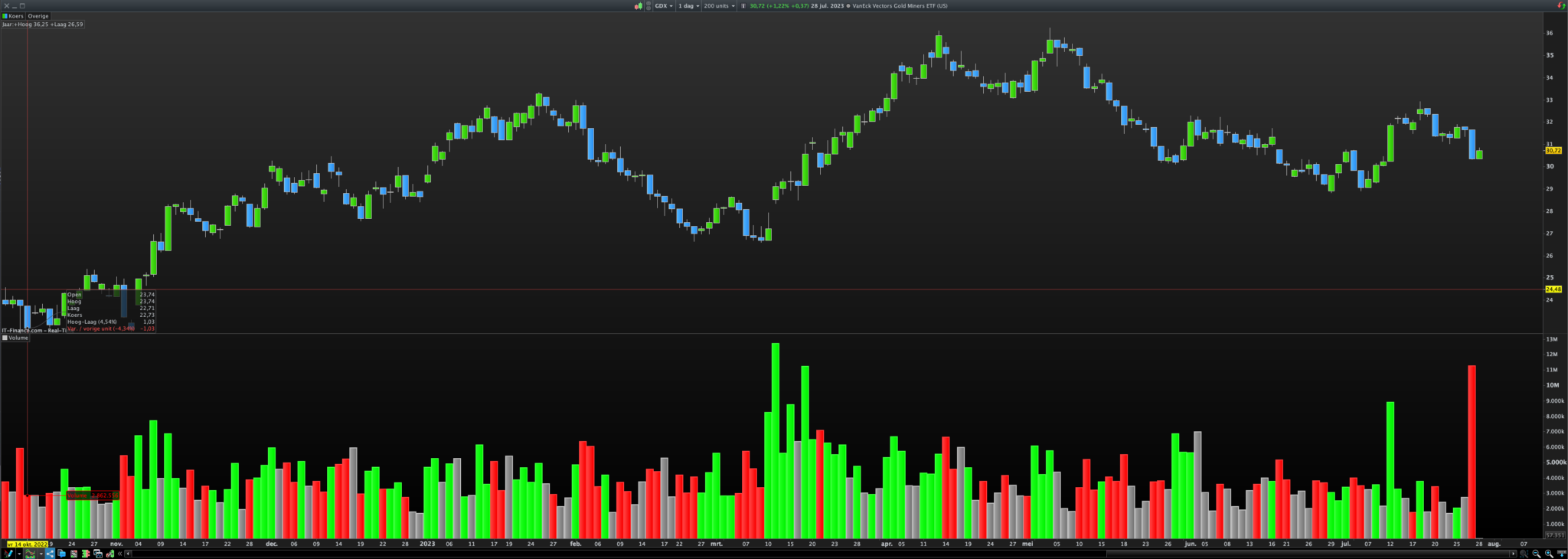

    Hereby the translation of the HawkEye Volume Indicator…



    Length=200
xRange=Range
RangeAvg=Average[Length](xRange)
VolumeAvg=Average[Length](Volume)
Divisor=3.6
High1=High[1]
Low1=Low[1]
Mid1=(High1+Low1)/2
u1=Mid1+(High1-Low1)/Divisor
d1=Mid1-(High1-Low1)/Divisor
REnabled1=(xRange>RangeAvg) and (Close<d1) and (Volume>VolumeAvg)
REnabled2=Close<Mid1
REnabled=REnabled1 or REnabled2
GEnabled1=Close>Mid1
GEnabled2=(xRange>RangeAvg) and (Close>u1) and (Volume>VolumeAvg)
GEnabled3=(High>High1) and (xRange<RangeAvg/1.5) and (Volume<VolumeAvg)
GEnabled4=(Low<Low1) and (xRange<RangeAvg/1.5) and (Volume>VolumeAvg)
GEnabled=GEnabled1 or GEnabled2 or GEnabled3 or GEnabled4
GREnabled1=(xRange>RangeAvg) and (Close>d1) and (Close<u1) and (Volume>VolumeAvg) and (Volume<VolumeAvg*1.5) and (Volume>Volume[1])
GREnabled2=(xRange<RangeAvg/1.5) and (Volume<VolumeAvg/1.5)
GREnabled3=(Close>d1) and (Close<u1)
GREnabled=GREnabled1 or GREnabled2 or GREnabled3
If GREnabled then
R=128
G=128
B=128
ElsIf GEnabled then
R=0
G=255
B=0
ElsIf REnabled then
R=255
G=0
B=0
EndIf
Return Volume as "Volume" Coloured(R,G,B) Style(Histogram,2)
    SVK and coincatcha thanked this post
    07/30/2023 at 10:12 AM #218311 quote
    SVK
    Participant
    Junior

    JS,

    thank you very much for your help.

    Works perfect 🙂

    Would you know how can I incorporate signals from this indicator into strategy ?
    Signals would be only Green & Red bars.

    Divisor setting I’m using is 1.5 which reduces amount of green & red bars significantly.

    Thank you very much for your help

    PS.

    If you have Paypal I’m more than happy to send you some beer money 🙂

    07/30/2023 at 10:35 AM #218312 quote
    JS
    Participant
    Senior

    Hi SVK,

    As you’ve probably noticed, Renabled stands for “Red (enabled)”, Genabled for “Green (enabled)” and GREnabled for “Grey (enabled)”…

    If you want to use the green and red signals in a system, you will end up with the following:

    If GEnabled then

    Buy 1 contract at Market

    EndIf

    If REnabled then

    SellShort 1 contract at Market

    EndIf

    Thanks for the offer but is not necessary… 🙂

    DefParam CumulateOrders=False
Length=200
xRange=Range
RangeAvg=Average[Length](xRange)
VolumeAvg=Average[Length](Volume)
Divisor=1.5
High1=High[1]
Low1=Low[1]
Mid1=(High1+Low1)/2
u1=Mid1+(High1-Low1)/Divisor
d1=Mid1-(High1-Low1)/Divisor
REnabled1=(xRange>RangeAvg) and (Close<d1) and (Volume>VolumeAvg)
REnabled2=Close<Mid1
REnabled=REnabled1 or REnabled2
GEnabled1=Close>Mid1
GEnabled2=(xRange>RangeAvg) and (Close>u1) and (Volume>VolumeAvg)
GEnabled3=(High>High1) and (xRange<RangeAvg/1.5) and (Volume<VolumeAvg)
GEnabled4=(Low<Low1) and (xRange<RangeAvg/1.5) and (Volume>VolumeAvg)
GEnabled=GEnabled1 or GEnabled2 or GEnabled3 or GEnabled4
GREnabled1=(xRange>RangeAvg) and (Close>d1) and (Close<u1) and (Volume>VolumeAvg) and (Volume<VolumeAvg*1.5) and (Volume>Volume[1])
GREnabled2=(xRange<RangeAvg/1.5) and (Volume<VolumeAvg/1.5)
GREnabled3=(Close>d1) and (Close<u1)
GREnabled=GREnabled1 or GREnabled2 or GREnabled3

If GEnabled then
Buy 1 contract at Market
EndIf

If REnabled then
SellShort 1 contract at Market
EndIf

    SVK thanked this post
    07/30/2023 at 11:00 AM #218313 quote
    SVK
    Participant
    Junior
    Thank you 🙂 I’m going to try it out and see how it works 🙂
    07/30/2023 at 11:10 AM #218314 quote
    JS
    Participant
    Senior
    Hi SVK, Good luck… Please note; the example is just a “basic” system, both Long and Short, 1 type of order, no MoneyManagement, no StopLoss, no TakeProfit or Trailing…etc. Plenty to do… 🙂
    SVK thanked this post
    07/30/2023 at 11:14 AM #218315 quote
    SVK
    Participant
    Junior

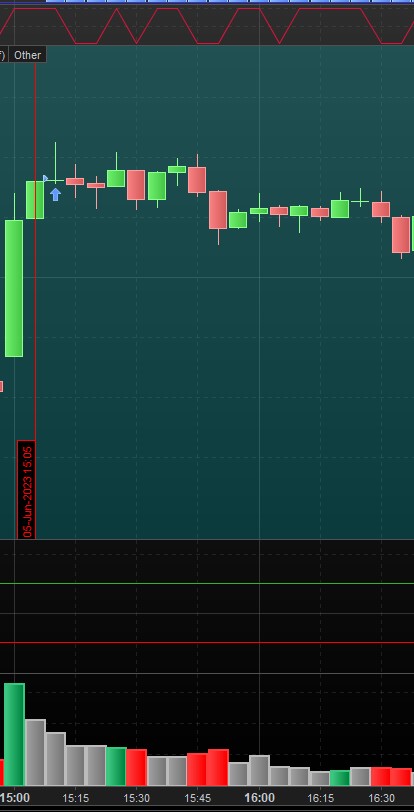

    I have done following and it doesn’t work 🙁 On a graph you can see that Grey bars are highlighted as green.
    //Volume
Length=200
xRange=Range
RangeAvg=Average[Length](xRange)
VolumeAvg=Average[Length](Volume)
Divisor=1.5
High1=High[1]
Low1=Low[1]
Mid1=(High1+Low1)/2
u1=Mid1+(High1-Low1)/Divisor
d1=Mid1-(High1-Low1)/Divisor
REnabled1=(xRange>RangeAvg) and (Close<d1) and (Volume>VolumeAvg)
REnabled2=Close<Mid1
REnabled=REnabled1 or REnabled2
GEnabled1=Close>Mid1
GEnabled2=(xRange>RangeAvg) and (Close>u1) and (Volume>VolumeAvg)
GEnabled3=(High>High1) and (xRange<RangeAvg/1.5) and (Volume<VolumeAvg)
GEnabled4=(Low<Low1) and (xRange<RangeAvg/1.5) and (Volume>VolumeAvg)
GEnabled=GEnabled1 or GEnabled2 or GEnabled3 or GEnabled4
GREnabled1=(xRange>RangeAvg) and (Close>d1) and (Close<u1) and (Volume>VolumeAvg) and (Volume<VolumeAvg*1.5) and (Volume>Volume[1])
GREnabled2=(xRange<RangeAvg/1.5) and (Volume<VolumeAvg/1.5)
GREnabled3=(Close>d1) and (Close<u1)
GREnabled=GREnabled1 or GREnabled2 or GREnabled3

IF GEnabled then
VolumeON = 1
ELSE
VolumeON = 0
ENDIF
    07/30/2023 at 11:45 AM #218319 quote
    SVK
    Participant
    Junior

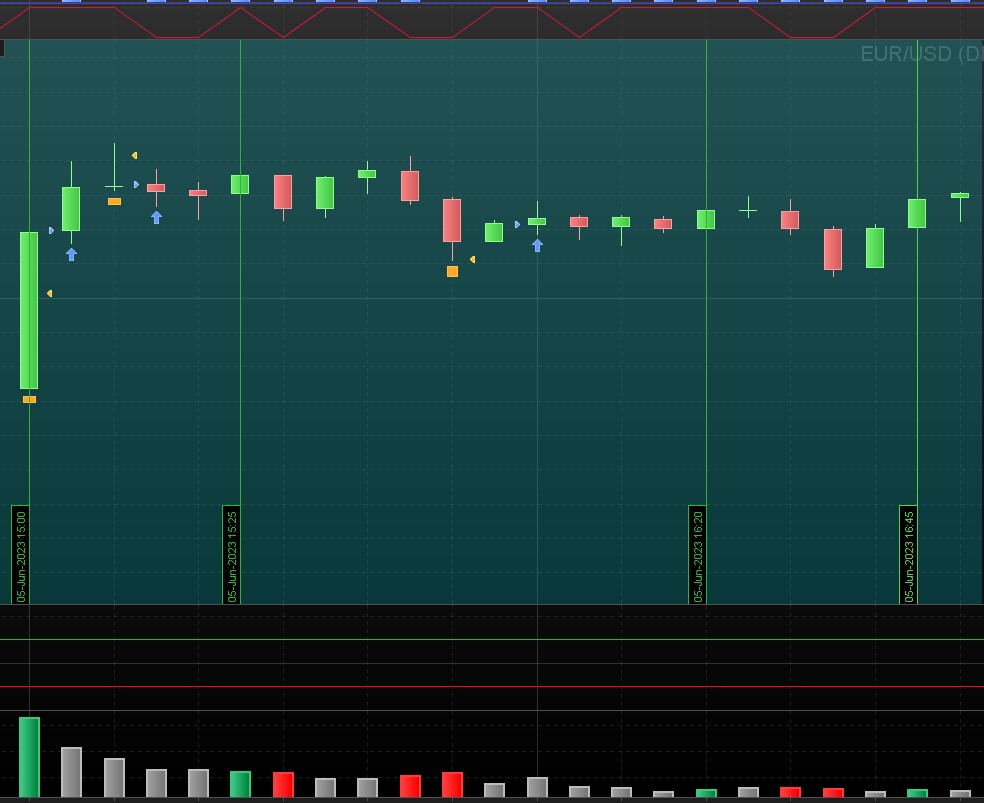

    Tried code on it’s own and I’m getting the same result. I have added green vertical lines to highlight where Red graph should allign with.
    DefParam CumulateOrders=False
Length=200
xRange=Range
RangeAvg=Average[Length](xRange)
VolumeAvg=Average[Length](Volume)
Divisor=1.5
High1=High[1]
Low1=Low[1]
Mid1=(High1+Low1)/2
u1=Mid1+(High1-Low1)/Divisor
d1=Mid1-(High1-Low1)/Divisor
REnabled1=(xRange>RangeAvg) and (Close<d1) and (Volume>VolumeAvg)
REnabled2=Close<Mid1
REnabled=REnabled1 or REnabled2
GEnabled1=Close>Mid1
GEnabled2=(xRange>RangeAvg) and (Close>u1) and (Volume>VolumeAvg)
GEnabled3=(High>High1) and (xRange<RangeAvg/1.5) and (Volume<VolumeAvg)
GEnabled4=(Low<Low1) and (xRange<RangeAvg/1.5) and (Volume>VolumeAvg)
GEnabled=GEnabled1 or GEnabled2 or GEnabled3 or GEnabled4
GREnabled1=(xRange>RangeAvg) and (Close>d1) and (Close<u1) and (Volume>VolumeAvg) and (Volume<VolumeAvg*1.5) and (Volume>Volume[1])
GREnabled2=(xRange<RangeAvg/1.5) and (Volume<VolumeAvg/1.5)
GREnabled3=(Close>d1) and (Close<u1)
GREnabled=GREnabled1 or GREnabled2 or GREnabled3

If GEnabled then
Buy 1 contract at Market
EndIf

// Stops and targets
SET STOP pLOSS 11
SET TARGET pPROFIT 11

graph GEnabled coloured(220,20,60) //RED
    07/30/2023 at 11:55 AM #218321 quote
    JS
    Participant
    Senior

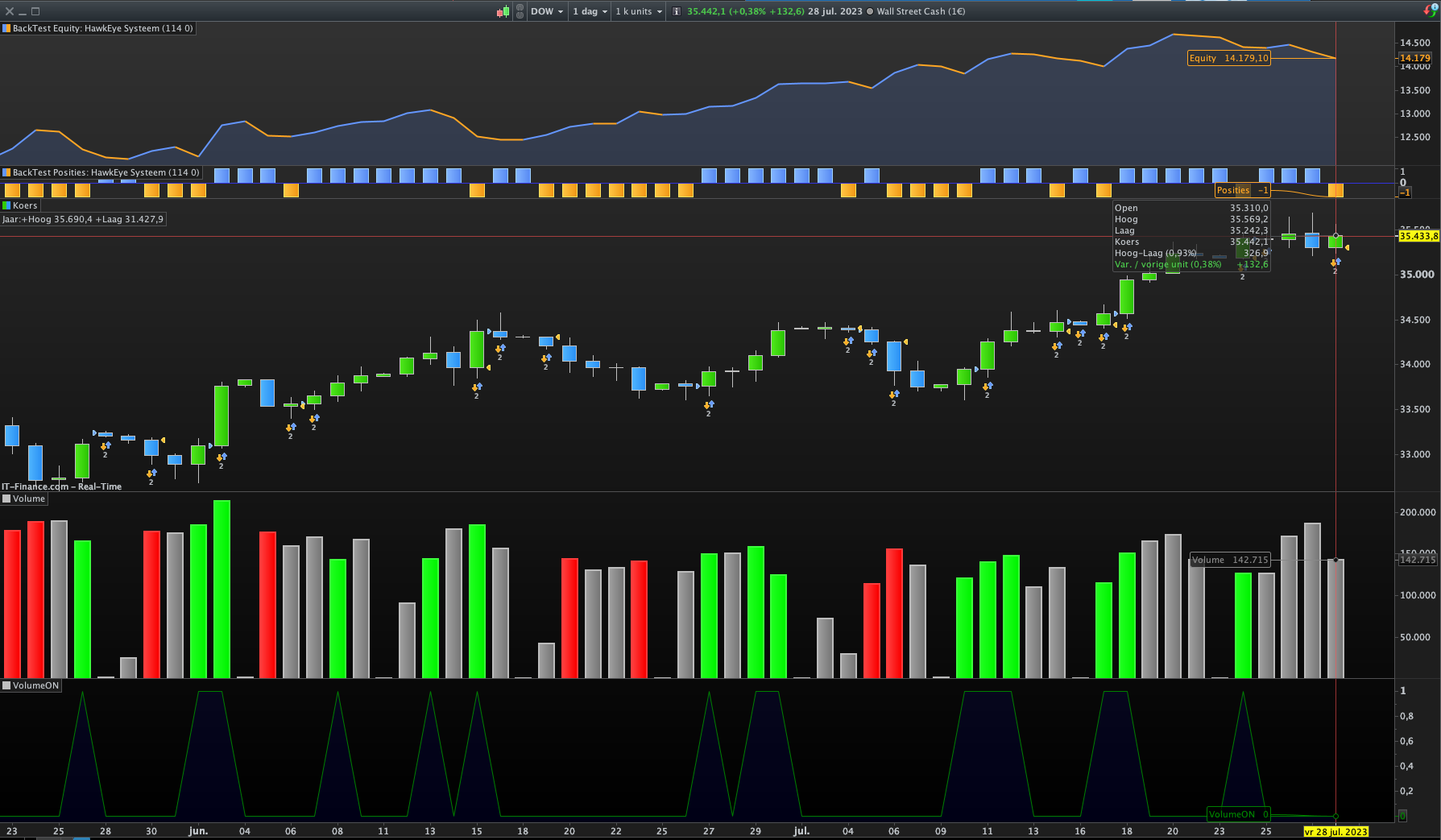

    Hi SVK, Strange, I think it’s because there’s an overlap between the different conditions… When you try like this you get the right result…
    //Volume
Length=200
xRange=Range
RangeAvg=Average[Length](xRange)
VolumeAvg=Average[Length](Volume)
Divisor=1.5
High1=High[1]
Low1=Low[1]
Mid1=(High1+Low1)/2
u1=Mid1+(High1-Low1)/Divisor
d1=Mid1-(High1-Low1)/Divisor
REnabled1=(xRange>RangeAvg) and (Close<d1) and (Volume>VolumeAvg)
REnabled2=Close<Mid1
REnabled=REnabled1 or REnabled2
GEnabled1=Close>Mid1
GEnabled2=(xRange>RangeAvg) and (Close>u1) and (Volume>VolumeAvg)
GEnabled3=(High>High1) and (xRange<RangeAvg/1.5) and (Volume<VolumeAvg)
GEnabled4=(Low<Low1) and (xRange<RangeAvg/1.5) and (Volume>VolumeAvg)
GEnabled=GEnabled1 or GEnabled2 or GEnabled3 or GEnabled4
GREnabled1=(xRange>RangeAvg) and (Close>d1) and (Close<u1) and (Volume>VolumeAvg) and (Volume<VolumeAvg*1.5) and (Volume>Volume[1])
GREnabled2=(xRange<RangeAvg/1.5) and (Volume<VolumeAvg/1.5)
GREnabled3=(Close>d1) and (Close<u1)
GREnabled=GREnabled1 or GREnabled2 or GREnabled3

IF GEnabled and NOT REnabled and NOT GREnabled then
VolumeON = 1
ELSE
VolumeON = 0
ENDIF

Return VolumeOn as "VolumeON" Coloured("Green")
    coincatcha thanked this post
    07/30/2023 at 12:13 PM #218323 quote
    SVK
    Participant
    Junior
    Hi LS, Let me try 🙂
    07/30/2023 at 6:59 PM #218337 quote
    SVK
    Participant
    Junior
    JS, looks good to me 🙂 Thank you very much
    JS thanked this post
