question about drawing arrows from conditions?

• 01/29/2019 at 12:32 PM #89927
  Scubatron5000

  Hey

  I am playing about trying to write some simple code. I want to have a arrow up below the candle on the chart when Close > Close[1]And (Close > High[1]) and a arrow down when Close < Close[1] And (Close < Low[1]) but I want to write the code so it does not keep printing arrows on subsequent candles as price rises or falls but I honestly can’t seem to get it to work. I just want to pick up the swings at top and bottom according to the rules above. I am sure this is a really basic thing to ask but if someone could show me how you would write this I would be so grateful.

  Thank you for any help you can give me.

  You guys are the best



  Steve



  Scubatron5000

  Participant

  Topics: 2

  Replies: 6

  Been thanked: 0 times
  01/29/2019 at 12:56 PM #89931
  robertogozzi

  I moved your topic to the english forum.

  There you go:

  DEFPARAM CalculateOnLastBars = 100 Offset = 5 * pipsize //distance from low/high to plot arrow IF close > high[1] THEN //which is also > close[1] DRAWARROWUP(barindex,low - Offset) COLOURED(0,128,0,255) ENDIF IF close < low[1] THEN //which is also < close[1] DRAWARROWDOWN(barindex,high + Offset) COLOURED(255,0,0,255) ENDIF RETURN

  1 2 3 4 5 6 7 8 9

  DEFPARAM CalculateOnLastBars = 100 Offset = 5 * pipsize                              //distance from low/high to plot arrow IF close > high[1] THEN                           //which is also > close[1]    DRAWARROWUP(barindex,low - Offset) COLOURED(0,128,0,255) ENDIF IF close < low[1] THEN                            //which is also < close[1]    DRAWARROWDOWN(barindex,high + Offset) COLOURED(255,0,0,255) ENDIF RETURN



  1 user thanked author for this post.

  Scubatron5000



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17087

  Been thanked: 4005 times
  01/29/2019 at 1:15 PM #89933
  Scubatron5000

  Ah wow so I even posted in the wrong part of the forum!!

  You are probably wondering how I even managed to turn my computer on!



  Thank you for the quick reply and the help



  I actually managed to write something similar to the above but what I was meaning was I did not want the arrows to keep printing on the subsequent candles I don’t think I explained myself properly.

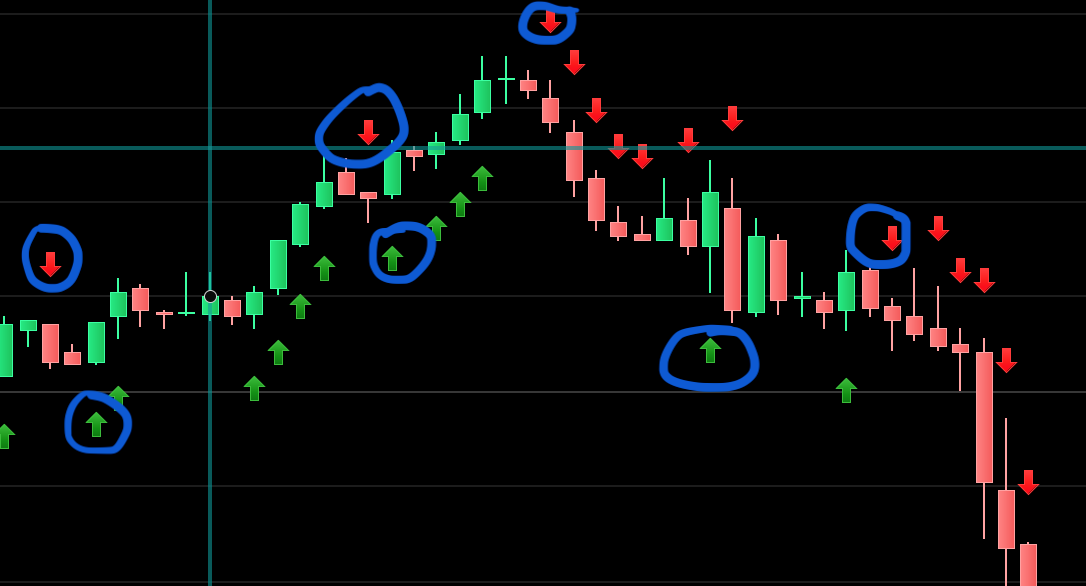

  So it would look something like the picture attached only drawing the arrows circled and not the ones in between. Hopefully this makes sense



  Thanks again for your help

  Steve



  Scubatron5000

  Participant

  Topics: 2

  Replies: 6

  Been thanked: 0 times
  01/29/2019 at 1:49 PM #89938
  Nicolas

  • For a new topic, your title should be explicit enough to prompt the community to read your discussion.

  “noob question” is not an appropriate title. It will not help any members to find relevant topics for their questions in the future.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  01/29/2019 at 2:03 PM #89940
  robertogozzi

  You just have to let me know the features  the circled candkesticks have to tell them from those not circled.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17087

  Been thanked: 4005 times
  01/29/2019 at 2:38 PM #89944
  Scubatron5000

  Oh sorry Nicolas I did not mean to cause any problems.

  So what I mean is the circled candle is the first candle that close is greater than the last candles high or a close is lower than the last candles low.

  Hopefully that makes sense, sorry for the confusion.



  Steve



  Scubatron5000

  Participant

  Topics: 2

  Replies: 6

  Been thanked: 0 times
  01/29/2019 at 3:28 PM #89950
  robertogozzi

  There you go, you can set Offset and LookBack to whatever value suits you best:

  DEFPARAM CalculateOnLastBars = 100 Offset = 5 * pipsize //distance from low/high to plot arrow LookBack = 15 //number of bars to scan to make sure it's the most recent low/high IF close > highest[LoookBack](high[1]) THEN DRAWARROWUP(barindex,low - Offset) COLOURED(0,128,0,255) ENDIF IF close < lowest[LoookBack](low[1]) THEN DRAWARROWDOWN(barindex,high + Offset) COLOURED(255,0,0,255) ENDIF RETURN

  1 2 3 4 5 6 7 8 9 10

  DEFPARAM CalculateOnLastBars = 100 Offset   = 5 * pipsize                            //distance from low/high to plot arrow LookBack = 15                                     //number of bars to scan to make sure it's the most recent low/high IF close > highest[LoookBack](high[1]) THEN    DRAWARROWUP(barindex,low - Offset) COLOURED(0,128,0,255) ENDIF IF close < lowest[LoookBack](low[1]) THEN    DRAWARROWDOWN(barindex,high + Offset) COLOURED(255,0,0,255) ENDIF RETURN



  2 users thanked author for this post.

  Nicolas, Scubatron5000



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17087

  Been thanked: 4005 times
  01/29/2019 at 3:46 PM #89957
  Scubatron5000

  Ah mate thank you so much.



  I was really struggling with this. Thank you for your help and all you patience



  All the best



  Steve





  Scubatron5000

  Participant

  Topics: 2

  Replies: 6

  Been thanked: 0 times
