PIVOT lines drawn into the future (v11 only)

• 03/30/2020 at 11:43 AM #123922
  robertogozzi

  Recently PRT introduced, along with version 11, new options to use graphic drawing tools to plot into future bars, a long awaited feature.

  The easiest way is to simply add an offset to BarIndex, such as BarIndex + 5.

  There are time, though, when you don’t know the correct value of that BarIndex number. Here comes in handy the new keyword DateToBarIndex(MyDate), to be used with graphic drawing instructions. PRT’s engine will calculate the correct BarIndex number to be used. It’s very useful if you need to draw segments from, say, the beginning of the day through the end of the day. Some instruments trade 24 hours, other less. You don’t have to care about this, the new keyword will!

  More at https://www.prorealcode.com/documentation/datetobarindex/.

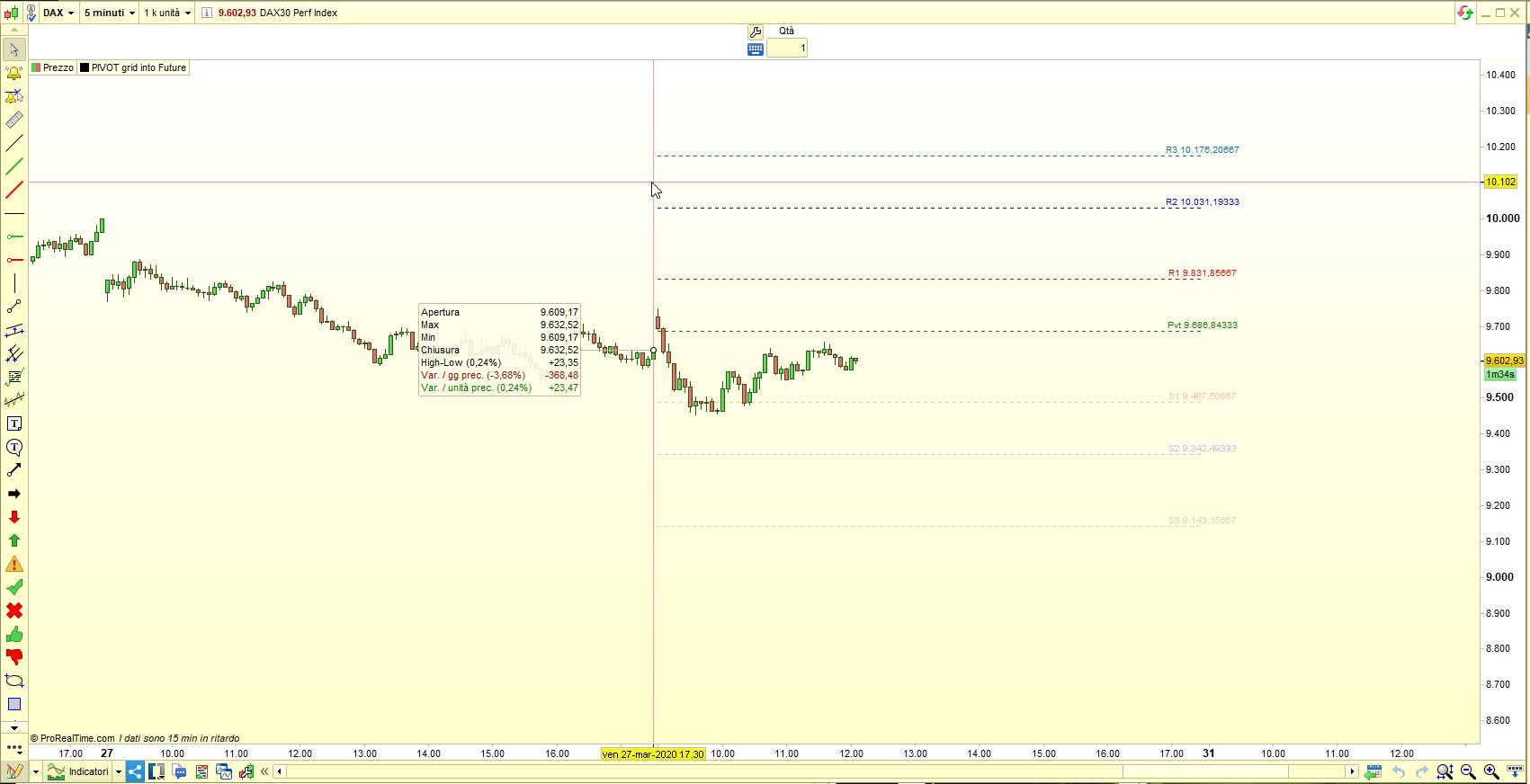

  This is an example on how to use it. It plots Pivot lines at the beginning of each day, through the end of the day:

  DEFPARAM DrawOnLastBarOnly = true // IF OpenDay <> OpenDay[1] THEN // Pips = 20 * pipsize StartBar = BarIndex // // PredeEndDated PRT calculation (H+L+C)/3 Pivt = (DHigh(1) + DLow(1) + DClose(1))/3 // - Pivot Res3 = DHigh(1)+(2*(Pivt-DLow(1))) //Res3 Res2 = Pivt+(DHigh(1)-DLow(1)) //Res2 Res1 = (2*Pivt) - DLow(1) //Res1 Sup1 = (2*Pivt) - DHigh(1) //Sup1 Sup2 = Pivt-(DHigh(1)-DLow(1)) //Sup2 Sup3 = DLow(1)-(2*(DHigh(1)-Pivt)) //Sup3 // MyYear = OpenYear MyMonth = OpenMonth MyDay = OpenDay // pack Year, Month and Day into YYYYMMDD MyDate = (MyYear * 10000000000) + (MyMonth * 100000000) + (MyDay * 1000000) // add HHMMSS EndDate = MyDate + (23 * 10000) + (0 * 100) + 0 ENDIF // plot Pivot at (unknown)barindex of date YYYYMMMDDHHMMSS DRAWSEGMENT(StartBar,Pivt,DateToBarIndex(EndDate),Pivt) coloured(0,128,0,255) STYLE(dottedline,1) DRAWTEXT("Pvt #Pivt#",DateToBarIndex(EndDate),Pivt+Pips) coloured(0,128,0,255) // plot Resistance levels DRAWSEGMENT(StartBar,Res1,DateToBarIndex(EndDate),Res1) coloured(255,0,0,255) STYLE(dottedline,1) DRAWTEXT("R1 #Res1#",DateToBarIndex(EndDate),Res1+Pips) coloured(255,0,0,255) DRAWSEGMENT(StartBar,Res2,DateToBarIndex(EndDate),Res2) coloured(0,0,255,255) STYLE(dottedline,1) DRAWTEXT("R2 #Res2#",DateToBarIndex(EndDate),Res2+Pips) coloured(0,0,255,255) DRAWSEGMENT(StartBar,Res3,DateToBarIndex(EndDate),Res3) coloured(0,128,128,255) STYLE(dottedline,1) DRAWTEXT("R3 #Res3#",DateToBarIndex(EndDate),Res3+Pips) coloured(0,128,128,255) // plot Support levels DRAWSEGMENT(StartBar,Sup1,DateToBarIndex(EndDate),Sup1) coloured(255,0,0,64) STYLE(dottedline,1) DRAWTEXT("S1 #Sup1#",DateToBarIndex(EndDate),Sup1+Pips) coloured(255,0,0,64) DRAWSEGMENT(StartBar,Sup2,DateToBarIndex(EndDate),Sup2) coloured(0,0,255,64) STYLE(dottedline,1) DRAWTEXT("S2 #Sup2#",DateToBarIndex(EndDate),Sup2+Pips) coloured(0,0,255,64) DRAWSEGMENT(StartBar,Sup3,DateToBarIndex(EndDate),Sup3) coloured(0,128,128,64) STYLE(dottedline,1) DRAWTEXT("S3 #Sup3#",DateToBarIndex(EndDate),Sup3+Pips) coloured(0,128,128,64) RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

  DEFPARAM DrawOnLastBarOnly = true // IF OpenDay <> OpenDay[1] THEN    //    Pips     = 20 * pipsize    StartBar = BarIndex    //    // PredeEndDated PRT calculation  (H+L+C)/3    Pivt     = (DHigh(1) + DLow(1) + DClose(1))/3                             // - Pivot    Res3     = DHigh(1)+(2*(Pivt-DLow(1)))                                    //Res3    Res2     = Pivt+(DHigh(1)-DLow(1))                                        //Res2    Res1     = (2*Pivt) - DLow(1)                                             //Res1    Sup1     = (2*Pivt) - DHigh(1)                                            //Sup1    Sup2     = Pivt-(DHigh(1)-DLow(1))                                        //Sup2    Sup3     = DLow(1)-(2*(DHigh(1)-Pivt))                                    //Sup3    //    MyYear   = OpenYear    MyMonth  = OpenMonth    MyDay    = OpenDay    // pack Year, Month and Day into YYYYMMDD    MyDate   = (MyYear * 10000000000) + (MyMonth * 100000000) + (MyDay * 1000000)    // add HHMMSS    EndDate  = MyDate  + (23 * 10000) + (0 * 100) + 0 ENDIF // plot Pivot  at  (unknown)barindex of date YYYYMMMDDHHMMSS DRAWSEGMENT(StartBar,Pivt,DateToBarIndex(EndDate),Pivt)  coloured(0,128,0,255)   STYLE(dottedline,1) DRAWTEXT("Pvt #Pivt#",DateToBarIndex(EndDate),Pivt+Pips) coloured(0,128,0,255) // plot Resistance levels DRAWSEGMENT(StartBar,Res1,DateToBarIndex(EndDate),Res1)  coloured(255,0,0,255)   STYLE(dottedline,1) DRAWTEXT("R1 #Res1#",DateToBarIndex(EndDate),Res1+Pips)  coloured(255,0,0,255) DRAWSEGMENT(StartBar,Res2,DateToBarIndex(EndDate),Res2)  coloured(0,0,255,255)   STYLE(dottedline,1) DRAWTEXT("R2 #Res2#",DateToBarIndex(EndDate),Res2+Pips)  coloured(0,0,255,255) DRAWSEGMENT(StartBar,Res3,DateToBarIndex(EndDate),Res3)  coloured(0,128,128,255) STYLE(dottedline,1) DRAWTEXT("R3 #Res3#",DateToBarIndex(EndDate),Res3+Pips)  coloured(0,128,128,255) // plot Support levels DRAWSEGMENT(StartBar,Sup1,DateToBarIndex(EndDate),Sup1)  coloured(255,0,0,64)    STYLE(dottedline,1) DRAWTEXT("S1 #Sup1#",DateToBarIndex(EndDate),Sup1+Pips)  coloured(255,0,0,64) DRAWSEGMENT(StartBar,Sup2,DateToBarIndex(EndDate),Sup2)  coloured(0,0,255,64)    STYLE(dottedline,1) DRAWTEXT("S2 #Sup2#",DateToBarIndex(EndDate),Sup2+Pips)  coloured(0,0,255,64) DRAWSEGMENT(StartBar,Sup3,DateToBarIndex(EndDate),Sup3)  coloured(0,128,128,64)  STYLE(dottedline,1) DRAWTEXT("S3 #Sup3#",DateToBarIndex(EndDate),Sup3+Pips)  coloured(0,128,128,64) RETURN



  1 user thanked author for this post.

  Nicolas



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17188

  Been thanked: 4064 times
  03/30/2020 at 11:56 AM #123934
  robertogozzi

  Example to pack single data into a YYYYMMDDHHMMSS date:

  YYYY = 2020 MM = 03 DD = 30 HH = 11 MM = 26 SS = 15 YYYY * 10000000000 = 20200000000000 + MM * 100000000 = 0300000000 + DD * 1000000 = 30000000 + HH * 10000 = 110000 + MM * 100 = 2600 + SS * 1 = 15 = -------------- 20200330112615 YYYYMMDDHHMMSS

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

  YYYY = 2020 MM   = 03 DD   = 30 HH   = 11 MM   = 26 SS   = 15   YYYY * 10000000000 = 20200000000000 + MM   *   100000000 =     0300000000 + DD   *     1000000 =       30000000 + HH   *       10000 =         110000 + MM   *         100 =           2600 + SS   *           1 =             15 =                      --------------                      20200330112615                      YYYYMMDDHHMMSS
